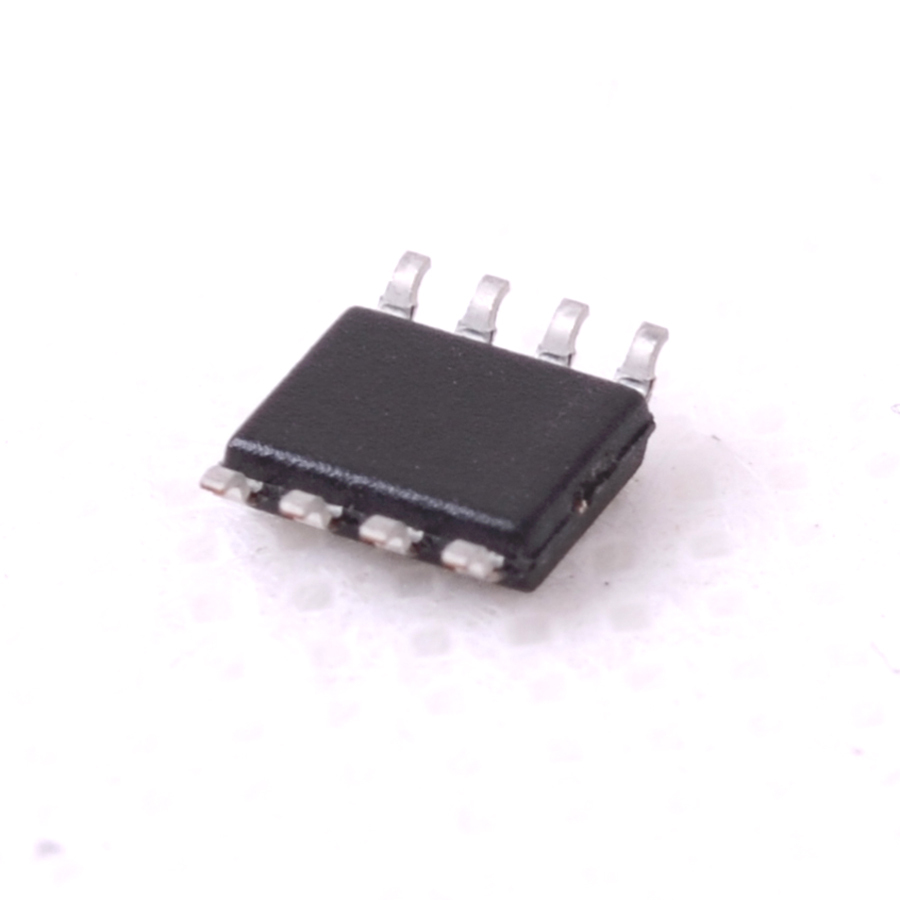

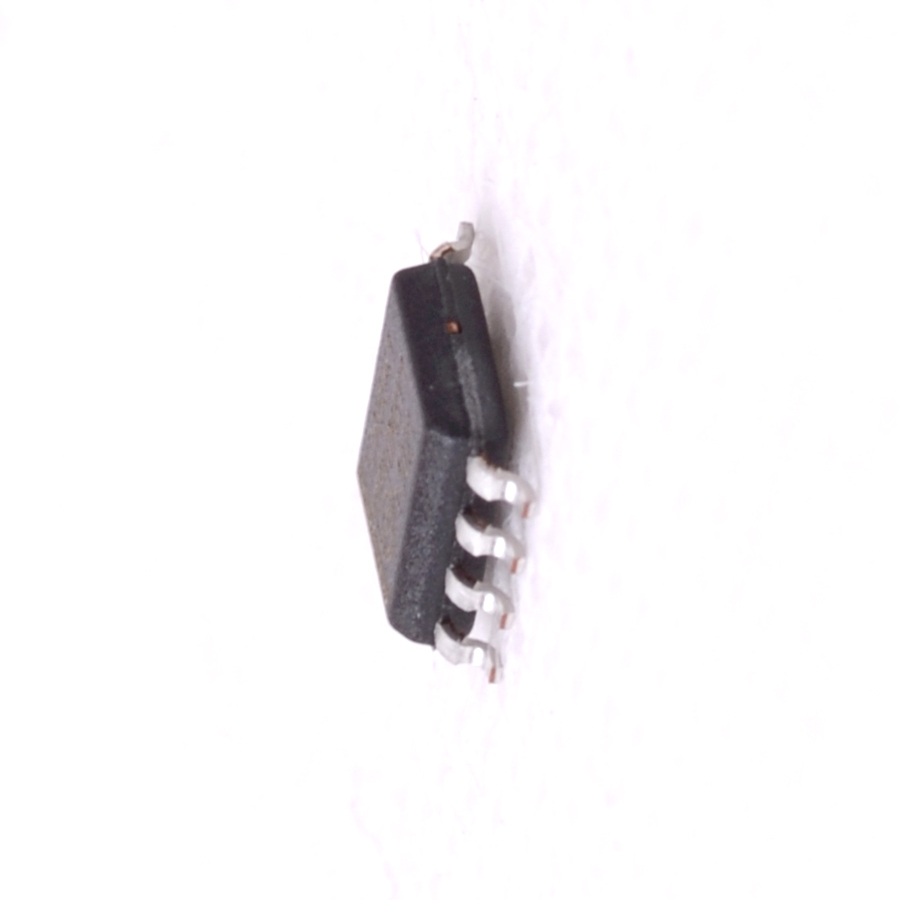

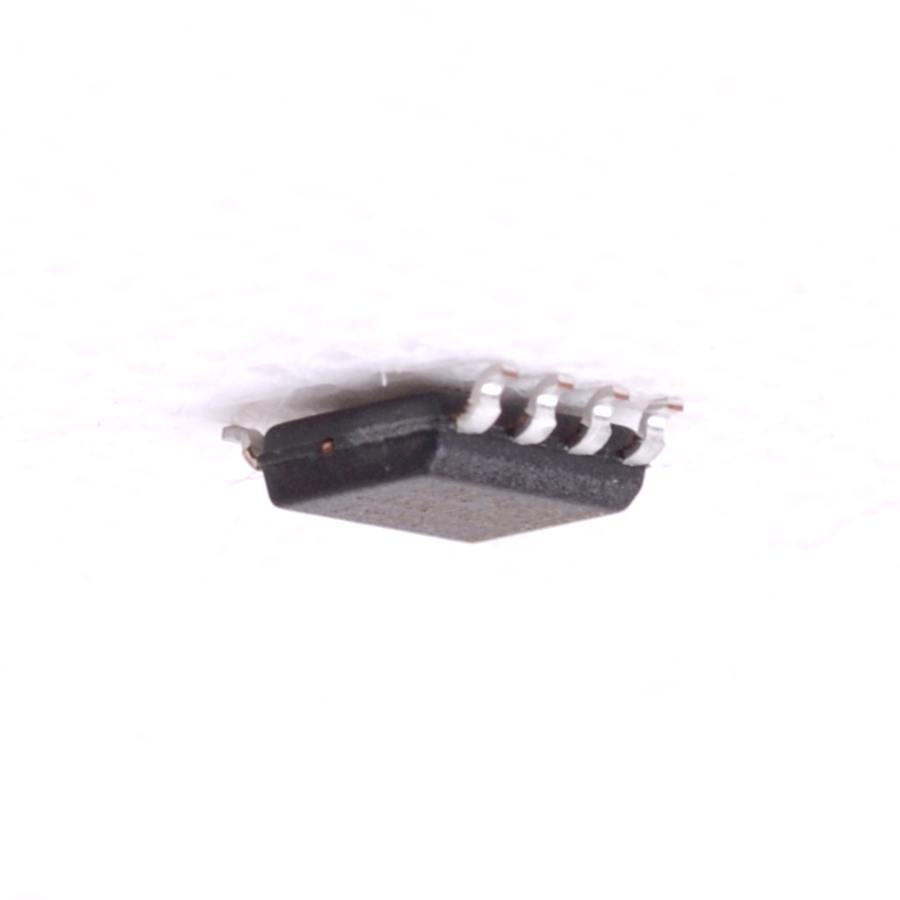

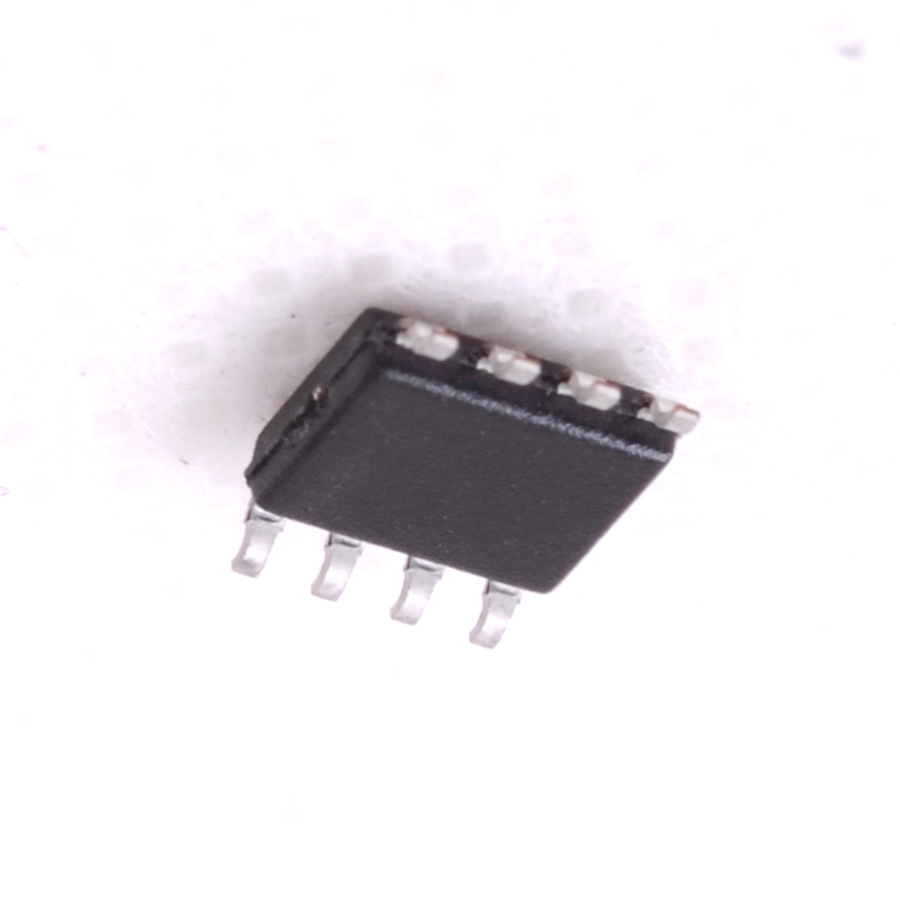

TLC548ID

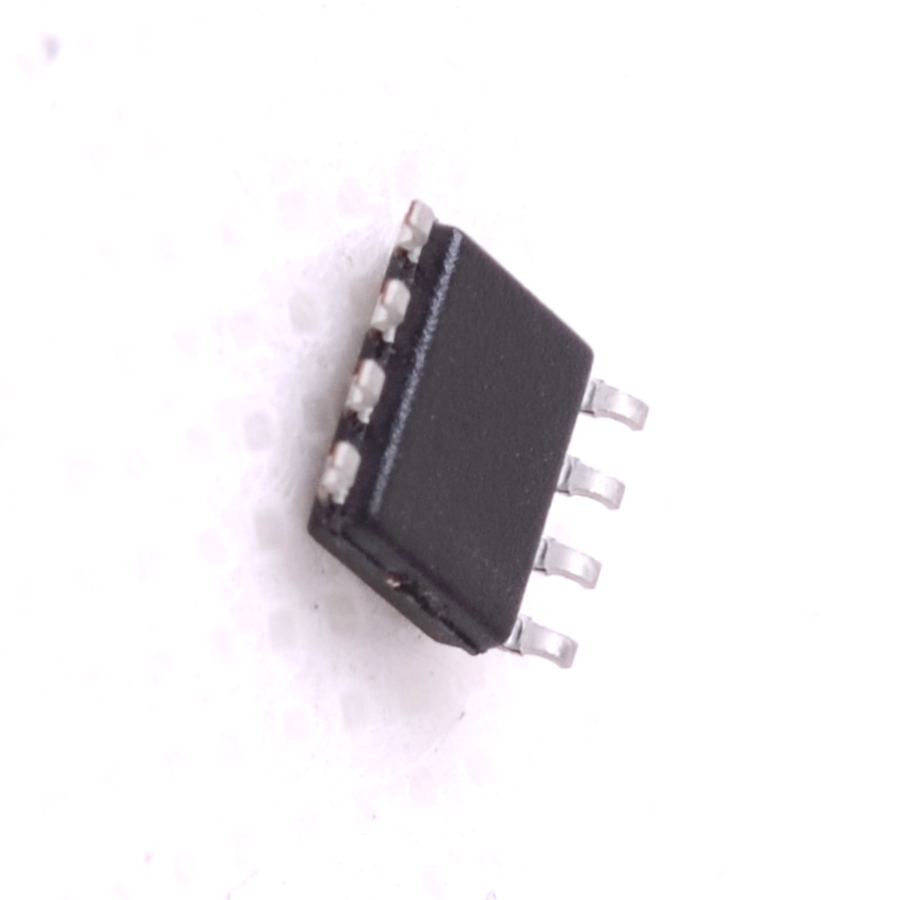

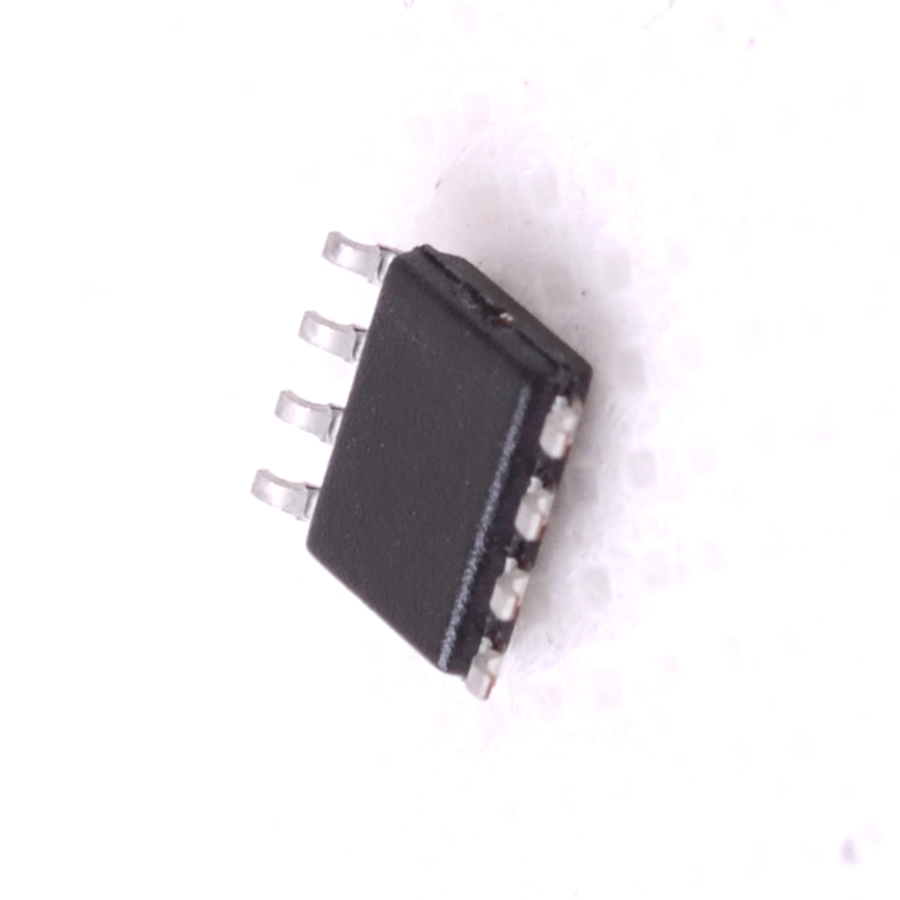

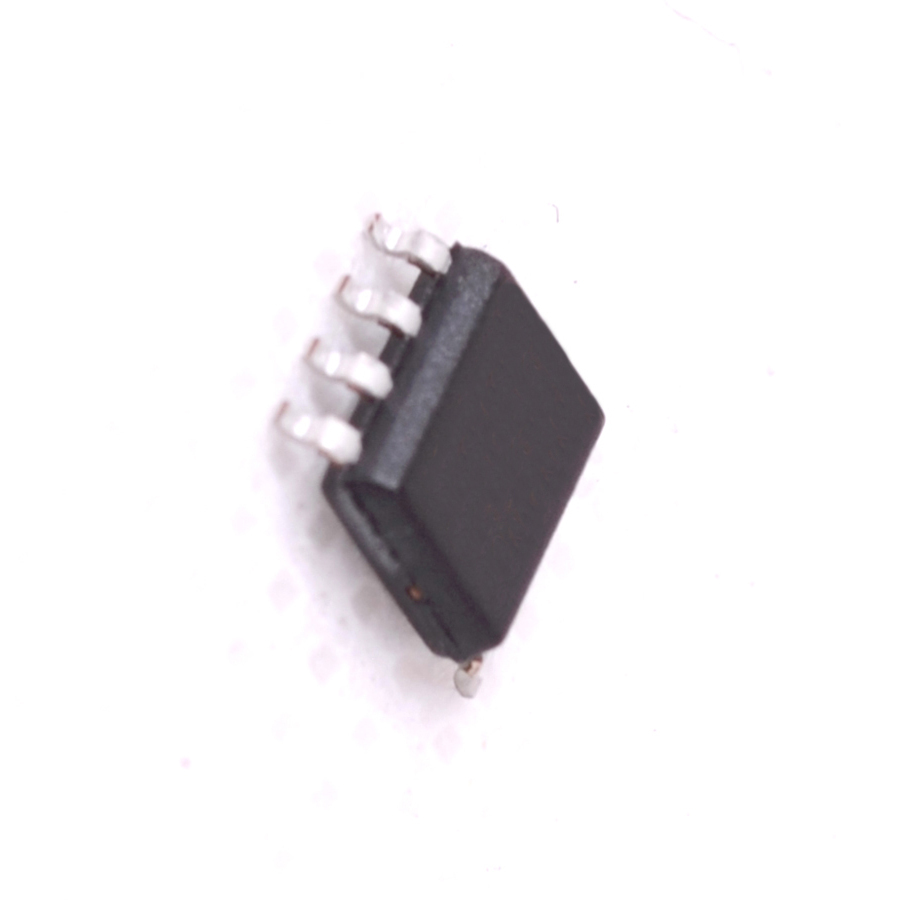

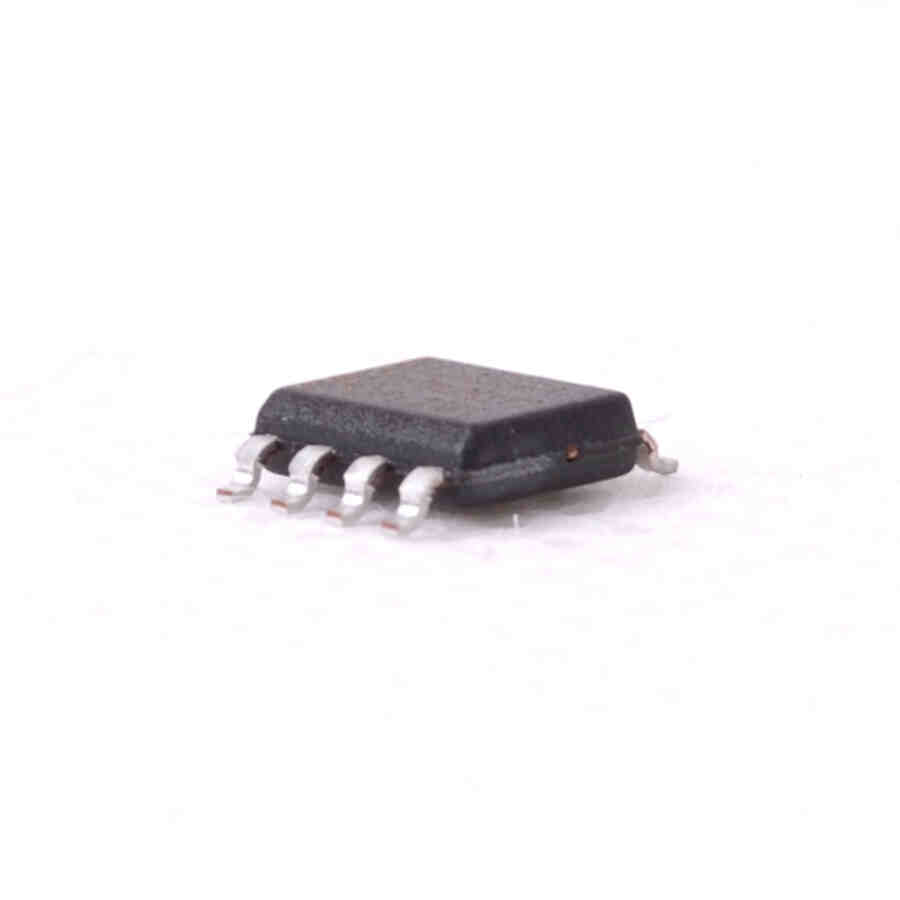

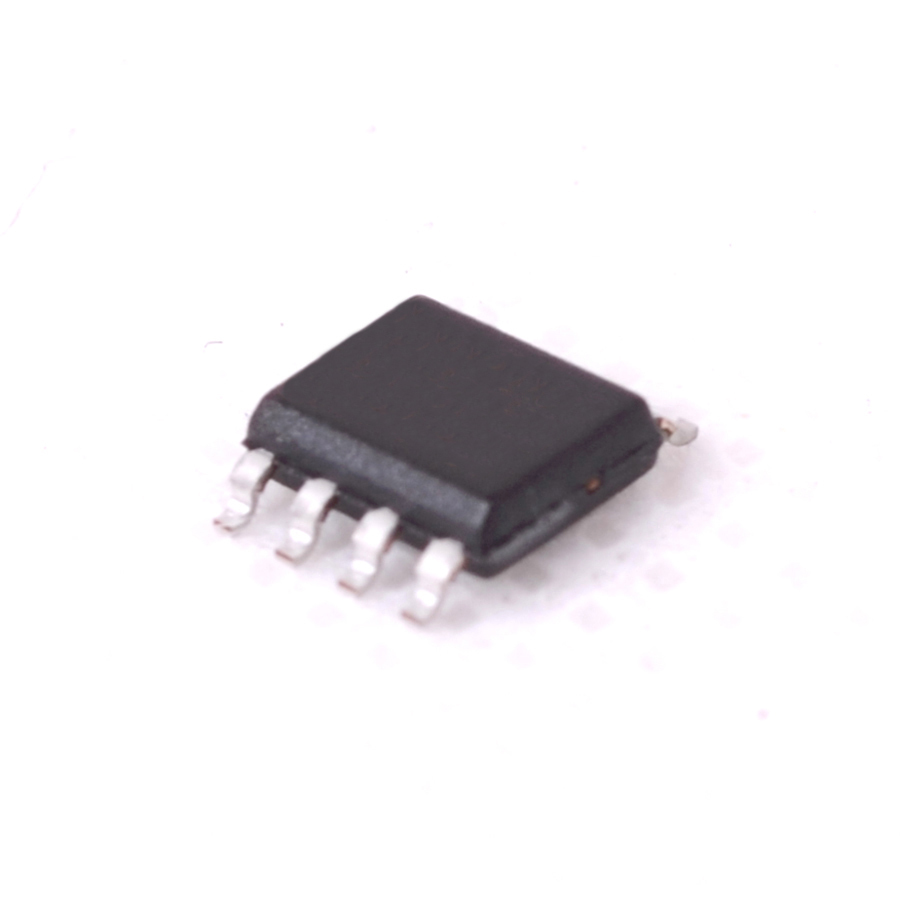

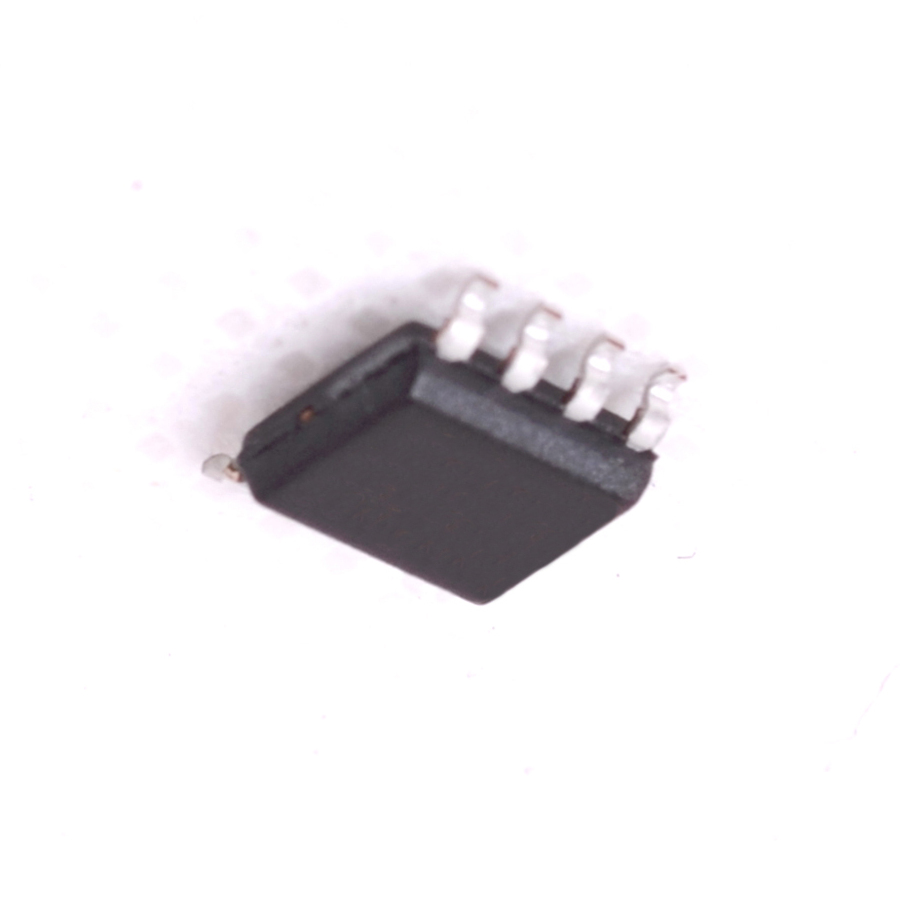

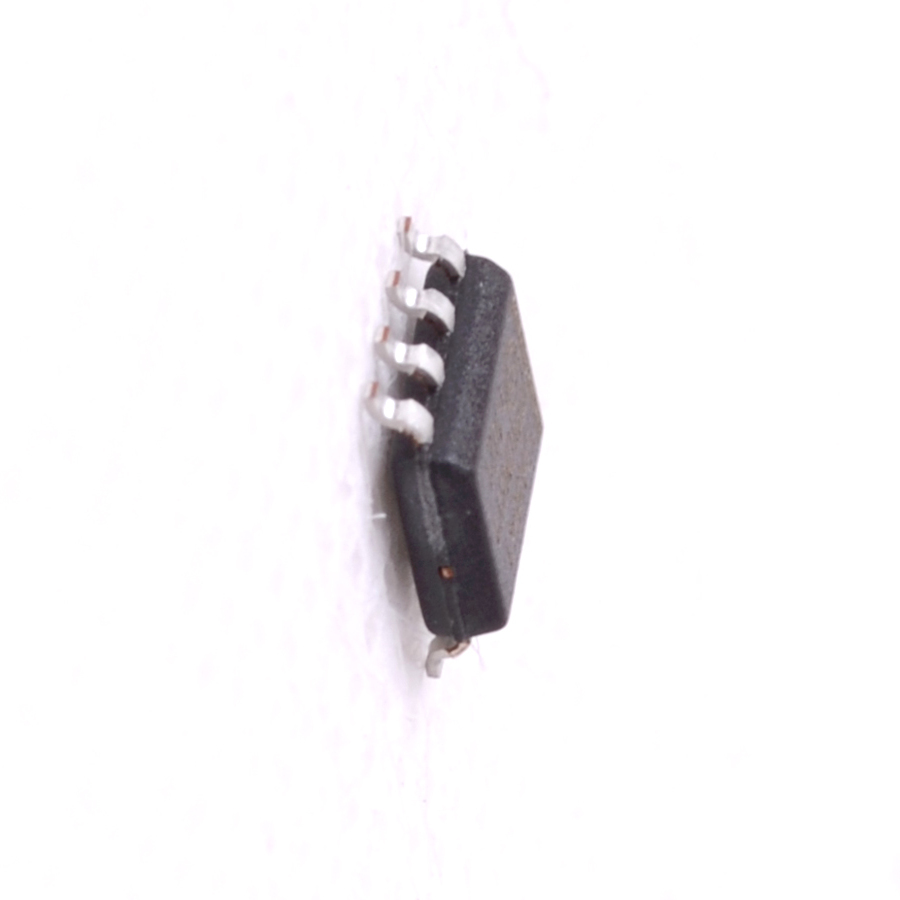

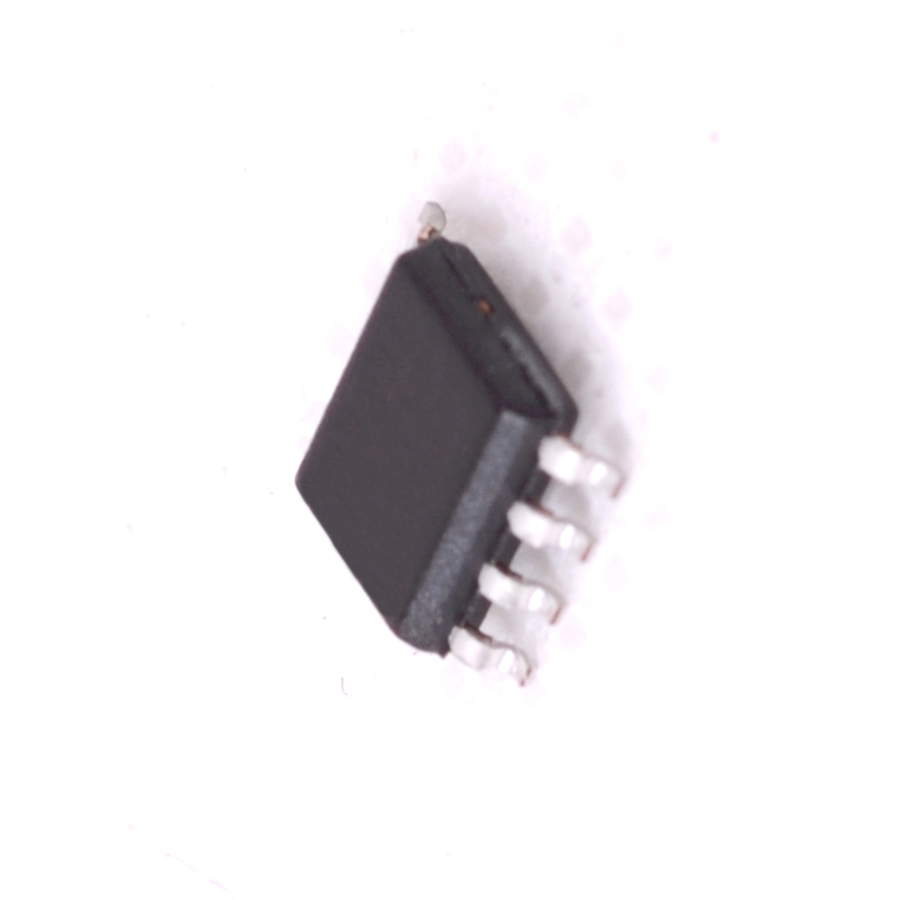

View detailed images (13)

TLC548ID

SKU: TLC548ID
TLC548ID SemiConductor CASE: SOP8 MAKE: Texas Instruments
+ VAT 20% for UK purchases
Product specifications
Type SemiConductor
Case SOP8
Manufacturer Texas Instruments
t(conv) (S) 17u
FSR Error (LSB/%) .50
Vin Range (Vp-p) 6.0
Outp Arith. Code A
VOH Min. 2.4
VOL Max. 0.4
Nom. Neg Supp 0.0
Nom. Pos. Supp 5.0
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
Volt or Cur. Mode Voltage
Logic Level Family TTL
Pinout Equivalence Number 8-101
No. of Pins 8
Surface Mounted Yes/No YES
SKU 521847
