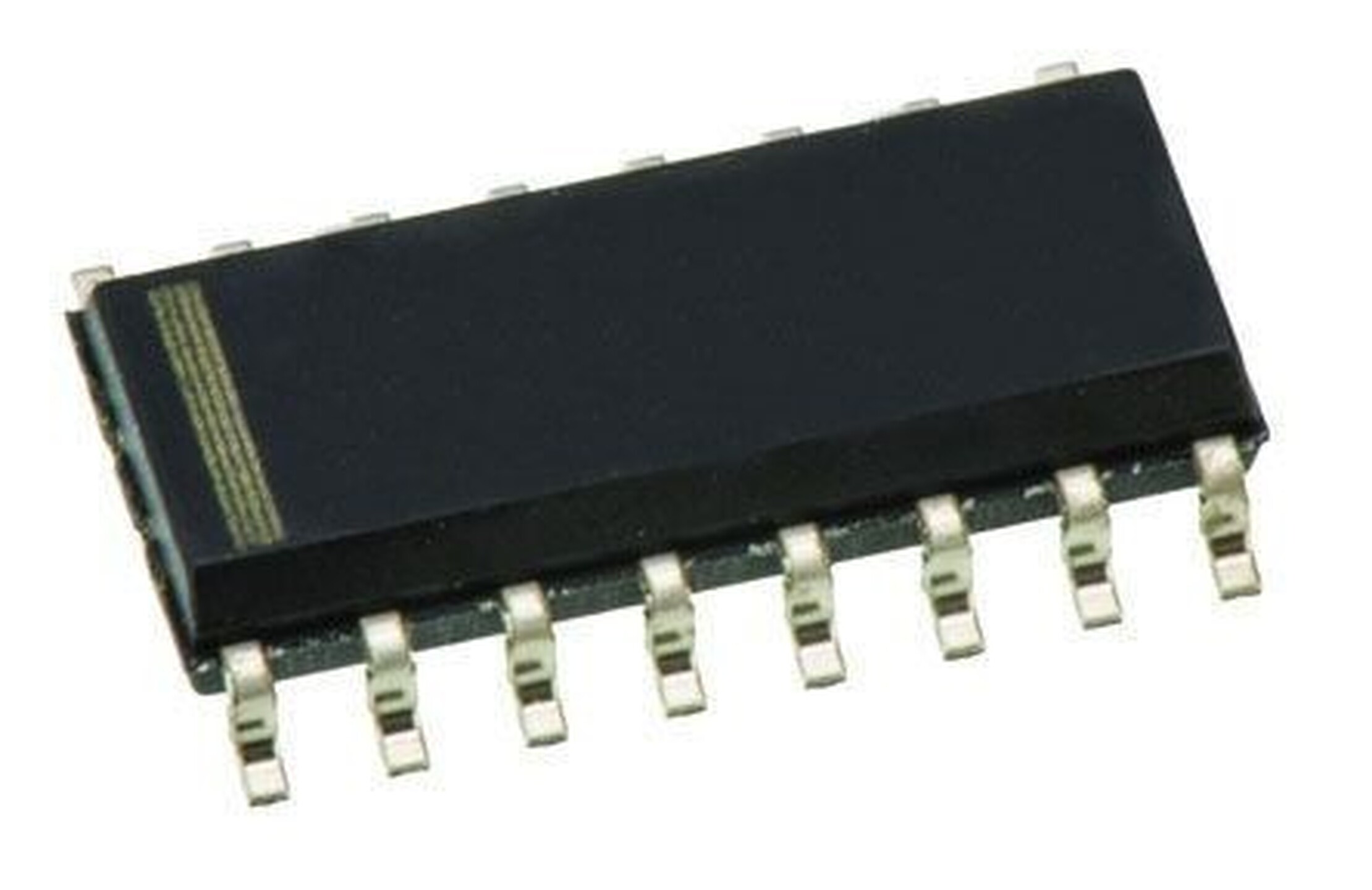

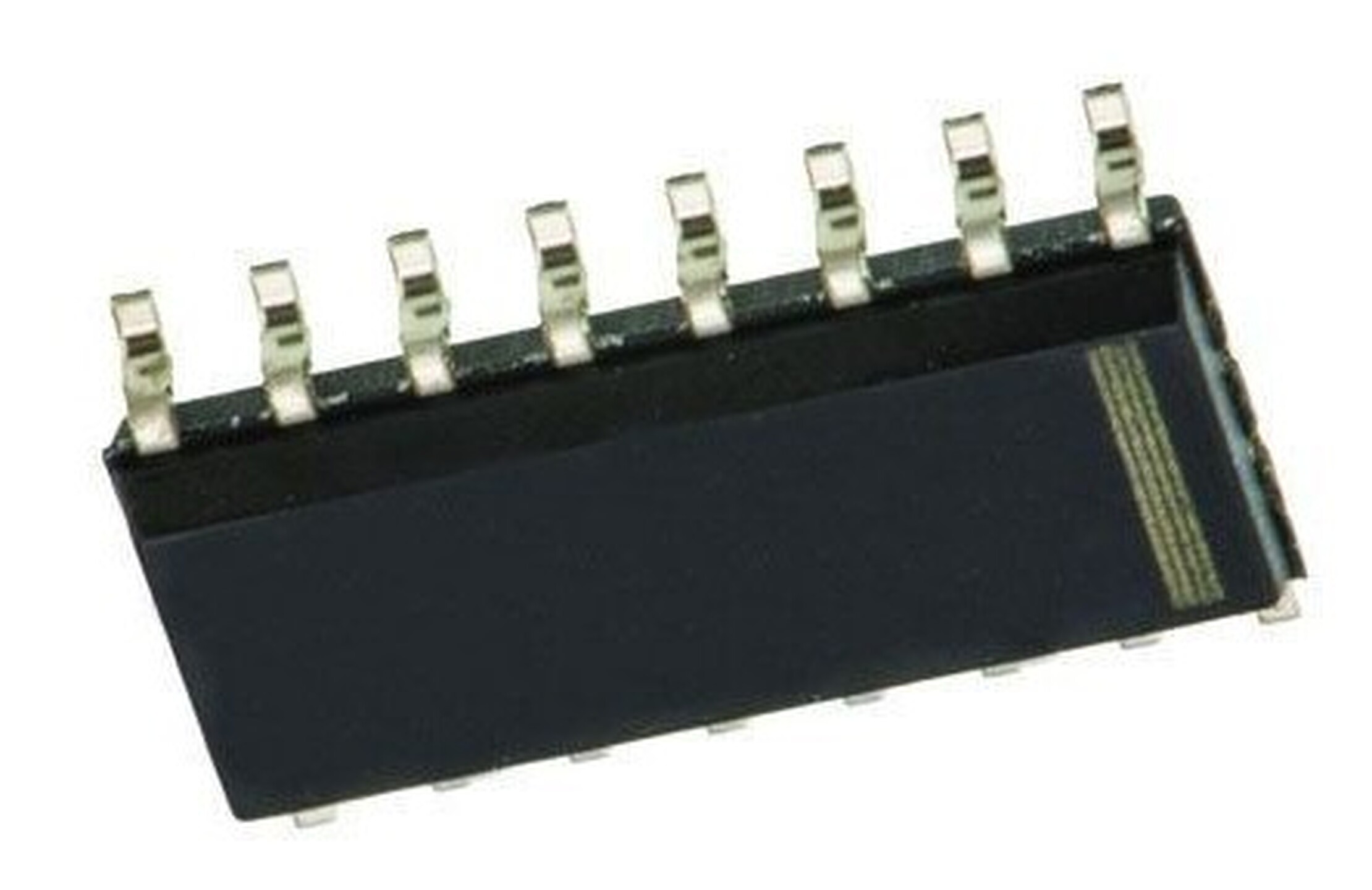

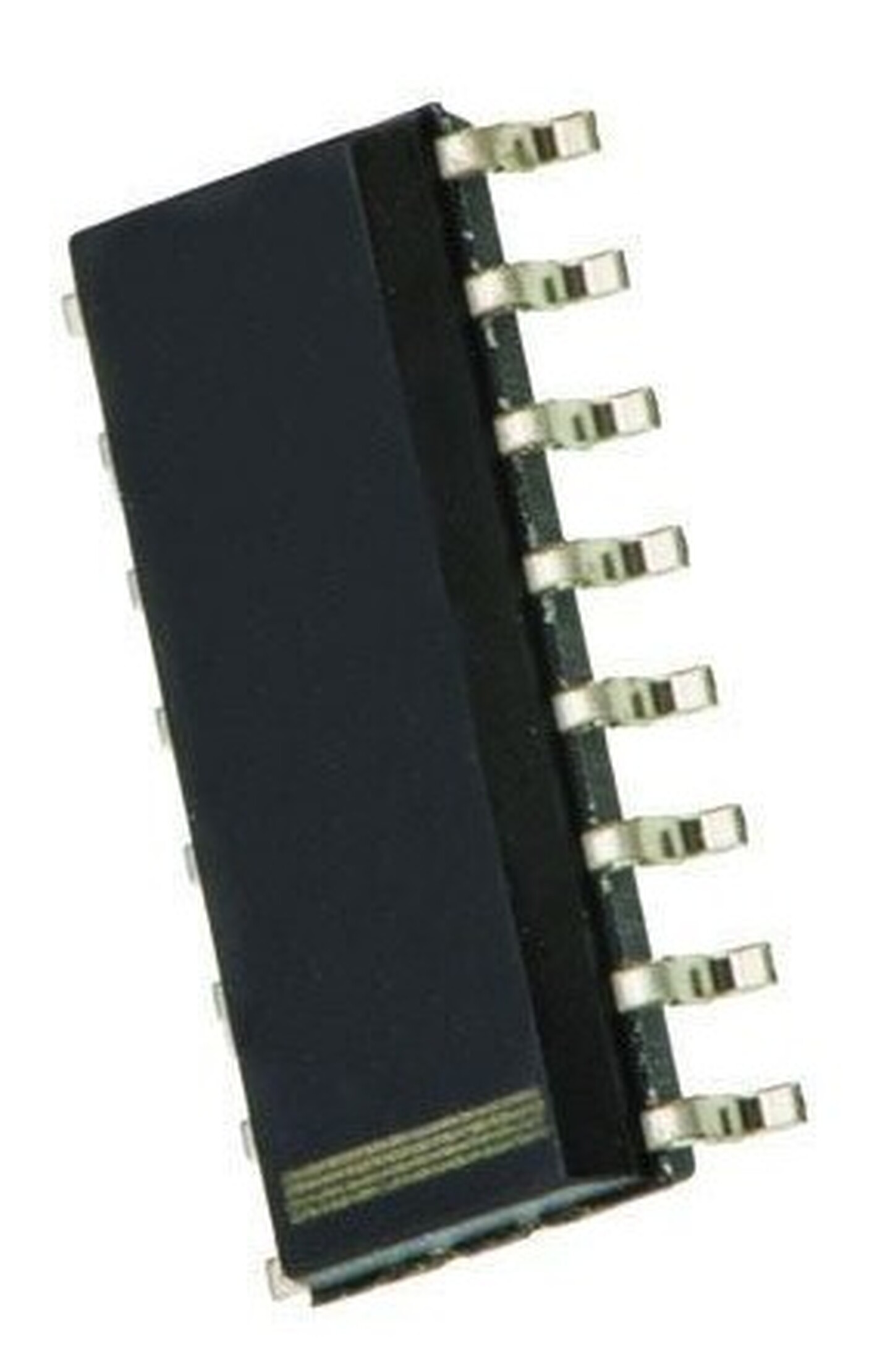

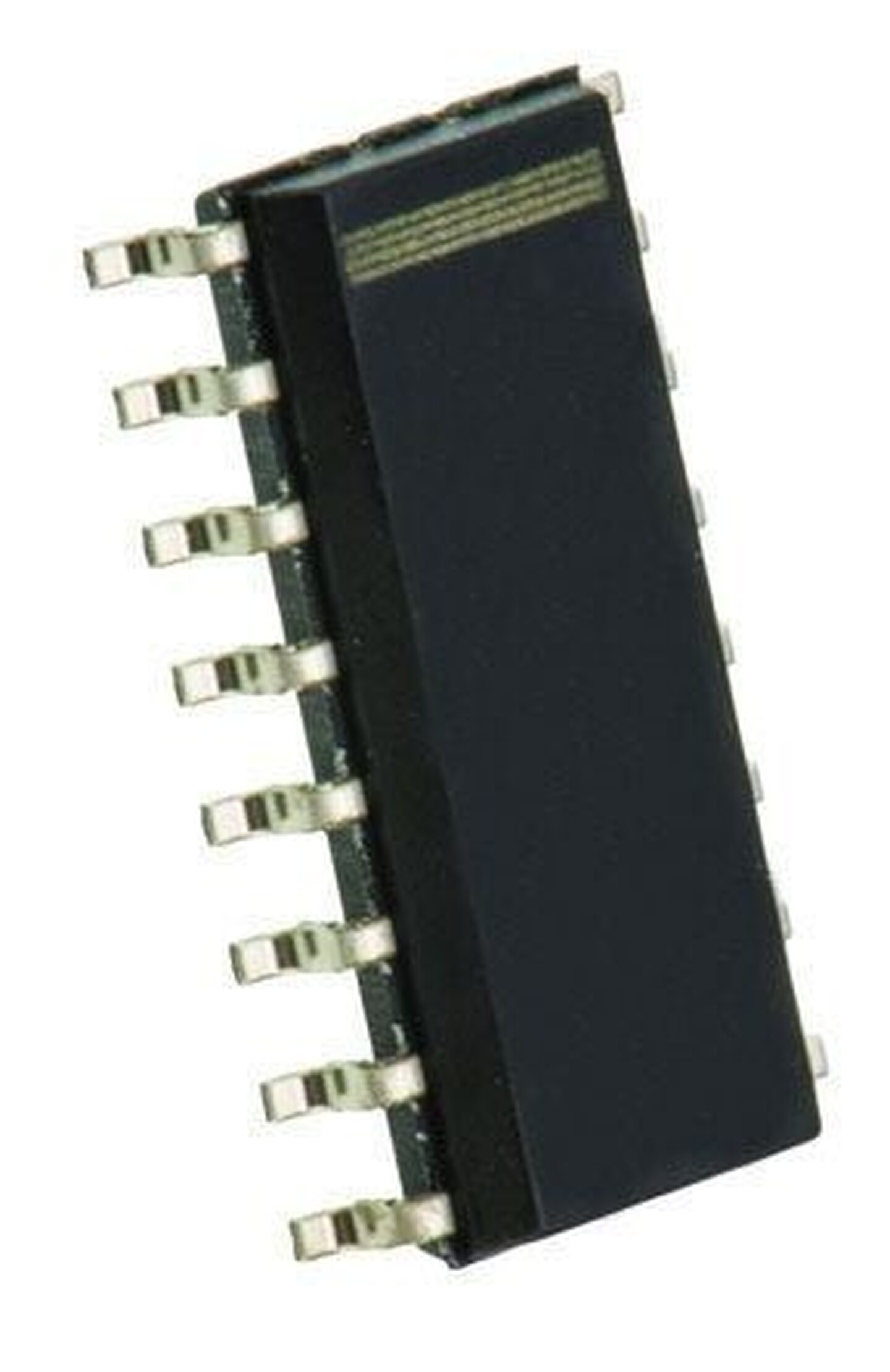

TLC7524ID

TLC7524ID

SKU: TLC7524ID
TLC7524ID Integrated Circuit CASE: SO MAKE: Texas Instruments
Product specifications
Type Integrated Circuit
Case SO
Manufacturer Texas Instruments
FSR Error (LSB/%) .50
Inp Arith. Code AC
Vih Min (V) 13.5
Vil Max. (V) 1.5
Nom. Pos. Supp 15
Settling Time (S) 100n
Tech. CMOS Integrated Circuit
Temp Drift Max. (ppm/°C) 4.0m
Oper. Temp (°C) Min -25
Oper. Temp (°C) Max. 85
@ Accuracy (% FSR) 0.5
Volt or Cur. Mode Current
Logic Level Family CMOS
Pinout Equivalence Number 16-241
Descript On-Chip Data Latches
Surface Mounted Yes/No YES
SKU 943181
