TMP47C242AN
View detailed images (13)

TMP47C242AN

SKU: TMP47C242AN

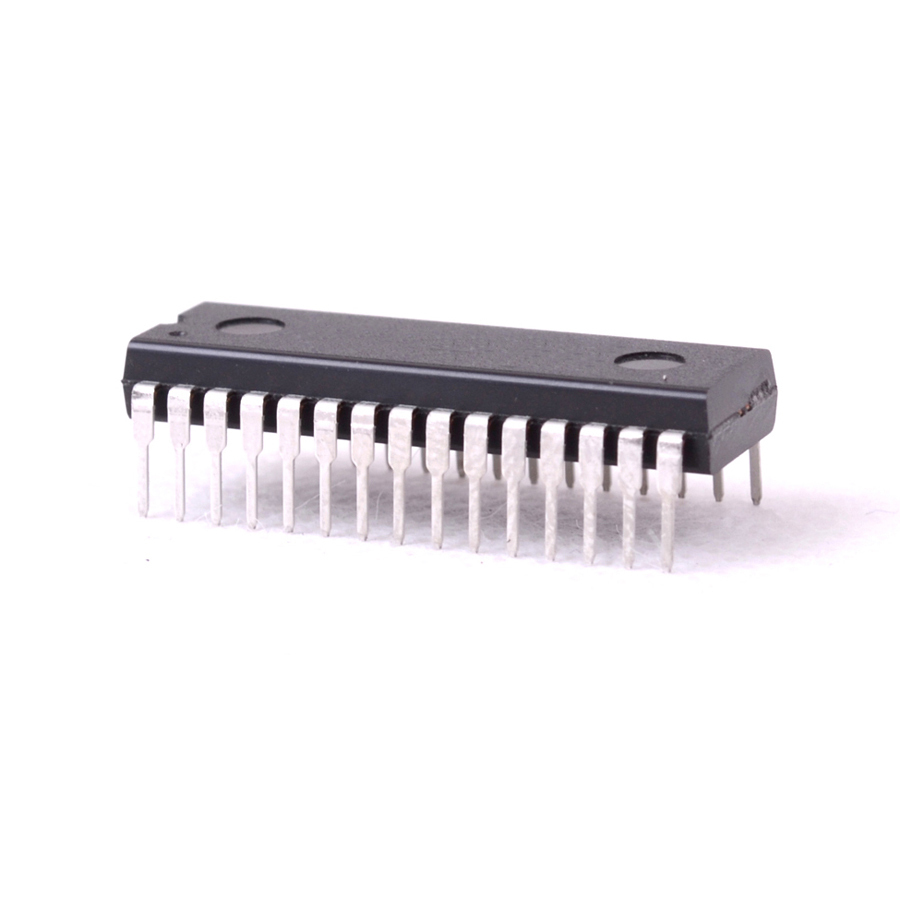

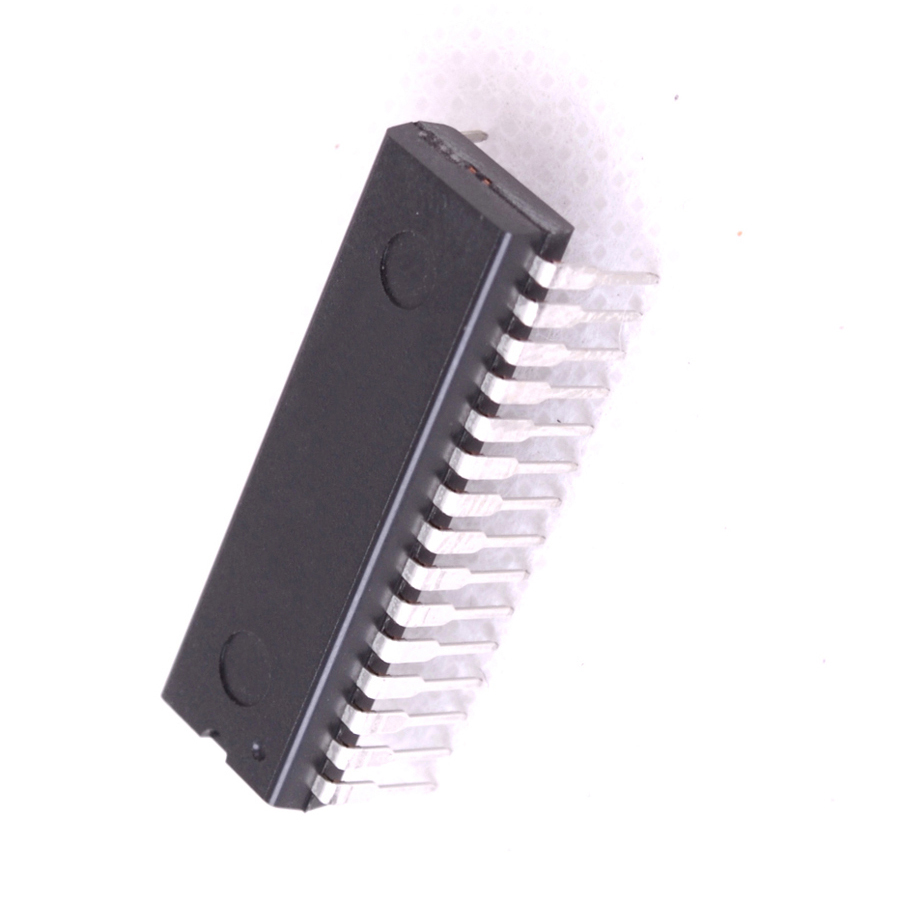

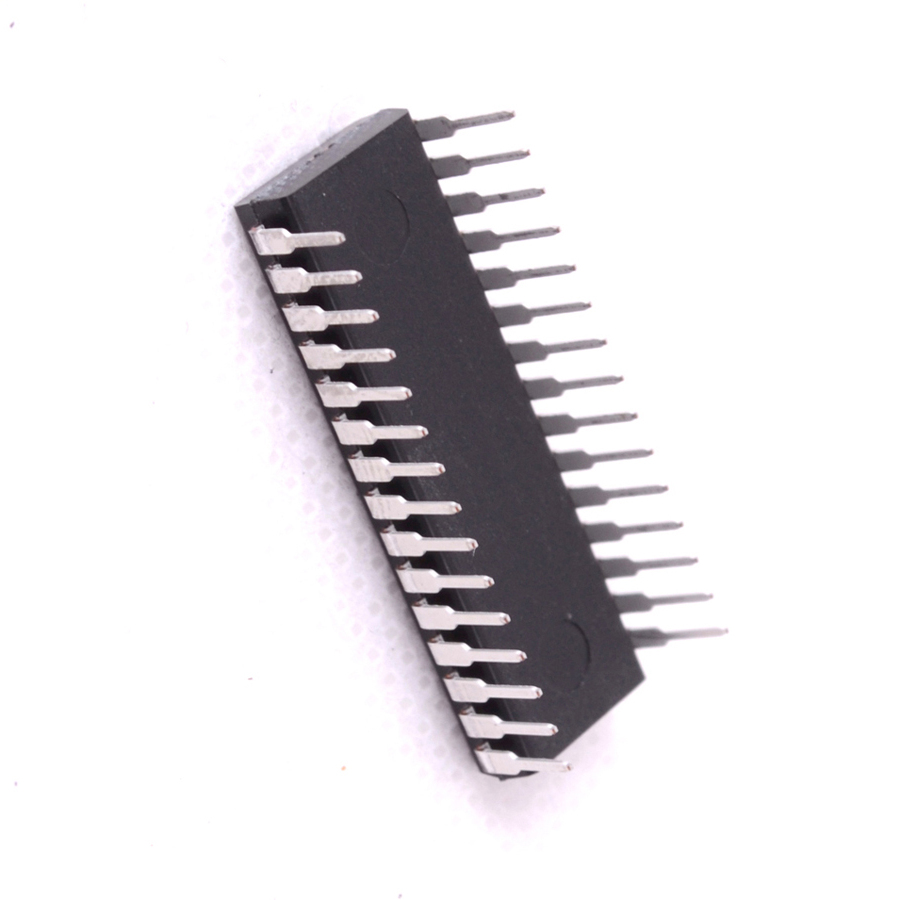

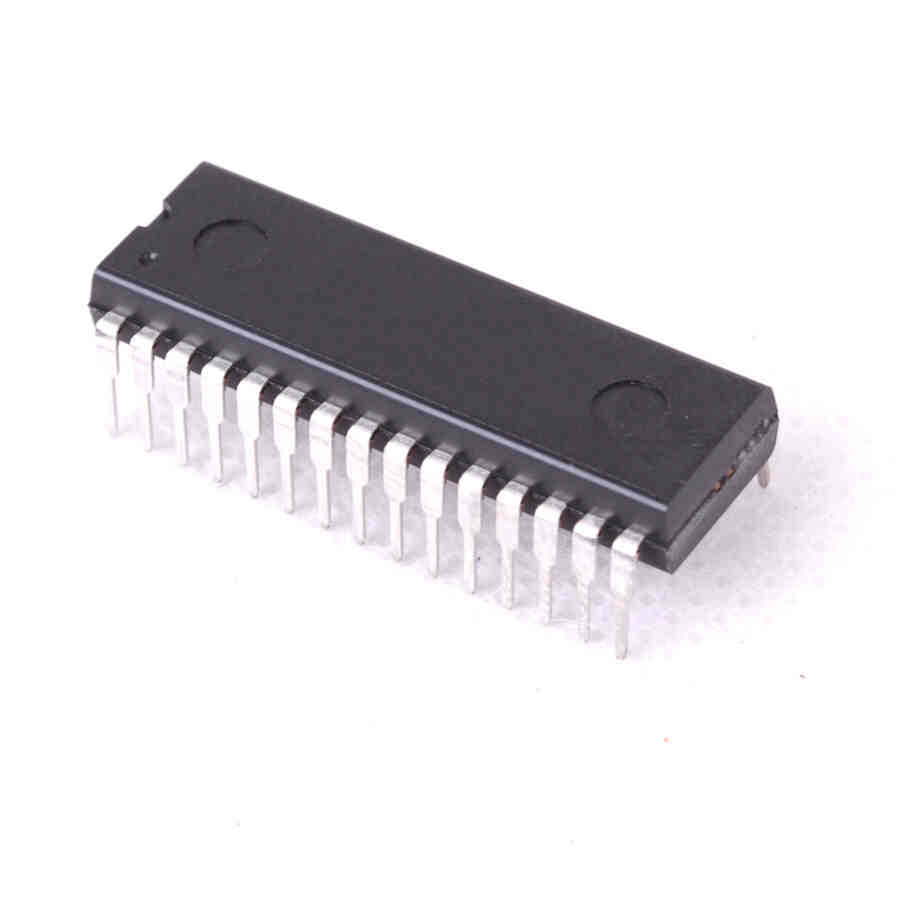

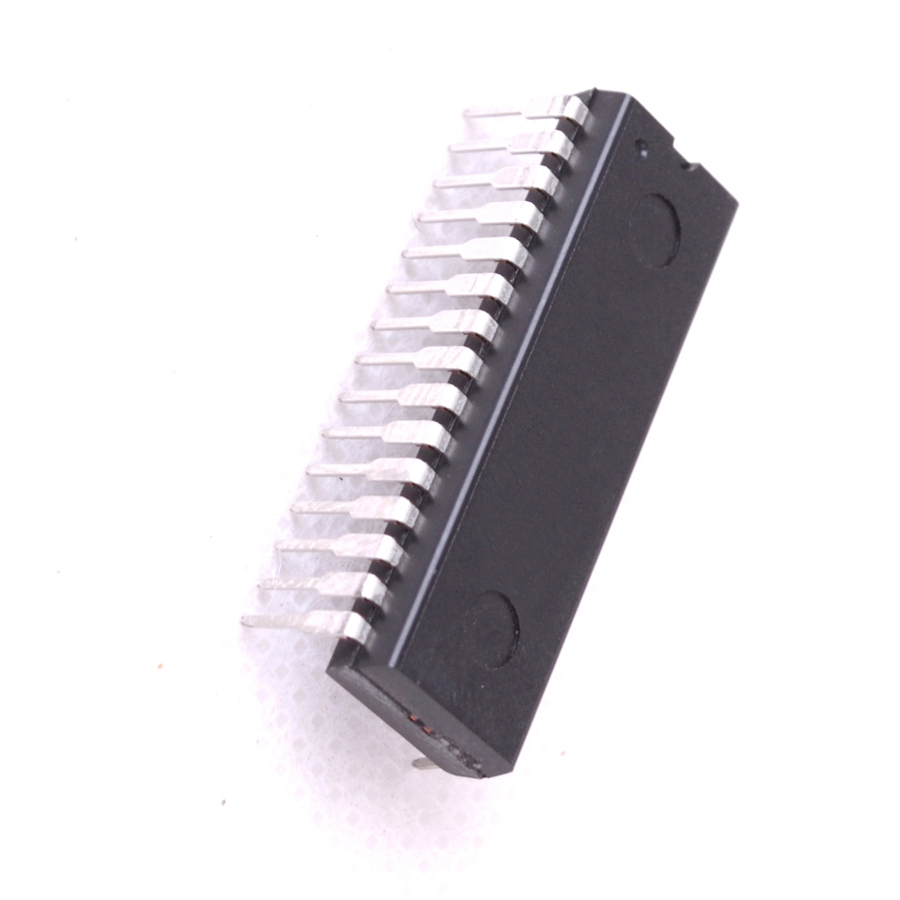

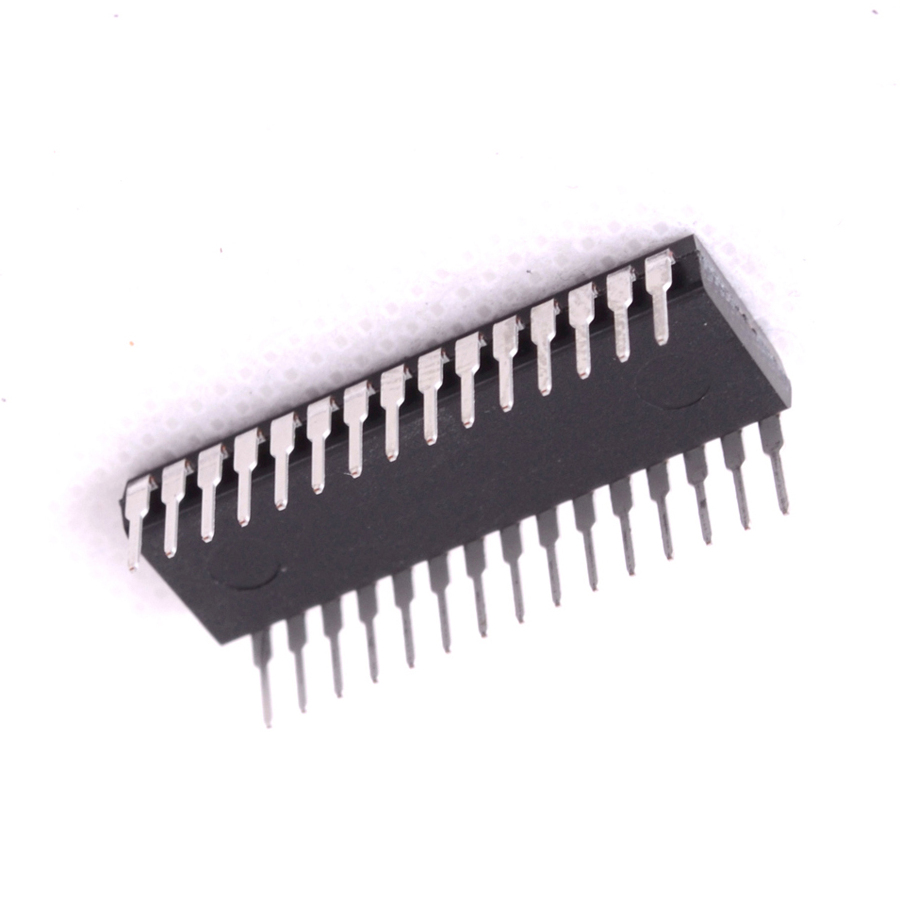

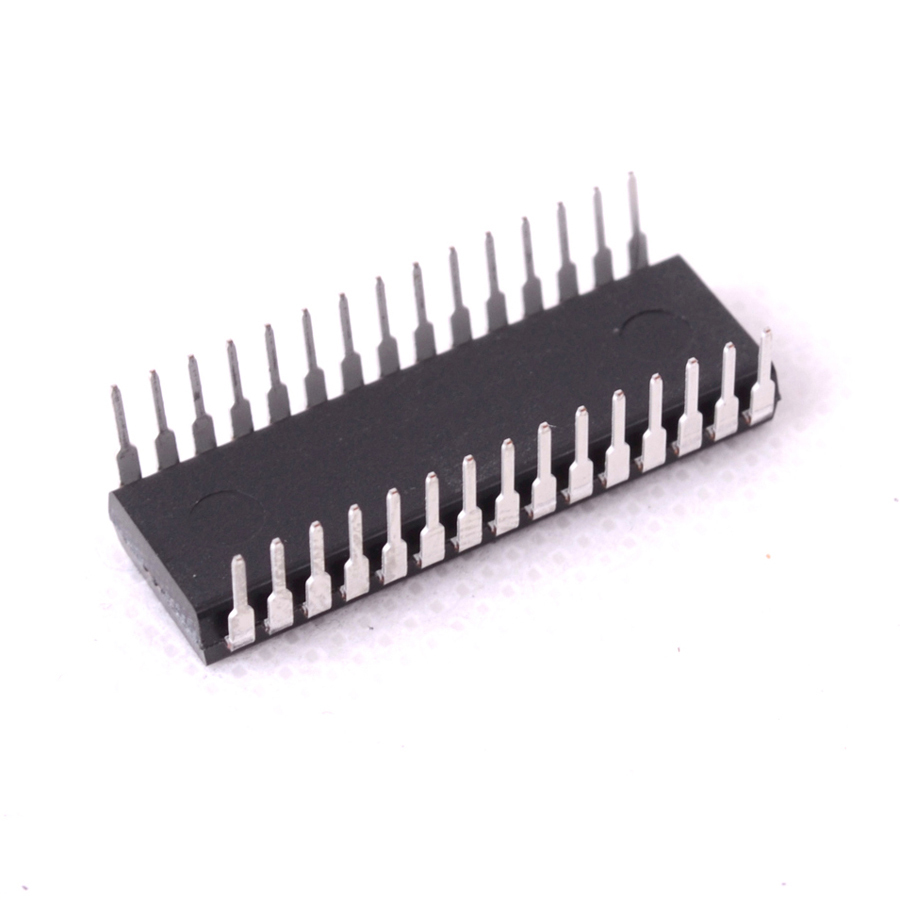

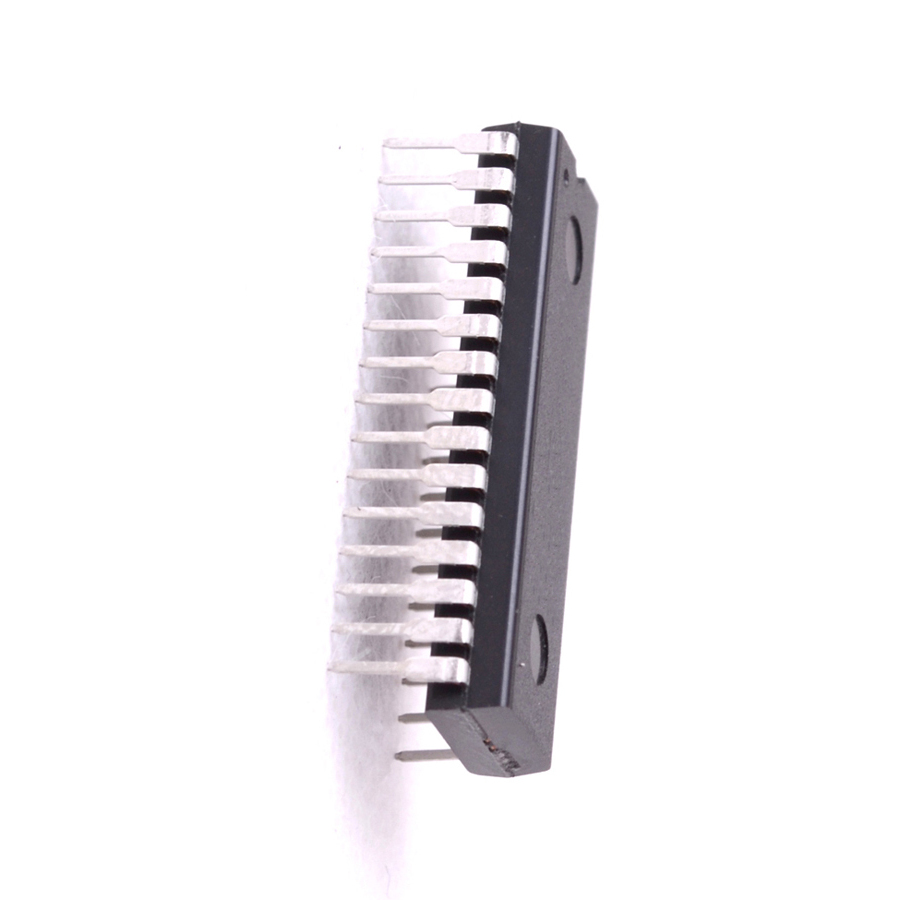

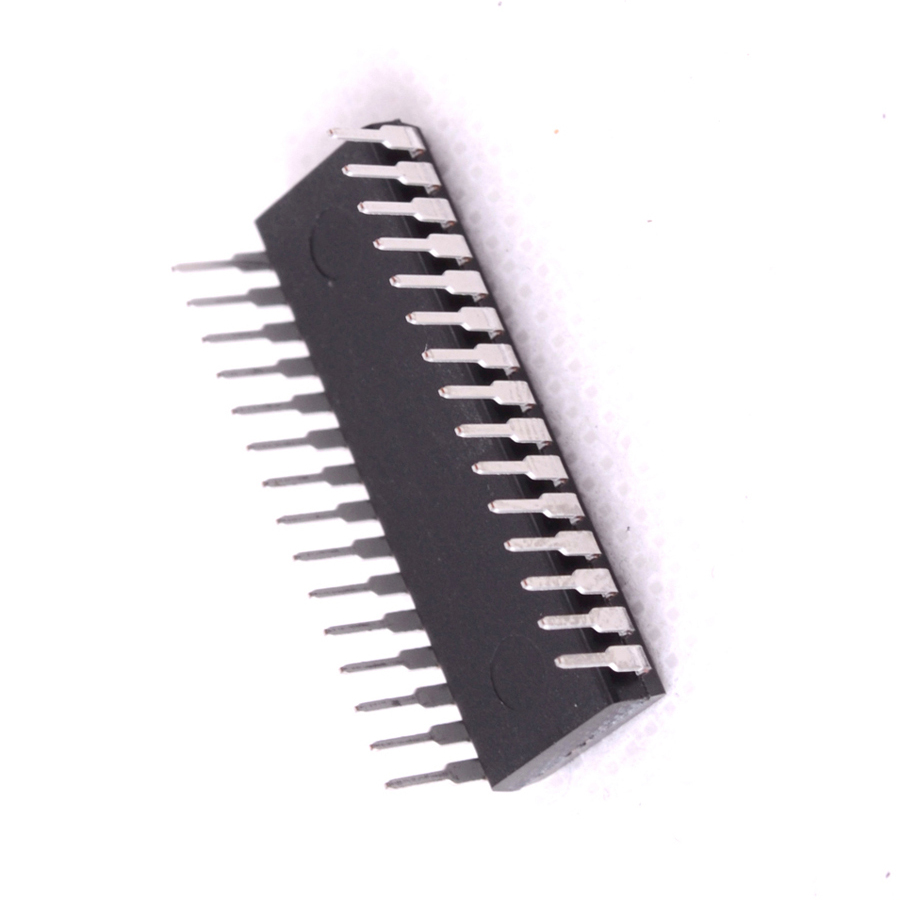

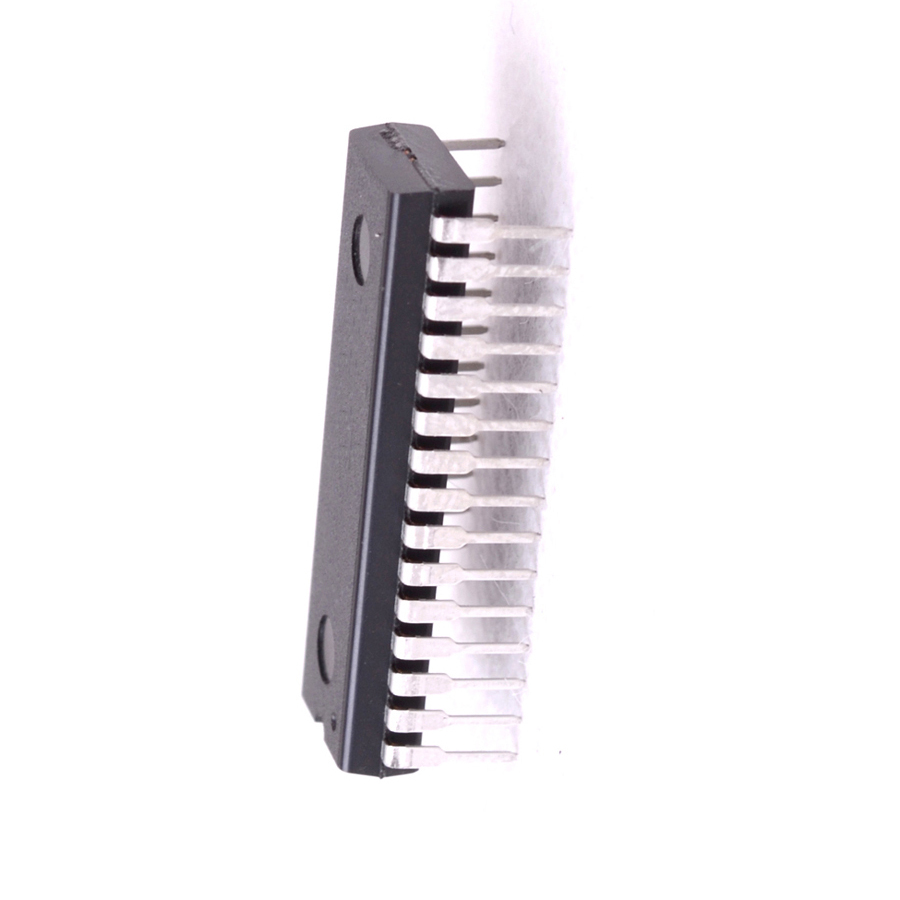

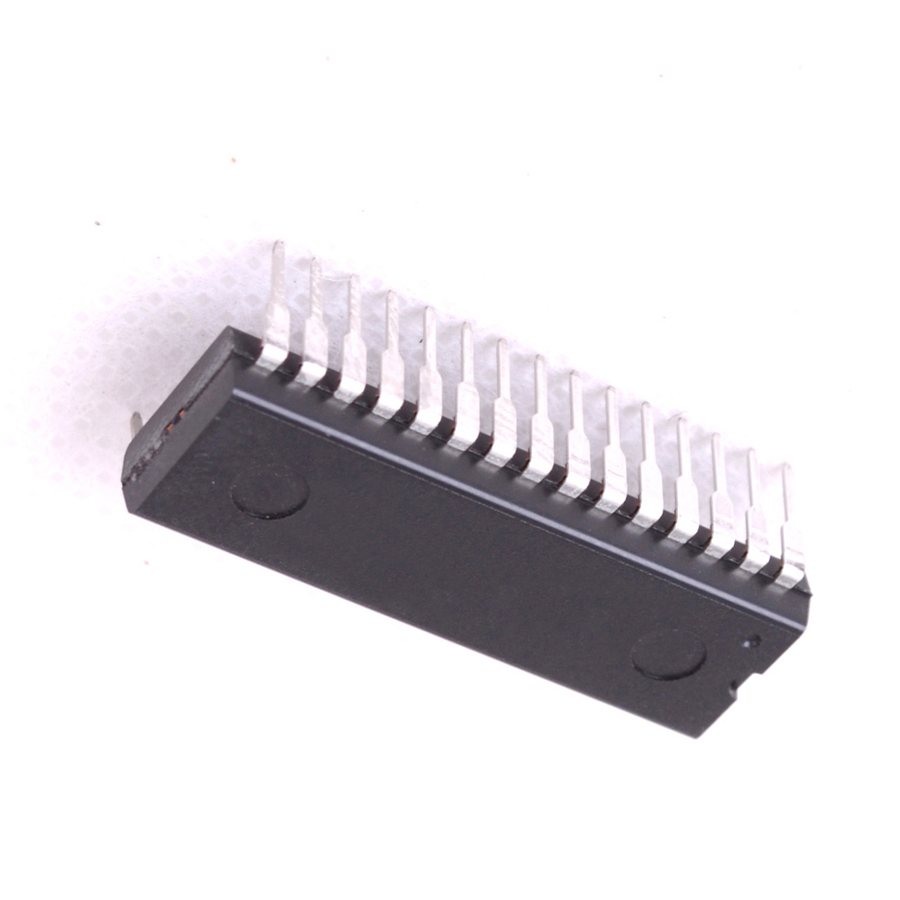

TMP47C242AN Integrated Circuit CASE: DIP30 MAKE: Toshiba
Product specifications
Type Integrated Circuit
Case DIP30
Manufacturer Toshiba
No.of Addr. Modes 3
No. of I/O Lines 23
Max. Inst. Len (bits) 24
Min Inst. Len (bits) 8
No. of Intrpt Lines 2
No. of Intrpt (NMI) 0
No. of Intrpt (mask) 6
fClk Max. (Hz) 4.2M
fClk Min (Hz) 400k
No. of I/O Ports 8
On-Chip ROM (bytes) 2k
Nom. Supp Volt 5
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 512
Oper. Temp (°C) Min -30
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 30-16
No. of Pins 30
Surface Mounted Yes/No NO
SKU 1126432
