Home / Integrated Circuit / TMP47C451AN
TMP47C451AN
View detailed images (13)

TMP47C451AN

SKU: TMP47C451AN

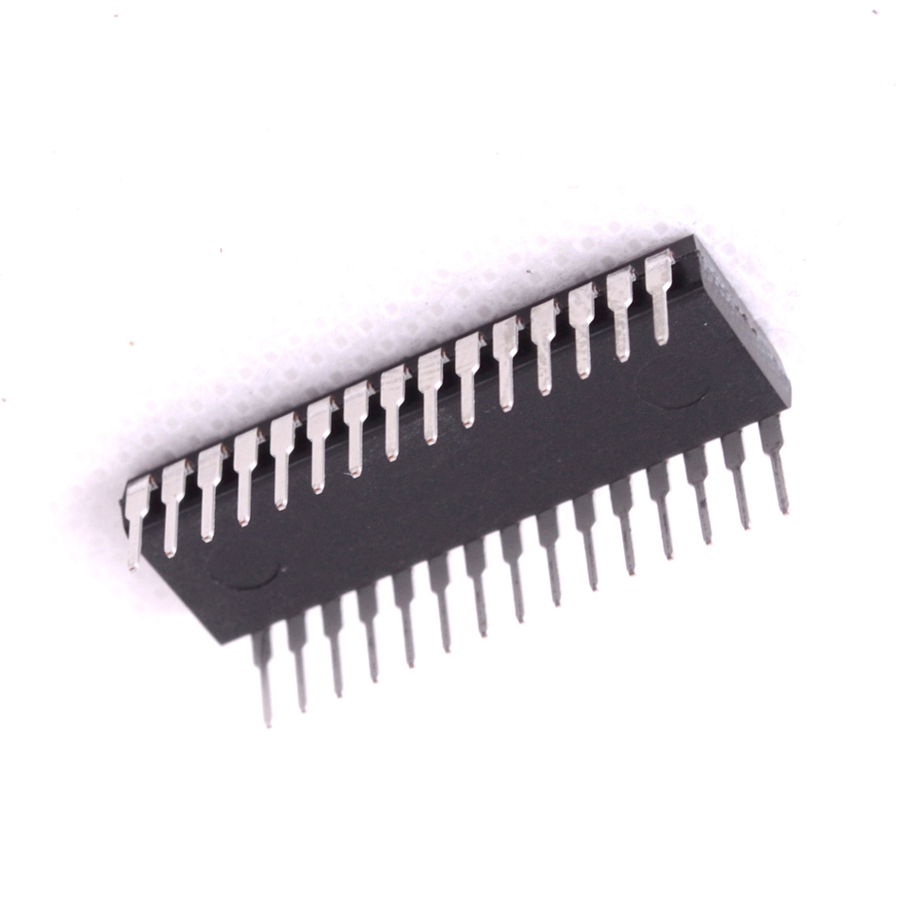

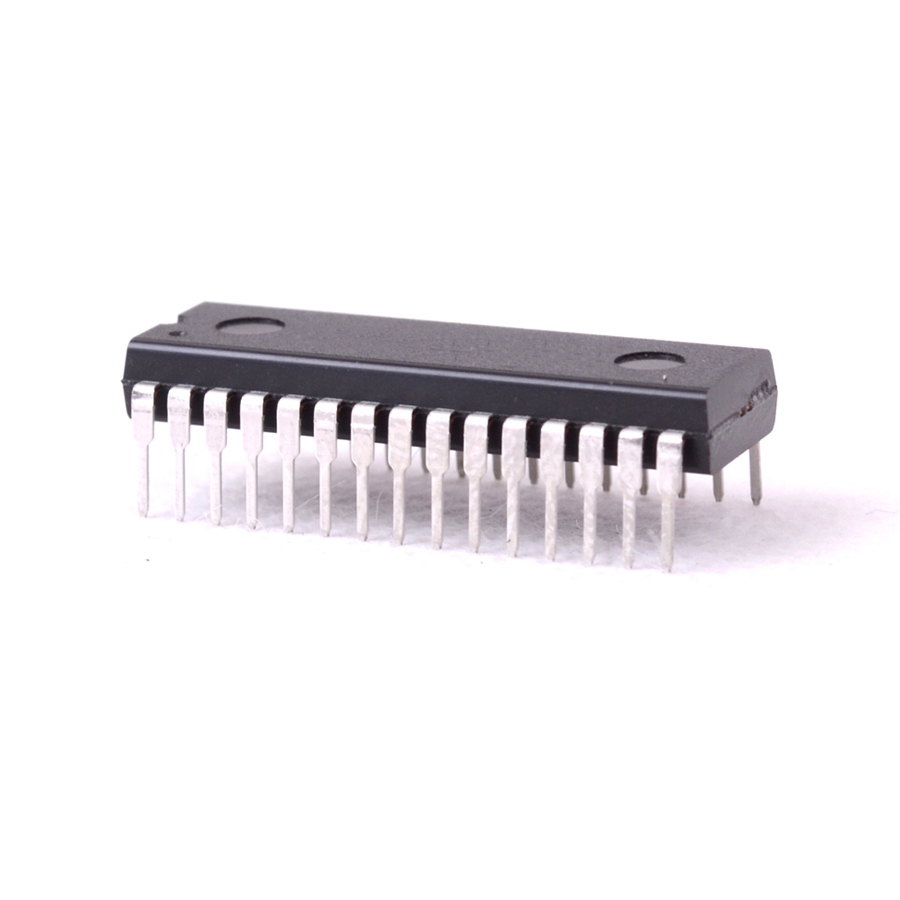

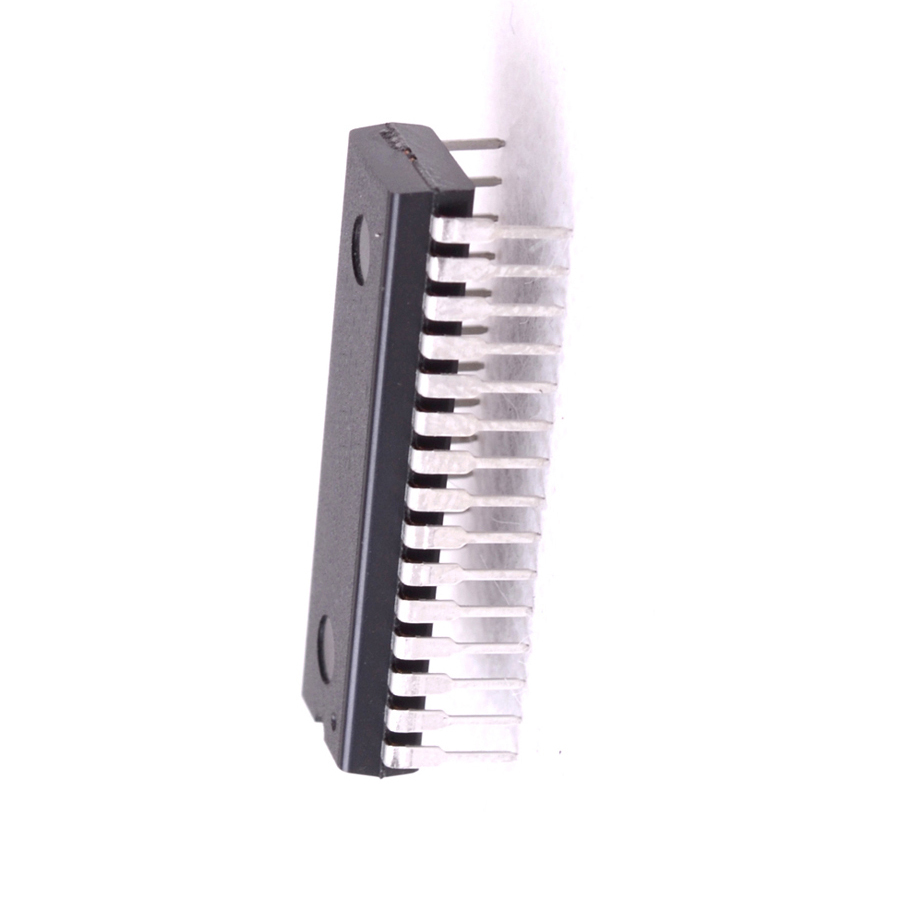

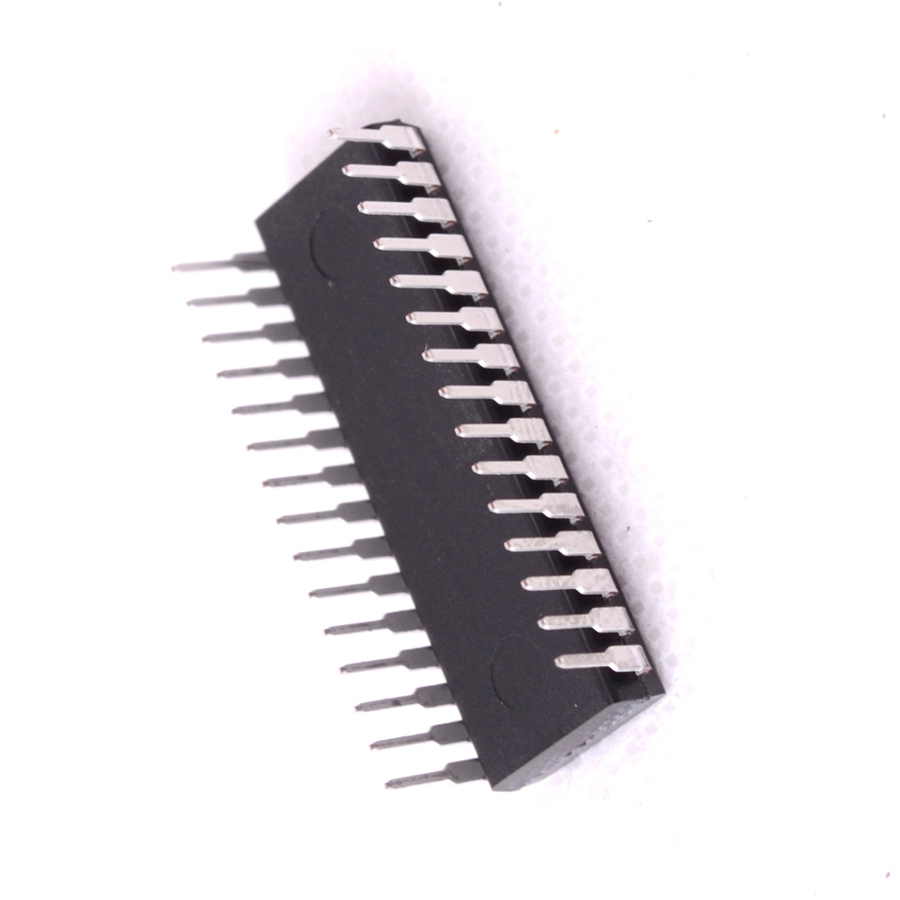

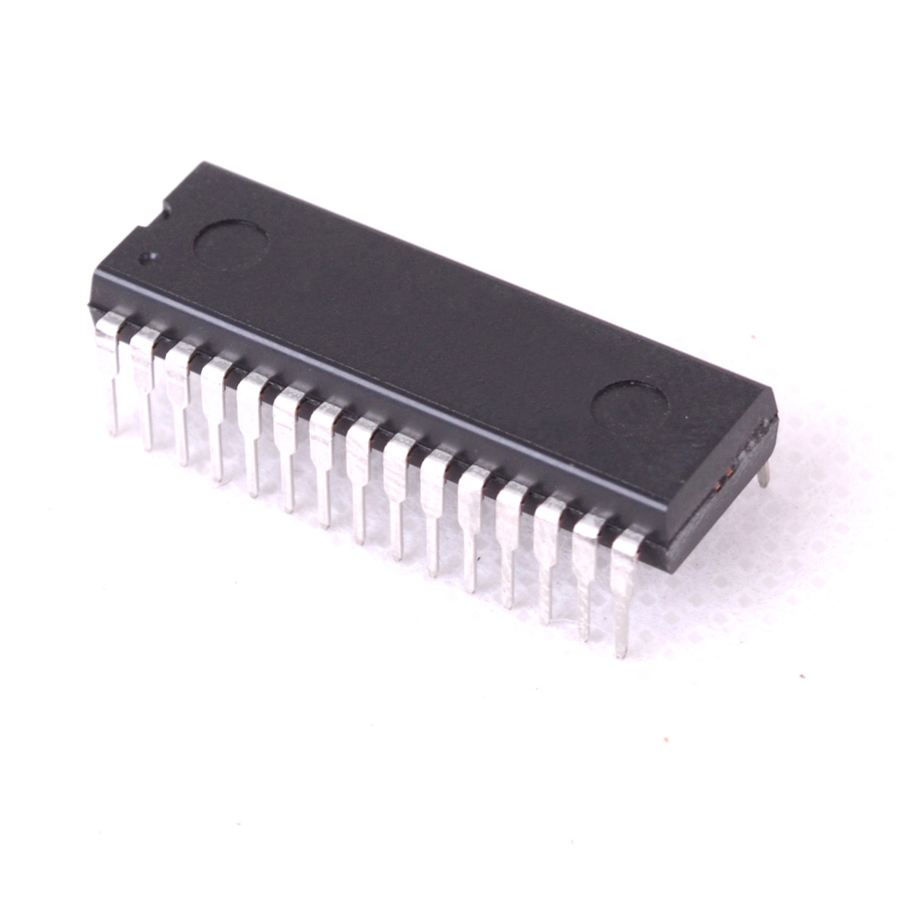

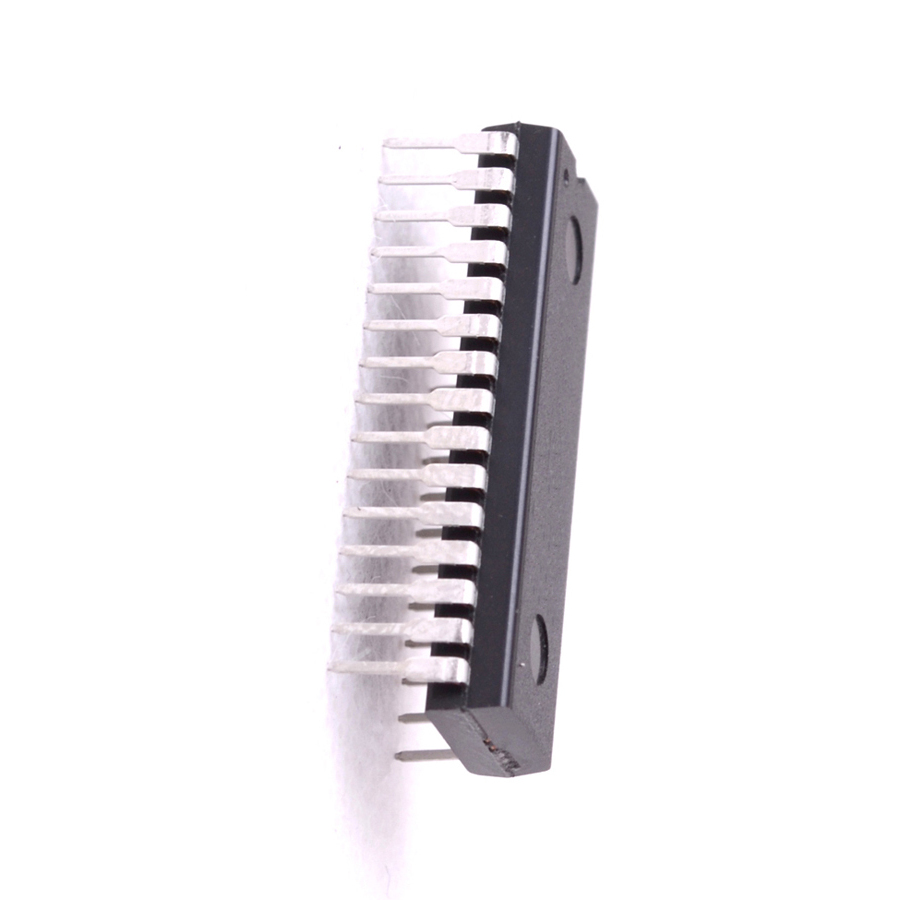

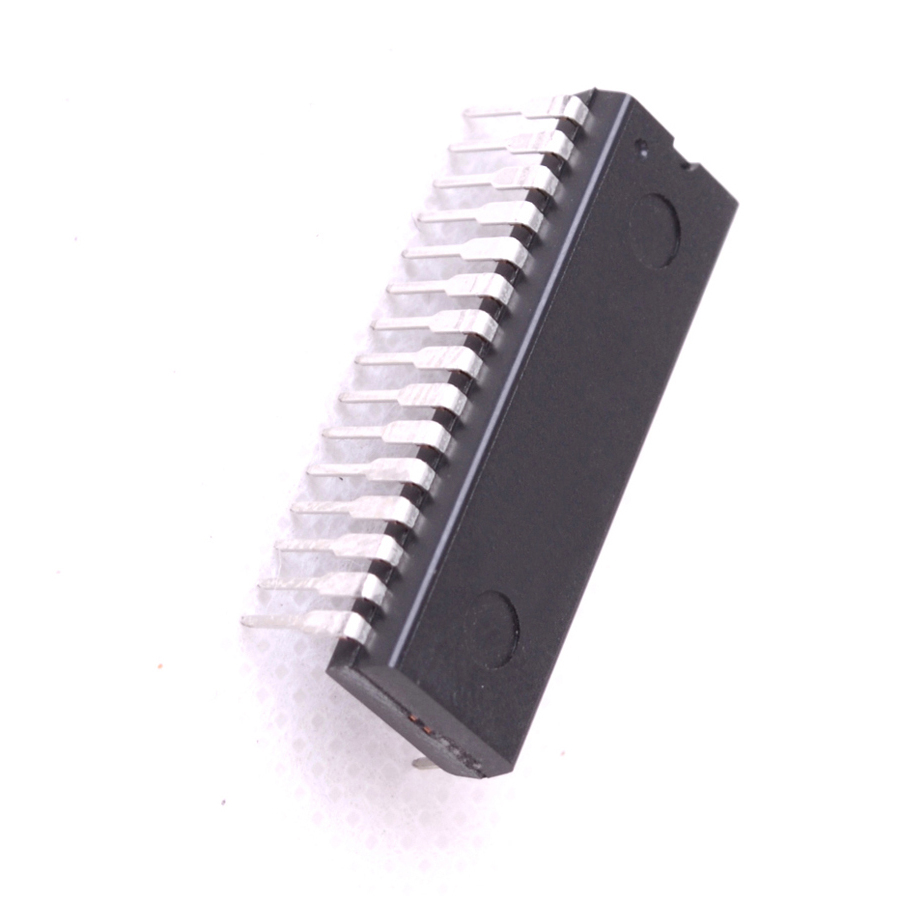

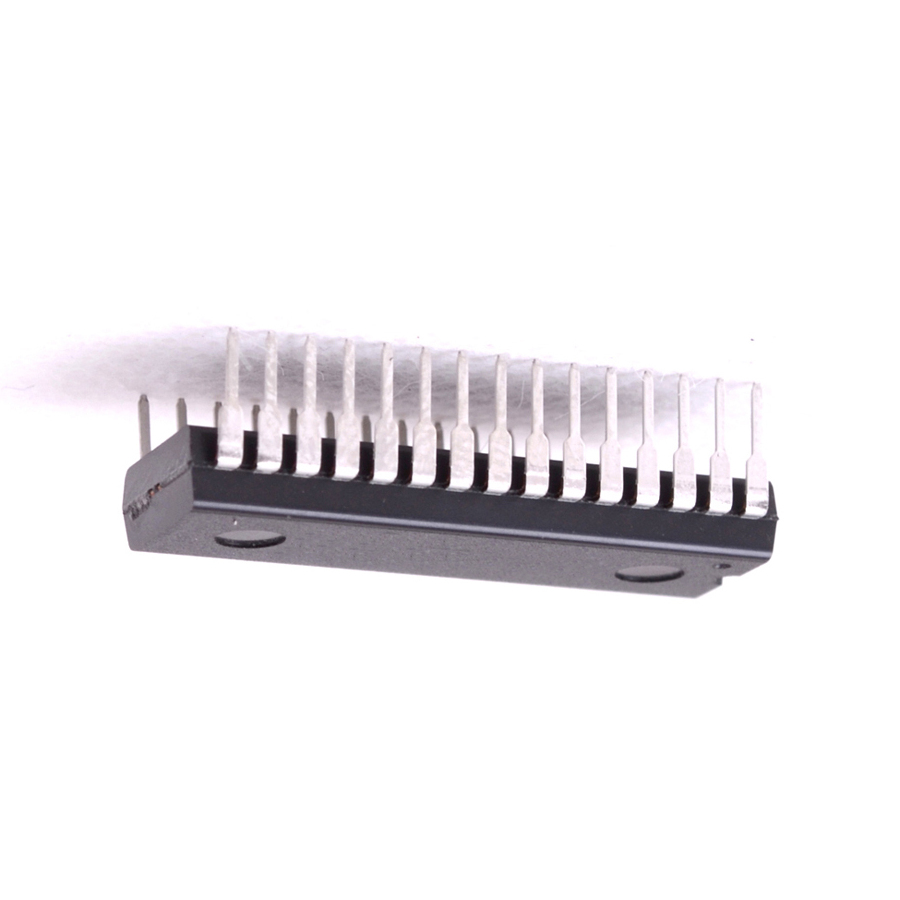

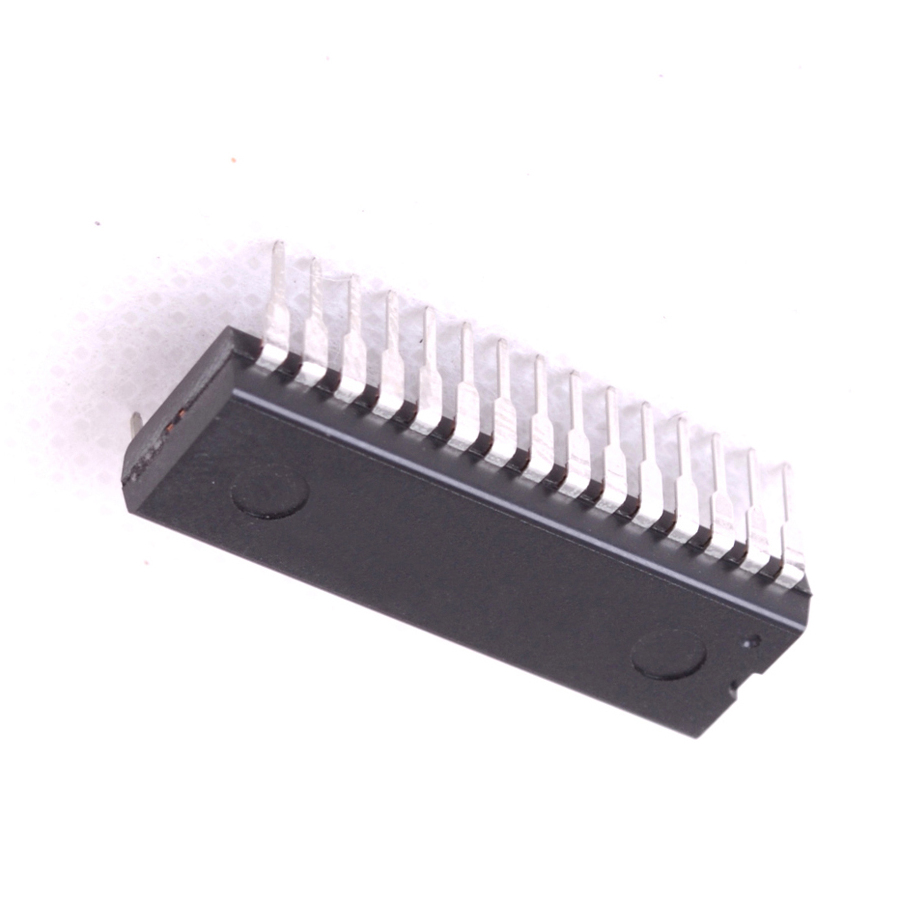

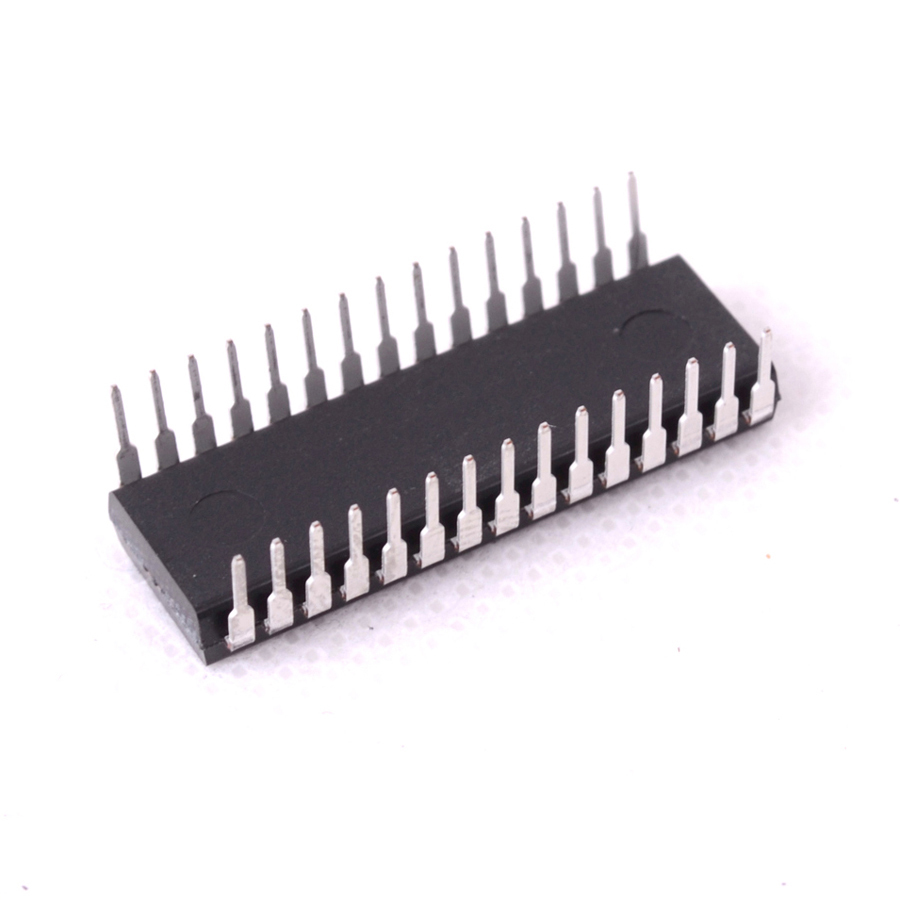

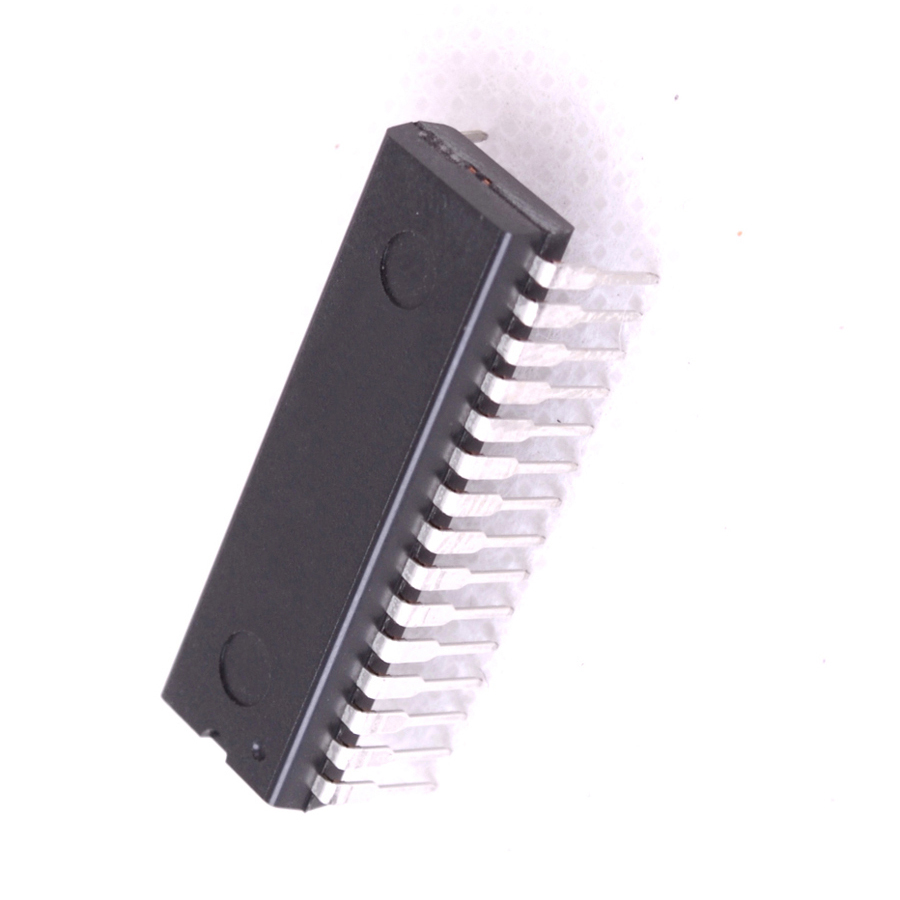

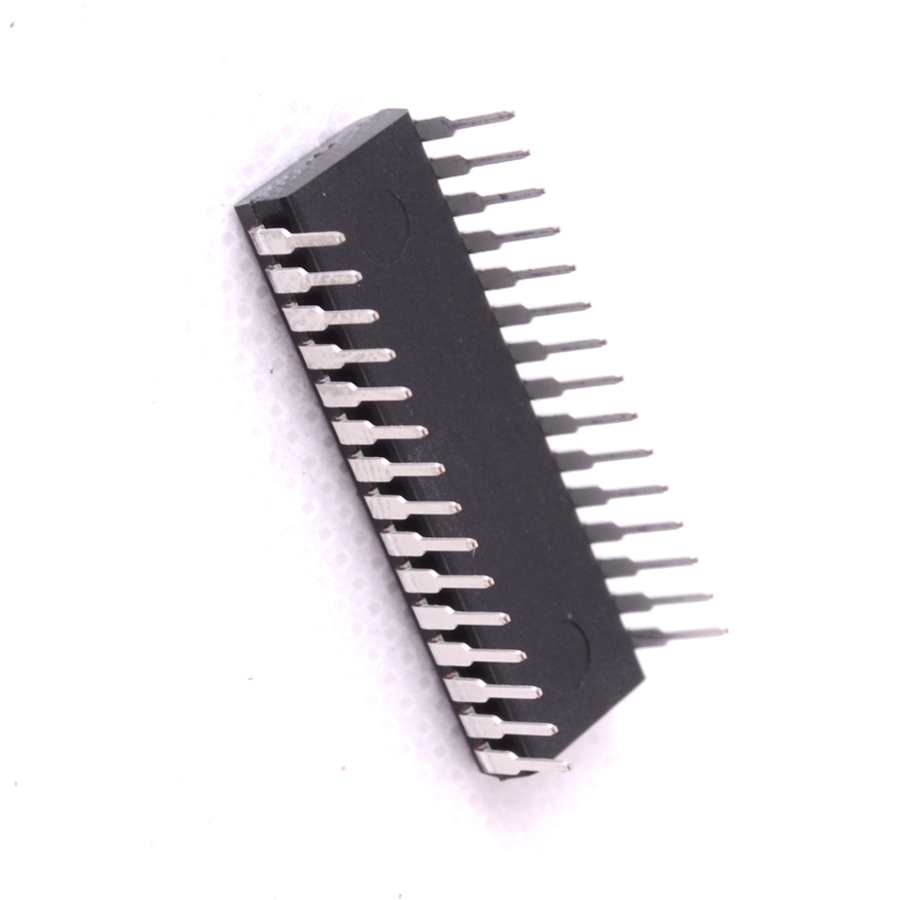

TMP47C451AN Integrated Circuit CASE: DIP30 MAKE: Toshiba
Product specifications
Type Integrated Circuit
Case DIP30
Manufacturer Toshiba
No.of Addr. Modes 3
No. of I/O Lines 23
Max. Inst. Len (bits) 24
Min Inst. Len (bits) 8
No. of Intrpt Lines 2
No. of Intrpt (NMI) 0
No. of Intrpt (mask) 5
fClk Max. (Hz) 480k
fClk Min (Hz) 480k
No. of I/O Ports 7
On-Chip ROM (bytes) 4k
Nom. Supp Volt 2.2
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 3k
Oper. Temp (°C) Min -30
Oper. Temp (°C) Max. 60
Pinout Equivalence Number 30-17
No. of Pins 30
Surface Mounted Yes/No NO
SKU 1124398
