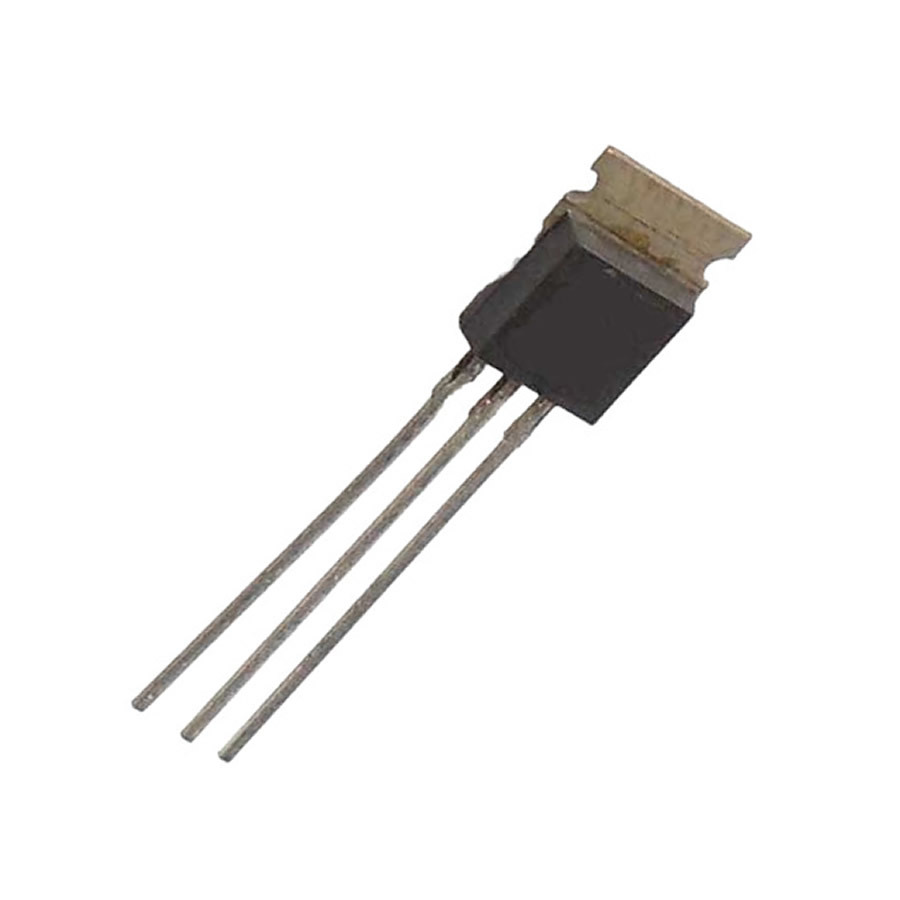

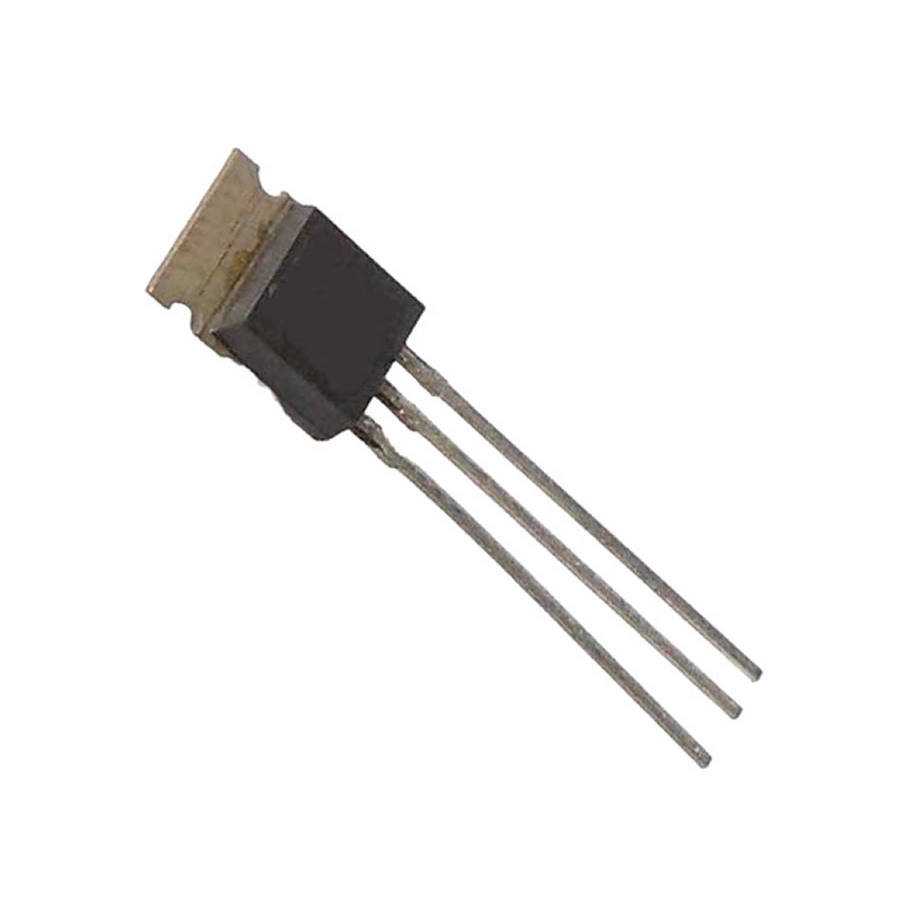

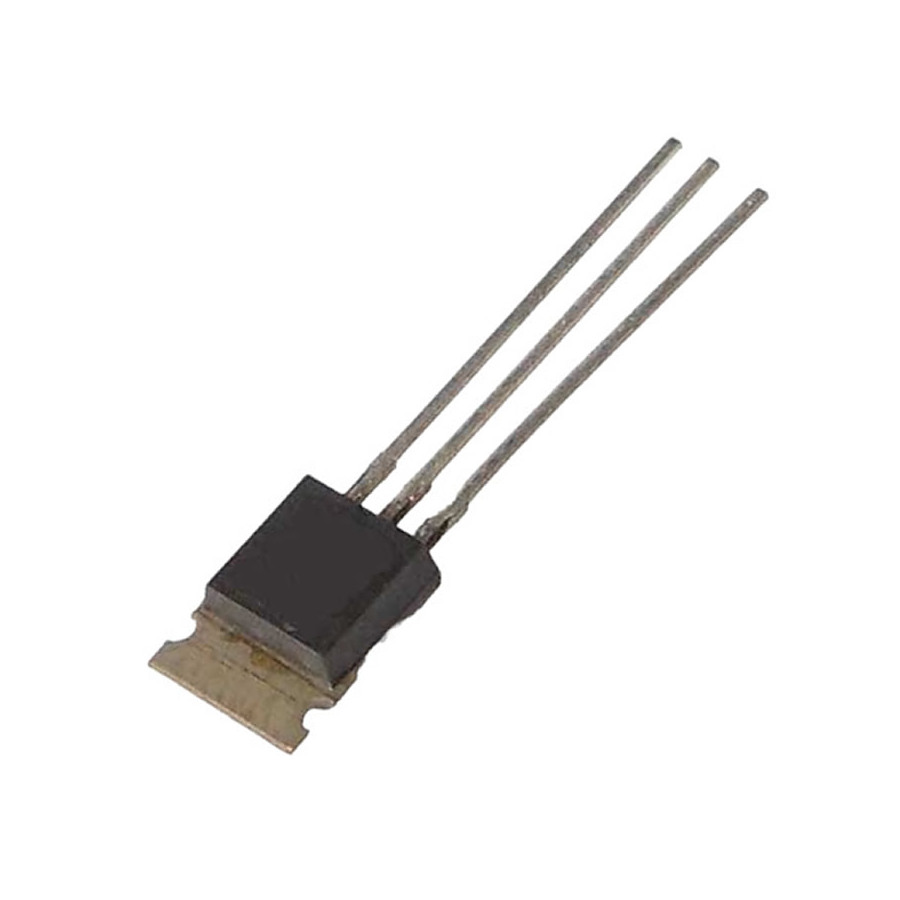

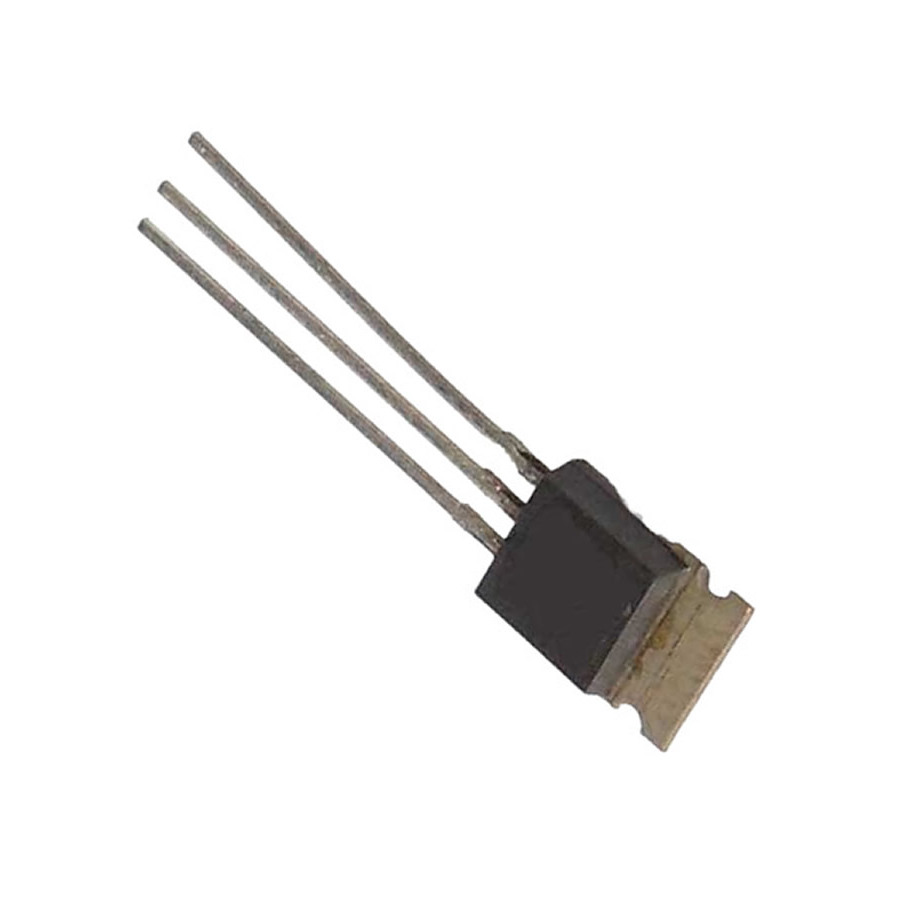

TN3253 Transistor Silicon NPN CASE: TO237 MAKE: National Semiconductor - NSC
Product specifications
Type Transistor Silicon NPN
Case TO237
Manufacturer National Semiconductor - NSC
Vbr CBO 75
Vbr CEO 40
Max. PD (W) 2.0
Max. hFE 75
Min hFE 25
Ic Max. (A) 2.0
@Ic (test) (A) 375m
Icbo Max. @Vcb Max. (A) 500n
Polarity NPN
Derate Above 25°C 6.8m
Trans. Freq (Hz) Min. 175M
Oper. Temp (°C) Max. 150
@VCE (V) 1.0
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector-Base Voltage |Vcb| 80 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 12 pF
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SKU 555501
