TN5023
View detailed images (4)

TN5023

SKU: TN5023

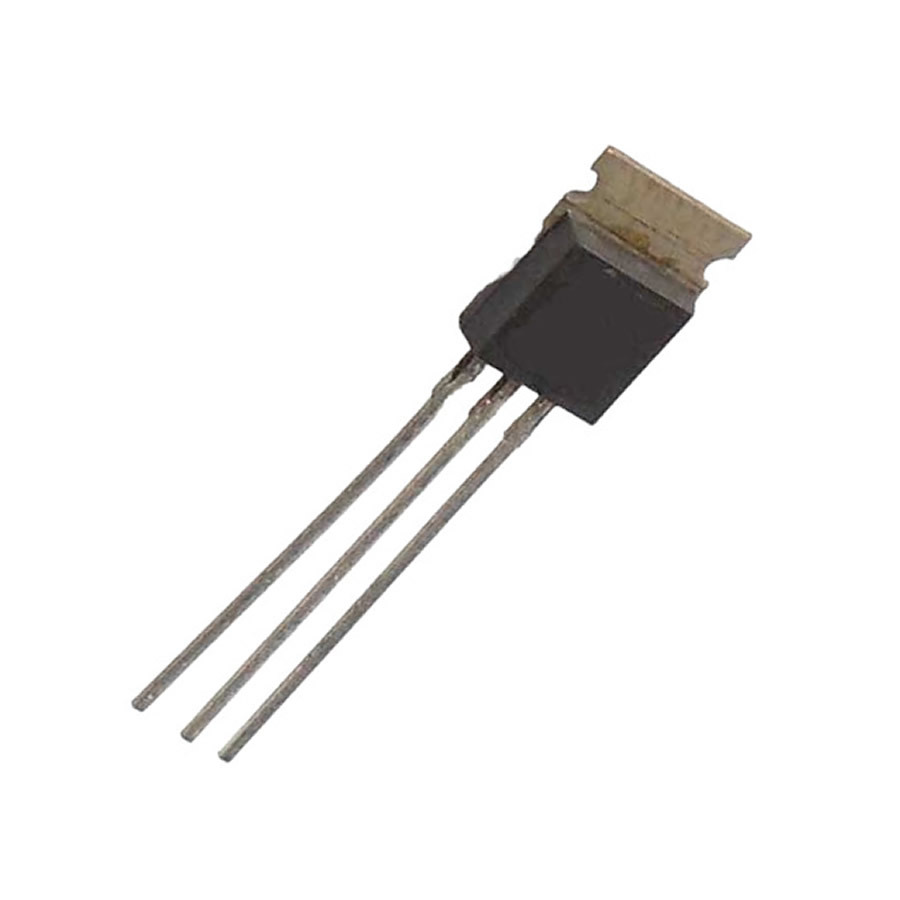

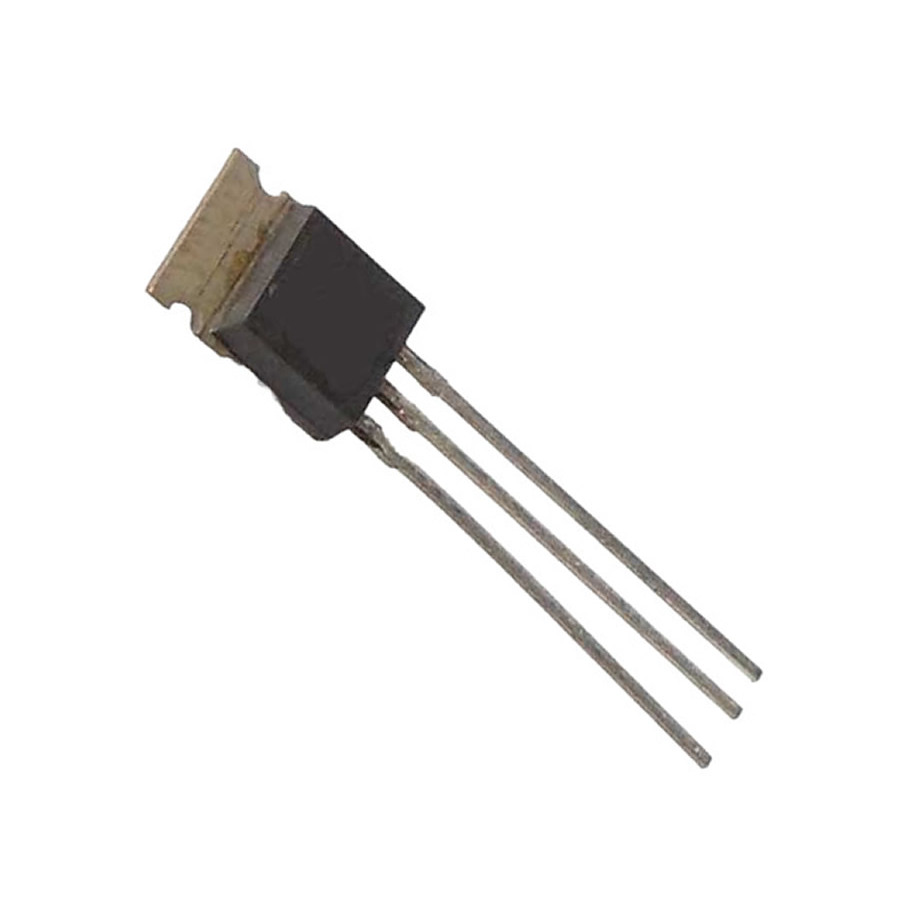

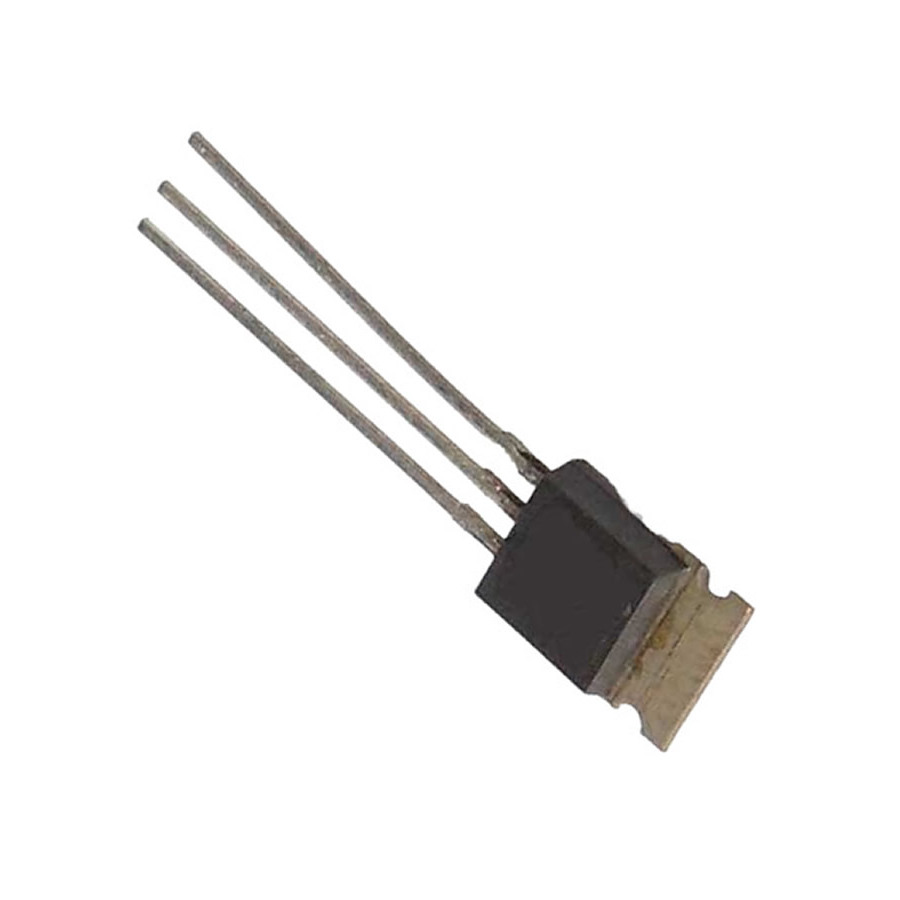

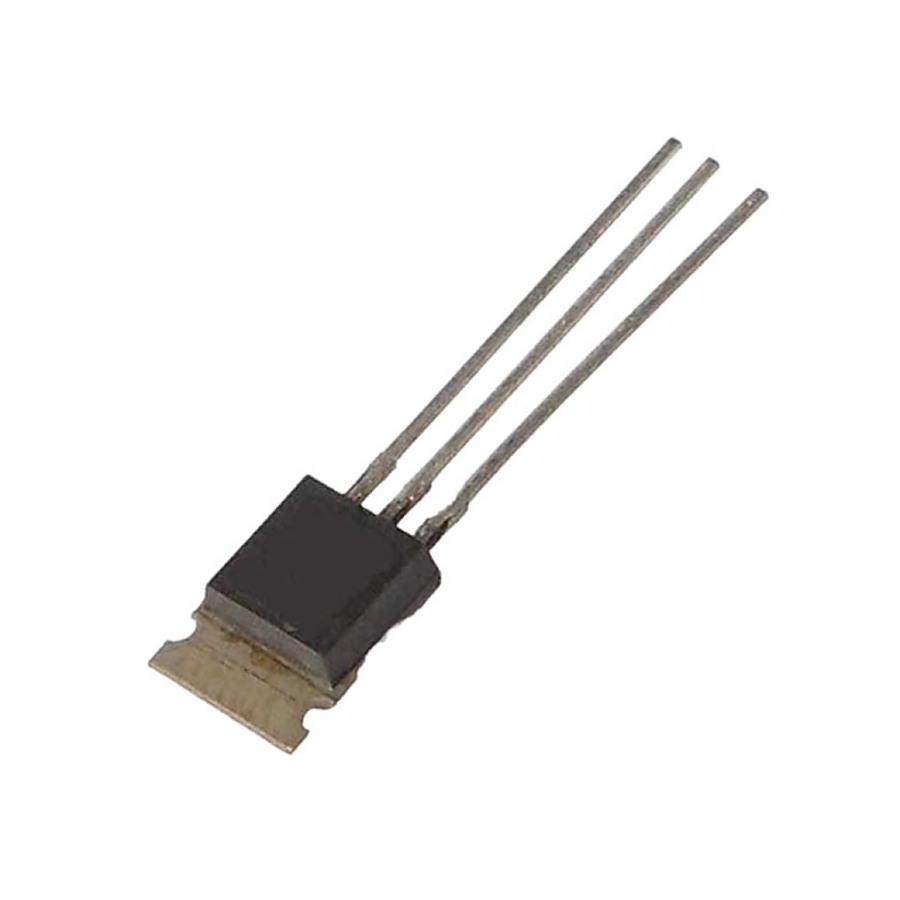

TN5023 Transistor Silicon PNP CASE: TO237 MAKE: National Semiconductor - NSC
Product specifications
Type Transistor Silicon PNP
Case TO237
Manufacturer National Semiconductor - NSC
Vbr CBO 30
Vbr CEO 30
Max. PD (W) 2.0
Derate (Amb) (W/°C) 6.8m
Max. hFE 100
Min hFE 40
Ic Max. (A) 1.0
@Ic (test) (A) 500m
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
Tr Max. (s) 30n
Trans. Freq (Hz) Min. 200M
Oper. Temp (°C) Max. 140
@VCE (V) 1.0
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 25 pF
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 555513
