Home / Integrated Circuit / TN80C186EB20
TN80C186EB20
View detailed images (5)

TN80C186EB20

SKU: TN80C186EB20

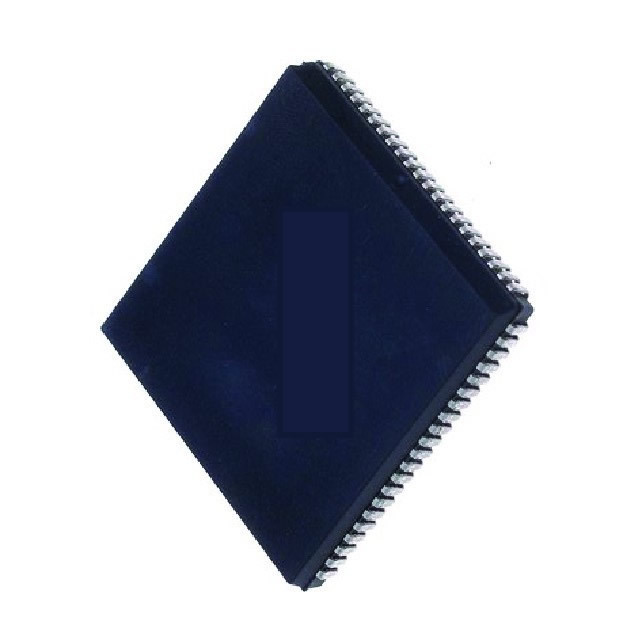

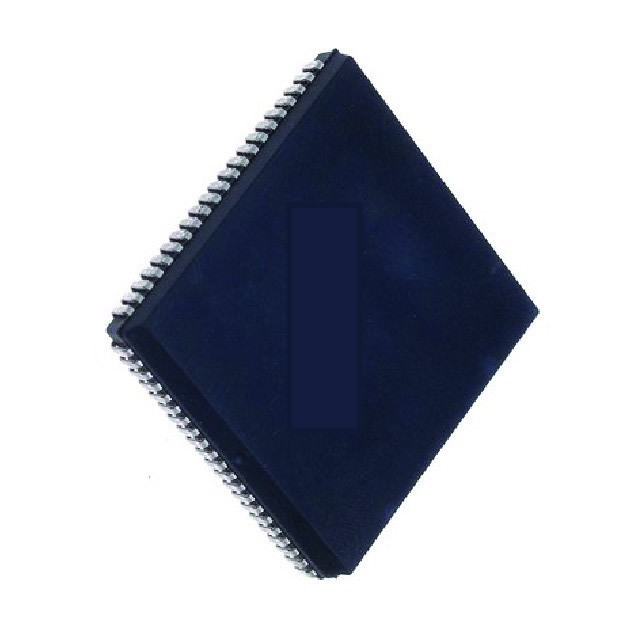

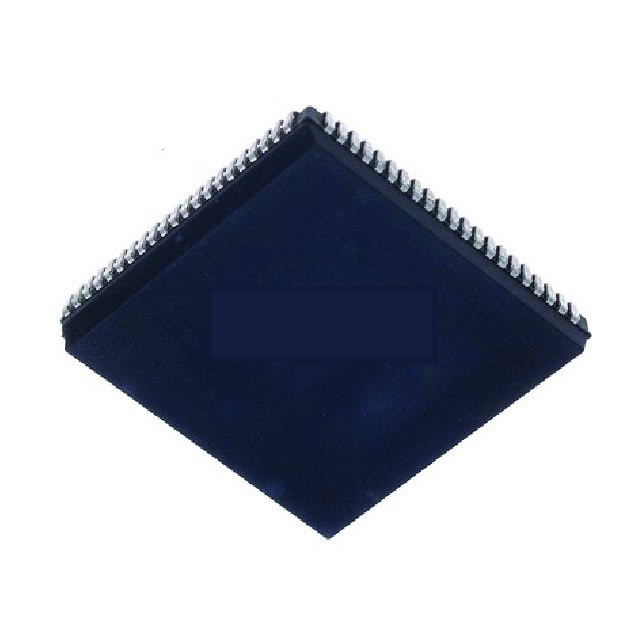

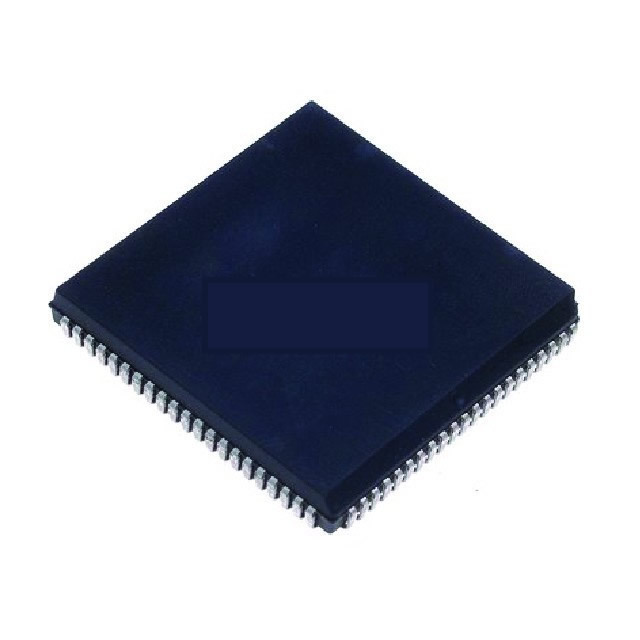

TN80C186EB20 Integrated Circuit CASE: PLCC84 MAKE: Intel
Product specifications
Type Integrated Circuit
Case PLCC84
Manufacturer Intel
Mem. Addr Rnge 1M
No.of Addr. Modes 8
No. of I/O Lines 16
I/O Line Types Byte/MUXed
Max. Inst. Len (bits) 32
Min Inst. Len (bits) 8
No. of Intrpt Lines 5
No. of Intrpt (NMI) 1
Intrpt Types Prty/Int V
No. of Intrpt (mask) 4
fClk Max. (Hz) 20M
fClk Min (Hz) 0
No. of I/O Ports 1
Nom. Supp Volt 5
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
Pinout Equivalence Number 84-114
No. of Pins 84
Surface Mounted Yes/No YES
SKU 321081
