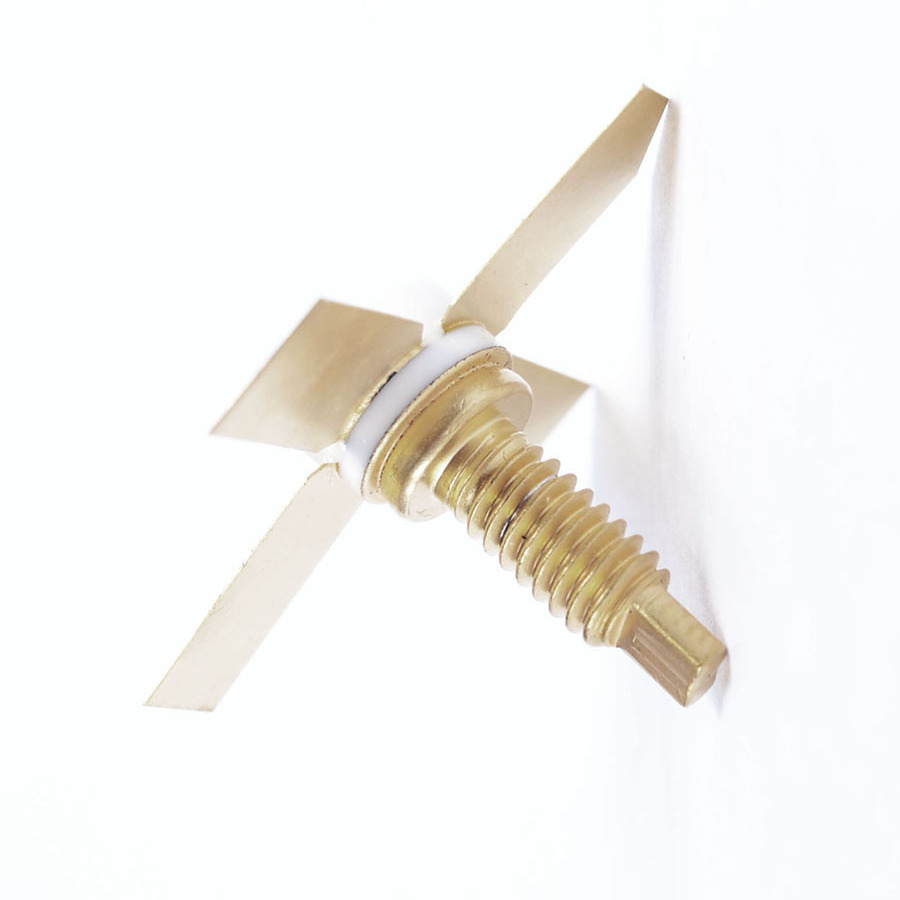

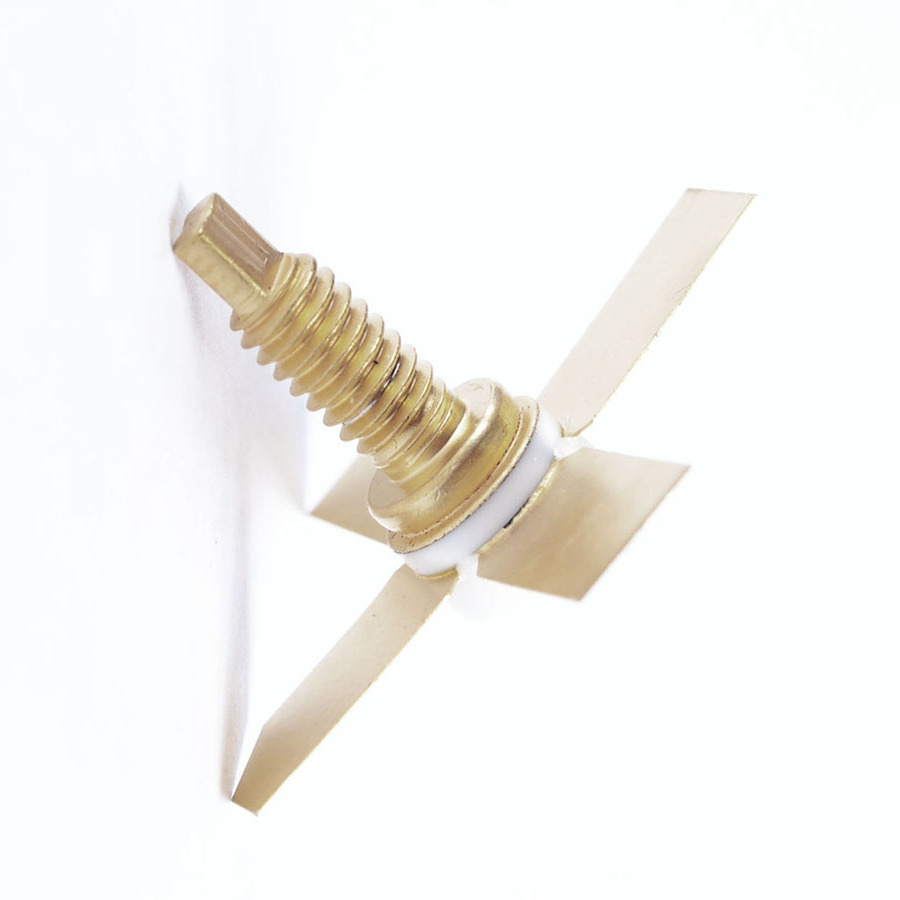

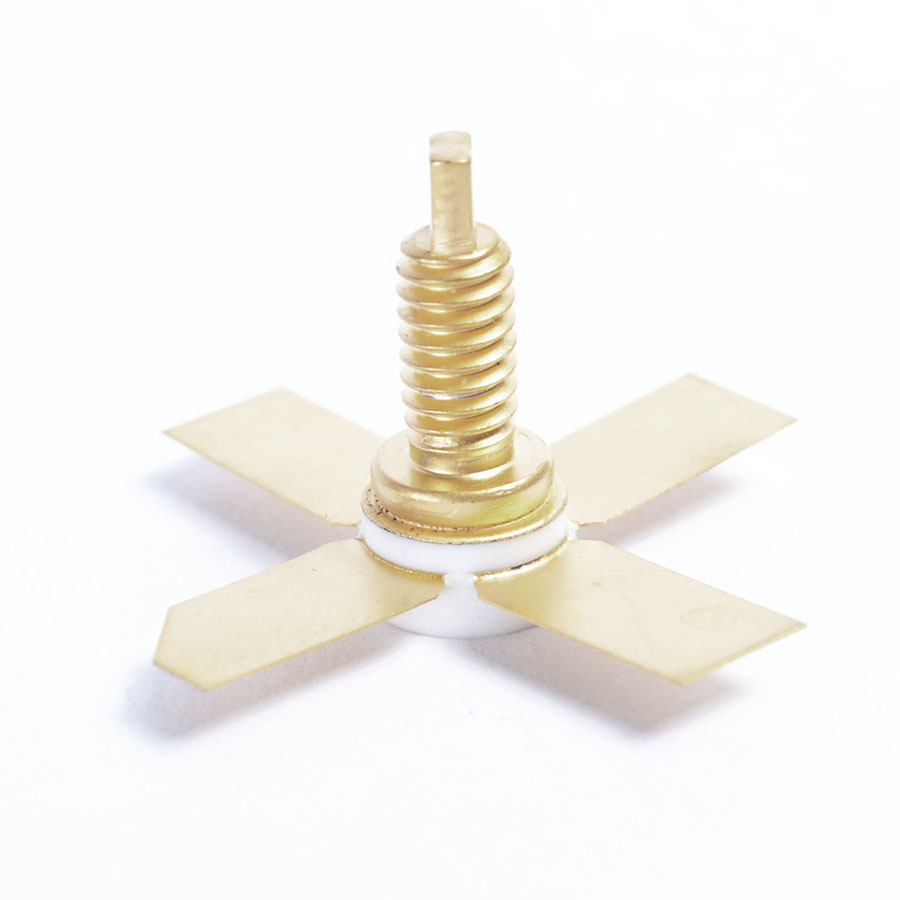

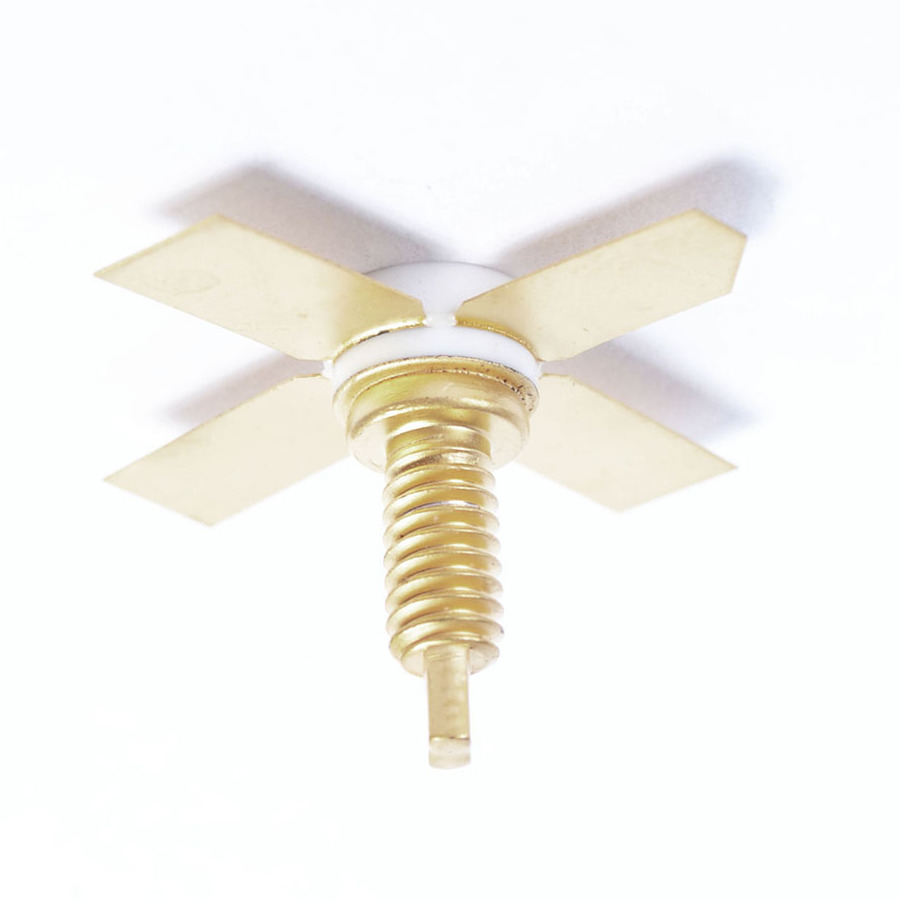

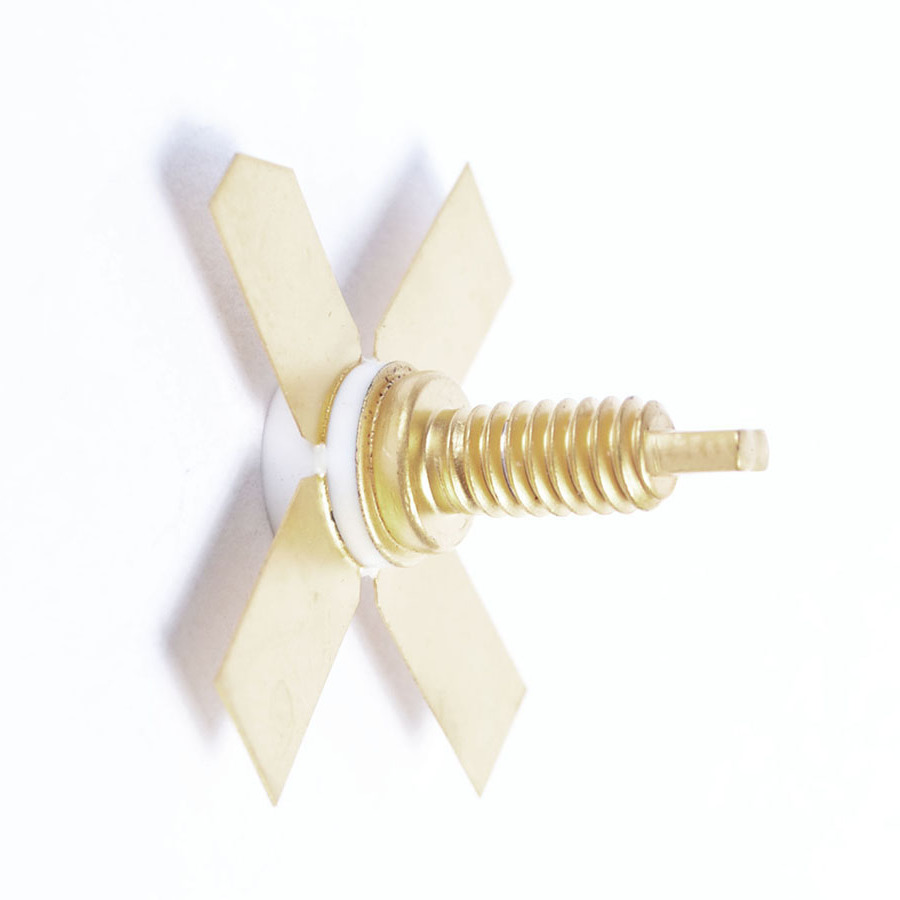

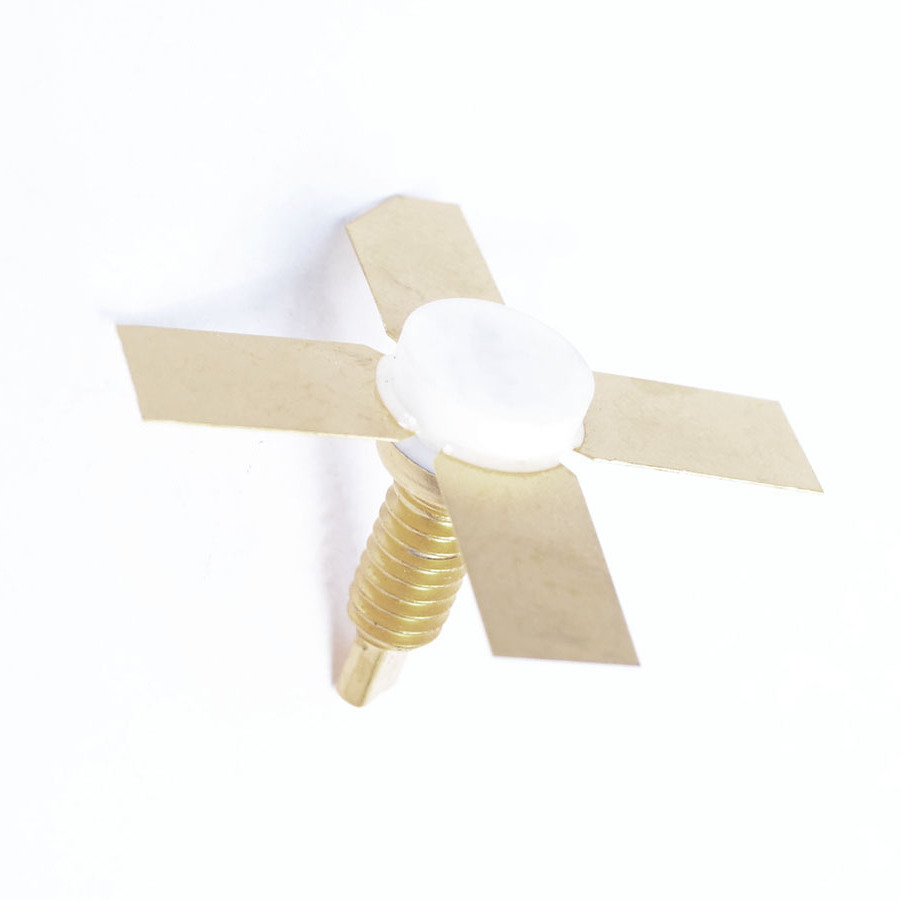

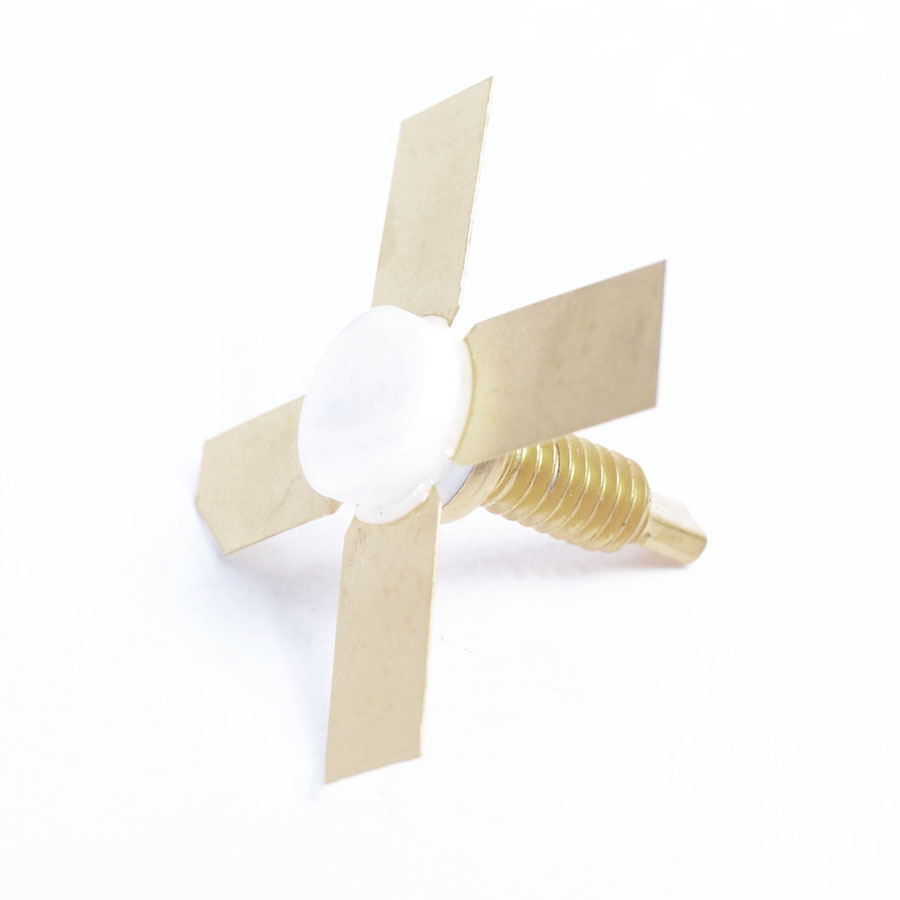

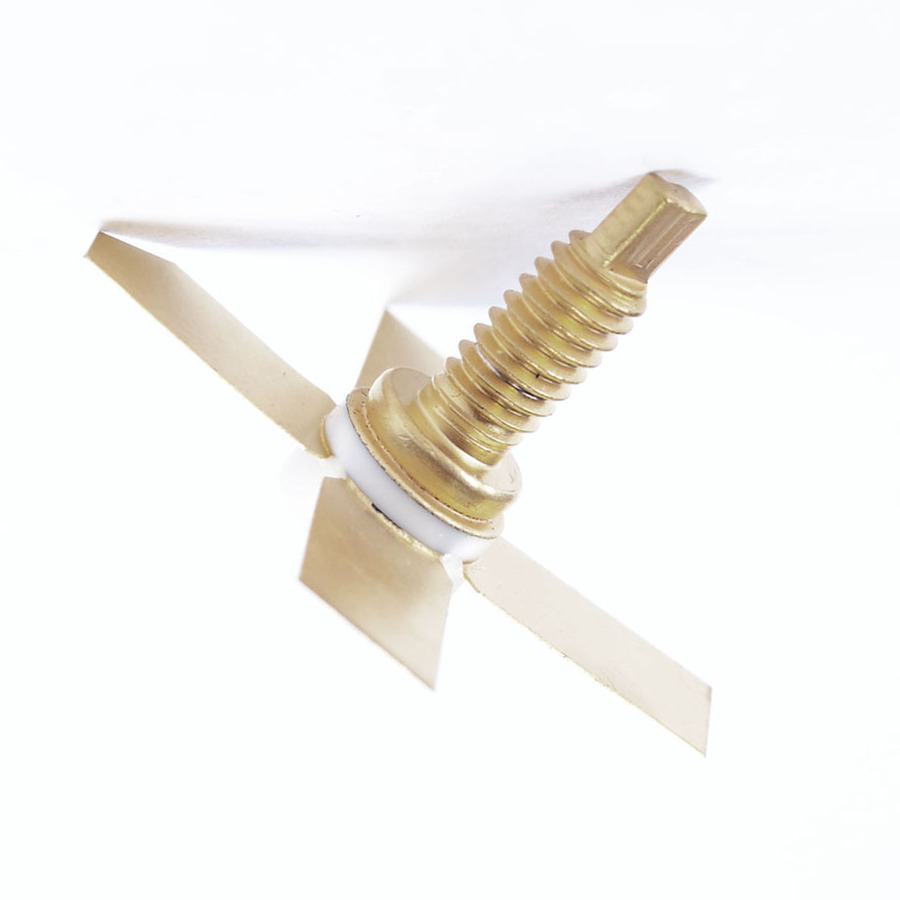

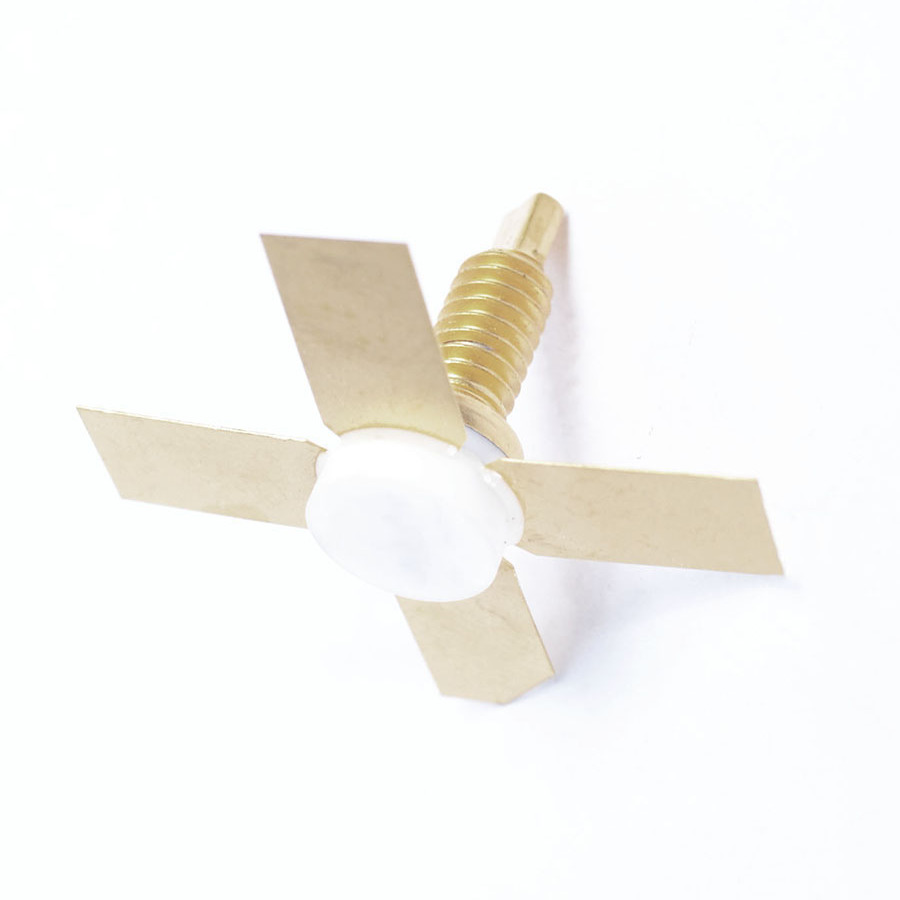

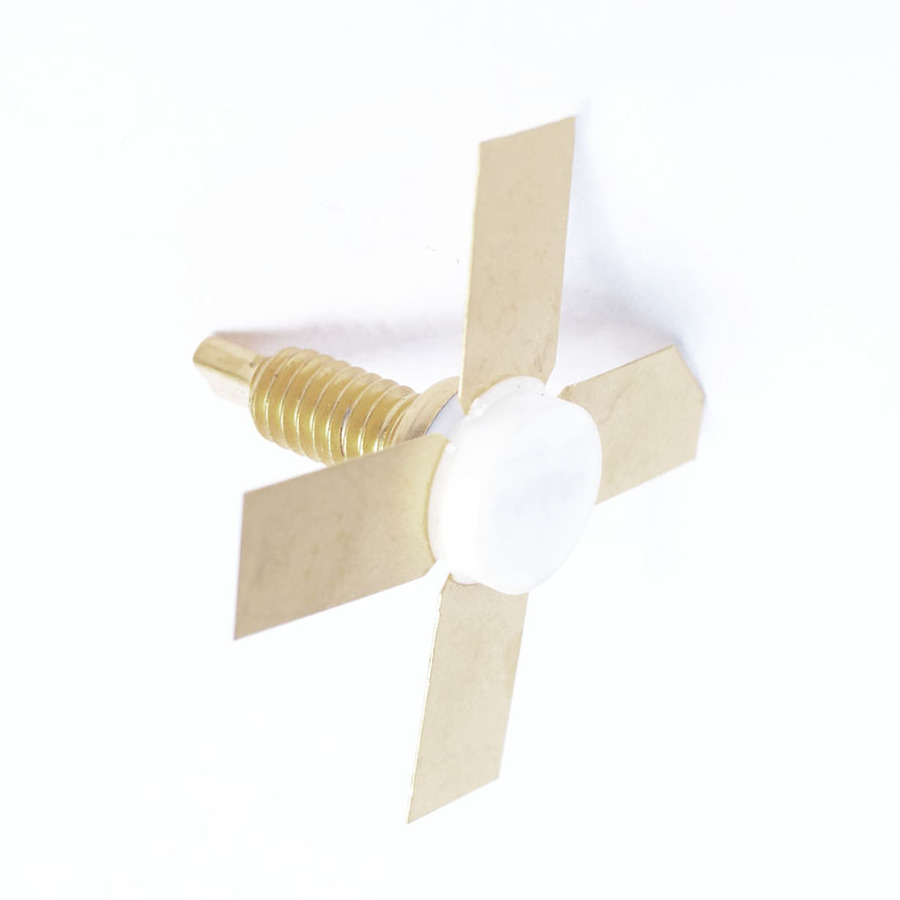

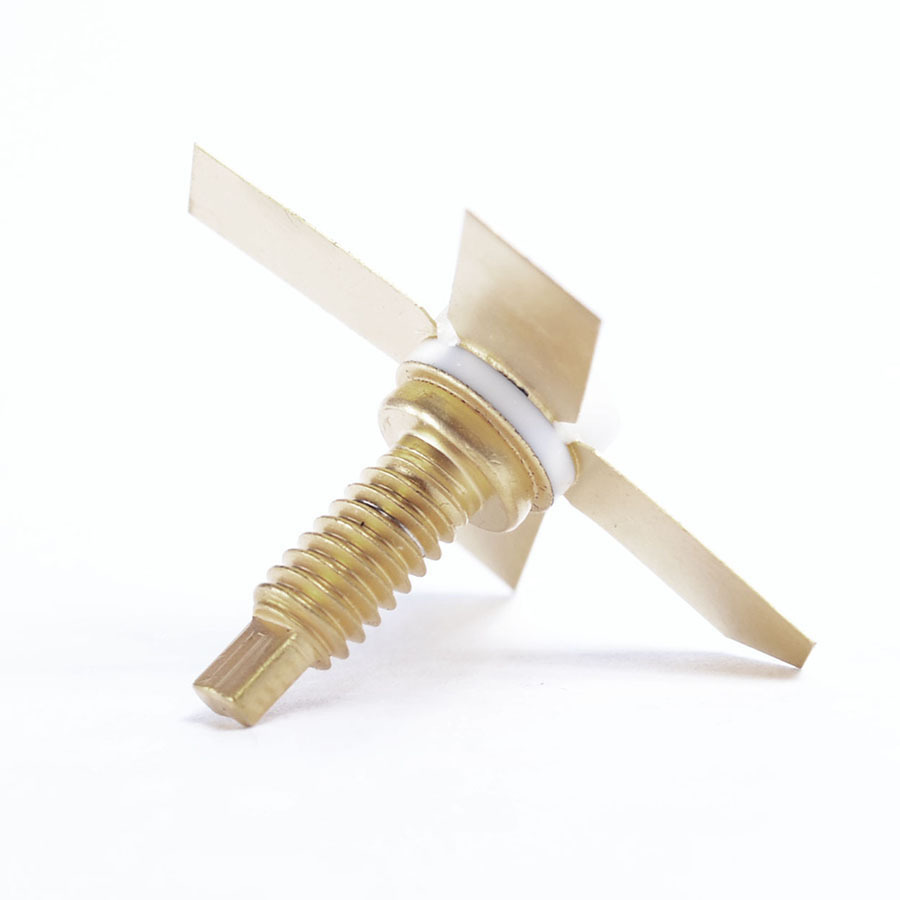

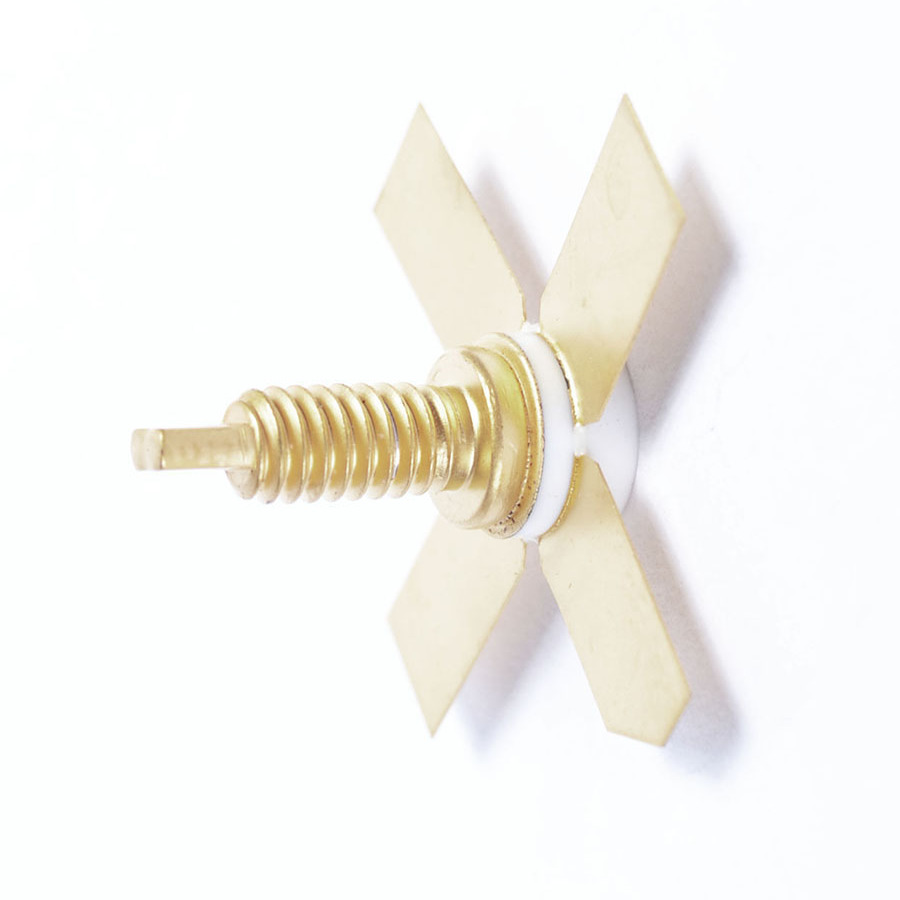

TP5002

SKU: TP5002
TP5002 Transistor Silicon NPN CASE: SOT122 MAKE: Motorola Semiconductor
Product specifications
Type Transistor Silicon NPN
Case SOT122
Manufacturer Motorola Semiconductor
Vbr CBO 45
Mat. Silicon Logic
Oper. Gain Typ (S21) 13
Oper. Pwr Out Typ. 1.5
f(osc) Max. (Hz) 512M
Polarity NPN
PD Max. (W) 7.0
Oper. Temp (°C) Max. 200
Pinout Equivalence Number 4-28
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 7 W
Maximum Collector-Emitter Voltage |Vce| 45 V
Maximum Emitter-Base Voltage |Veb| 3.5 V
Maximum Collector Current |Ic max| 0.3 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 4.5 pF
Transition Frequency (ft): 1000 MHz
Forward Current Transfer Ratio (hFE), MIN 15
SKU 452905
