TP9380
View detailed images (12)

TP9380

SKU: TP9380

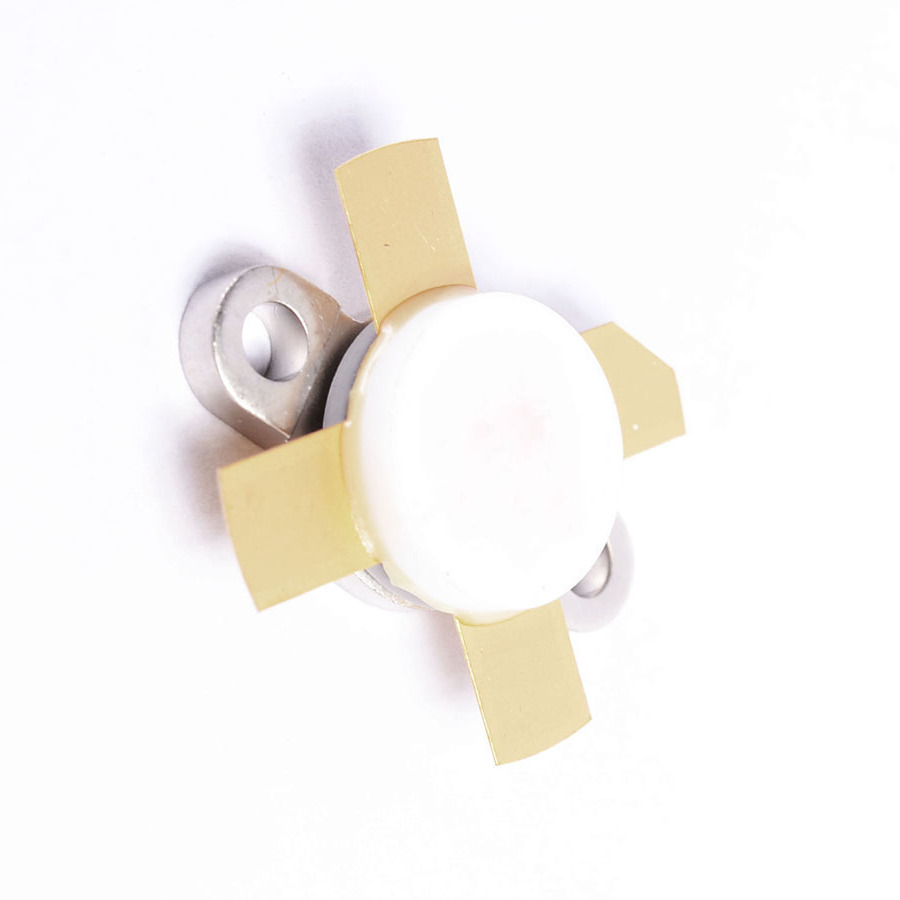

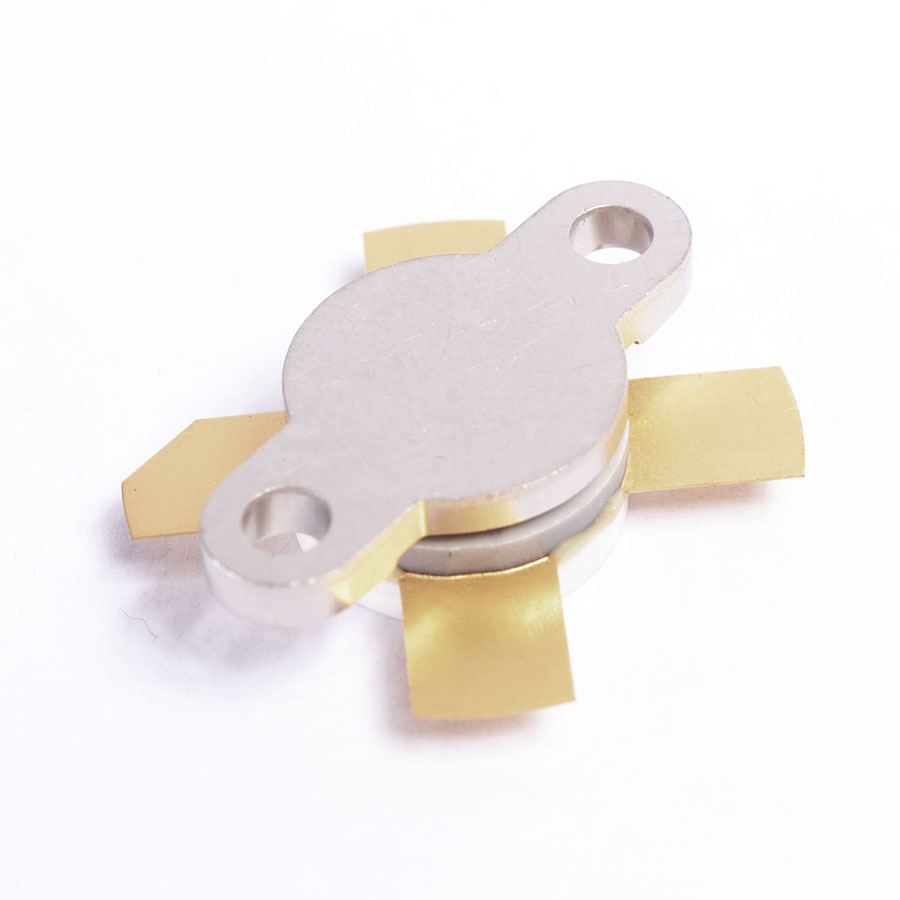

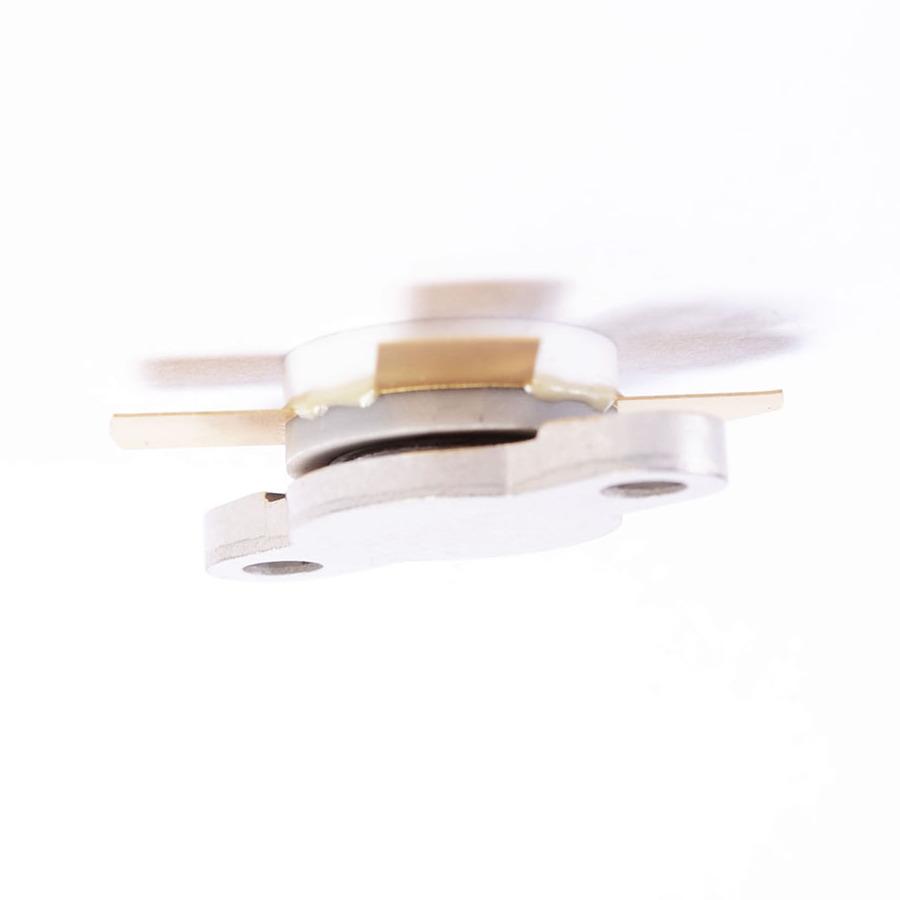

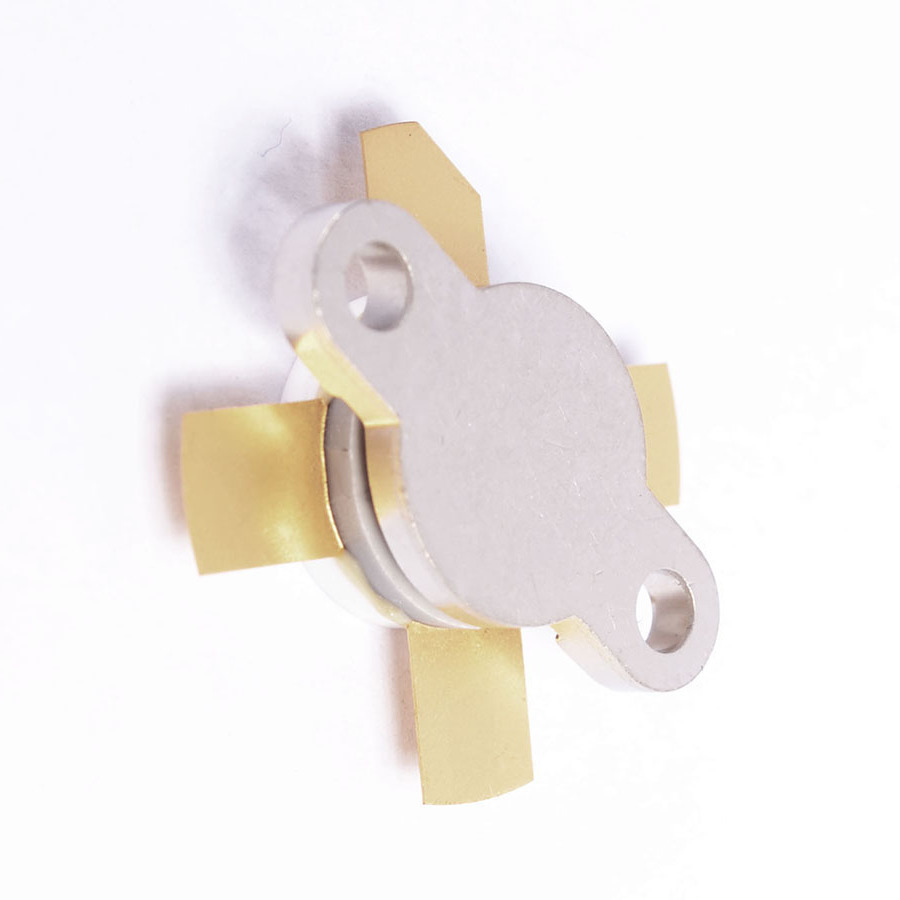

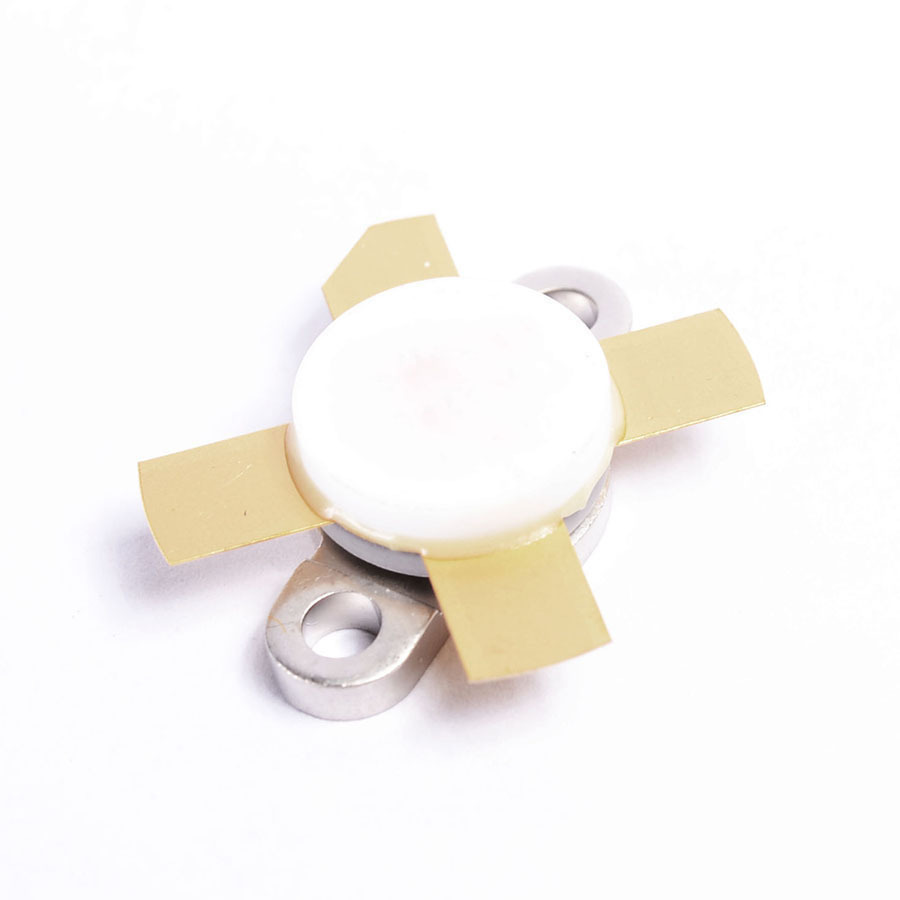

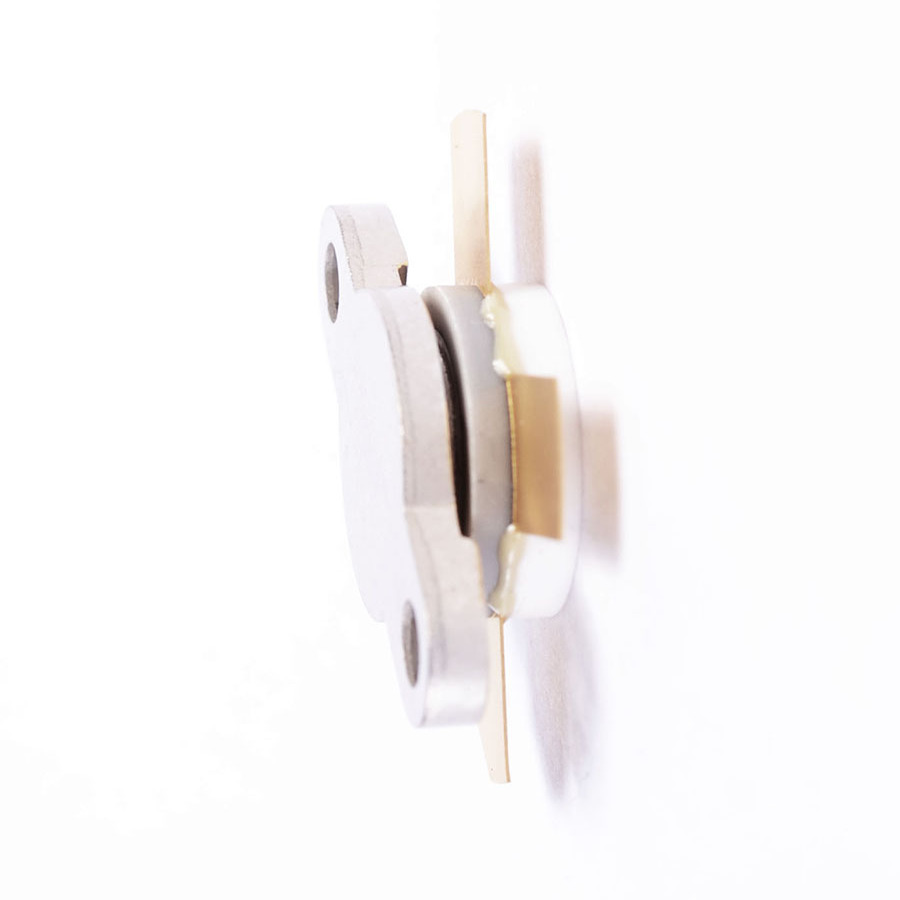

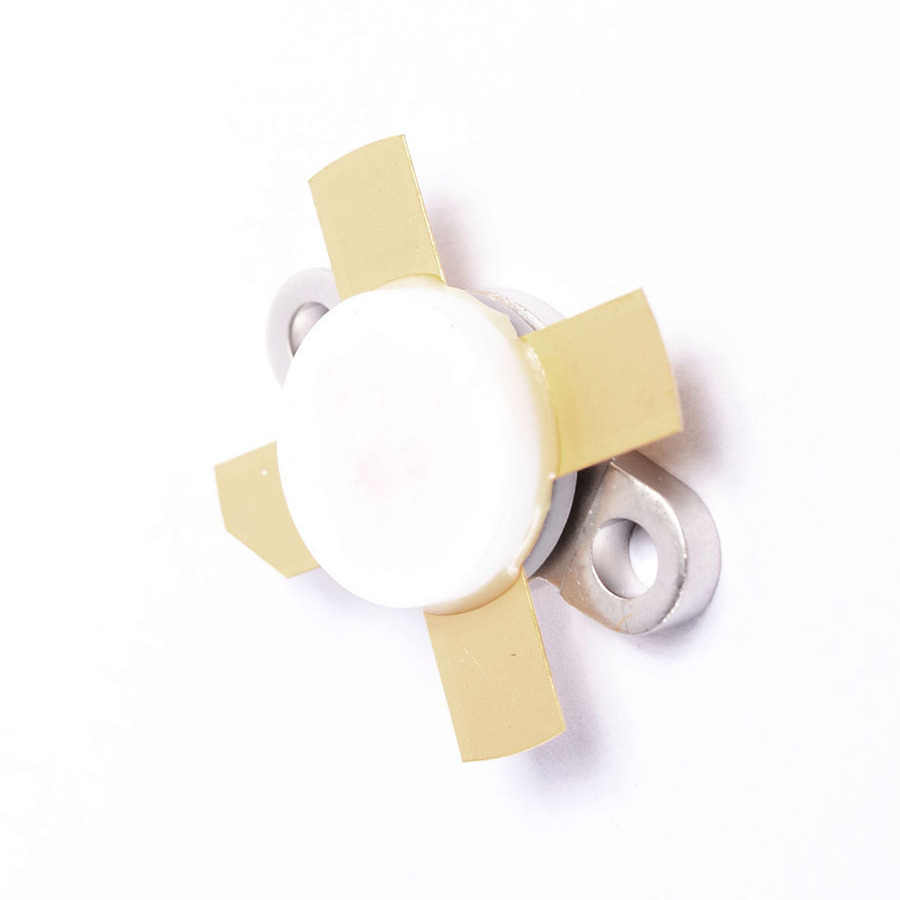

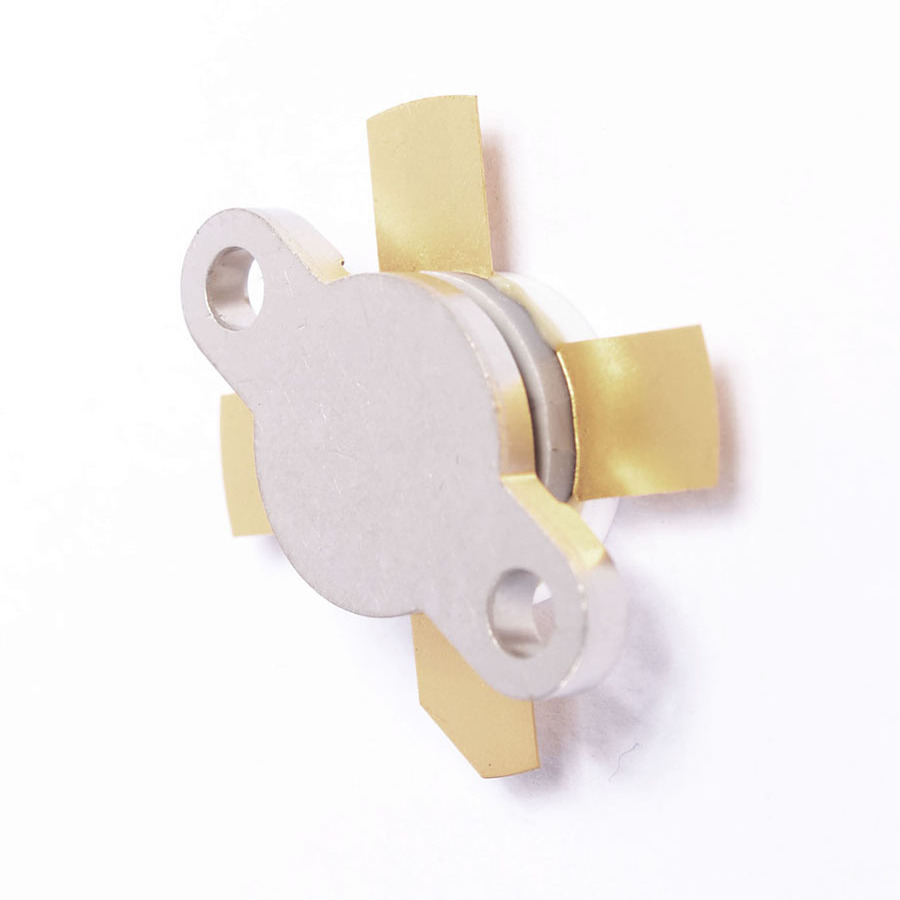

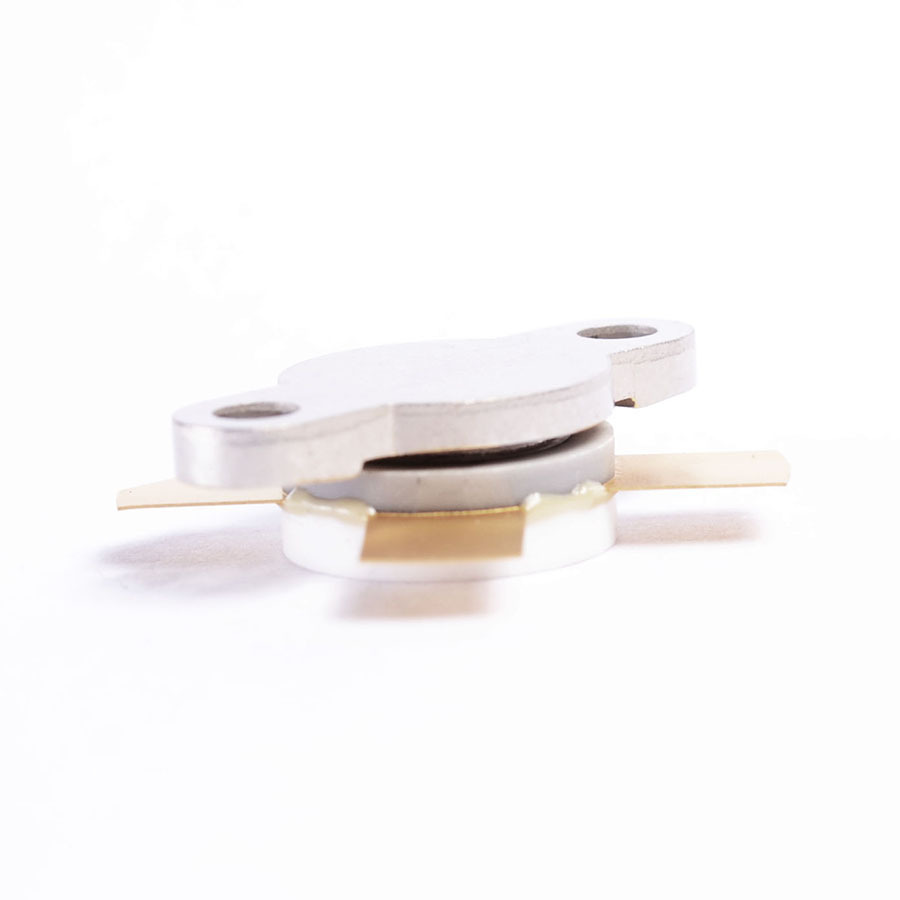

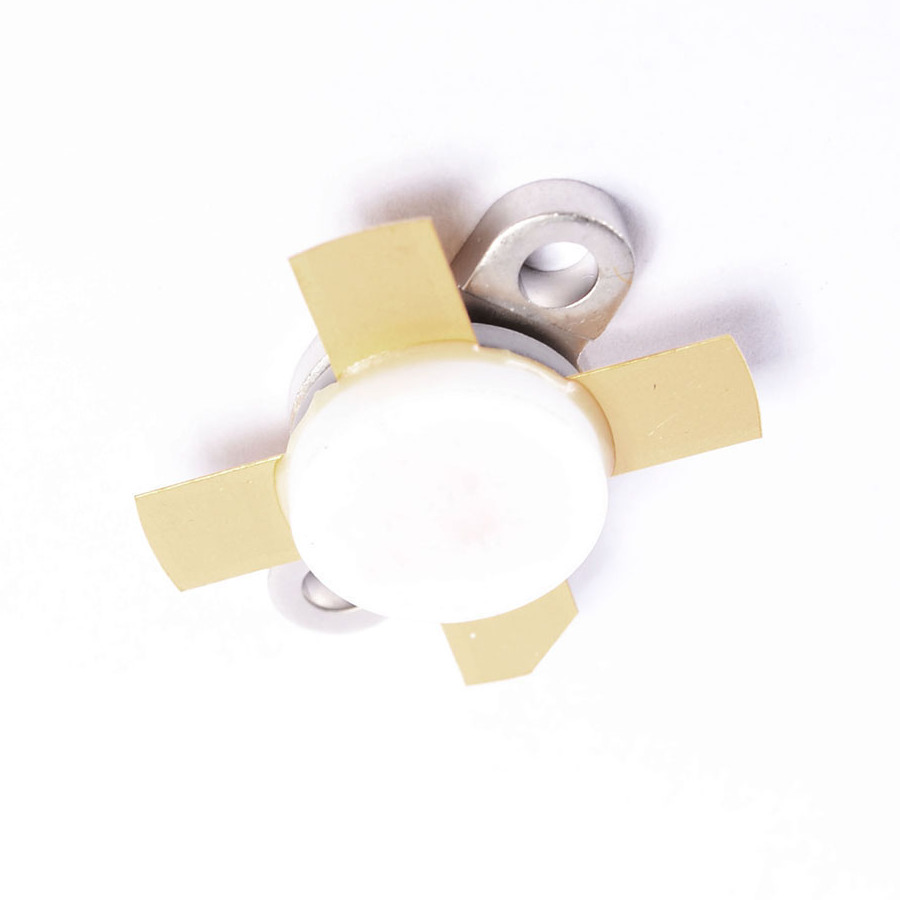

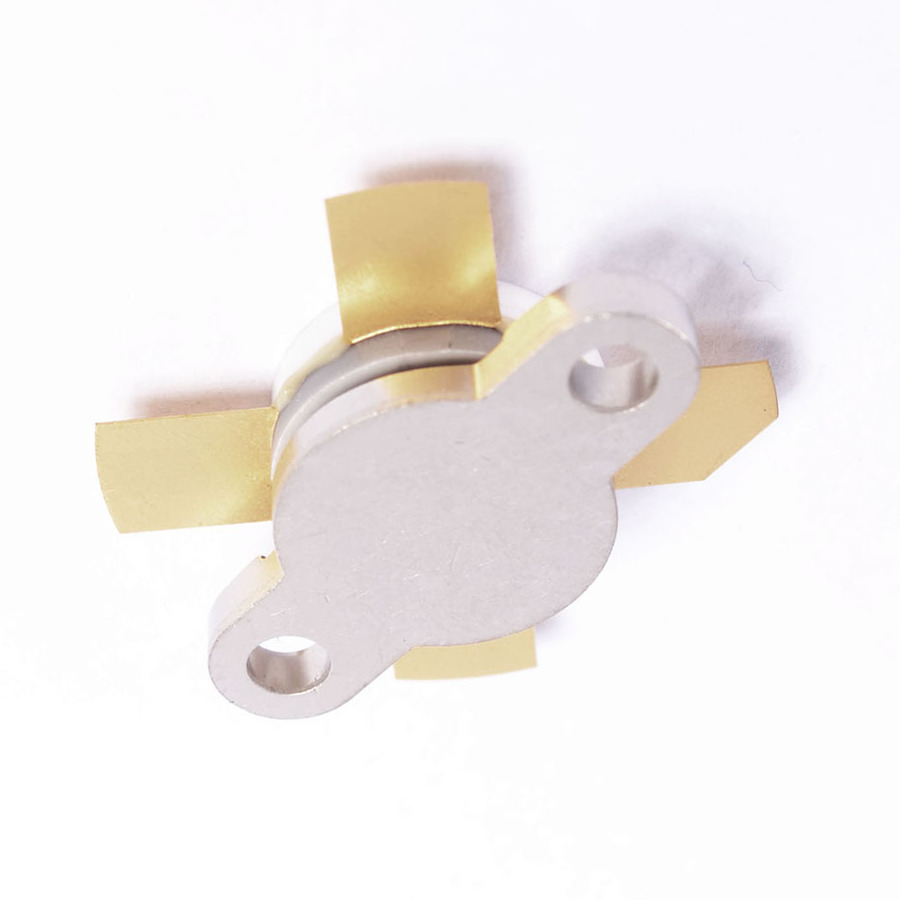

TP9380 Transistor Silicon NPN CASE: SOT121 MAKE: Motorola Semiconductor
Product specifications
Type Transistor Silicon NPN
Case SOT121
Manufacturer Motorola Semiconductor
Vbr CBO 65
Mat. Silicon Logic
Oper. Gain Typ (S21) 10
Oper. Pwr Out Typ. 75
f(osc) Max. (Hz) 108M
Polarity NPN
PD Max. (W) 100
Coll. (or drain) Current Max. 10
Oper. Temp (°C) Max. 200
Pinout Equivalence Number 8-29
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 140 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 35 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 10 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 85 pF
Transition Frequency (ft): 108 MHz
Forward Current Transfer Ratio (hFE), MIN 10
SKU 452917
