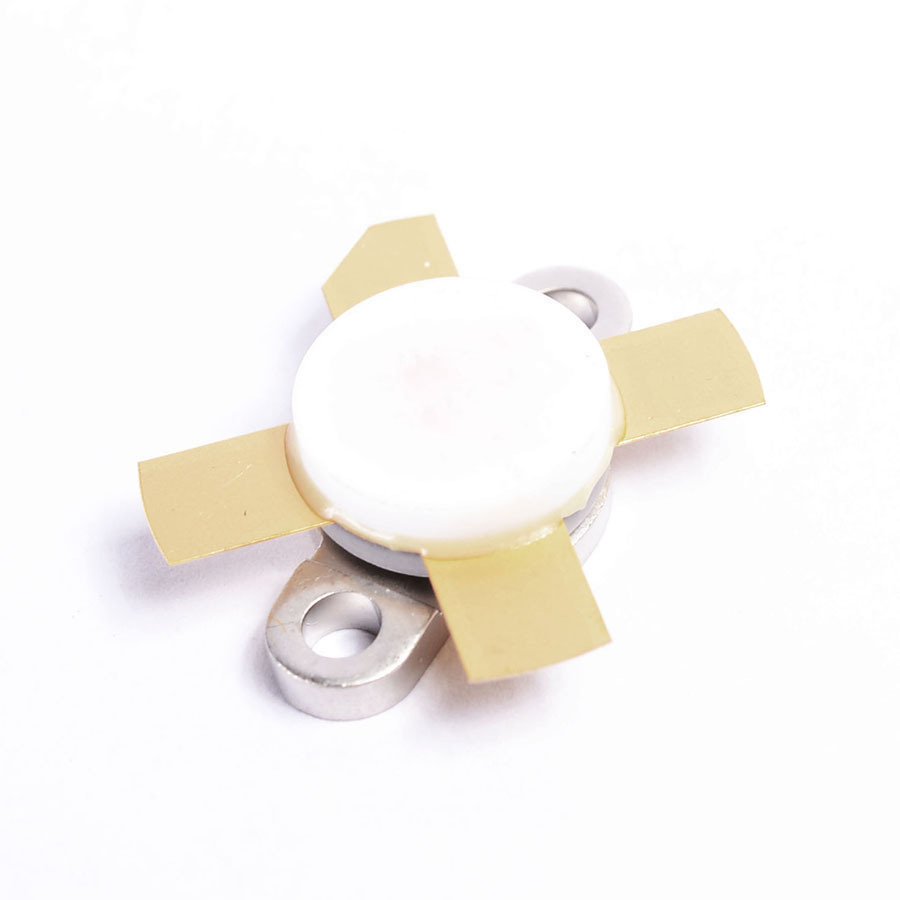

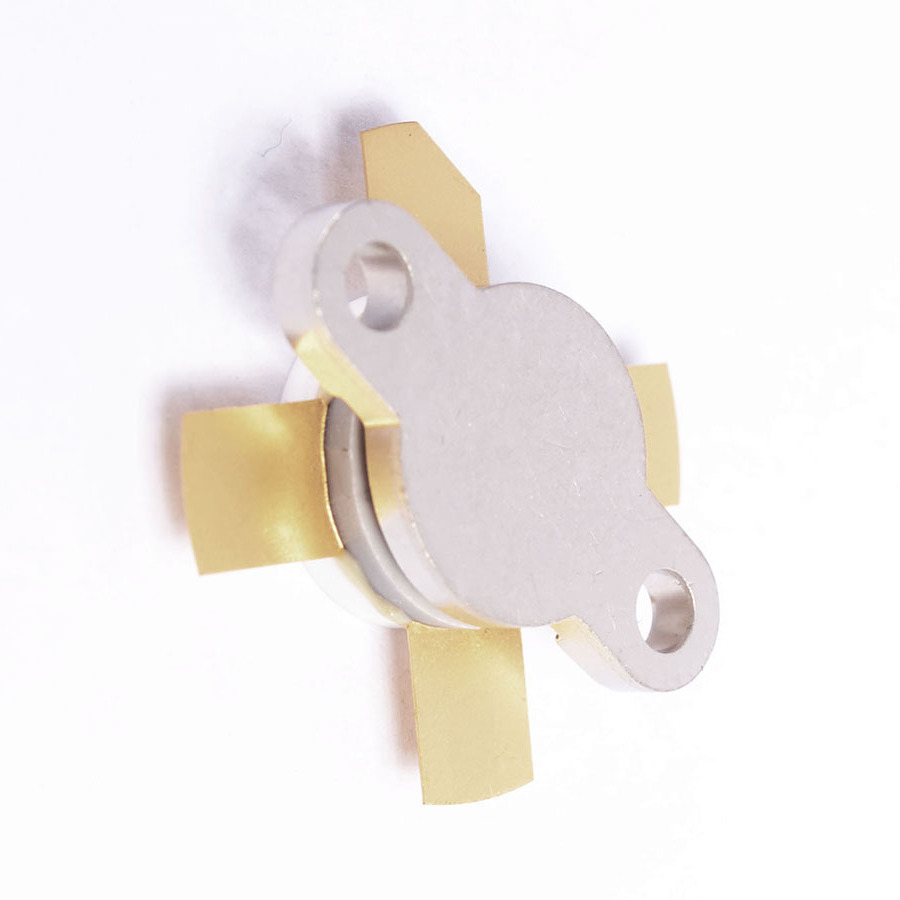

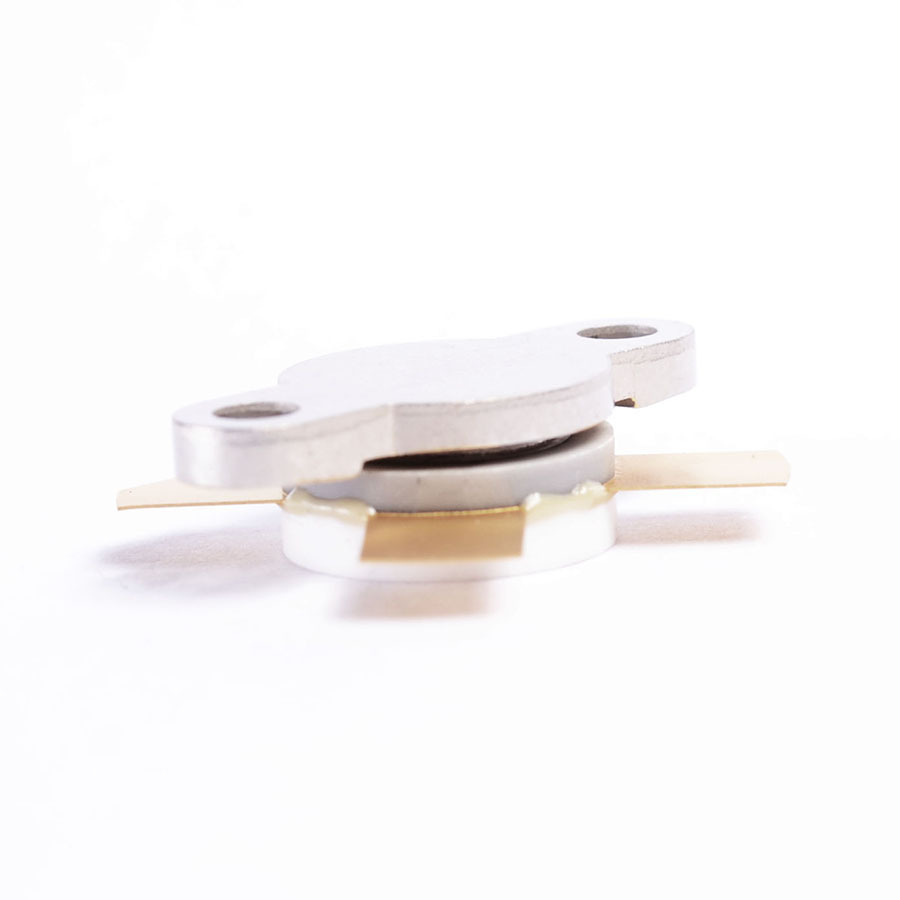

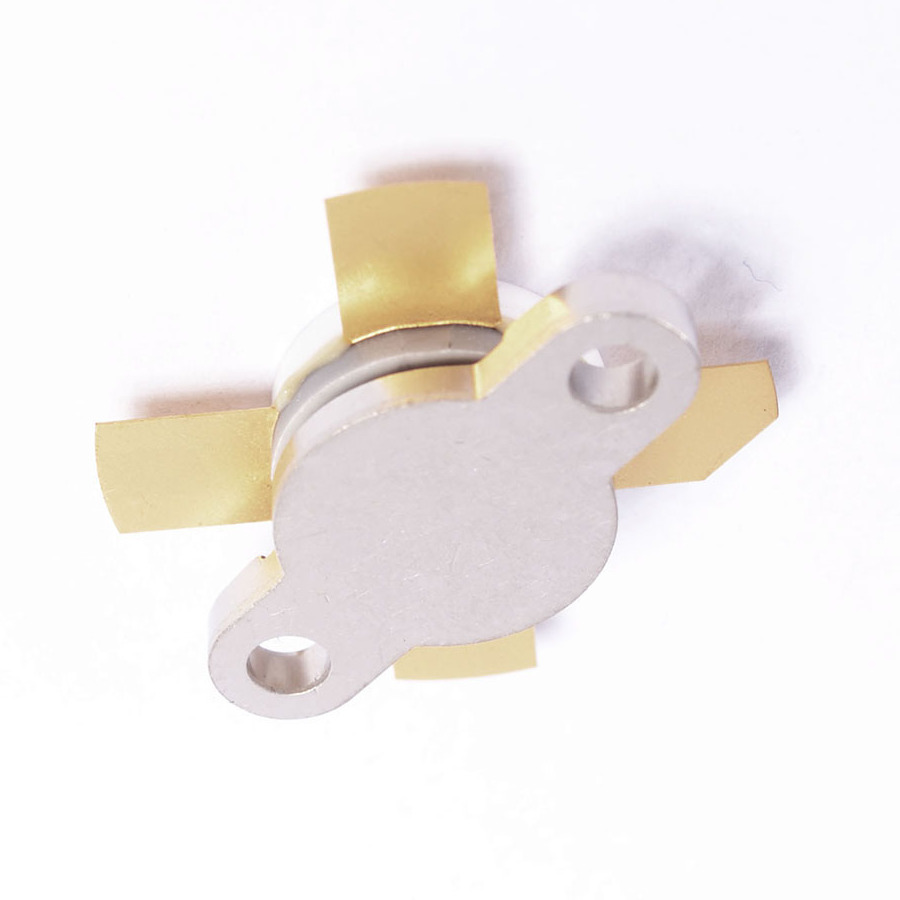

TP9383 Transistor Silicon NPN CASE: SOT121 MAKE: Motorola Semiconductor
Product specifications
Type Transistor Silicon NPN
Case SOT121
Manufacturer Motorola Semiconductor
Vbr CBO 60
Mat. Silicon Logic
Oper. Gain Typ (S21) 9.2
Oper. Pwr Out Typ. 150
f(osc) Max. (Hz) 108M
Polarity NPN
PD Max. (W) 150
Coll. (or drain) Current Max. 16
Oper. Temp (°C) Max. 200
Pinout Equivalence Number 4-28
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 230 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 55 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 16 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 150 pF
Transition Frequency (ft): 108 MHz
Forward Current Transfer Ratio (hFE), MIN 20
