TR801
View detailed images (13)

TR801

SKU: TR801

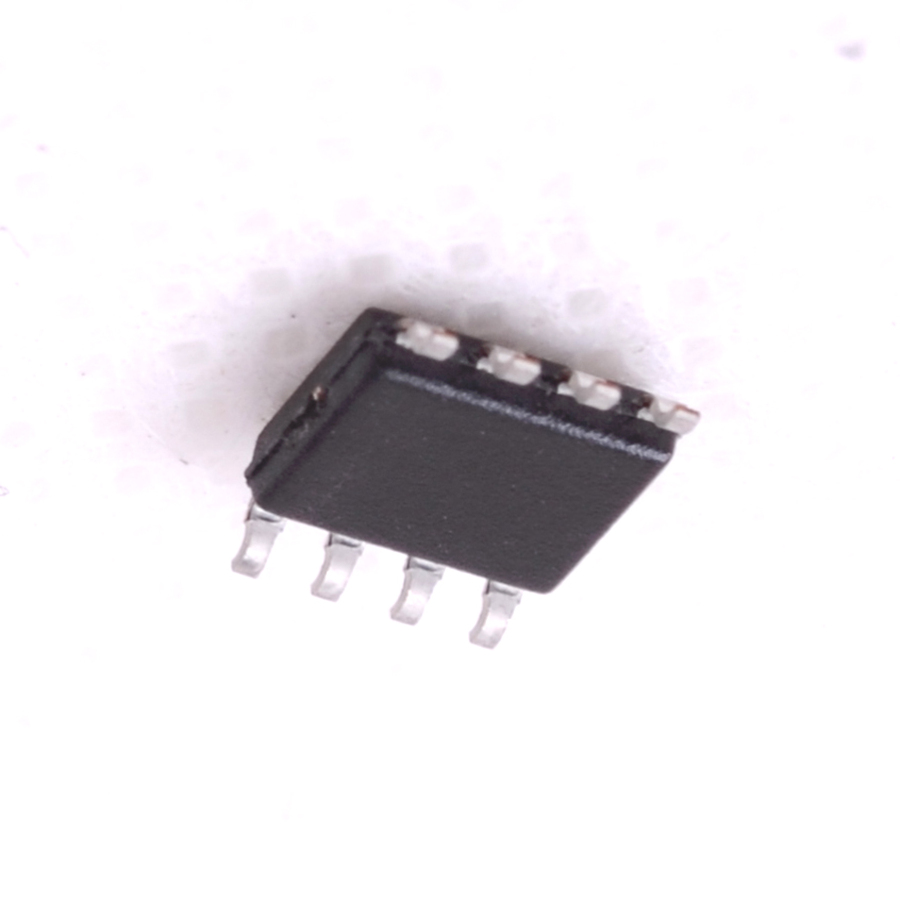

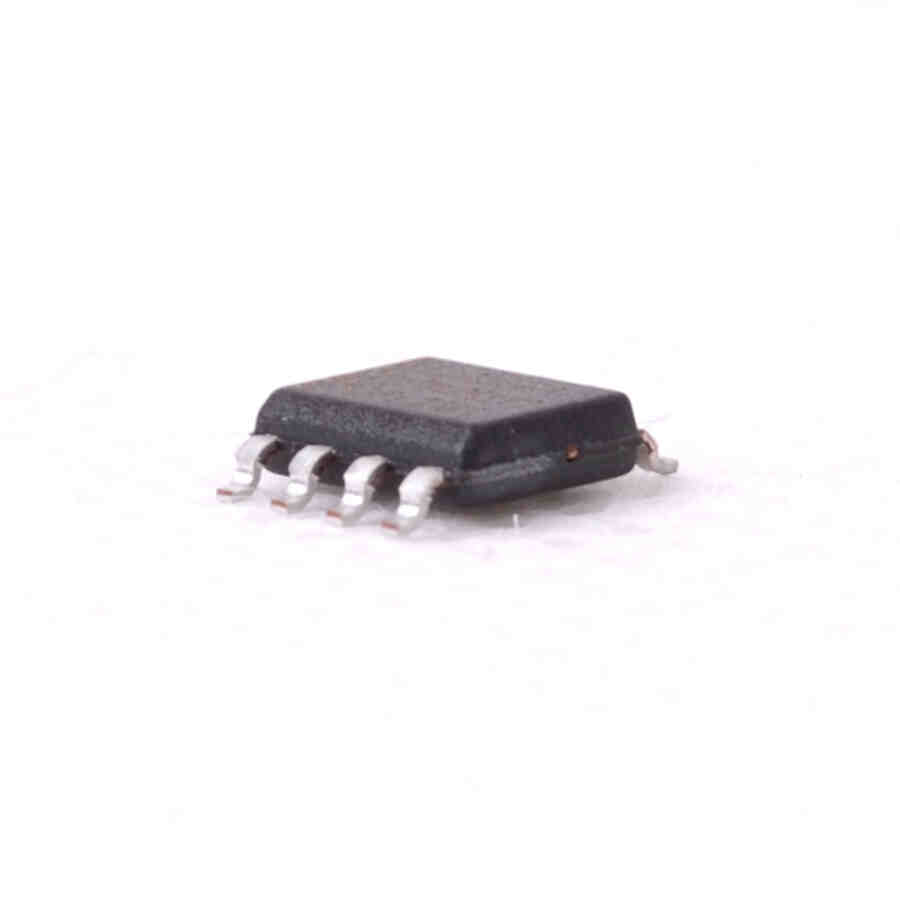

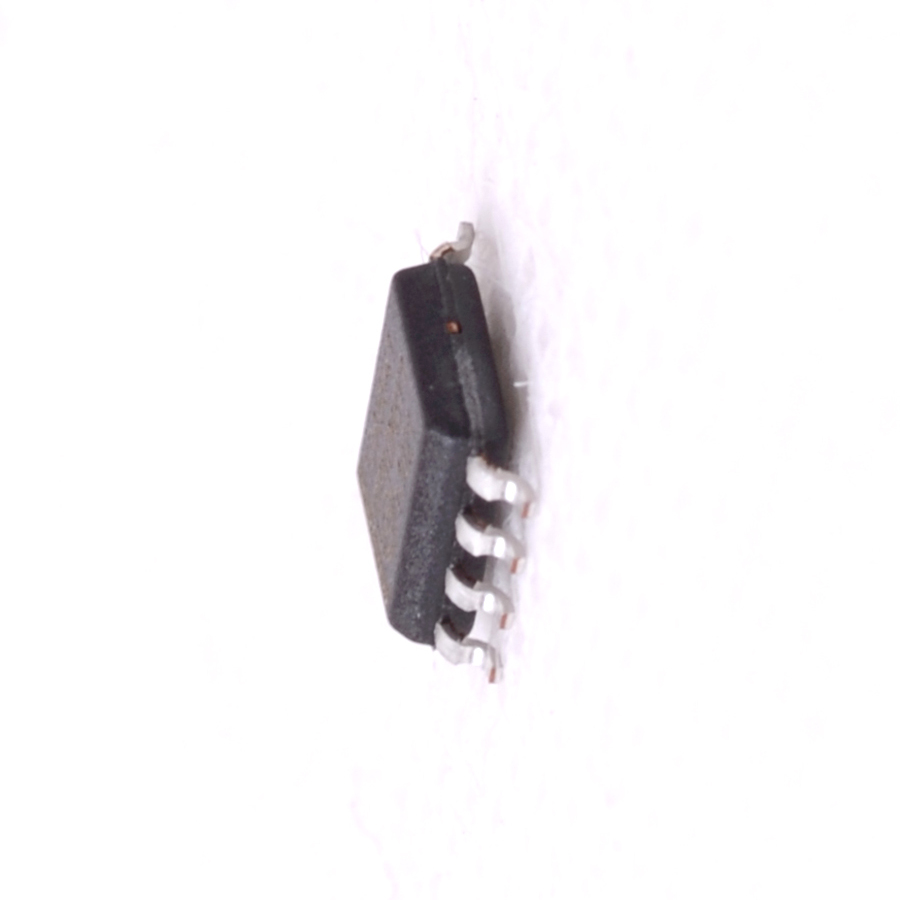

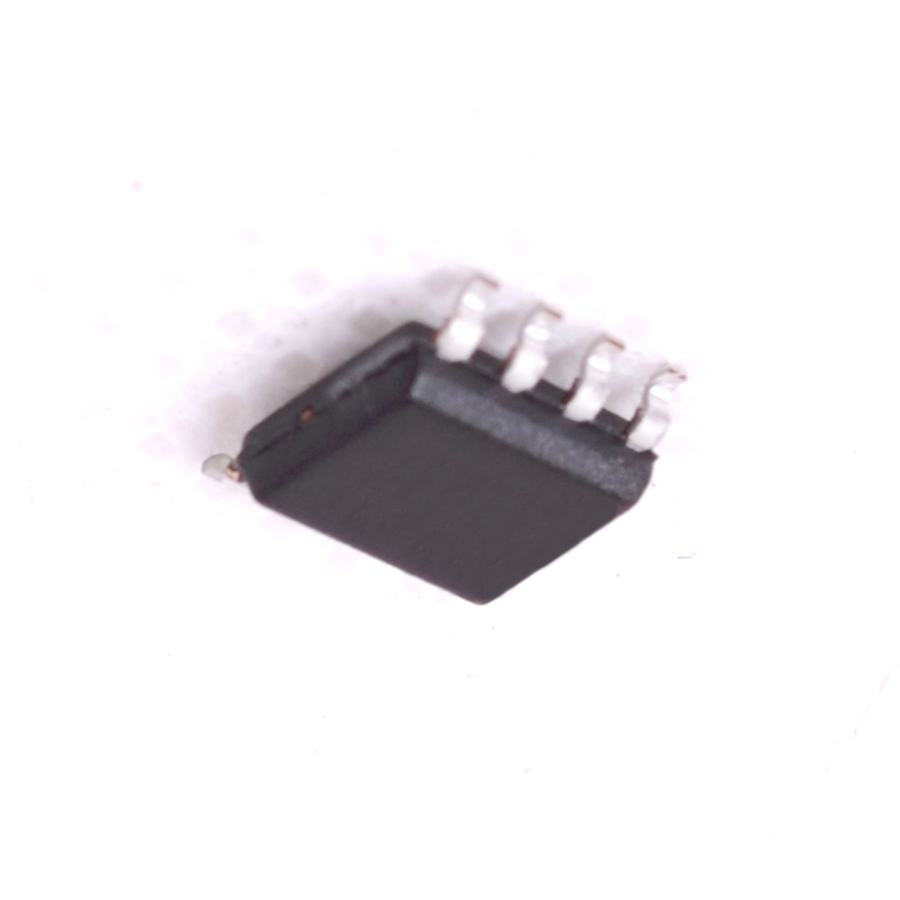

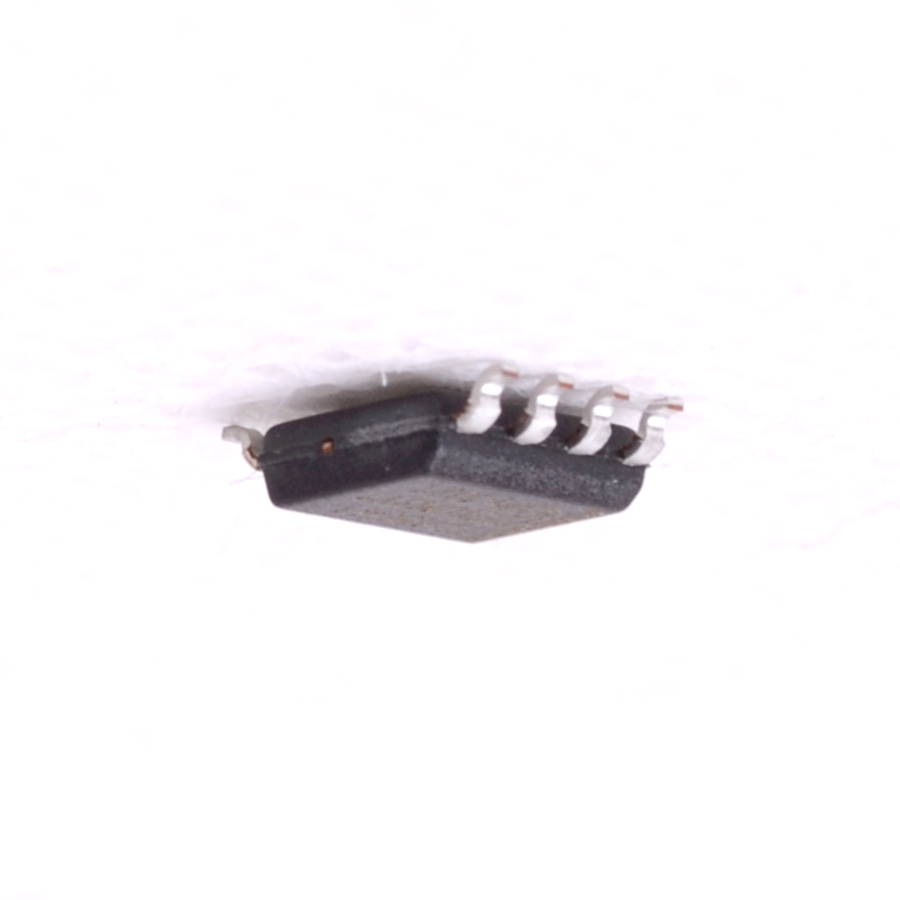

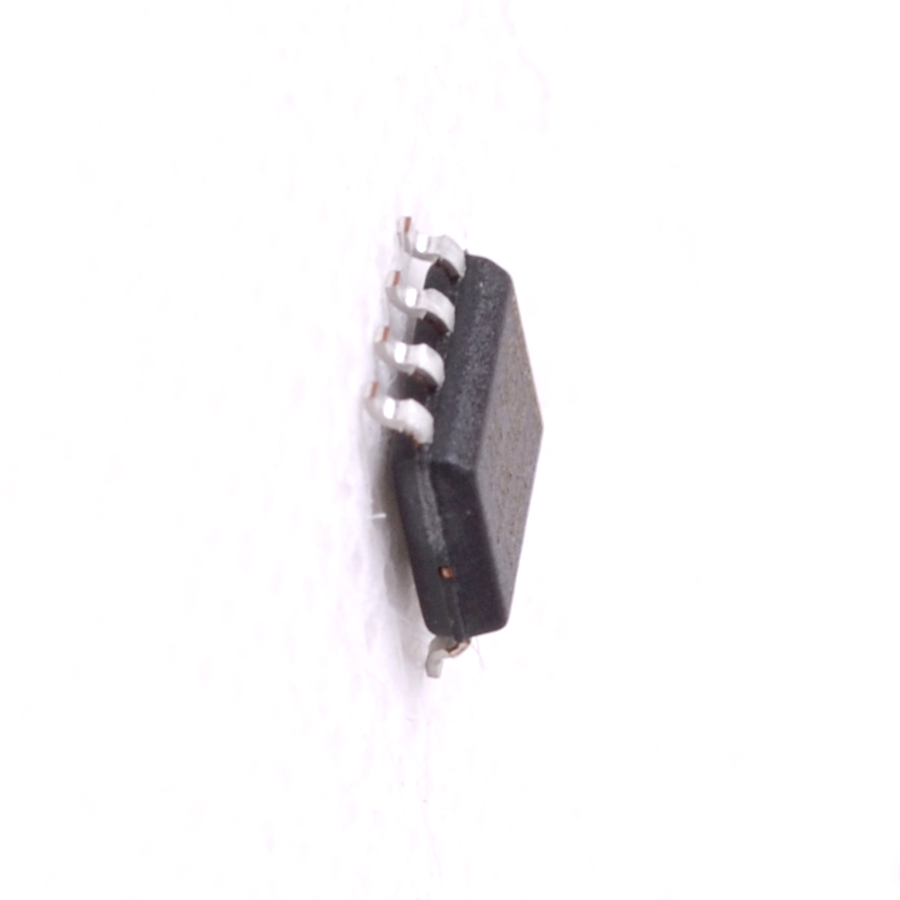

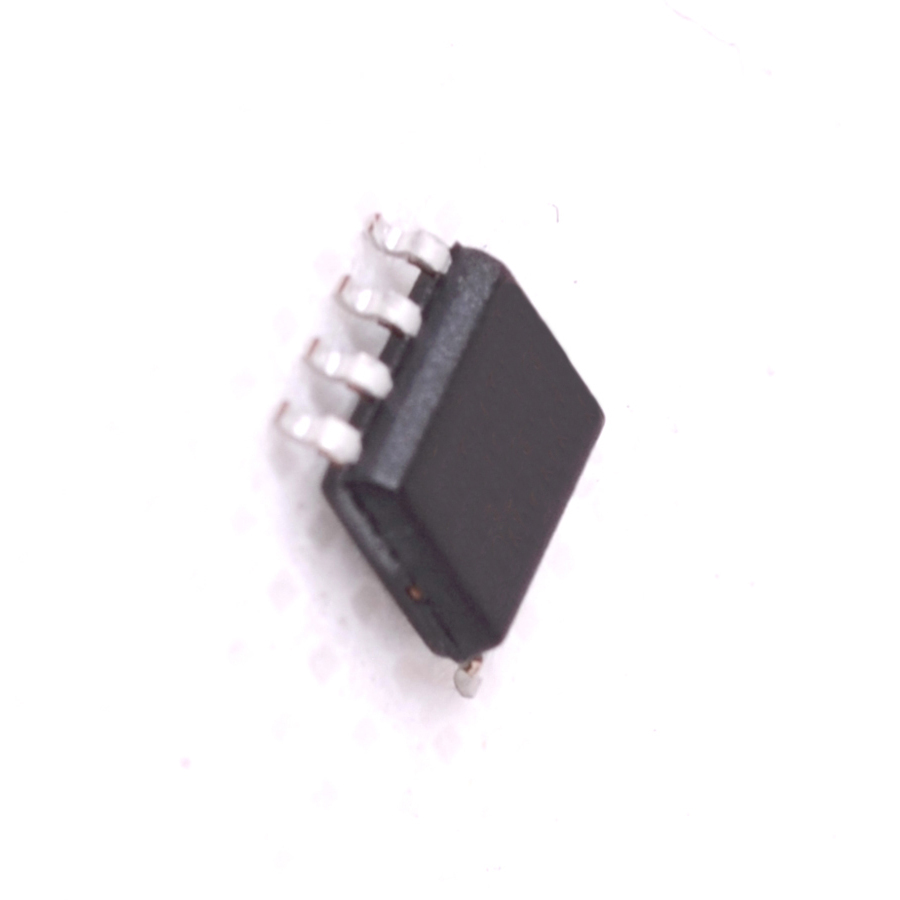

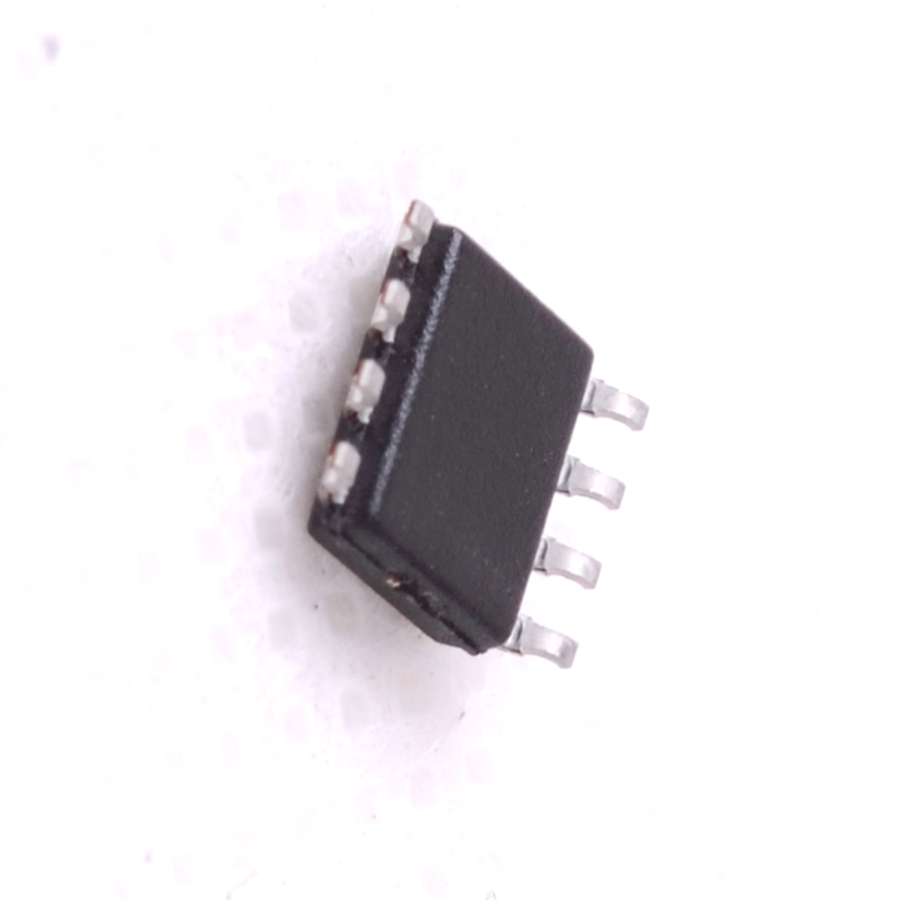

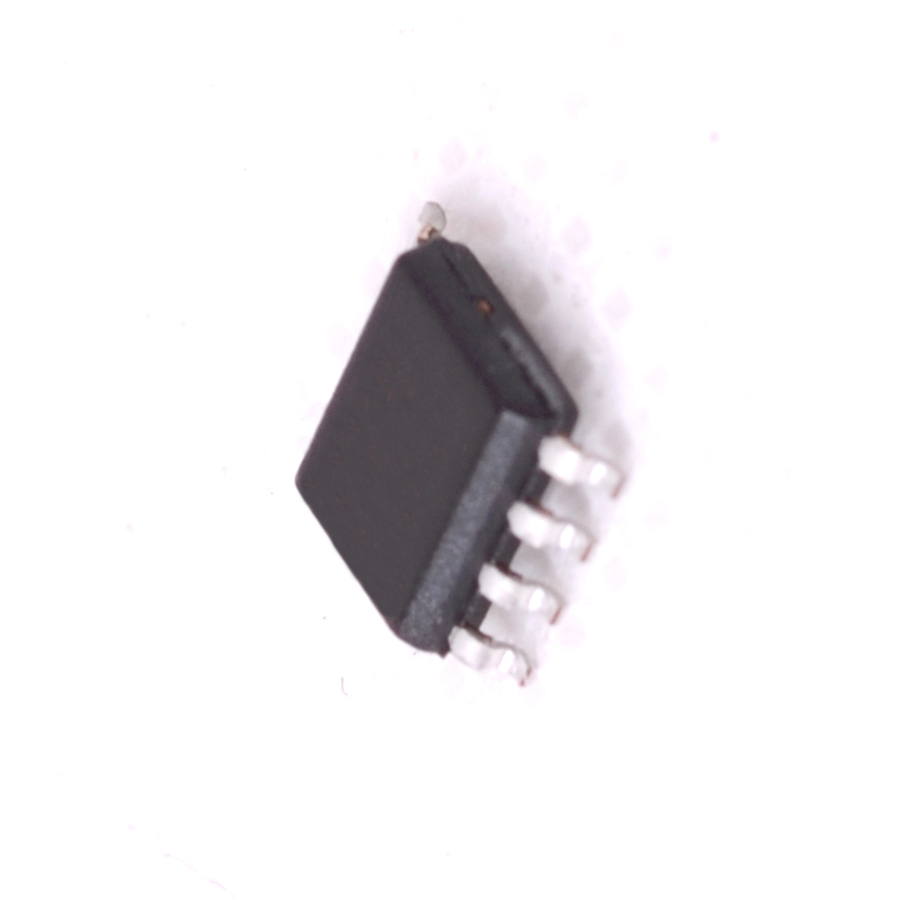

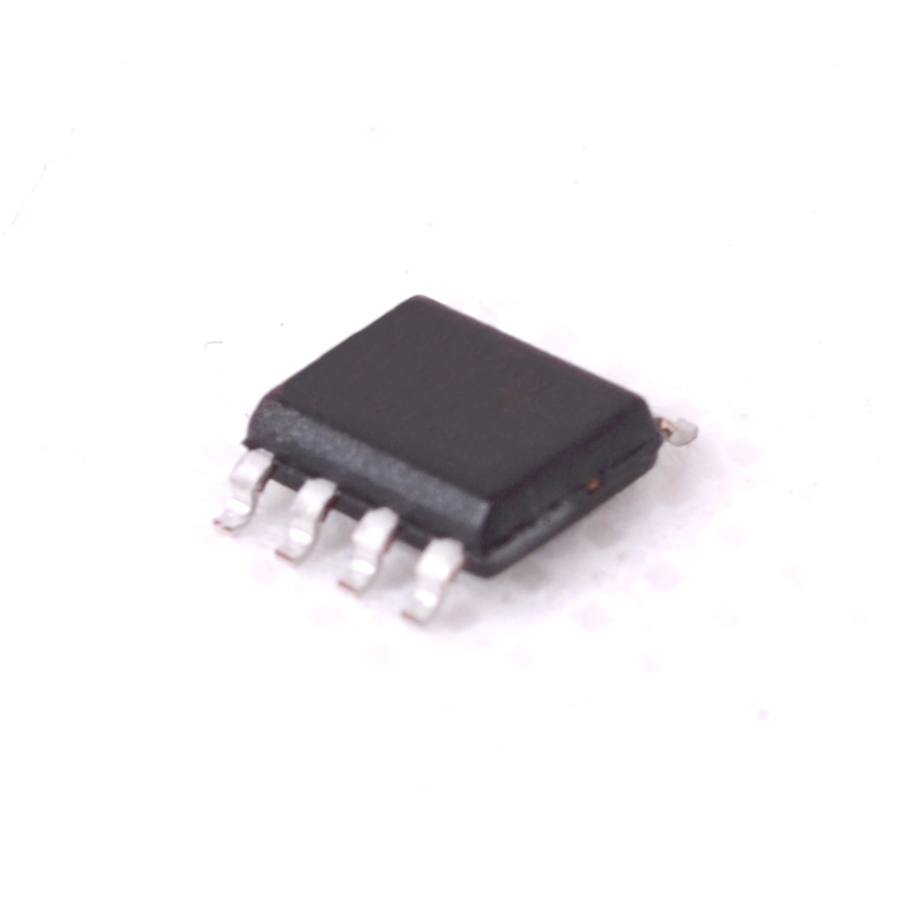

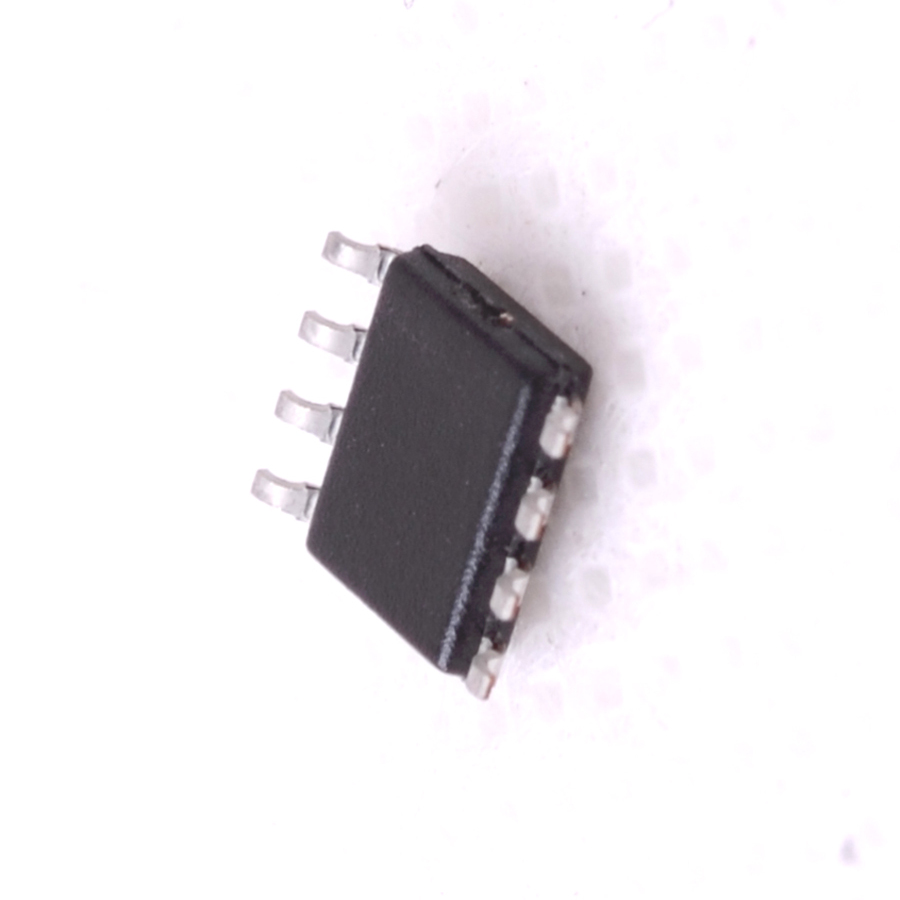

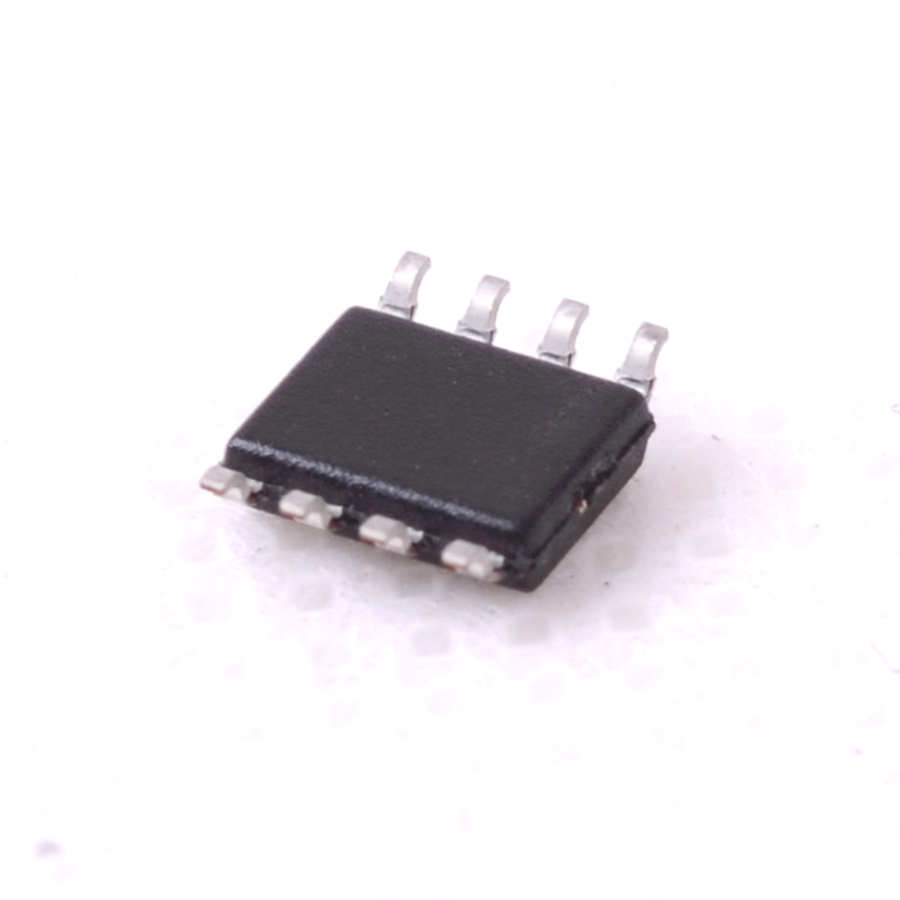

TR801 Semiconductor CASE: SOP8 MAKE: Generic
Product specifications
Type Semiconductor
Case SOP8
Manufacturer Generic
Vbr CBO 12
Max. PD (W) 90m
hfe 25
Ic Max. (A) 100m
Icbo Max. @Vcb Max. (A) 6.0u
@Temp. (test) (°C) 150
Ir @ Diff. Temp (A) 5.0m
VRRM 800
@Temp (test) (°C) 150
Vf Max. 1.5
I(out) (If AVG) Max. 10
Trans. Freq (Hz) Min. 2.5M
@VCE (test) (V) 4.5i
@If (test) 25
Oper. Temp (°C) Max. 75
@Ic (A) 1.0m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
SKU 865346
