UC1711J

UC1711J

SKU: UC1711J

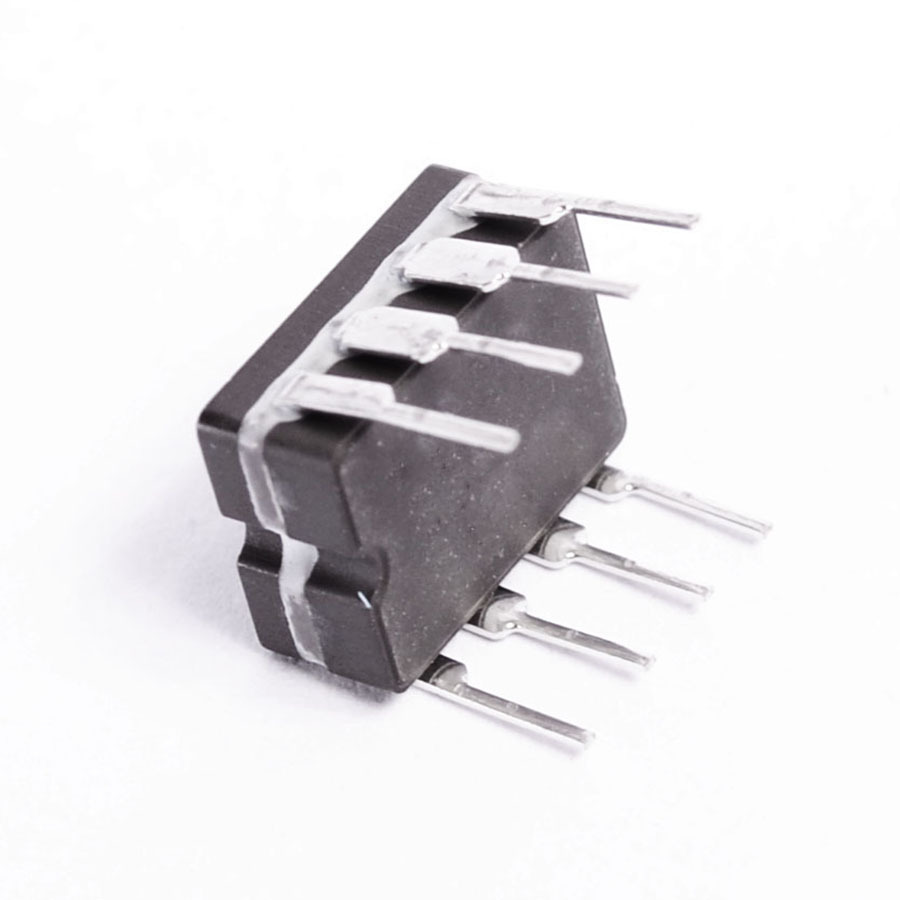

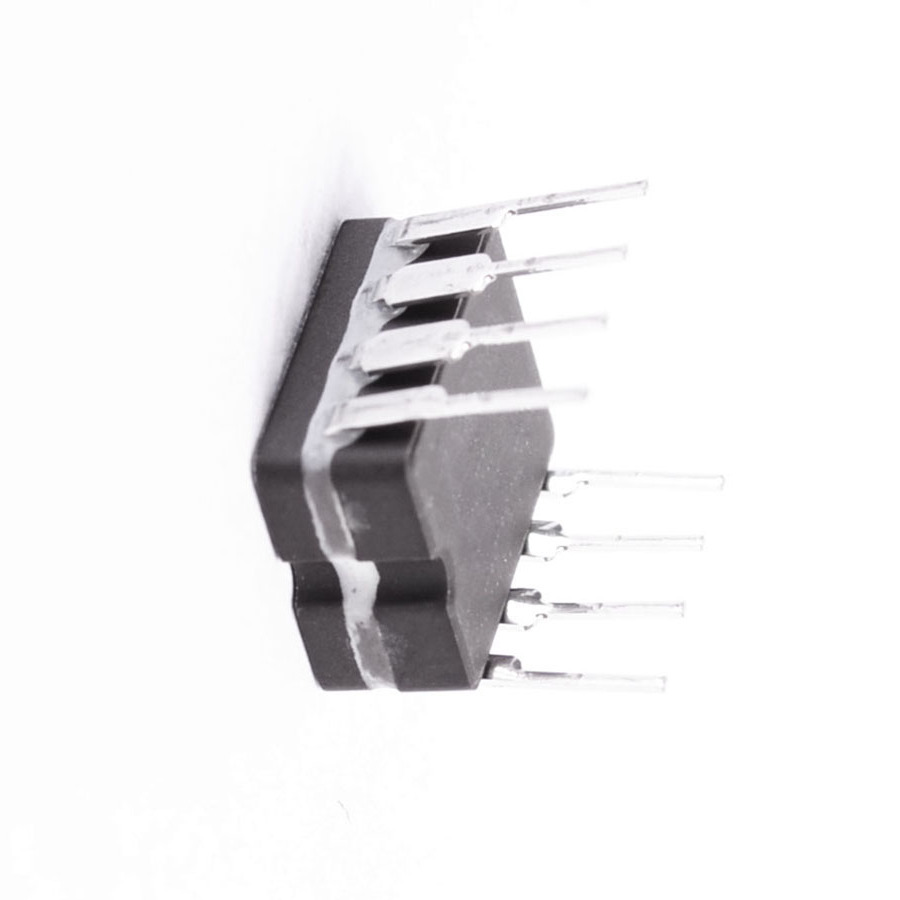

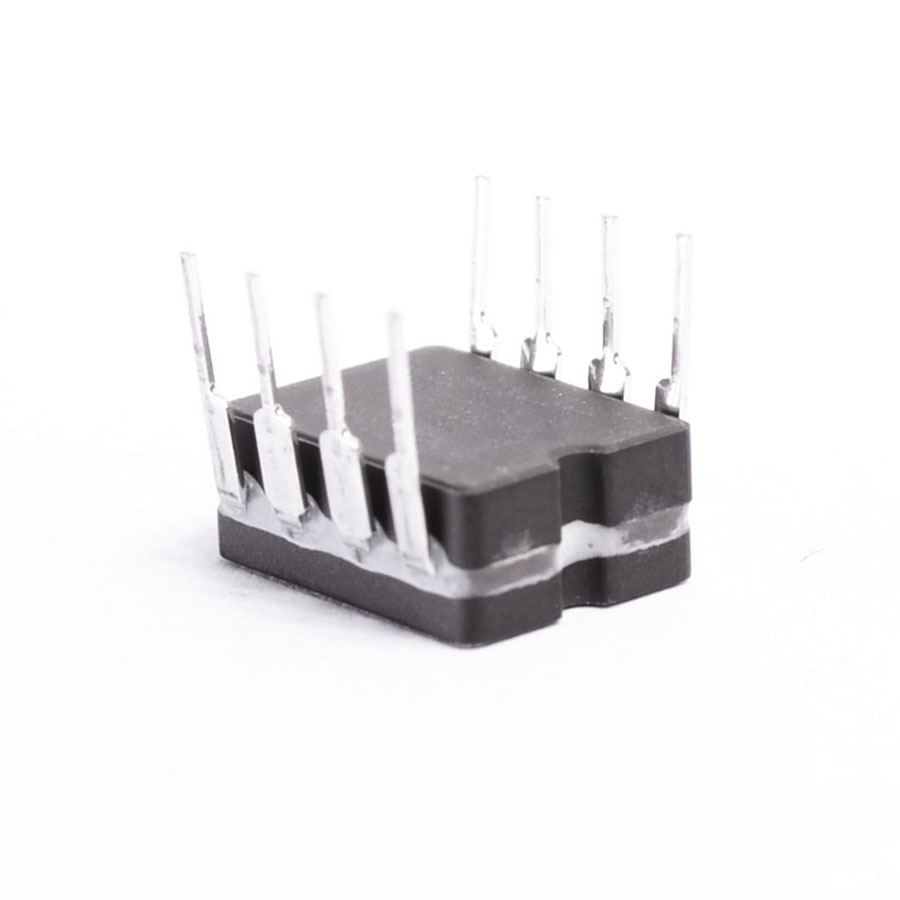

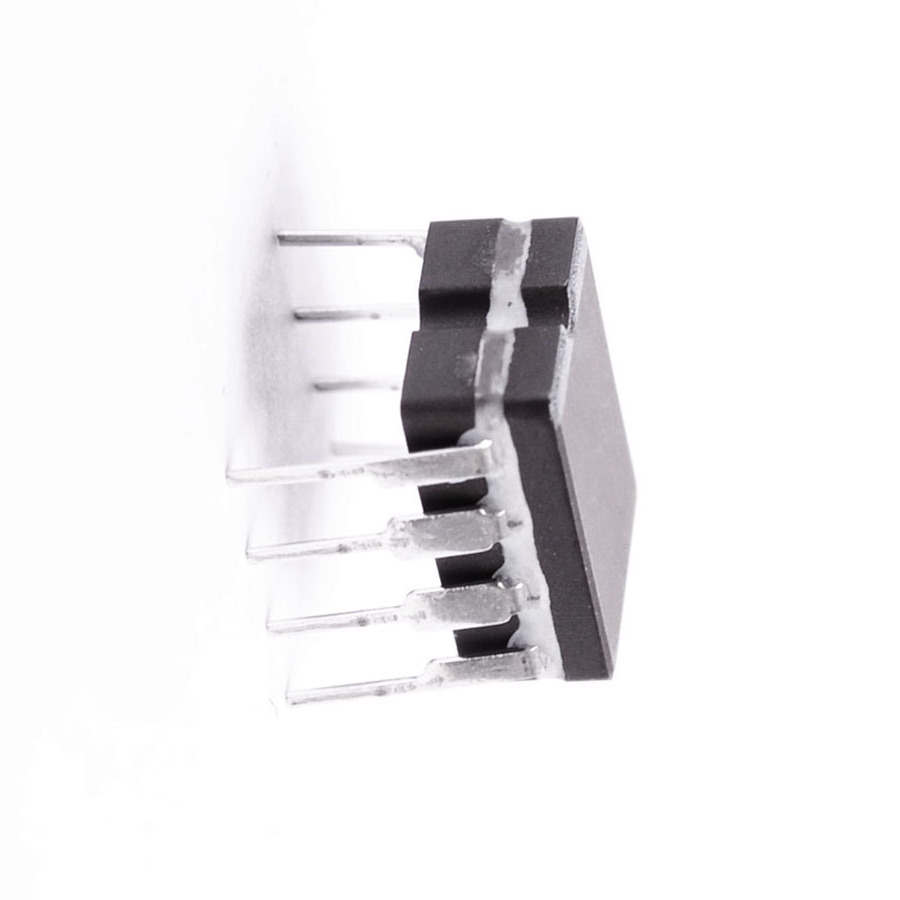

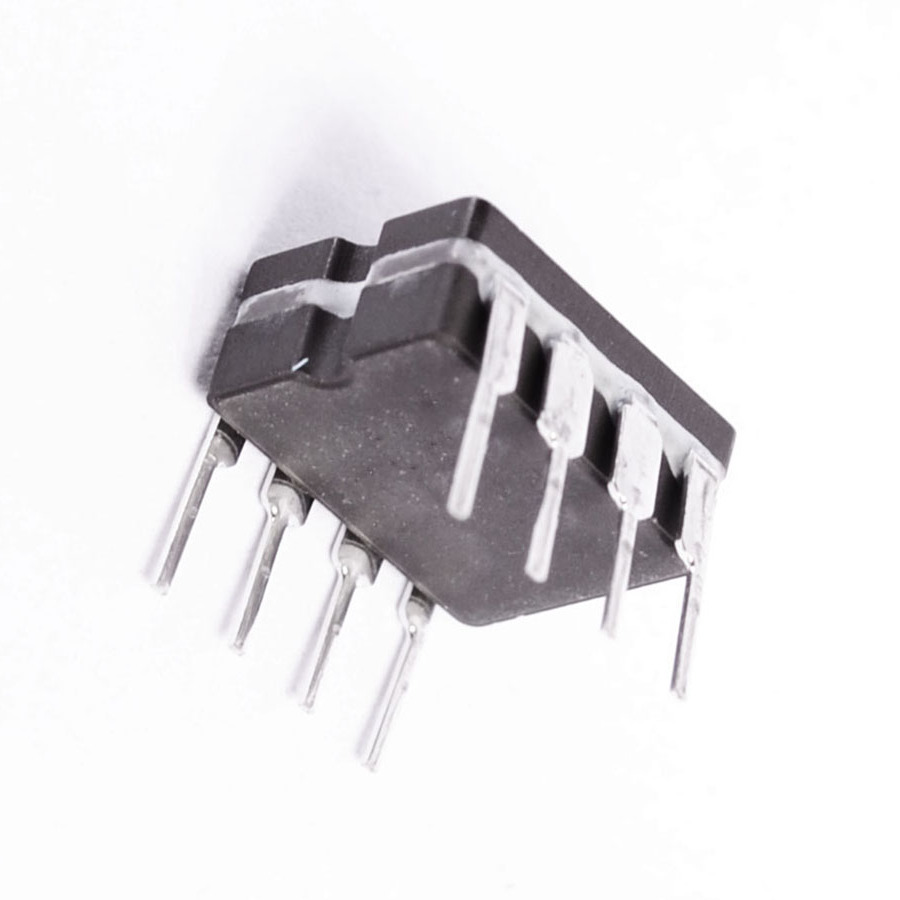

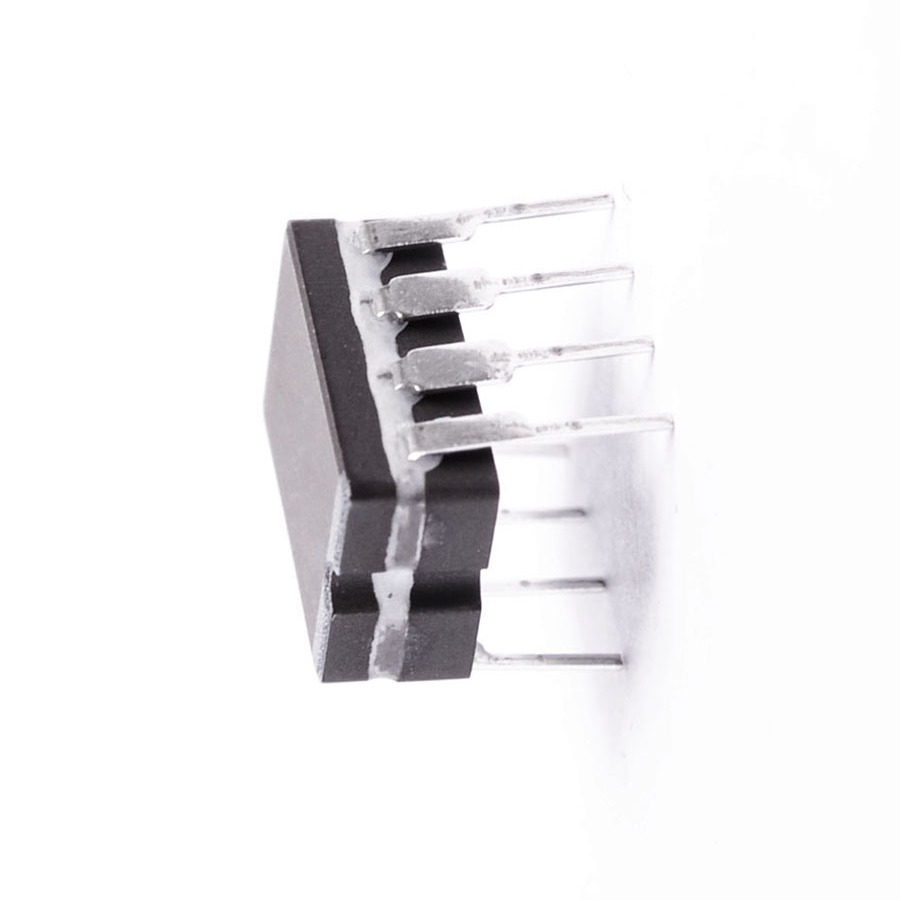

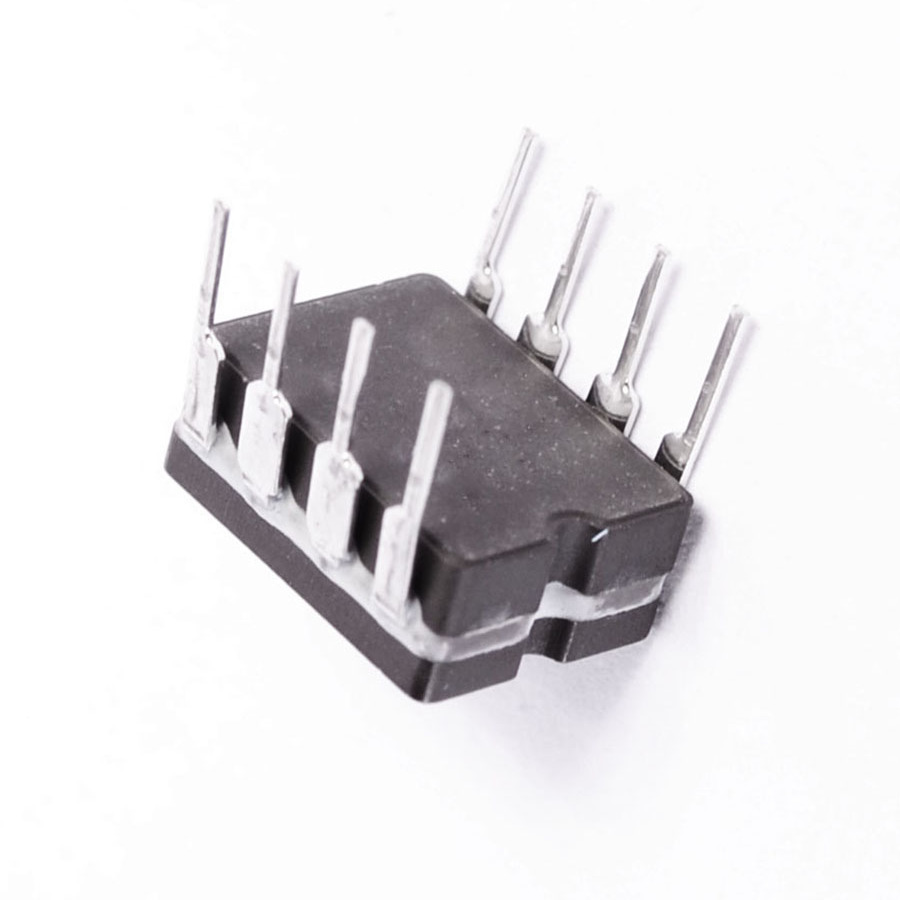

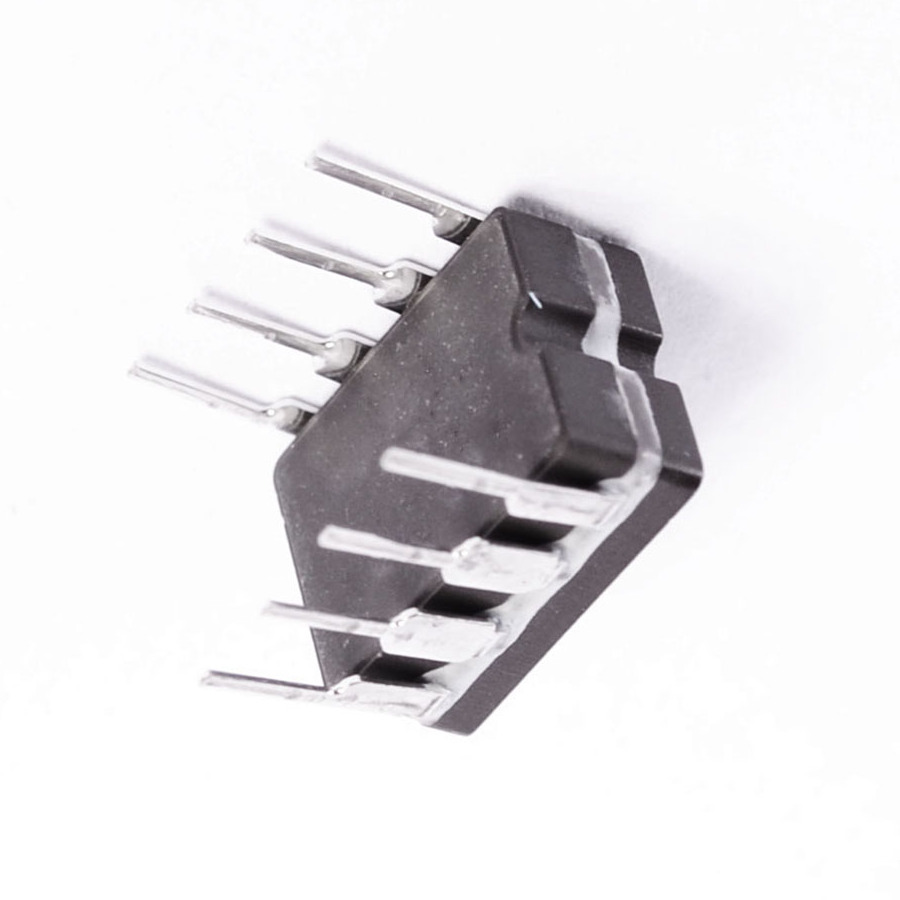

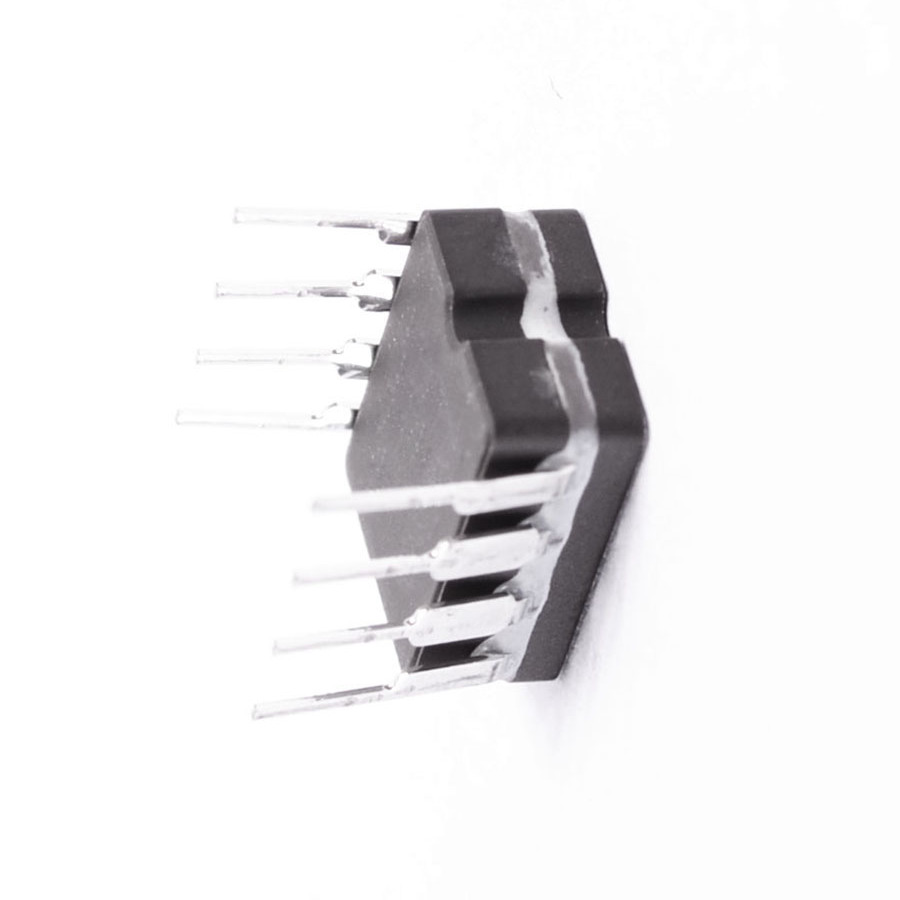

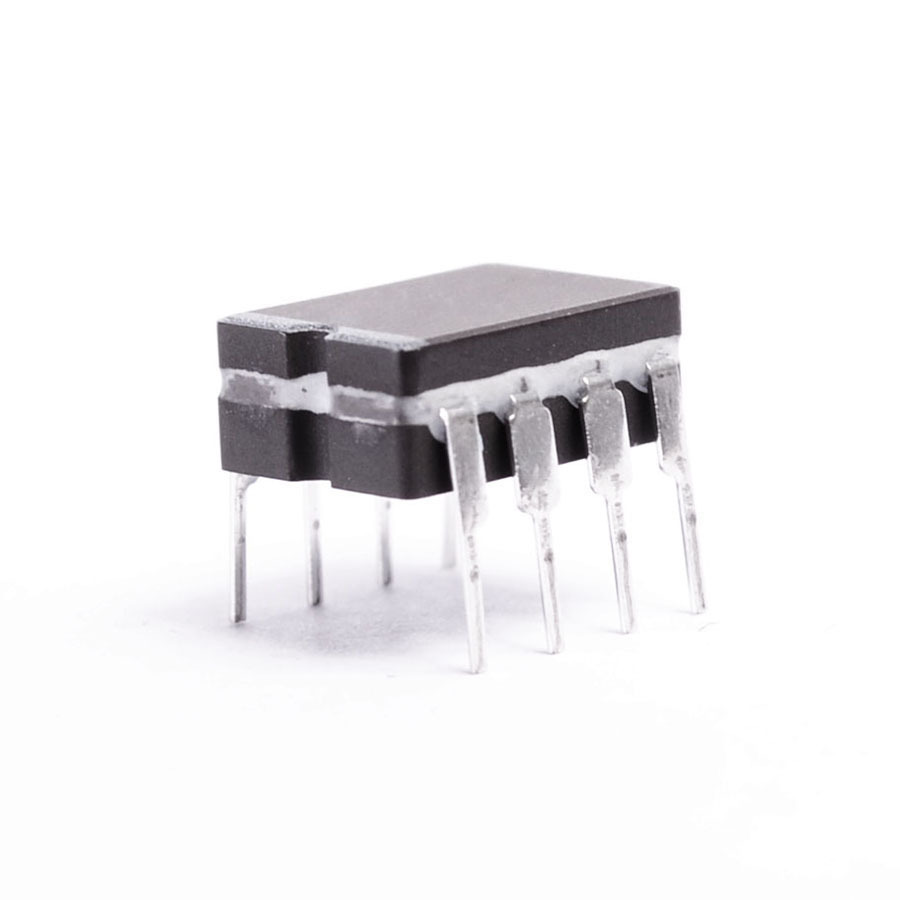

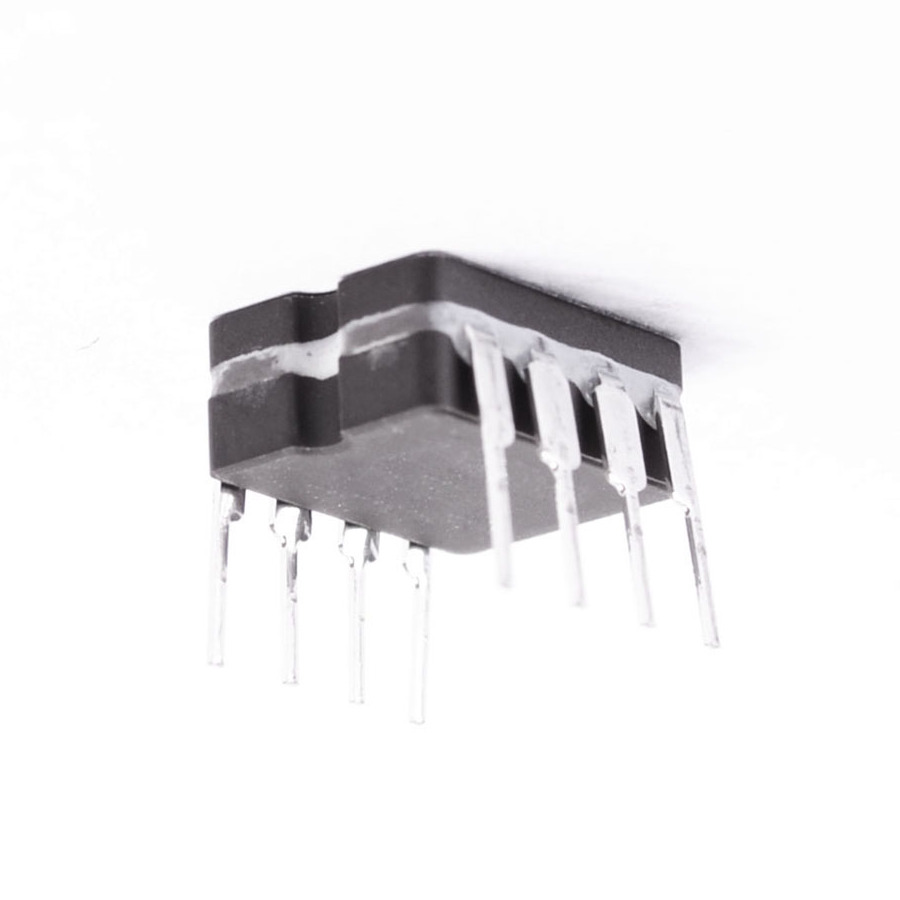

UC1711J Integrated Circuit CASE: DIC8 MAKE: Unitrode
Product specifications
Type Integrated Circuit
Case DIC8
Manufacturer Unitrode
Vih Min (V) 2.2
Vil Max. (V) 0.8
Output Config Totem-Pole
VOL Max. 1.0
Outp Transis. Ion Max. 1.5
PD Max. (W) 1.0
tPD Max. (S) 50n
Tech. TTL Integrated Circuit
Logic Funct. Inverting
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
VOH Max. 3.0
@Iol (A) 200m
Pinout Equivalence Number 8-112
No. of Pins 8
Surface Mounted Yes/No NO
SKU 927244
