UC3705J

UC3705J

SKU: UC3705J

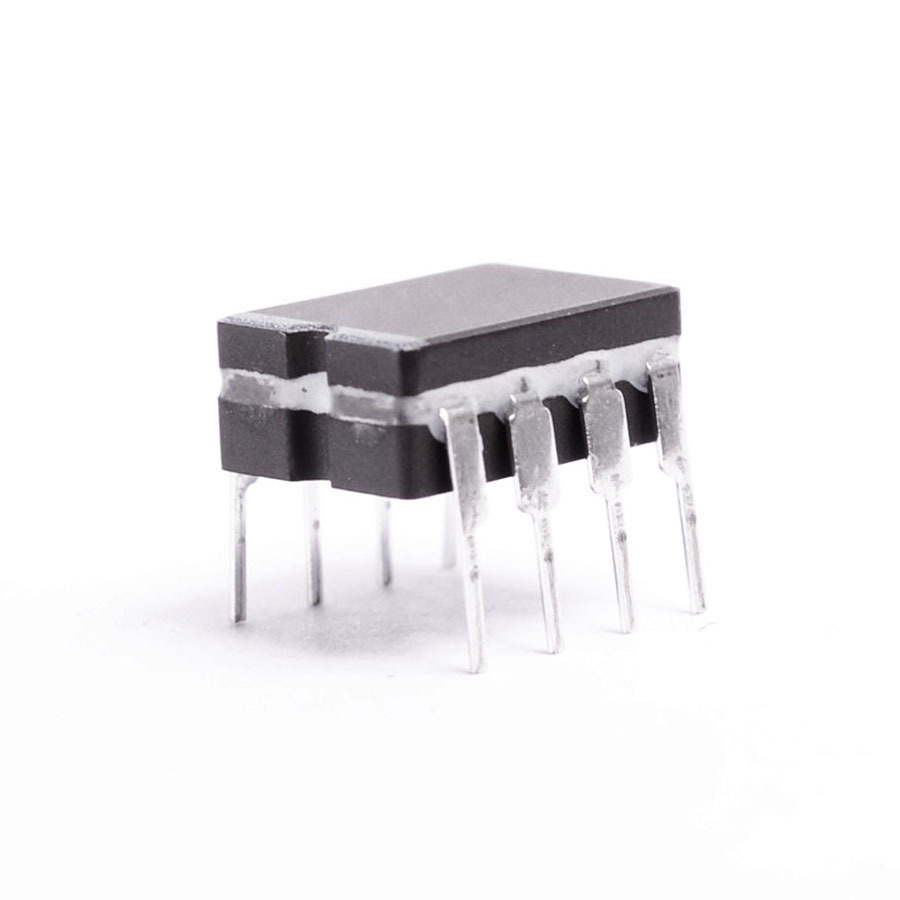

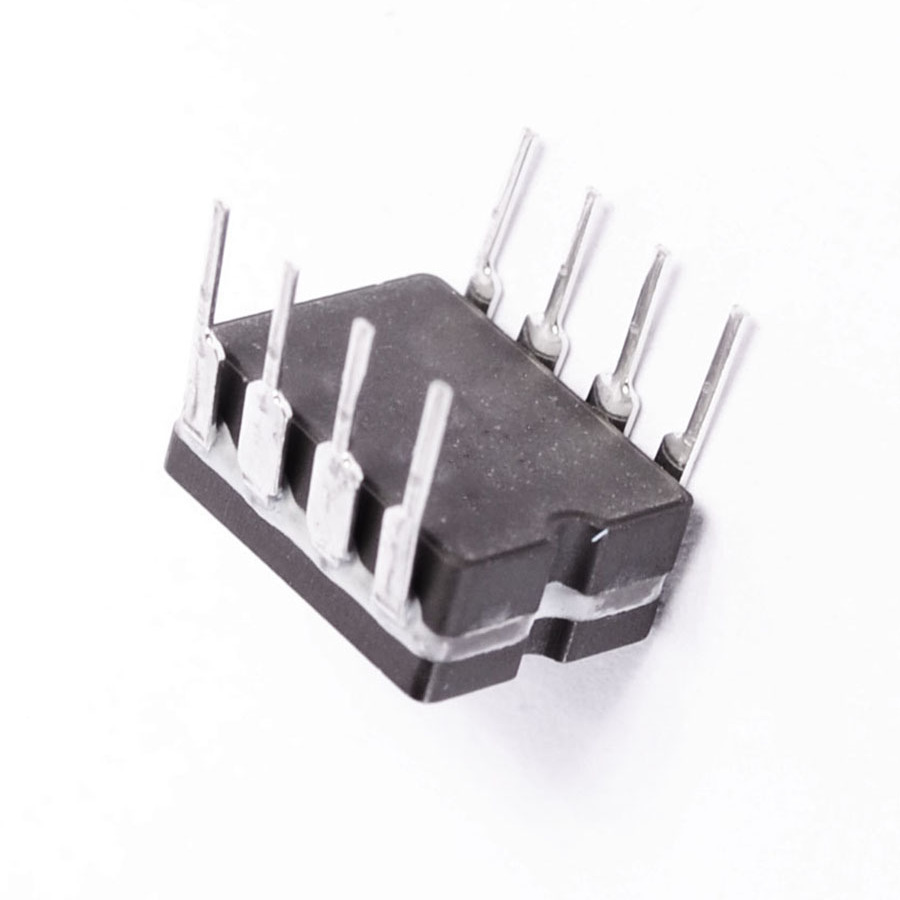

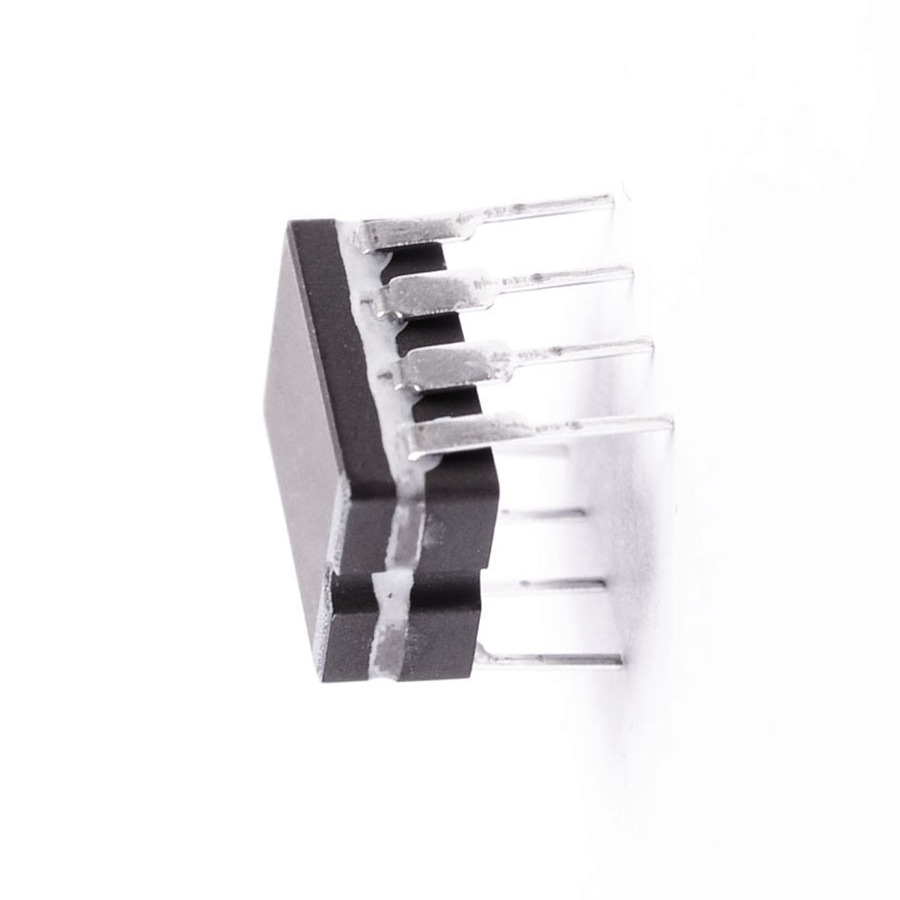

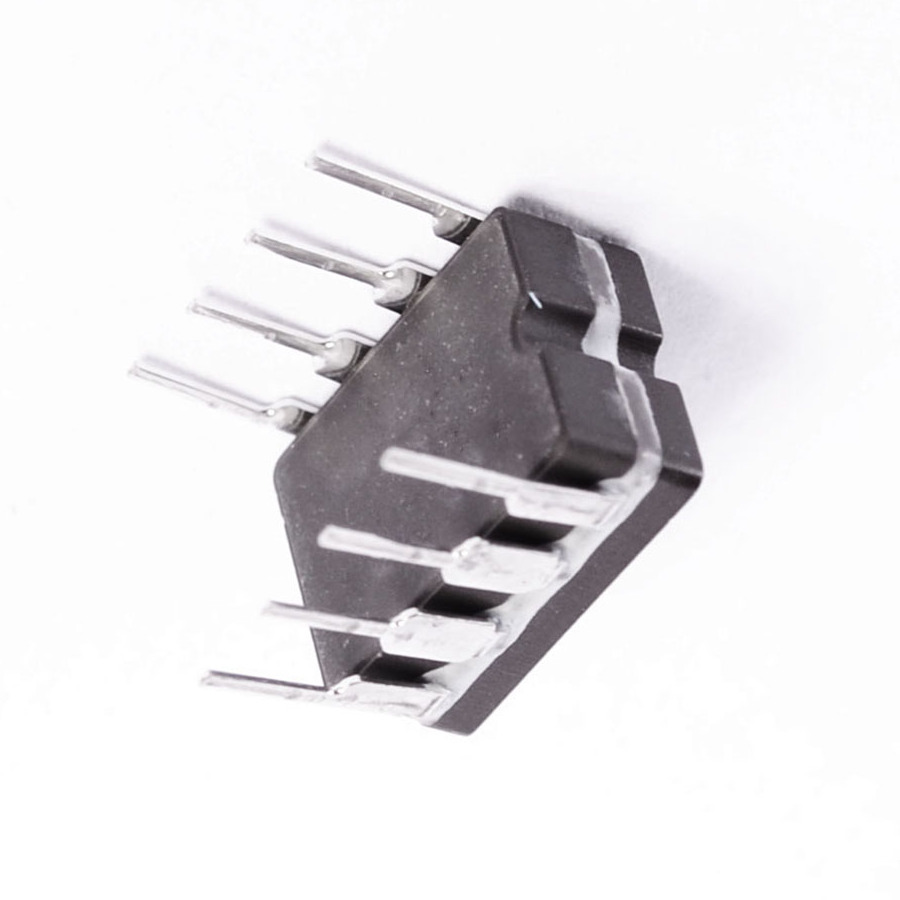

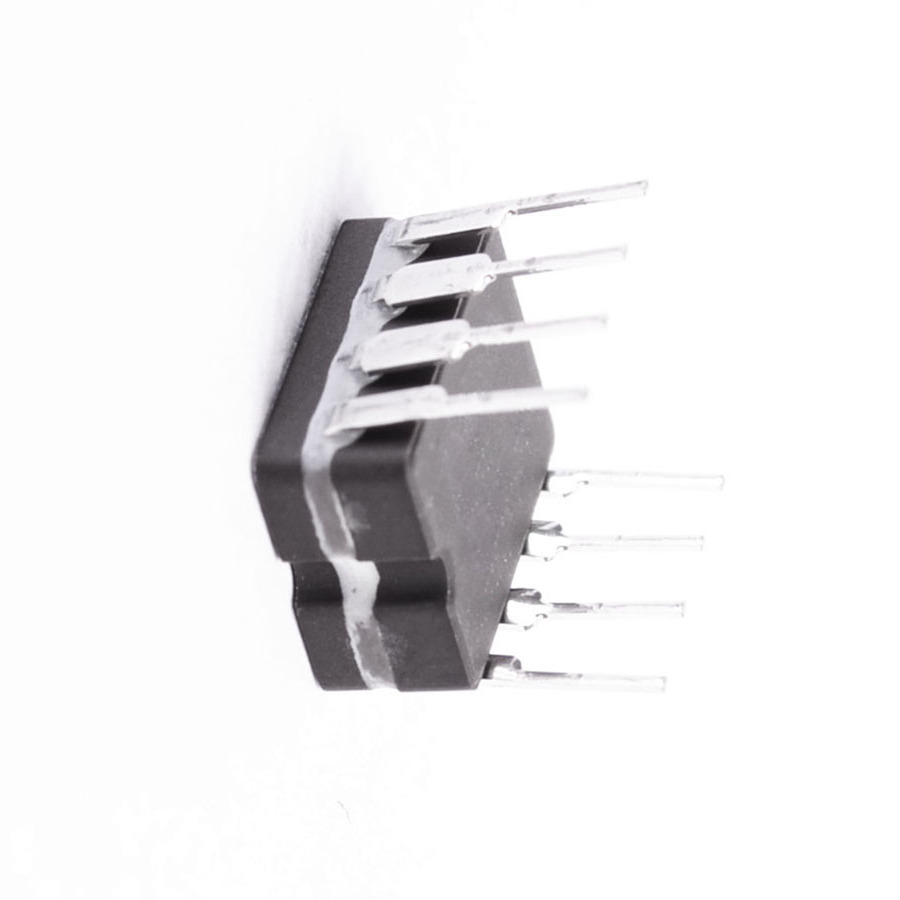

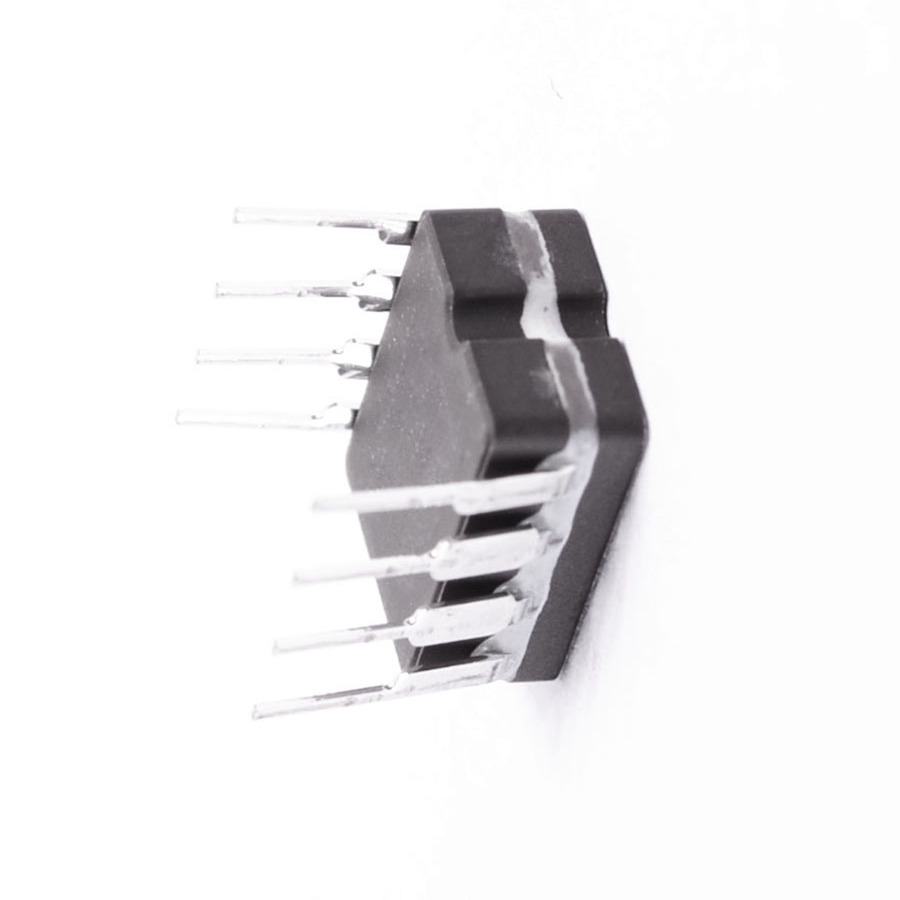

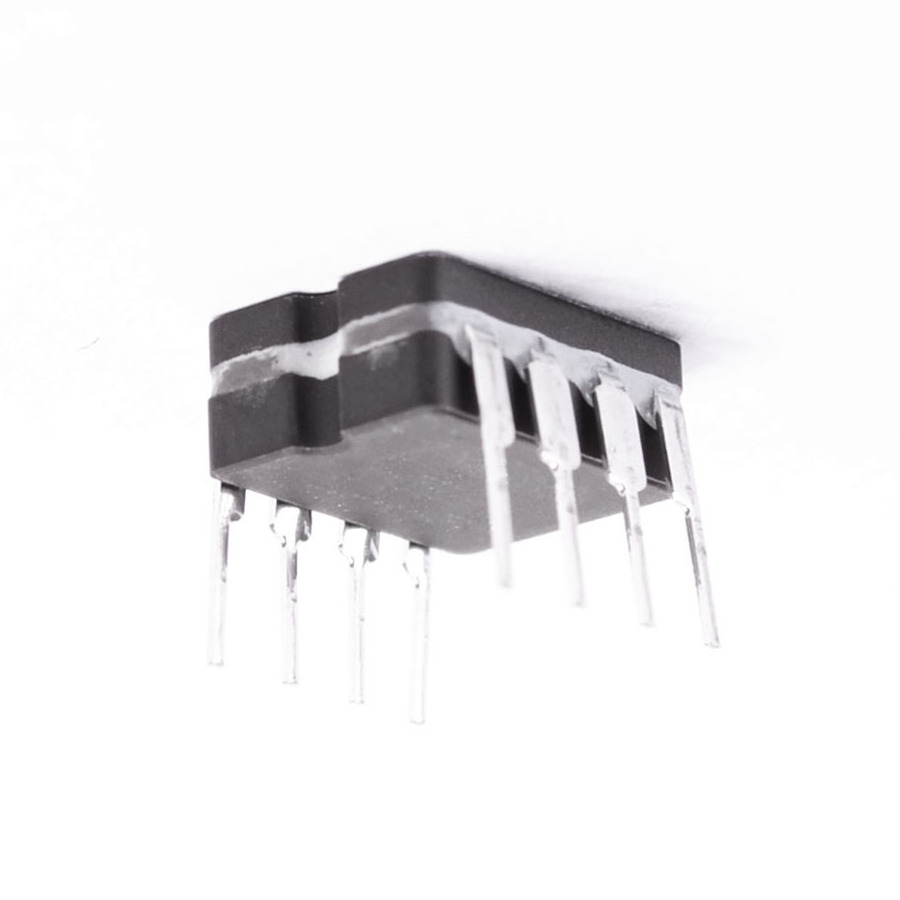

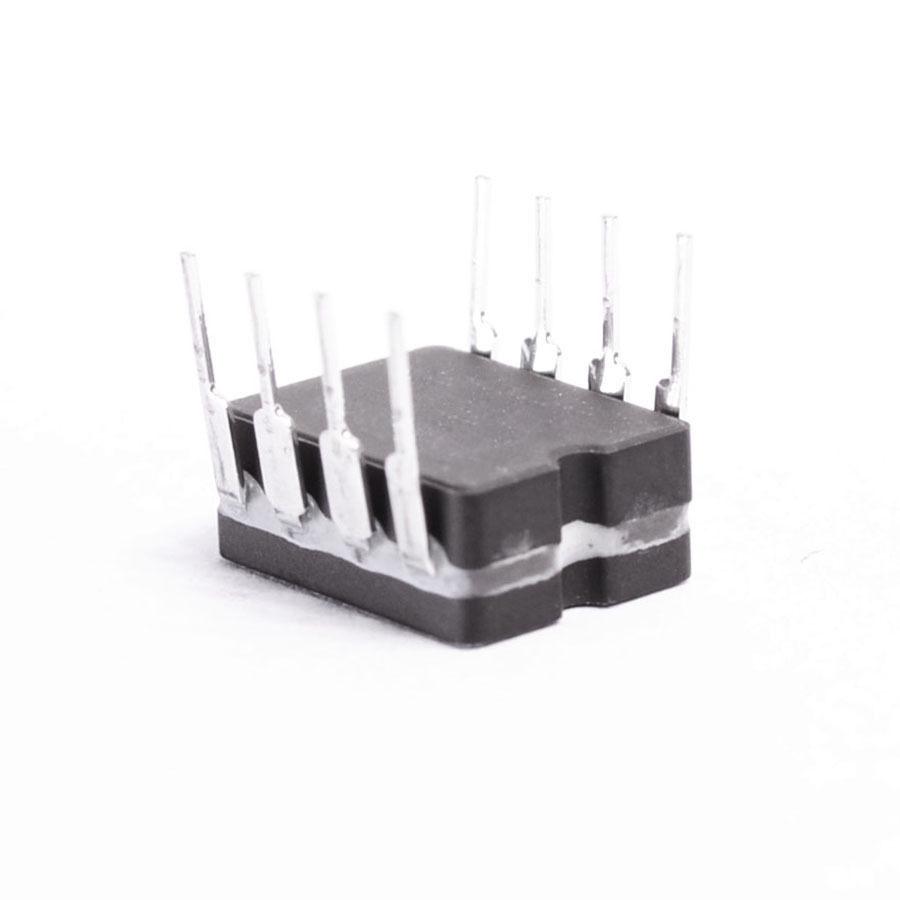

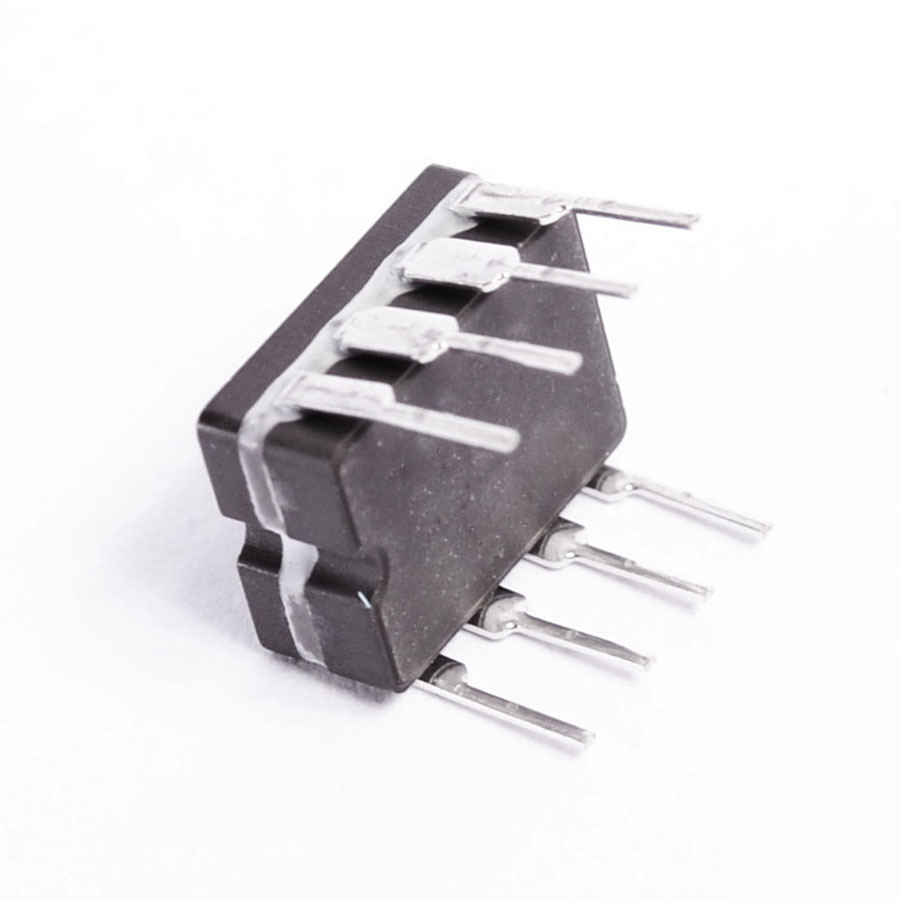

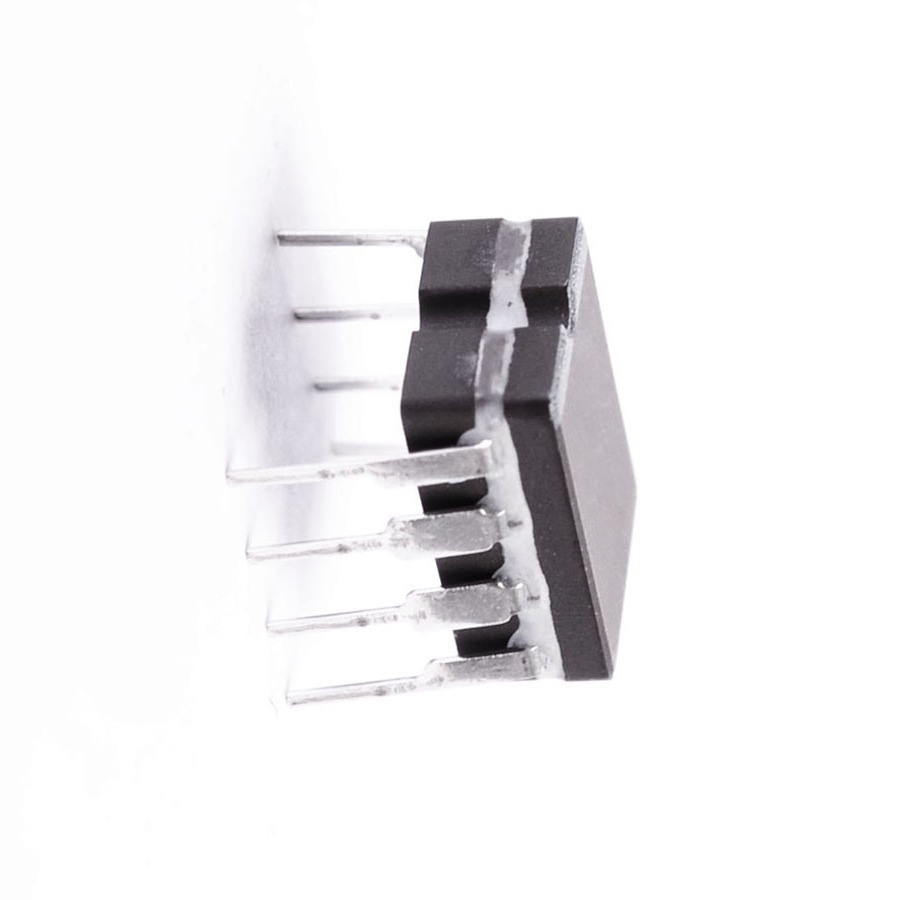

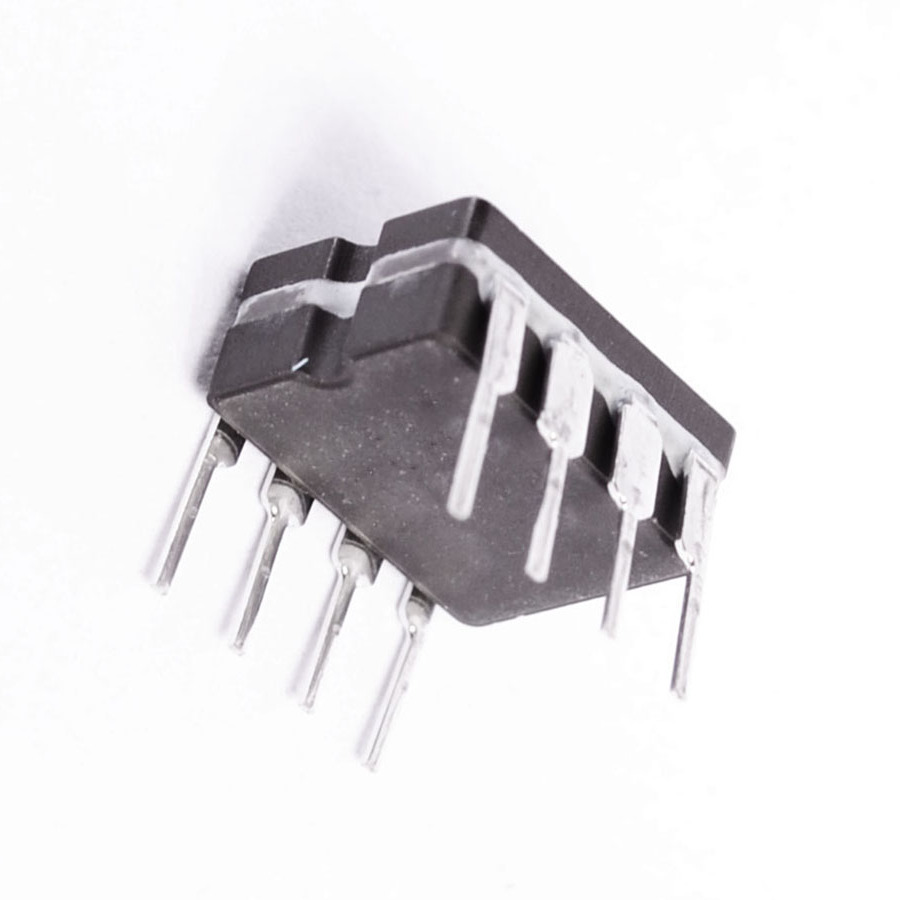

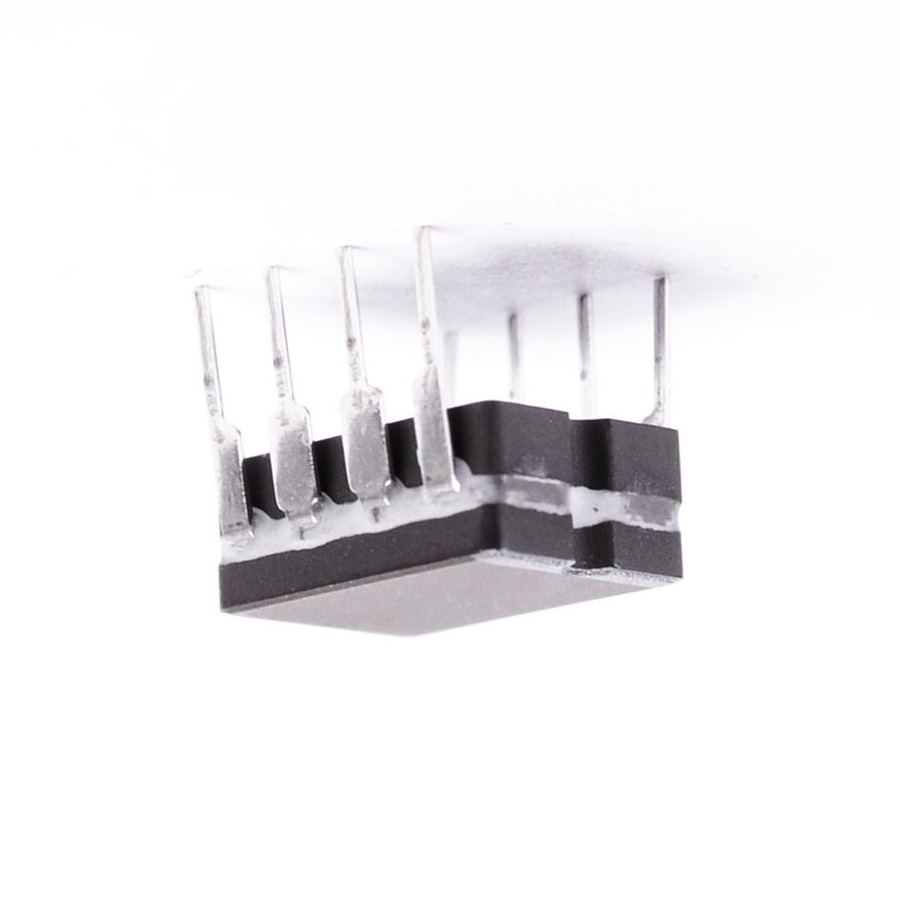

UC3705J Integrated Circuit CASE: DIC8 MAKE: Unitrode
Product specifications
Type Integrated Circuit
Case DIC8
Manufacturer Unitrode
Vih Min (V) 2.2
Vil Max. (V) 0.8
Output Config Open-Coll.
VOL Max. 0.4
Outp Transis. Ion Max. 500m
PD Max. (W) 2.0
Tech. TTL Integrated Circuit
Logic Funct. NOR
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
VOH Max. 40
@Iol (A) 50m
Pinout Equivalence Number 8-117
No. of Pins 8
Surface Mounted Yes/No NO
SKU 926476
