UC3705T

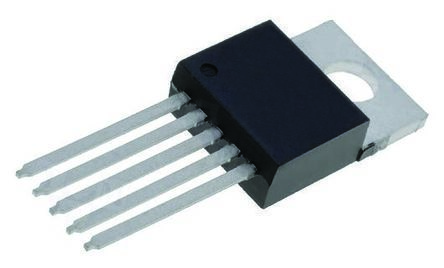

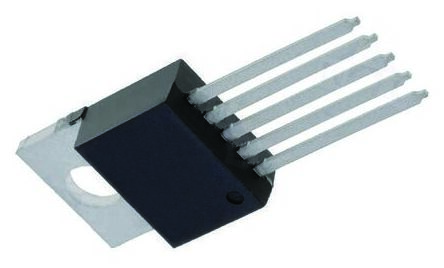

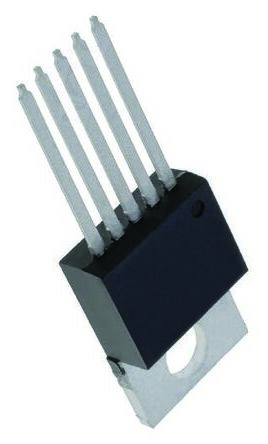

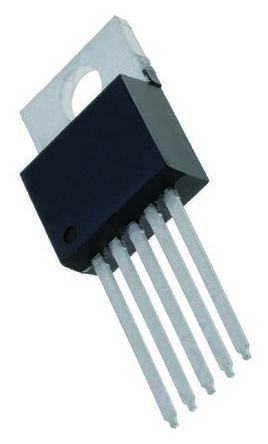

View detailed images (4)

UC3705T

SKU: UC3705T
UC3705T Semiconductor CASE: TO220-5 MAKE: Texas Instruments
Price: £13.99
+ VAT 20% for UK purchases
£13.99
Qty
+ VAT 20% for UK purchases
  • More pieces shipped in 14 days
?
Product specifications
Type Semiconductor
Case TO220-5
Manufacturer Texas Instruments
Vih Min (V) 2.2
Vil Max. (V) 0.8
Output Config Open-Coll.
VOL Max. 0.4
Outp Transis. Ion Max. 500m
PD Max. (W) 25
Tech. TTL Integrated Circuit
Logic Funct. NOR
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
VOH Max. 40
@Iol (A) 50m
Pinout Equivalence Number 5-6
No. of Pins 5
Surface Mounted Yes/No NO
SKU 324692
