UC3845BD1

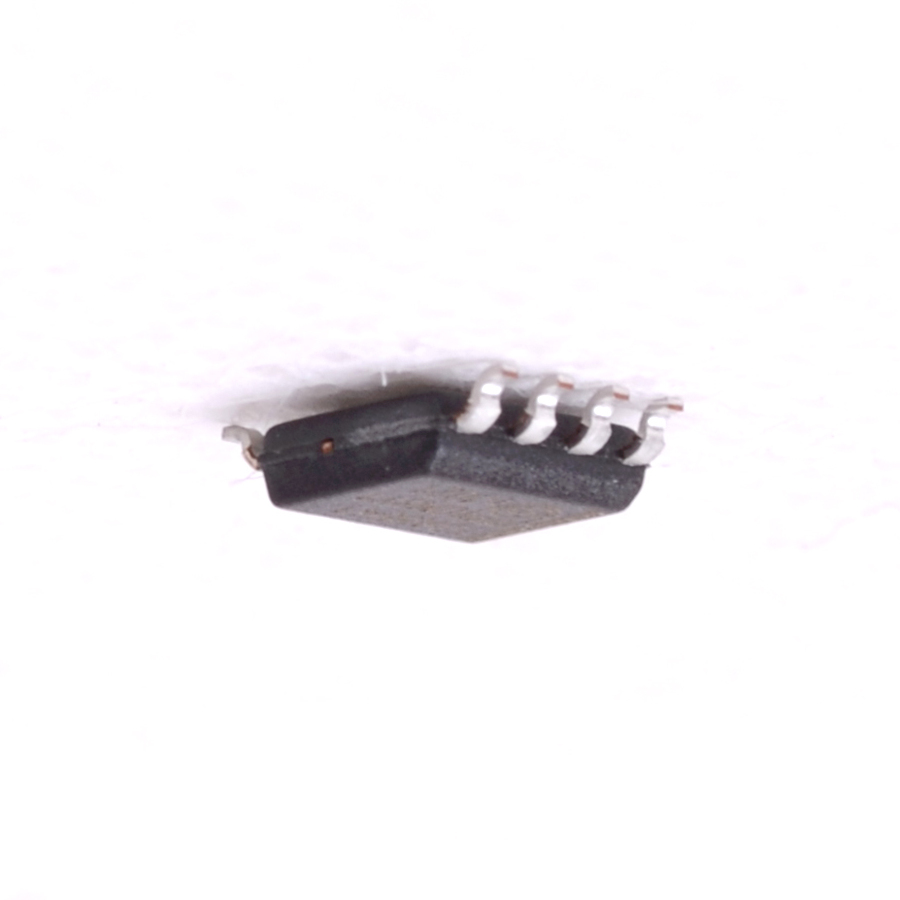

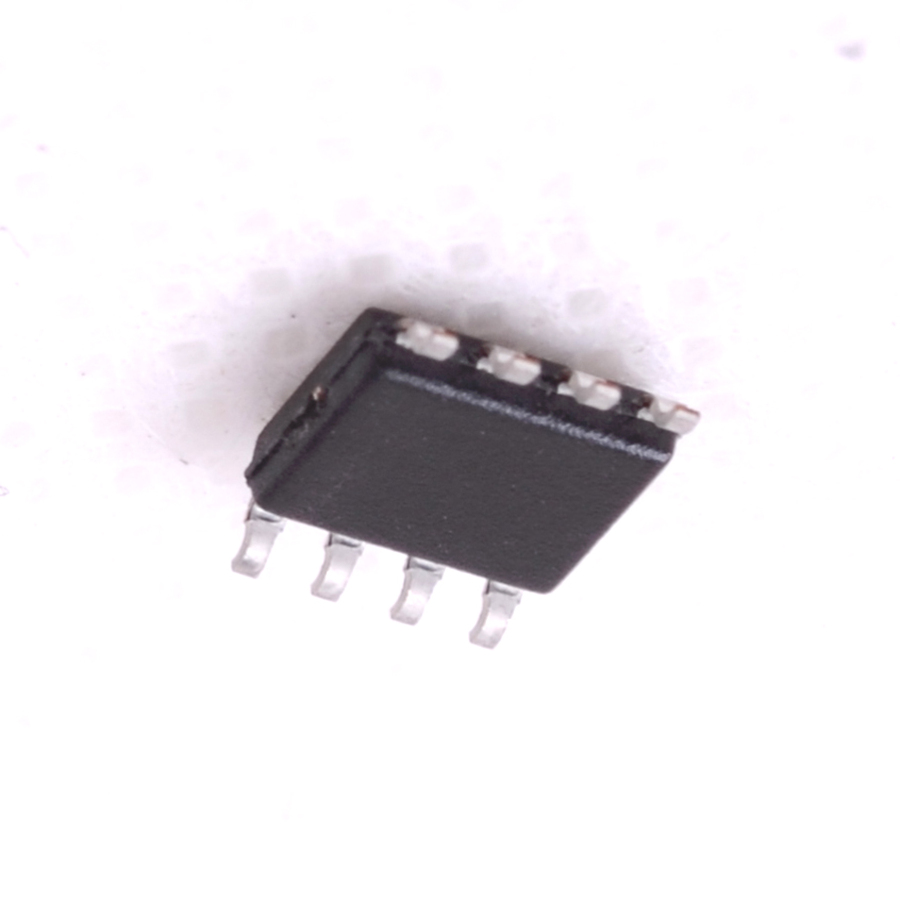

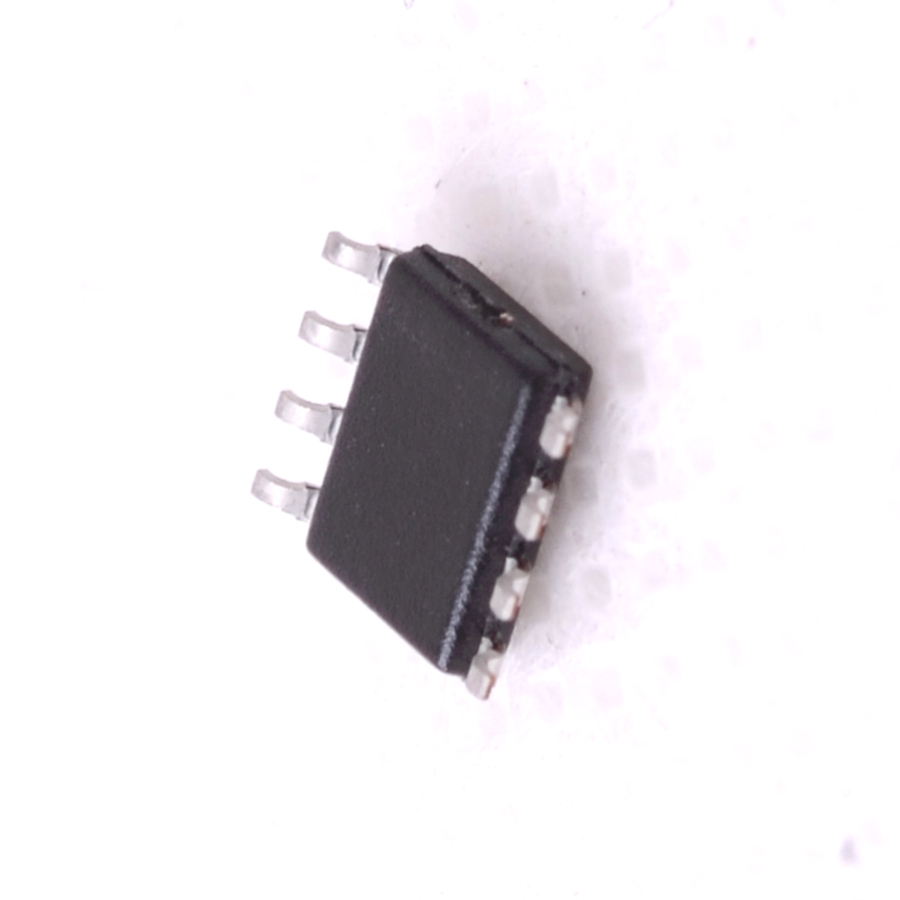

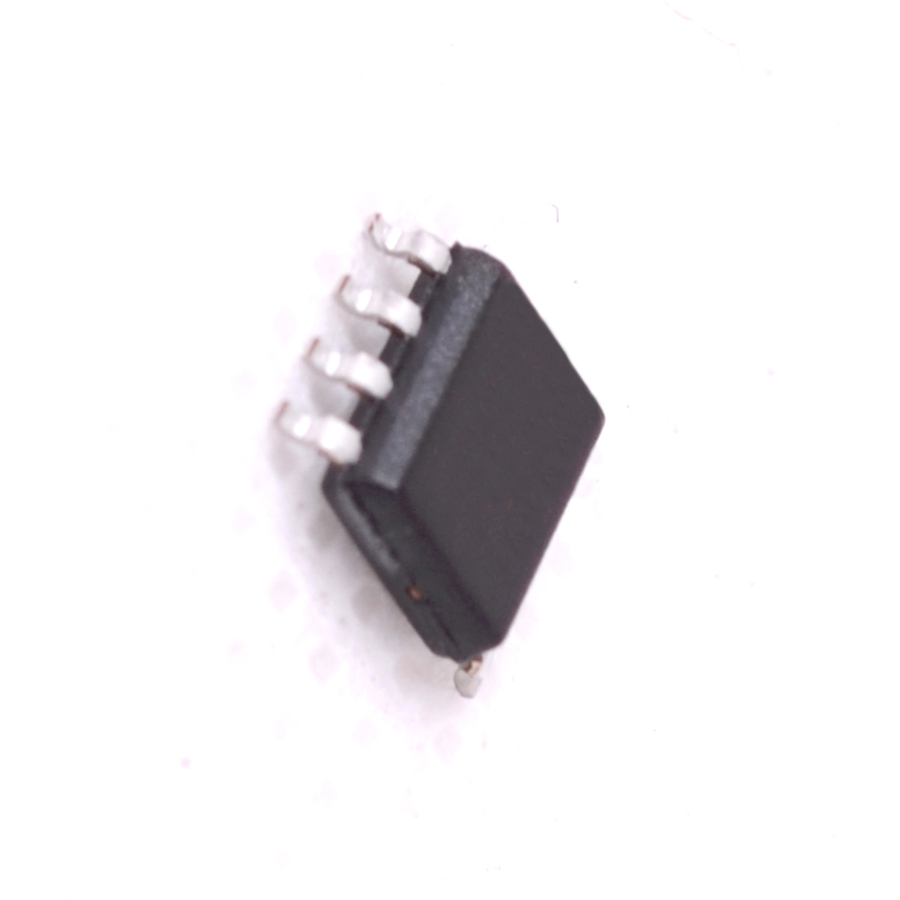

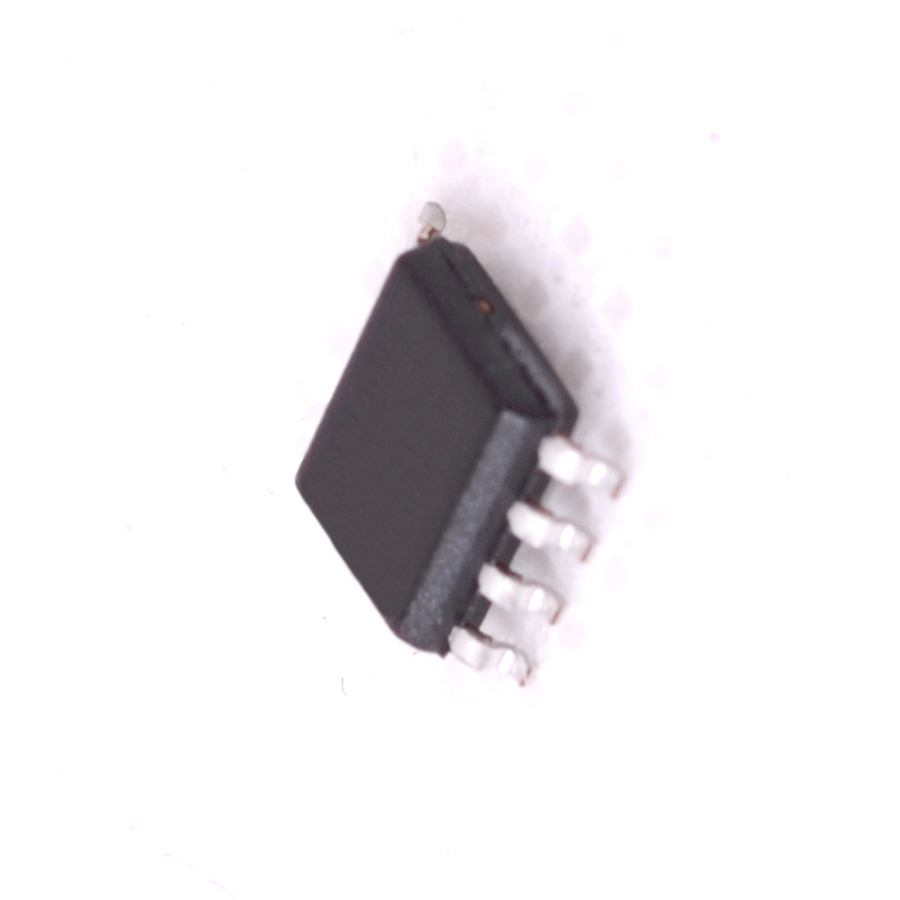

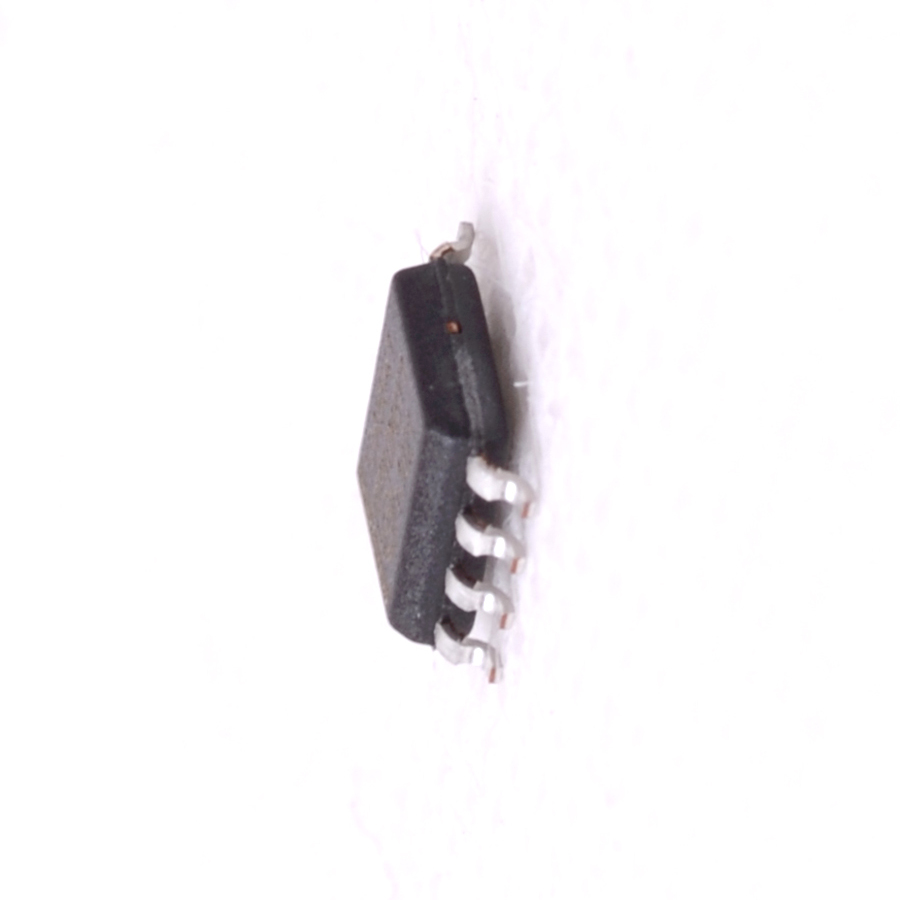

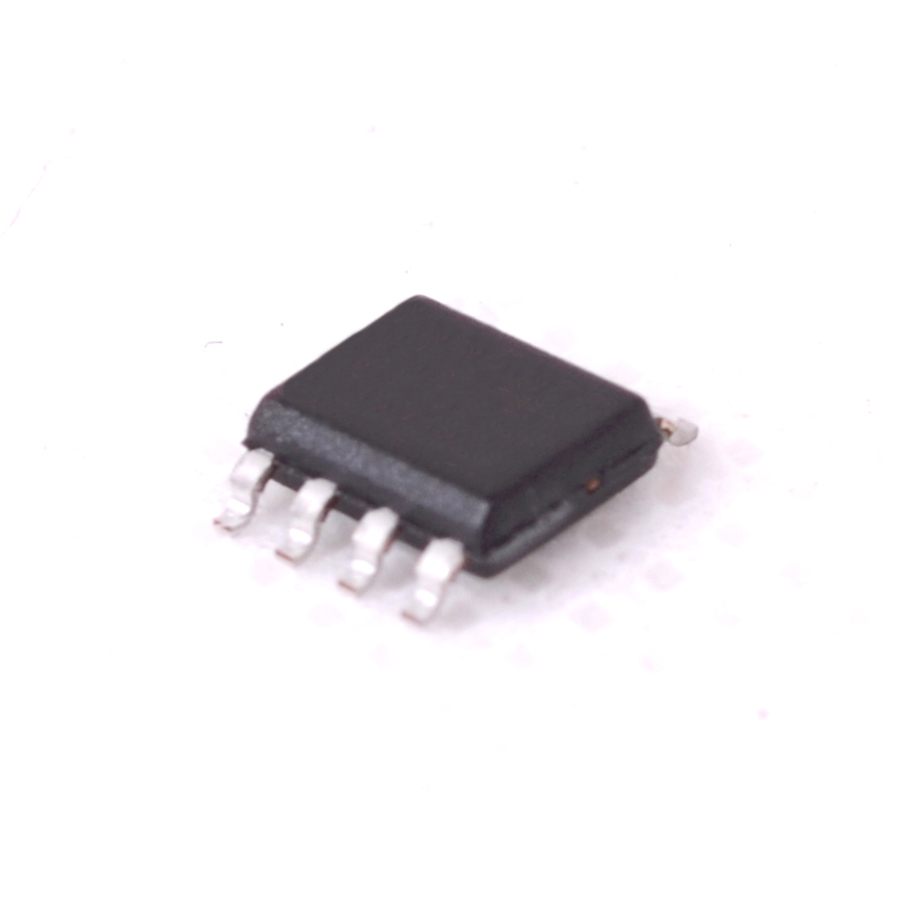

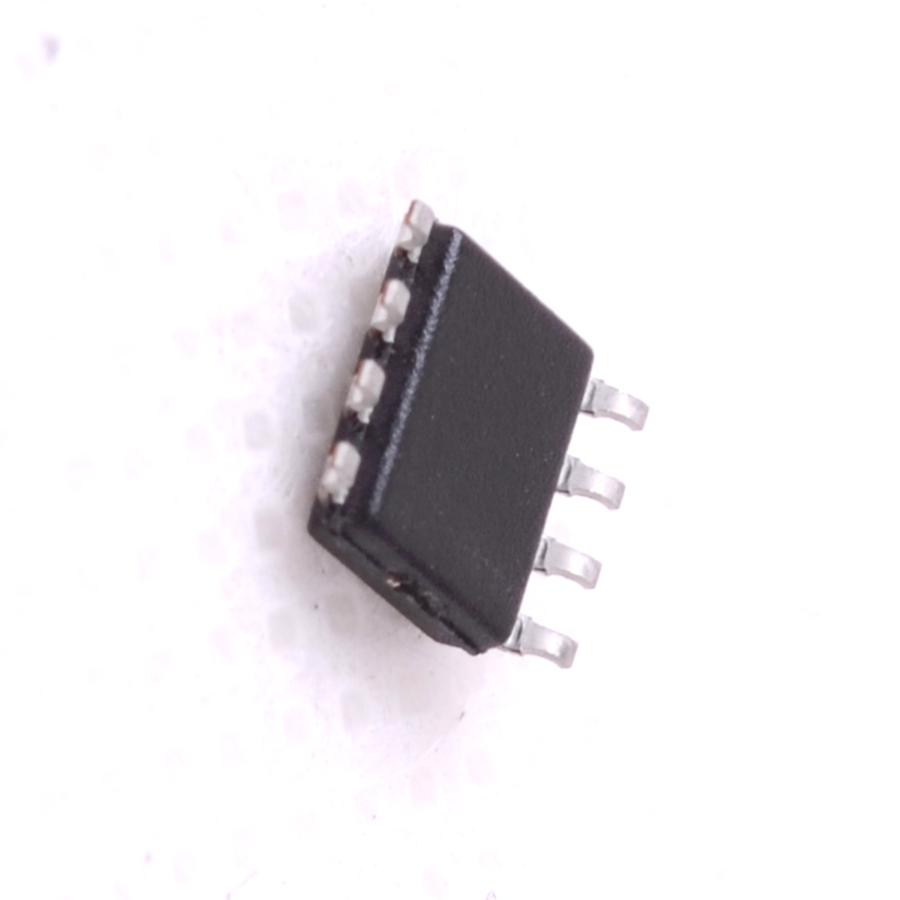

View detailed images (13)

UC3845BD1

SKU: UC3845BD1

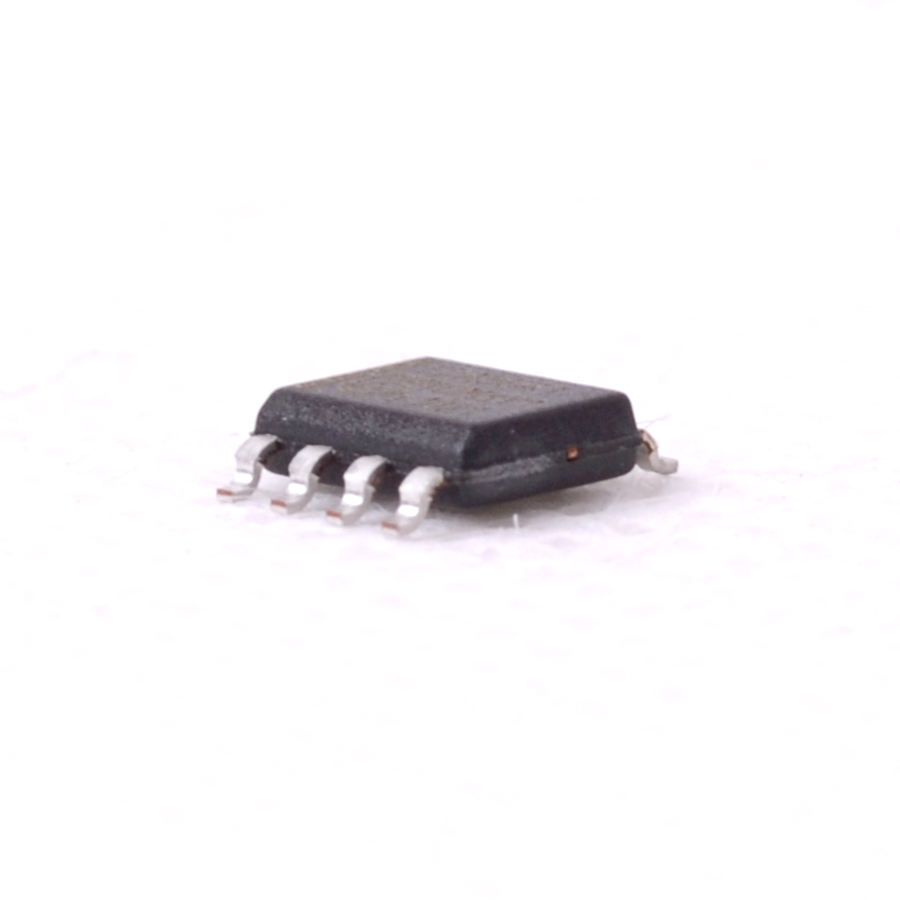

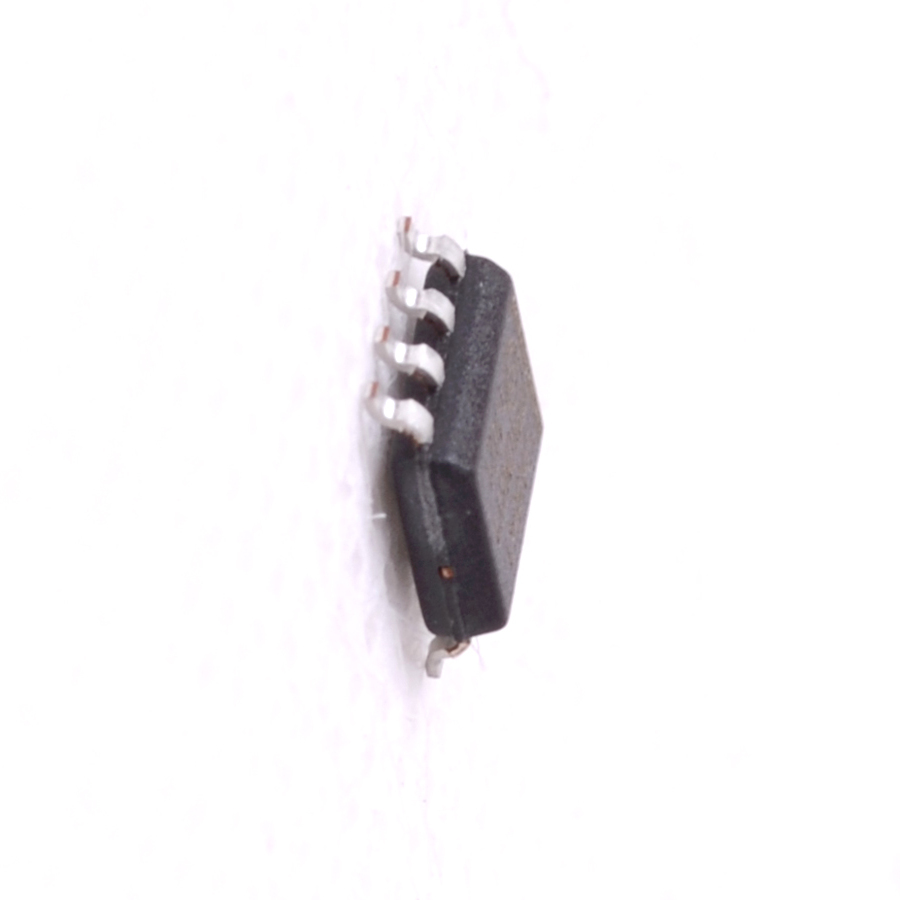

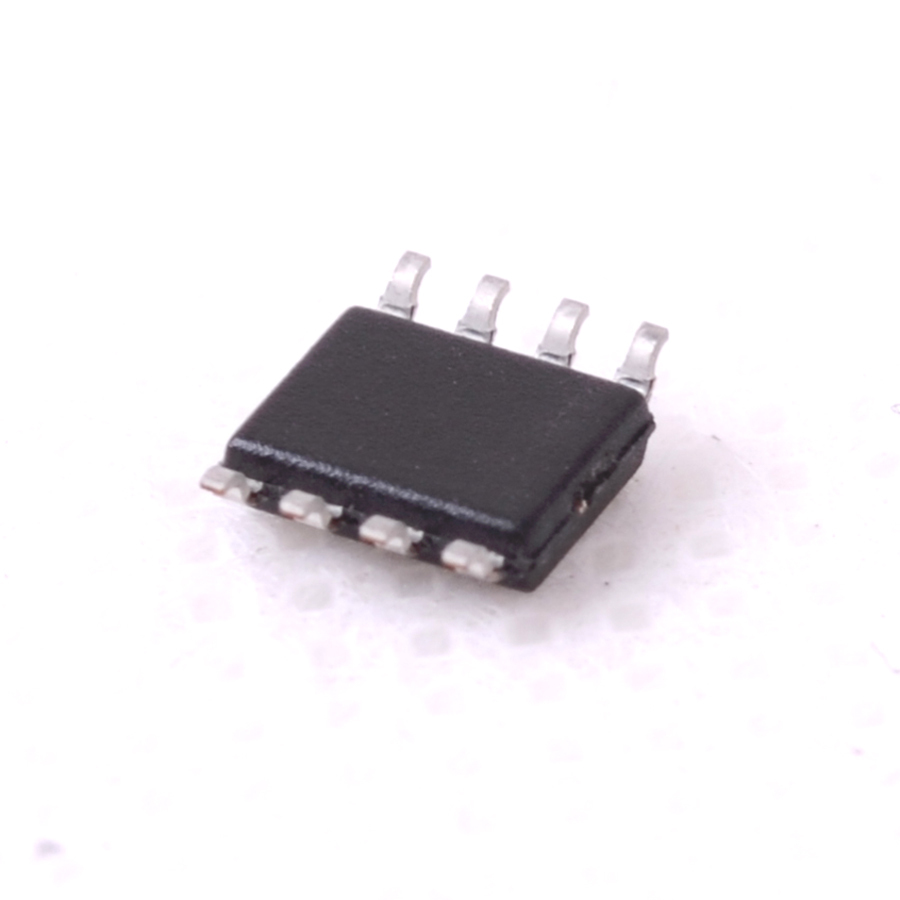

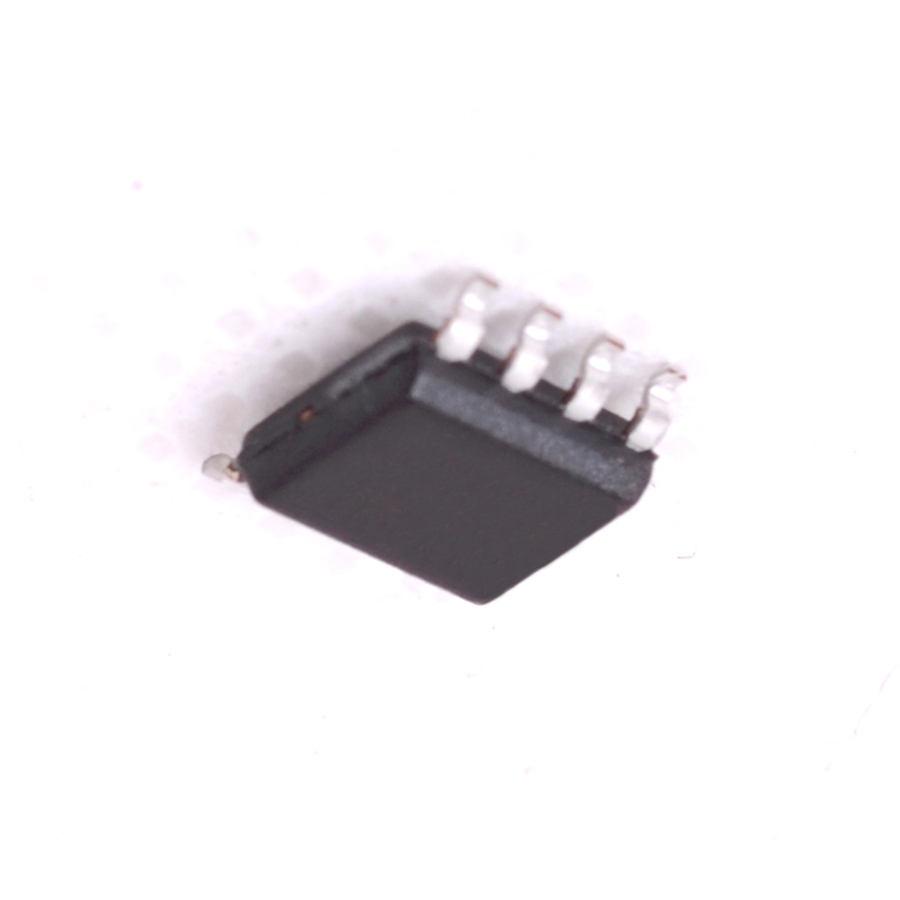

UC3845BD1 is a current-mode PWM controller IC for fixed-frequency control in offline or DC-to-DC power conversion. This industrial-grade device comes in an SO-8 (SOP-8) package and is supplied in tube packaging. It supports switching frequencies up to 500 kHz and has a maximum duty cycle below 50%.
Price:
£7.19 Inc. VAT (£5.99 Ex. VAT)
£7.19 Inc. VAT (£5.99 Ex. VAT)
Qty
  • Last 1 pieces Ready to Ship
  • More pieces shipped in 14 days
?
Product specifications
Type SemiConductor
Case SOP8
Manufacturer ST Microelectronics - STM
Max. Freq (Hz) 275k
Output Config Totem-Pole
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Outp Transis. Curr. 1.0
UV Lockout (Y/N) Yes
Soft Start (Y/N) No
Pinout Equivalence Number 8-919
No. of Pins 8
Surface Mounted Yes/No YES
SKU 19084
