UCN5822A
View detailed images (13)

UCN5822A

SKU: UCN5822A

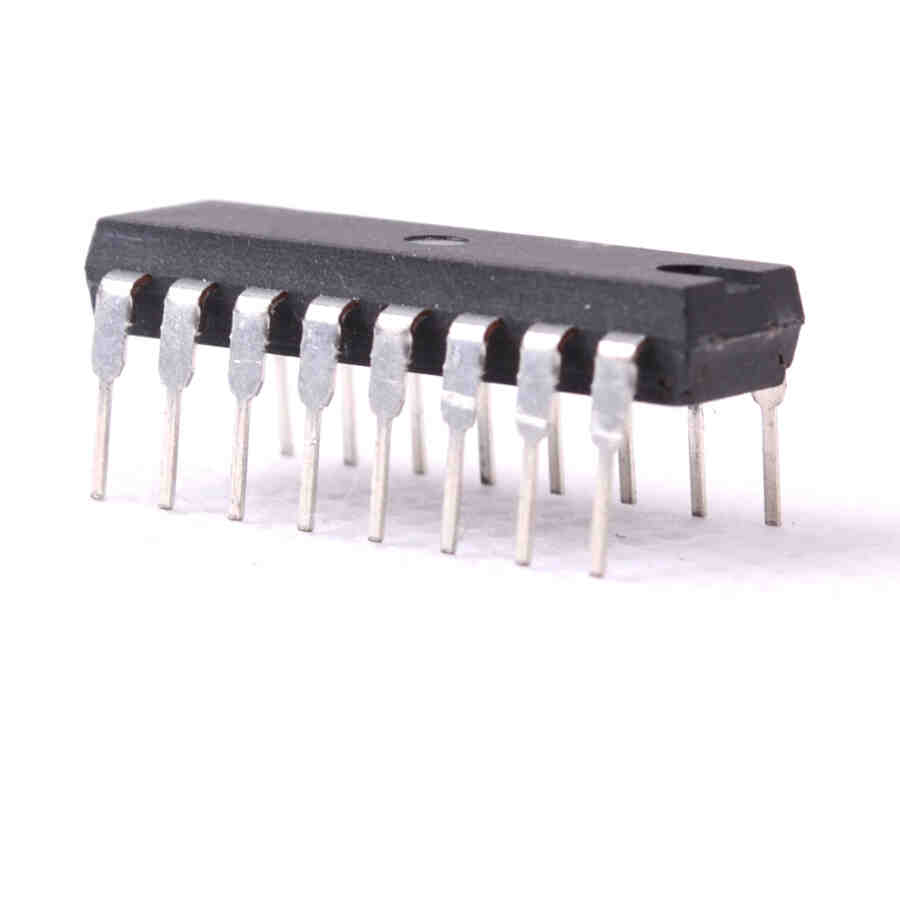

UCN5822A Integrated Circuit CASE: DIP16 MAKE: Allegro MicroSystems
Datasheet
UCN5822A Datasheet
Product specifications
Type Integrated Circuit
Case DIP16
Manufacturer Allegro MicroSystems
Vih Min (V) 3.5
Vil Max. (V) .8
Inp Logic Family C/NMOS,TTL
Output Config Open-Coll.
VOL Max. 1.6
Outp Transis. Ion Max. 500m
PD Max. (W) 2
tPD Max. (S) 500n
Nom. Supp (V) 5.0
Tech. Bipolar MOS Integrated Circuit
Logic Funct. Inverting
Oper. Temp (°C) Min -20
Oper. Temp (°C) Max. 85
VOH Max. 80
@Iol (A) 350m
Pinout Equivalence Number 16-832
Surface Mounted Yes/No NO
SKU 365142
