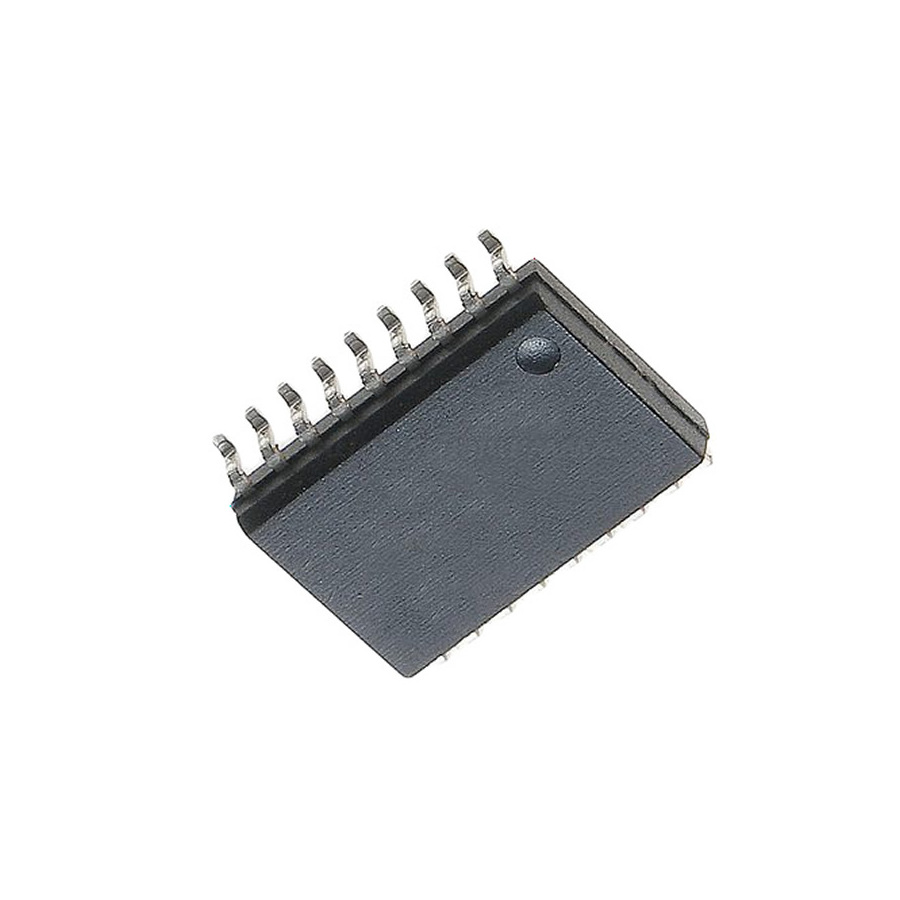

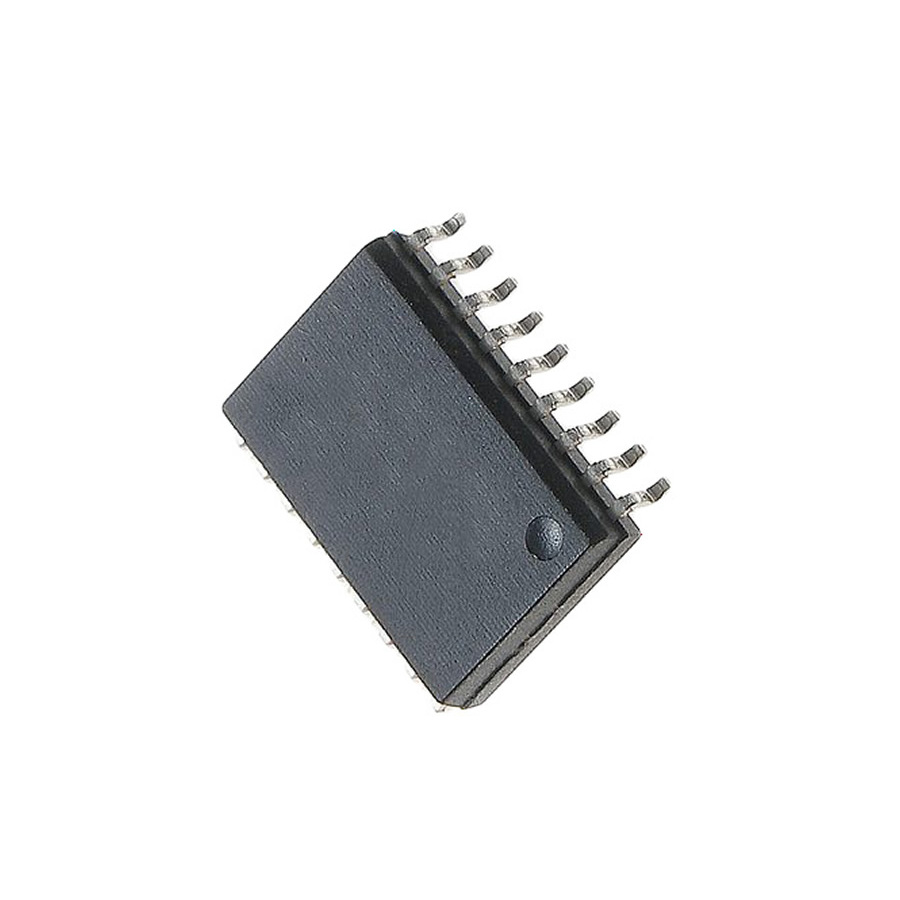

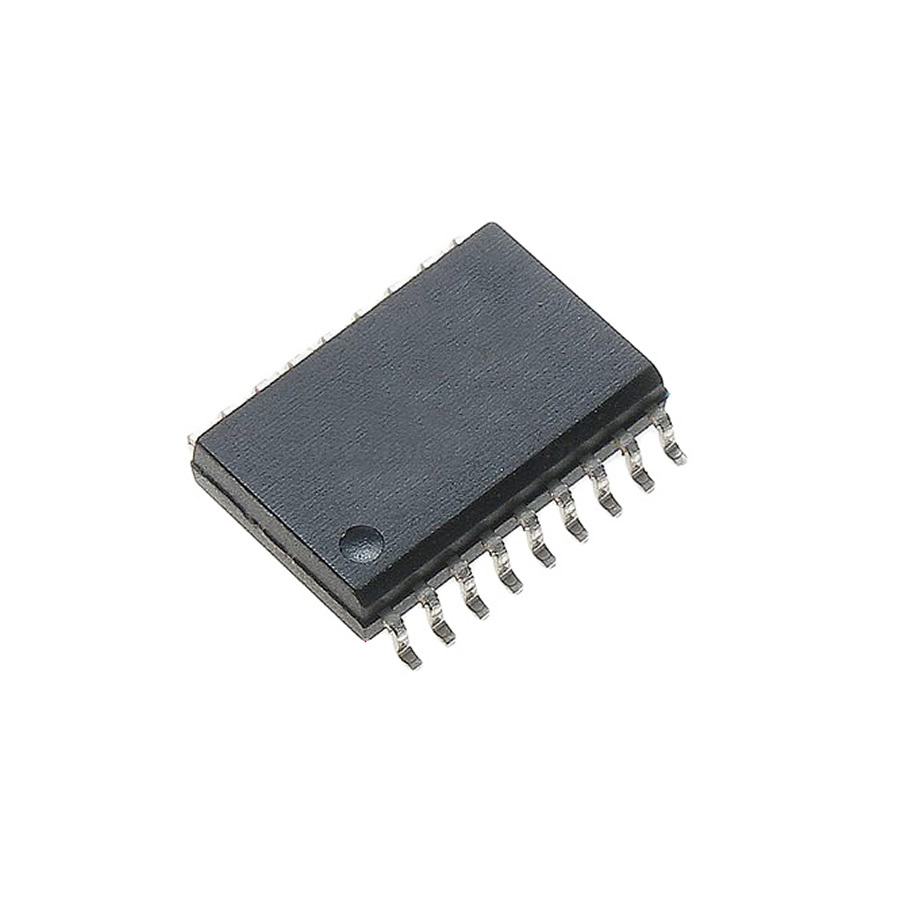

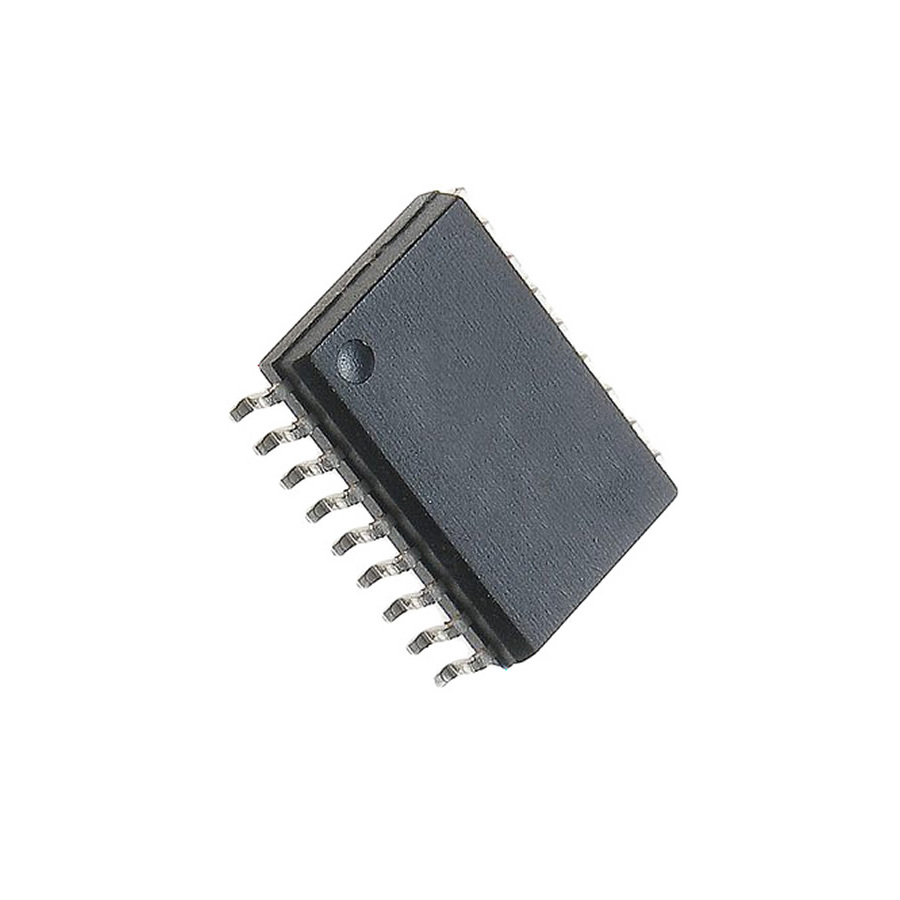

UCN5842LW

UCN5842LW

SKU: UCN5842LW
UCN5842LW Integrated Circuit CASE: SOP18 MAKE: Generic
Product specifications
Type Integrated Circuit
Case SOP18
Manufacturer Generic
Vih Min (V) 3.5
Vil Max. (V) .8
Inp Logic Family C/NMOS,TTL
Output Config CurrentSrc
VOL Max. 1.6
Outp Transis. Ion Max. 500m
PD Max. (W) 1.5
Nom. Supp (V) 5.0
Tech. Bipolar MOS Integrated Circuit
Logic Funct. Latch
Oper. Temp (°C) Min -20
Oper. Temp (°C) Max. 85
VOH Max. 80
@Iol (A) 350m
Pinout Equivalence Number 18-1
Surface Mounted Yes/No YES
SKU 929055
