UDN2879W

UDN2879W

SKU: UDN2879W

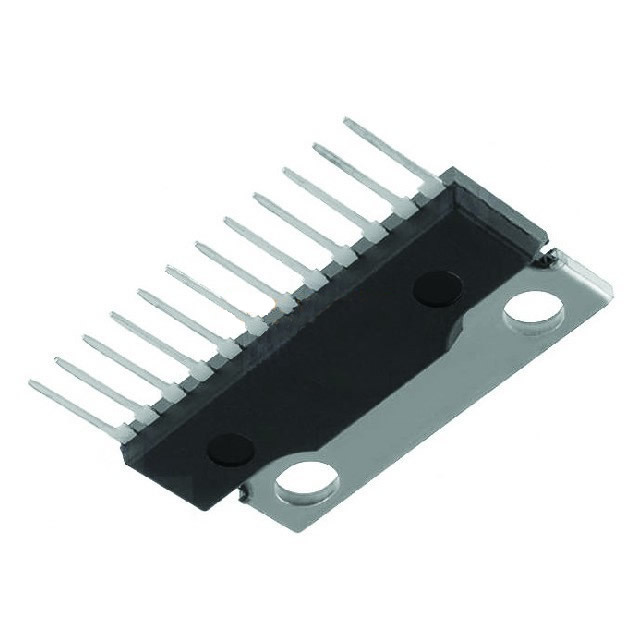

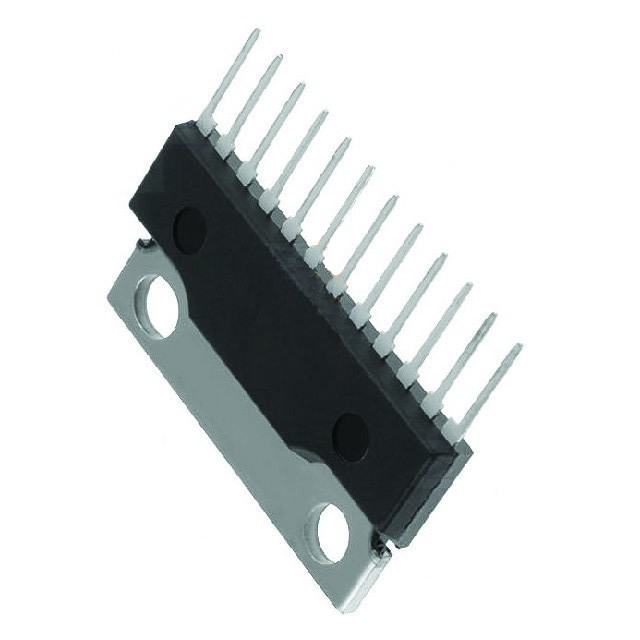

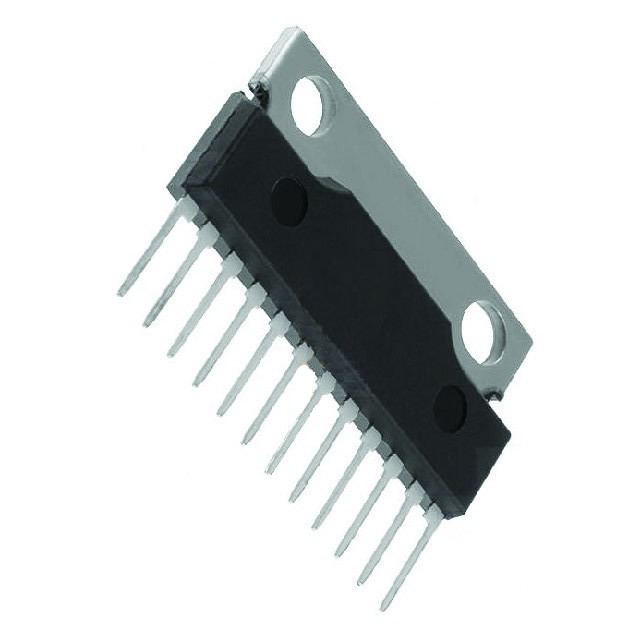

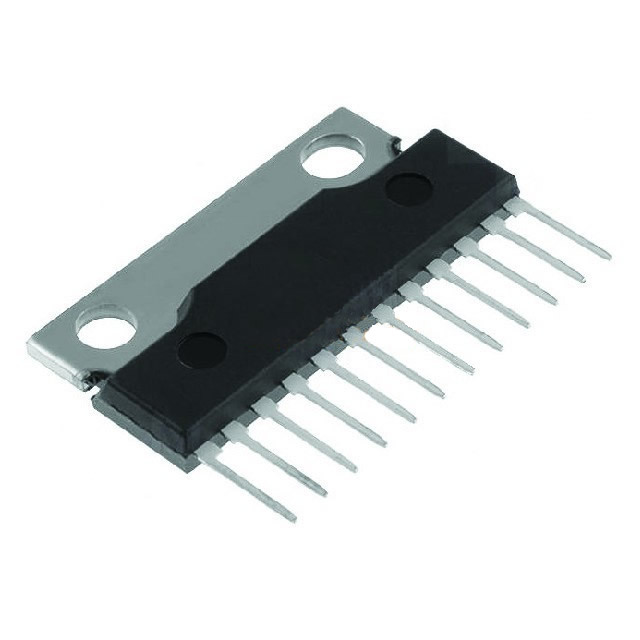

UDN2879W Integrated Circuit CASE: SIP12 MAKE: Allegro MicroSystems
Datasheet
UDN2879W Datasheet
Product specifications
Type Integrated Circuit
Case SIP12
Manufacturer Allegro MicroSystems
Inp Logic Family CMOS,TTL
Output Config Open-Coll.
VOL Max. 2.2
Outp Transis. Ion Max. 4.0
PD Max. (W) 5.0
tPD Max. (S) 1.5u
Tech. Bipolar Semiconductor
Logic Funct. Inverting
Oper. Temp (°C) Min -25
Oper. Temp (°C) Max. 85
VOH Max. 80
@Iol (A) 4.0
Pinout Equivalence Number 12-9
Surface Mounted Yes/No NO
SKU 102259
