UDN2944W

UDN2944W

SKU: UDN2944W

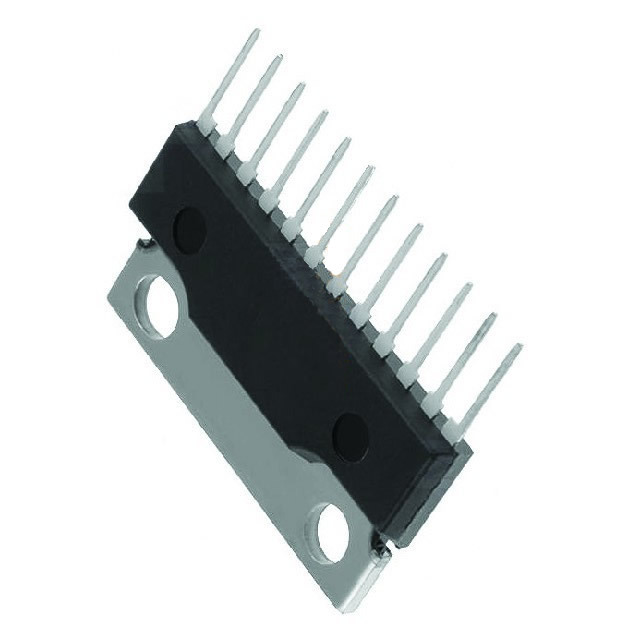

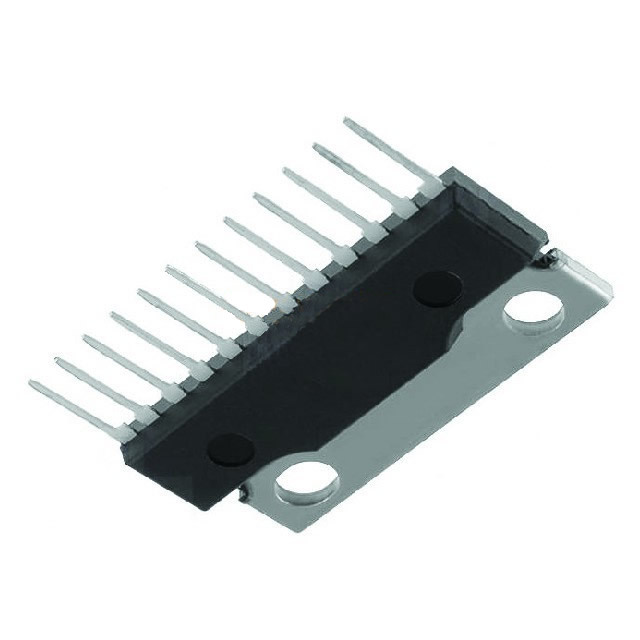

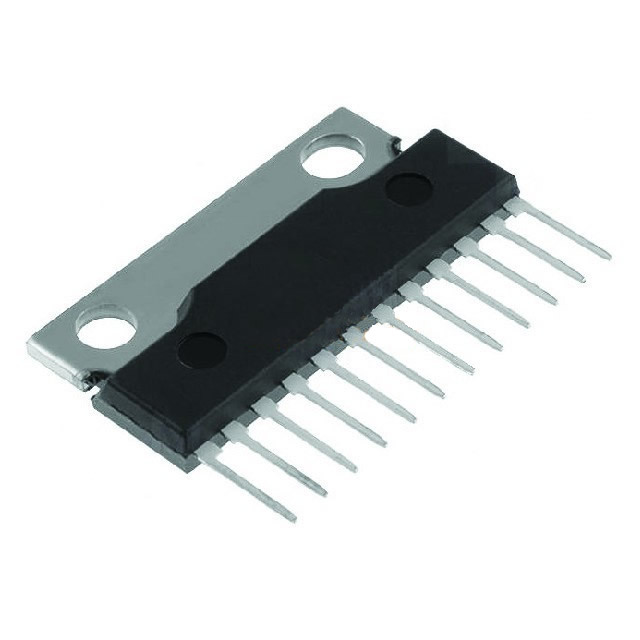

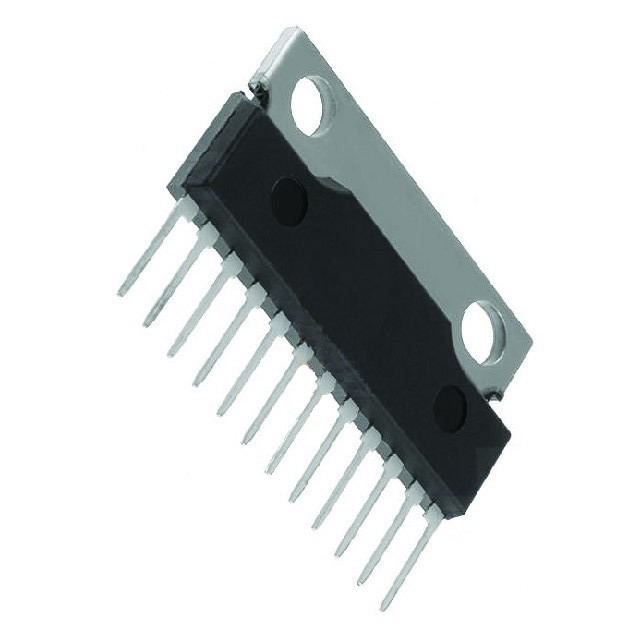

UDN2944W Integrated Circuit CASE: SIP12 MAKE: Allegro MicroSystems
Price:
£62.39 Inc. VAT (£51.99 Ex. VAT)
£62.39 Inc. VAT (£51.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Integrated Circuit
Case SIP12
Manufacturer Allegro MicroSystems
Vih Min (V) 2
Vil Max. (V) .8
Inp Logic Family TTL CMOS
Output Config Emit-Foll.
VOL Max. 1.8
Outp Transis. Ion Max. 4
PD Max. (W) 5
tPD Max. (S) 2u
Nom. Supp (V) 60
Tech. Bipolar Semiconductor
Logic Funct. Noninvert.
Oper. Temp (°C) Min -20
Oper. Temp (°C) Max. 85
VOH Max. 60
@Iol (A) 1
Pinout Equivalence Number 12-10
Surface Mounted Yes/No NO
SKU 94487
