UDN2962W

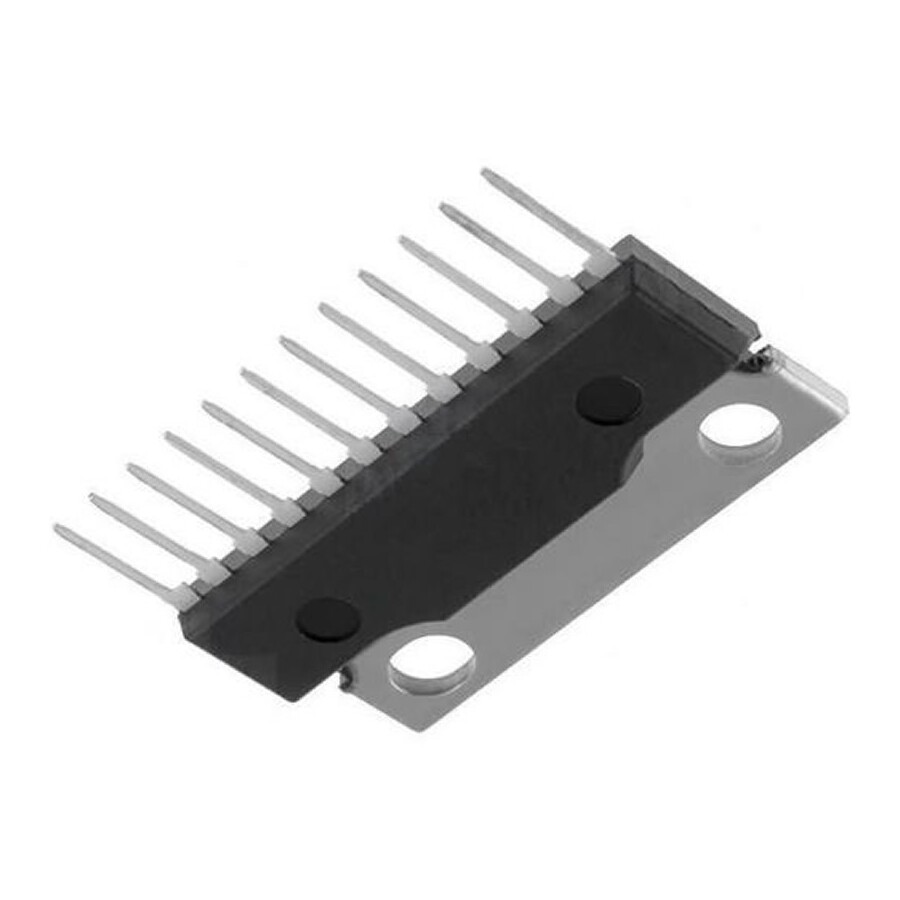

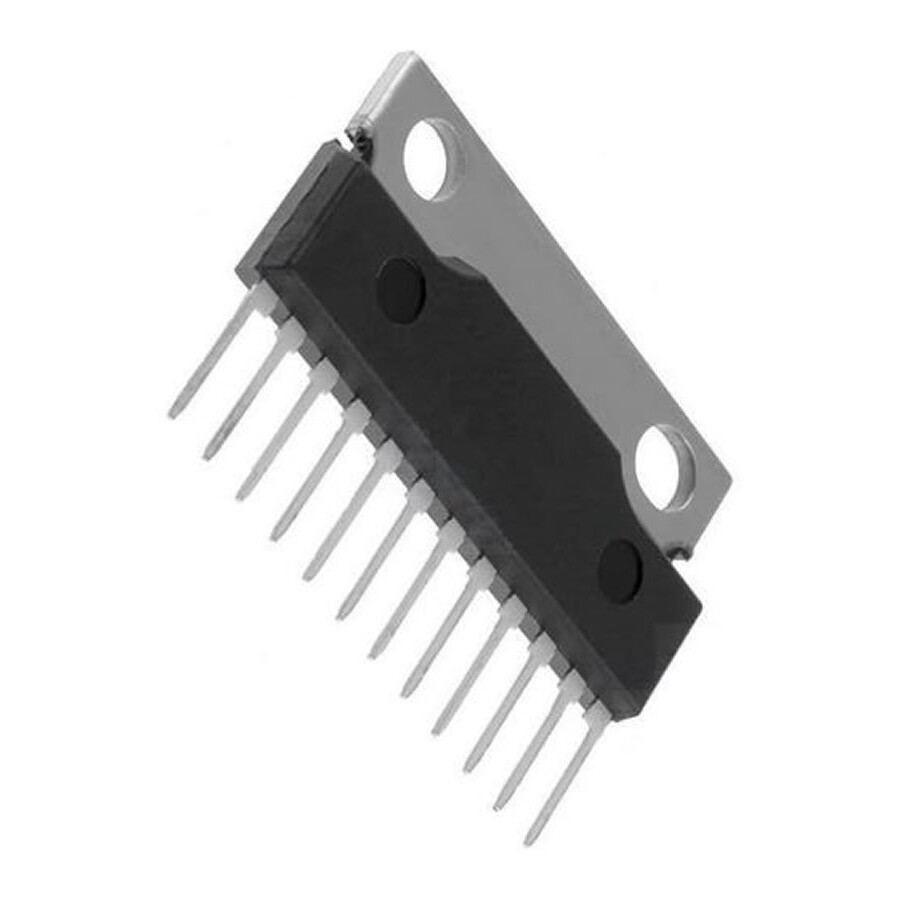

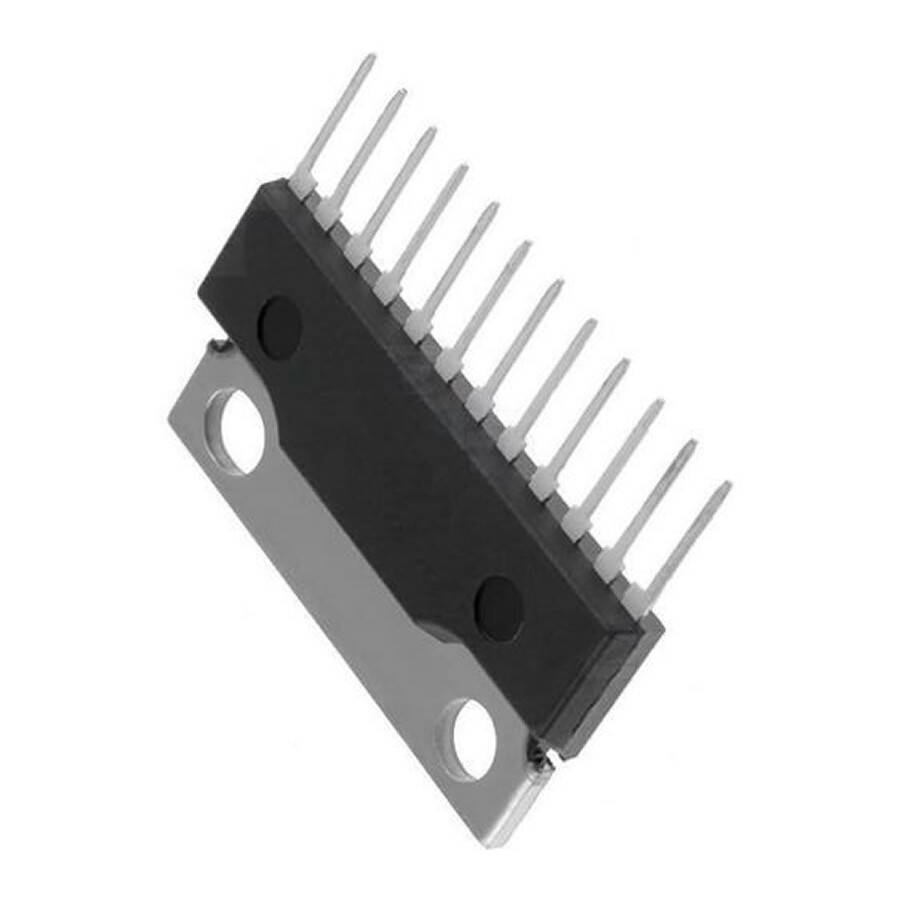

View detailed images (4)

UDN2962W

SKU: UDN2962W
UDN2962W is a dual PWM solenoid and motor driver designed for driving impact-printer solenoids and stepper motors. It provides pulse-width-modulated current control with 4 A peak output, 45 V minimum sustaining voltage, internal clamp diodes, TTL/PMOS/CMOS-compatible inputs, and comes in a 12-pin single in-line power-tab package.
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • Last 14 pieces Ready to Ship
  • More pieces shipped in 14 days
?
Datasheet
UDN2962W Datasheet
Product specifications
Type SemiConductor
Case ZIP12
Manufacturer Allegro MicroSystems
I(out) Max. 3
Oper. Temp (°C) Min -20
Oper. Temp (°C) Max. 85
Pinout Equivalence Number 12-74
Surface Mounted Yes/No NO
SKU 19773
