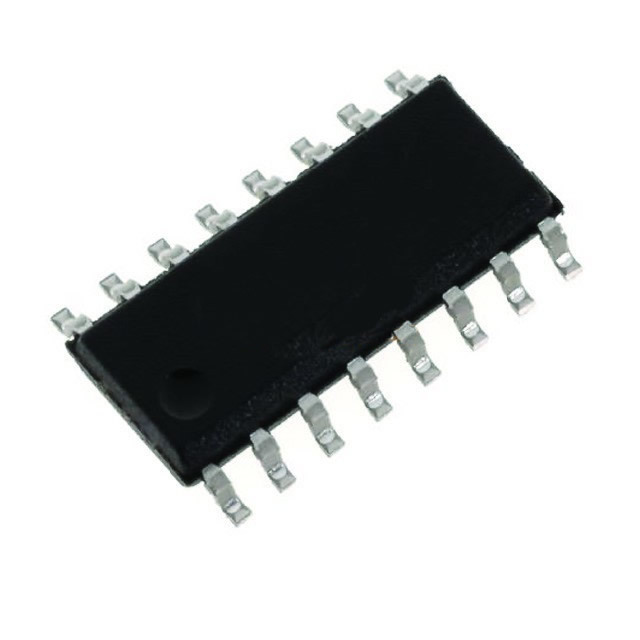

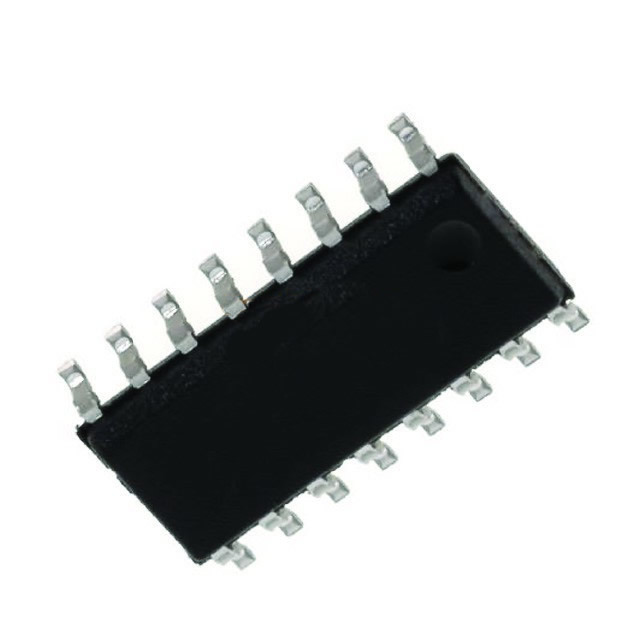

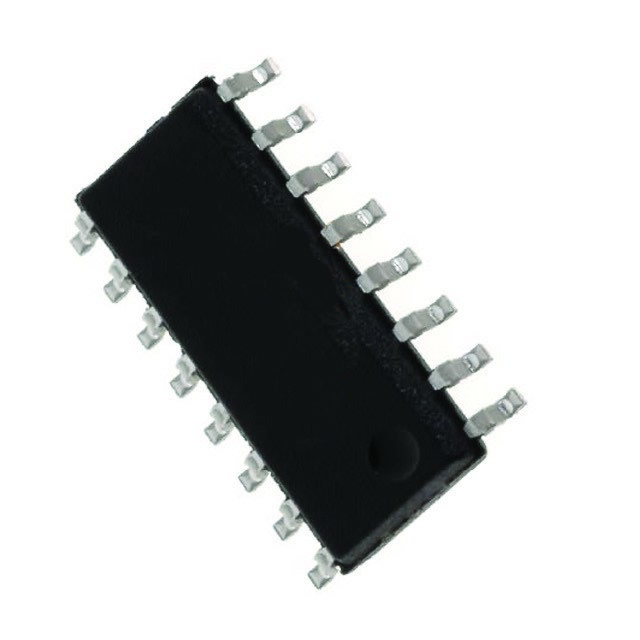

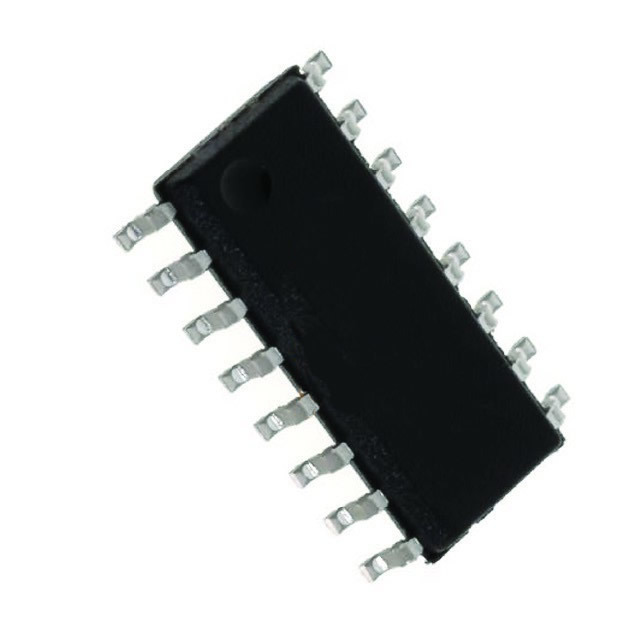

UDN2982LW

UDN2982LW

SKU: UDN2982LW
UDN2982LW Semiconductor CASE: SO18 MAKE: Allegro MicroSystems
Datasheet
UDN2982LW Datasheet
Product specifications
Type SemiConductor
Case SO18
Manufacturer Allegro MicroSystems
Vih Min (V) 2.4
Vil Max. (V) .4
Inp Logic Family CMOS,PMOS
Output Config CurrentSrc
VOL Max. 2
Outp Transis. Ion Max. 500m
PD Max. (W) 1.5
tPD Max. (S) 2u
Nom. Supp (V) 5.0
Tech. Bipolar Semiconductor
Logic Funct. Noninvert.
Oper. Temp (°C) Min -20
Oper. Temp (°C) Max. 85
VOH Max. 50
@Iol (A) 350m
Pinout Equivalence Number 18-136
Surface Mounted Yes/No YES
SKU 325301
