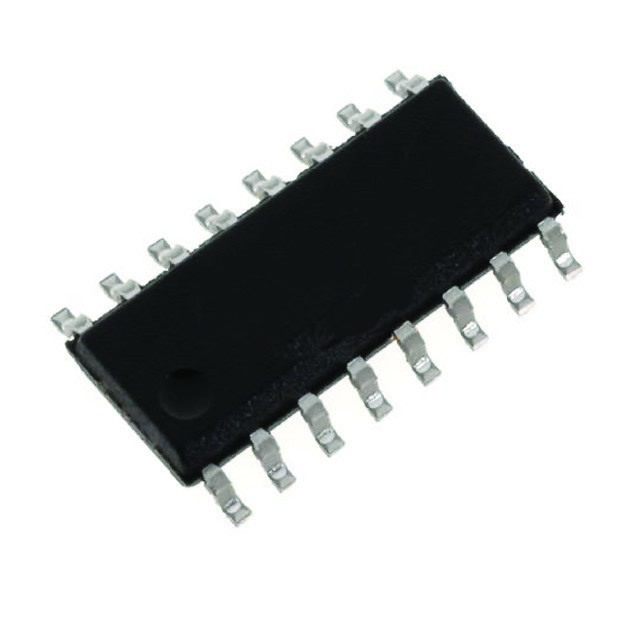

UDN2984LW

UDN2984LW

SKU: UDN2984LW
UDN2984LW CMOS Logic IC CASE: SO18 MAKE: Rochester Electronics
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
UDN2984LW Datasheet
Product specifications
Type CMOS Logic IC
Case SO18
Manufacturer Rochester Electronics
Vih Min (V) 2.4
Vil Max. (V) .4
Inp Logic Family CMOS,PMOS
Output Config CurrentSrc
VOL Max. 2
Outp Transis. Ion Max. 500m
PD Max. (W) 1.5
tPD Max. (S) 2u
Nom. Supp (V) 5.0
Tech. Bipolar Semiconductor
Logic Funct. Noninvert.
Oper. Temp (°C) Min -20
Oper. Temp (°C) Max. 85
VOH Max. 80
@Iol (A) 350m
Pinout Equivalence Number 18-136
Surface Mounted Yes/No YES
SKU 325304
