UDN5714N

UDN5714N

SKU: UDN5714N

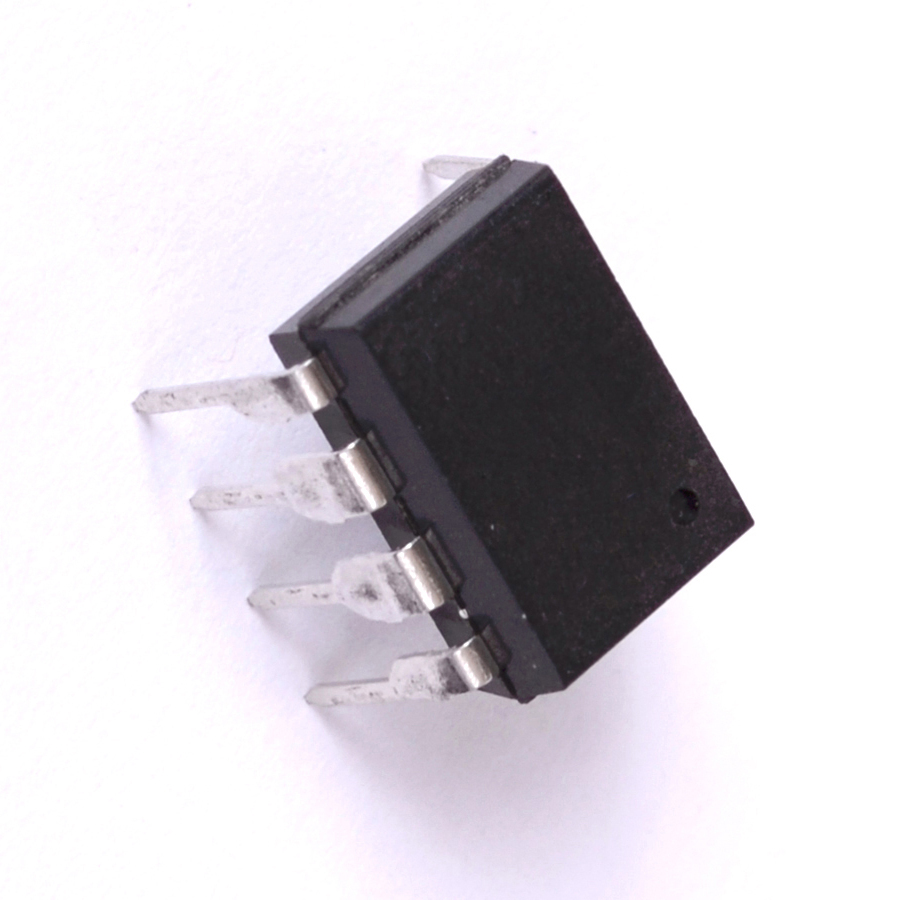

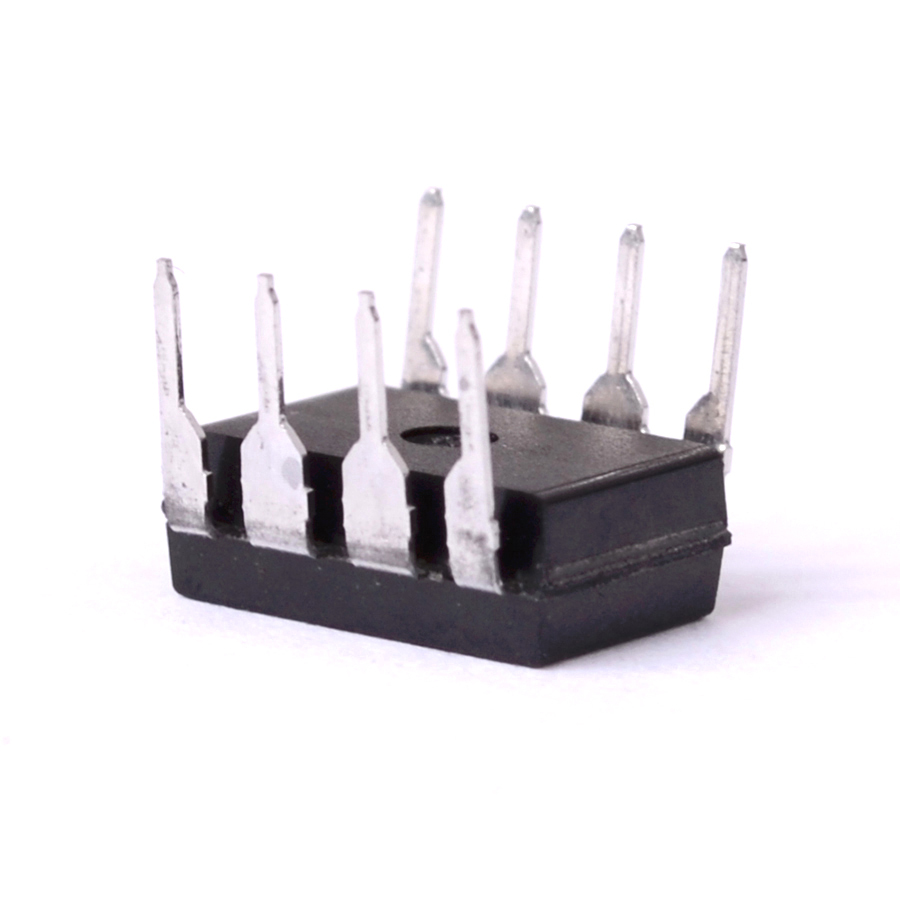

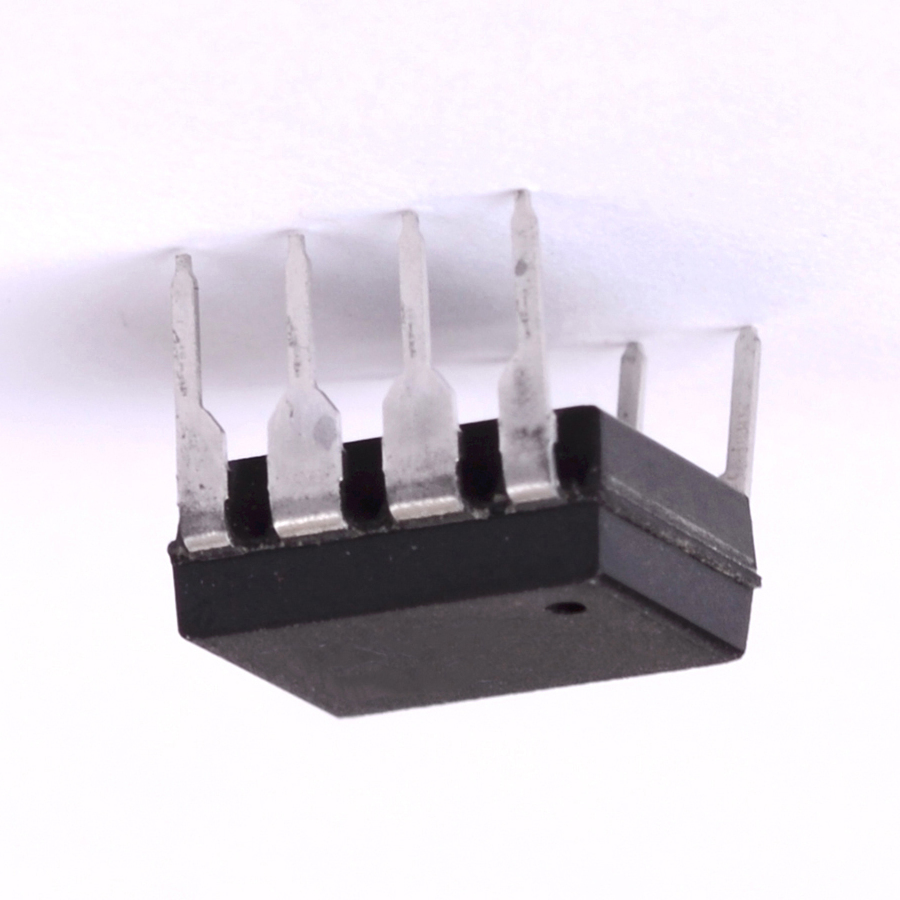

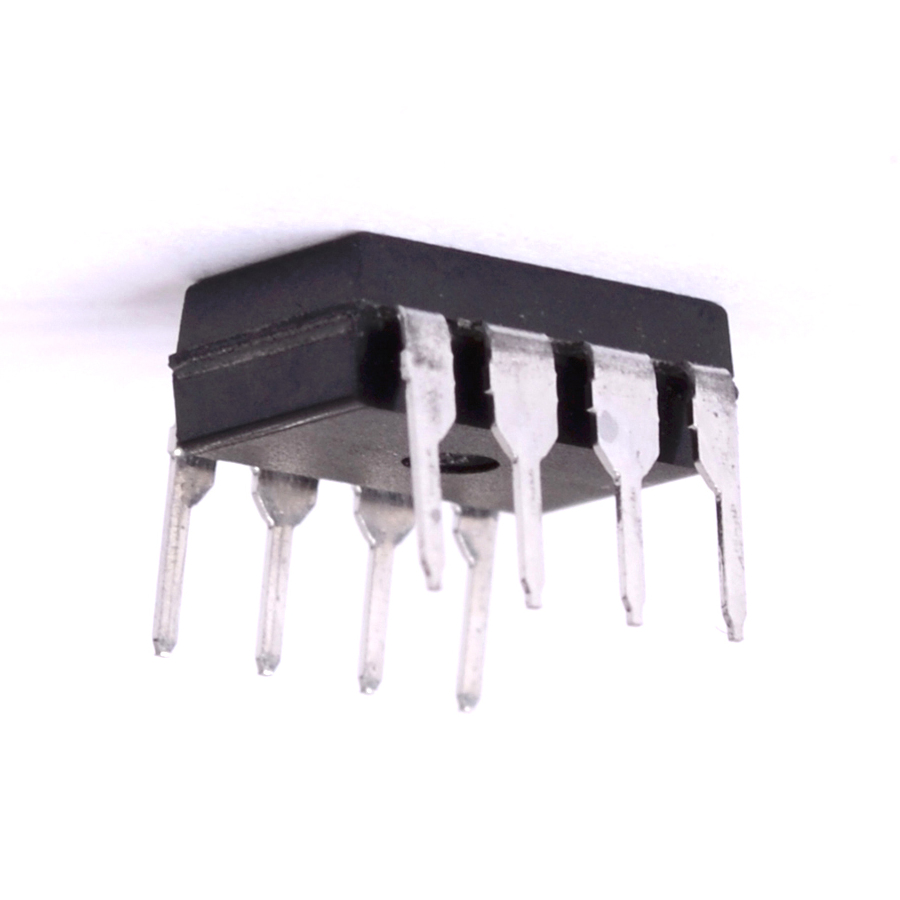

UDN5714N Integrated Circuit CASE: DIP8 MAKE: Generic
Product specifications
Type Integrated Circuit
Case DIP8
Manufacturer Generic
Vih Min (V) 2.0
Vil Max. (V) 0.8
Inp Logic Family C/PMOS,D/T
Output Config Open-Coll.
VOL Max. 0.7
Outp Transis. Ion Max. 300m
PD Max. (W) 250m
tPD Max. (S) 750n
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Logic Funct. NOR
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
VOH Max. 80
@Iol (A) 300m
Pinout Equivalence Number 8-120
No. of Pins 8
Surface Mounted Yes/No NO
SKU 634518
