ULN2803R

ULN2803R

SKU: ULN2803R

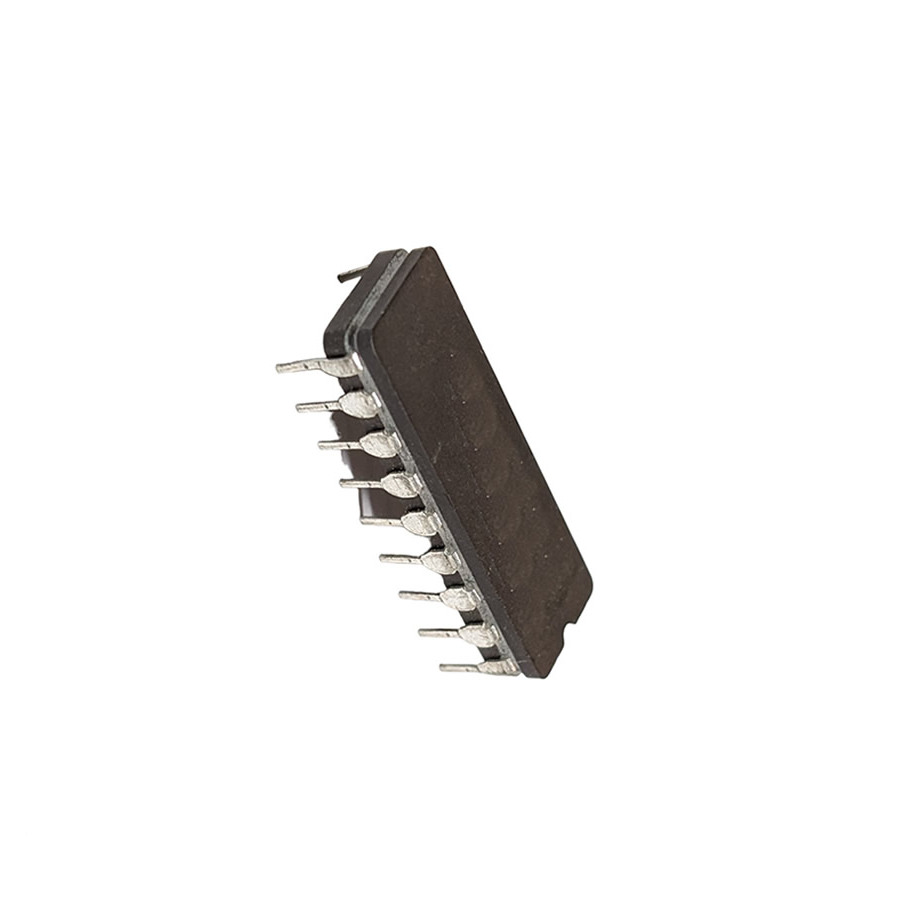

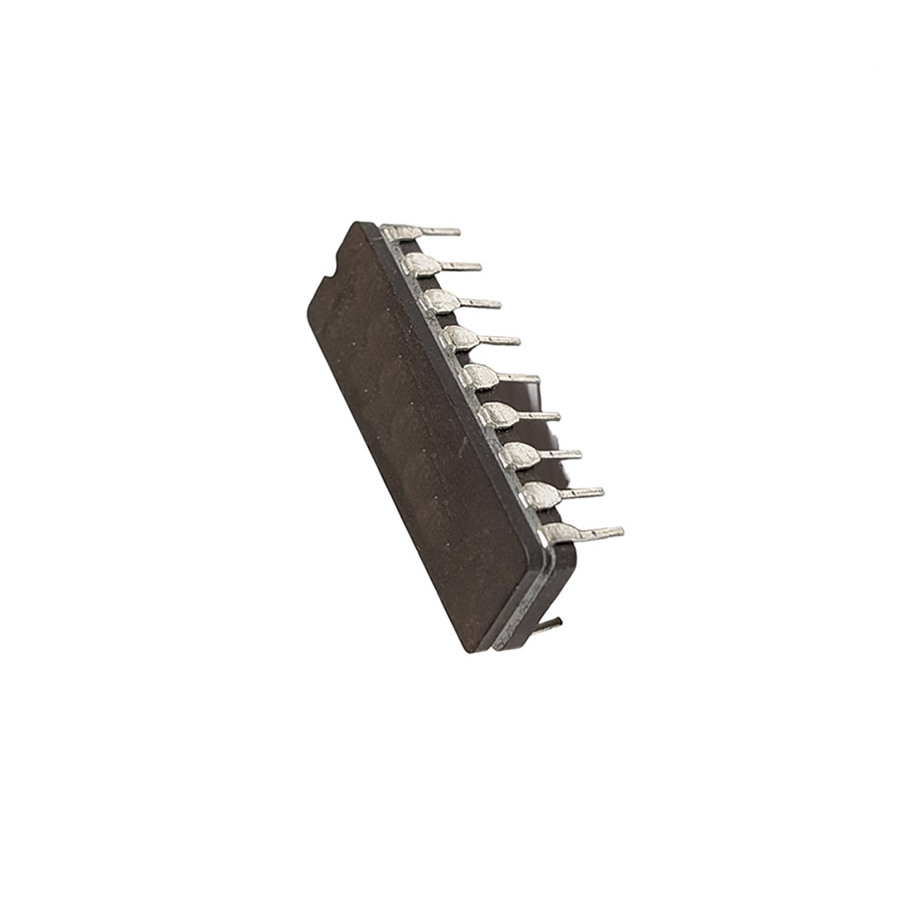

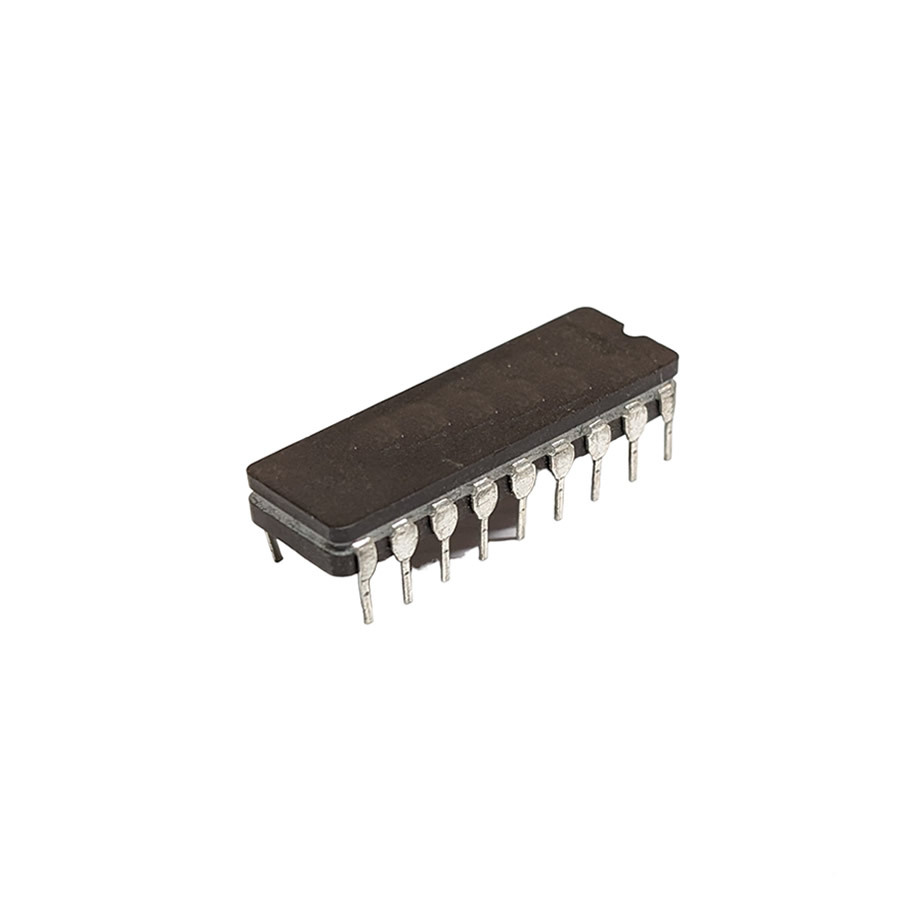

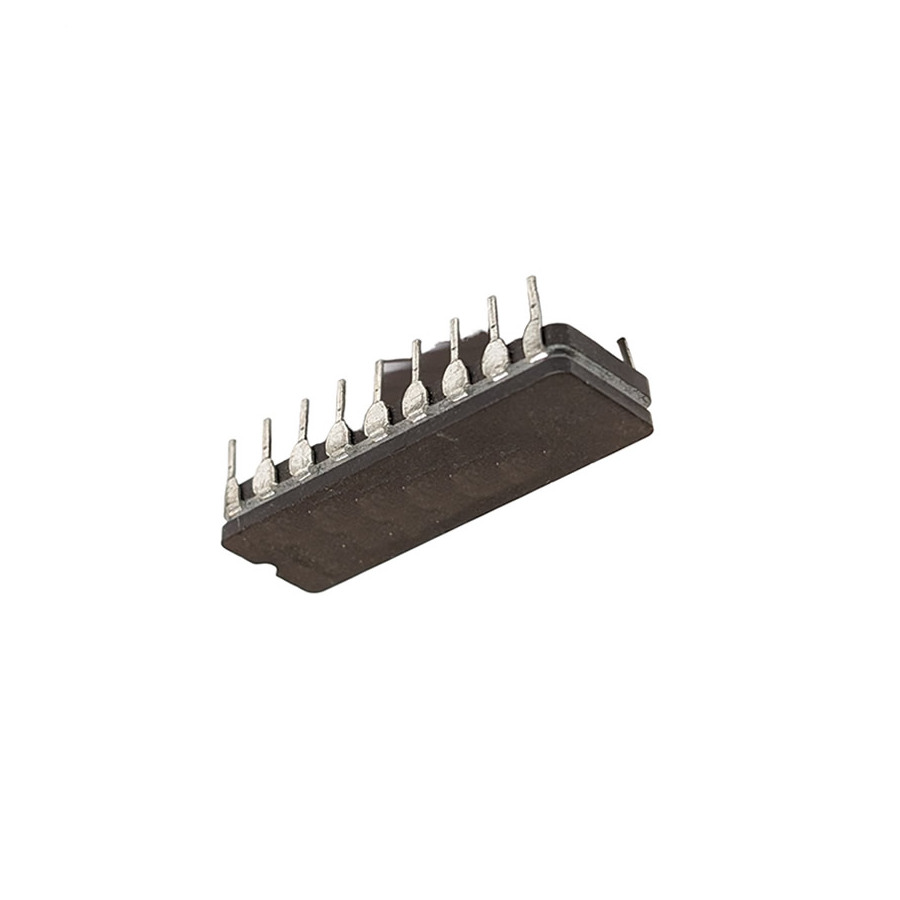

ULN2803R Semiconductor CASE: DIC18 MAKE: Toshiba
Product specifications
Type Semiconductor
Case DIC18
Manufacturer Toshiba
Vih Min (V) 2.4
Vil Max. (V) 0.8
Inp Logic Family TTL CMOS
Output Config Open-Coll.
VOL Max. 1.6
Outp Transis. Ion Max. 500m
PD Max. (W) 2.0
tPD Max. (S) 1.0u
Tech. Bipolar Semiconductor
Logic Funct. Inverting
Oper. Temp (°C) Min -25
Oper. Temp (°C) Max. 85
VOH Max. 50
@Iol (A) 350m
Pinout Equivalence Number 18-178
Surface Mounted Yes/No NO
SKU 929203
