Home / Semiconductors / ULN2804LW
ULN2804LW

ULN2804LW

SKU: ULN2804LW

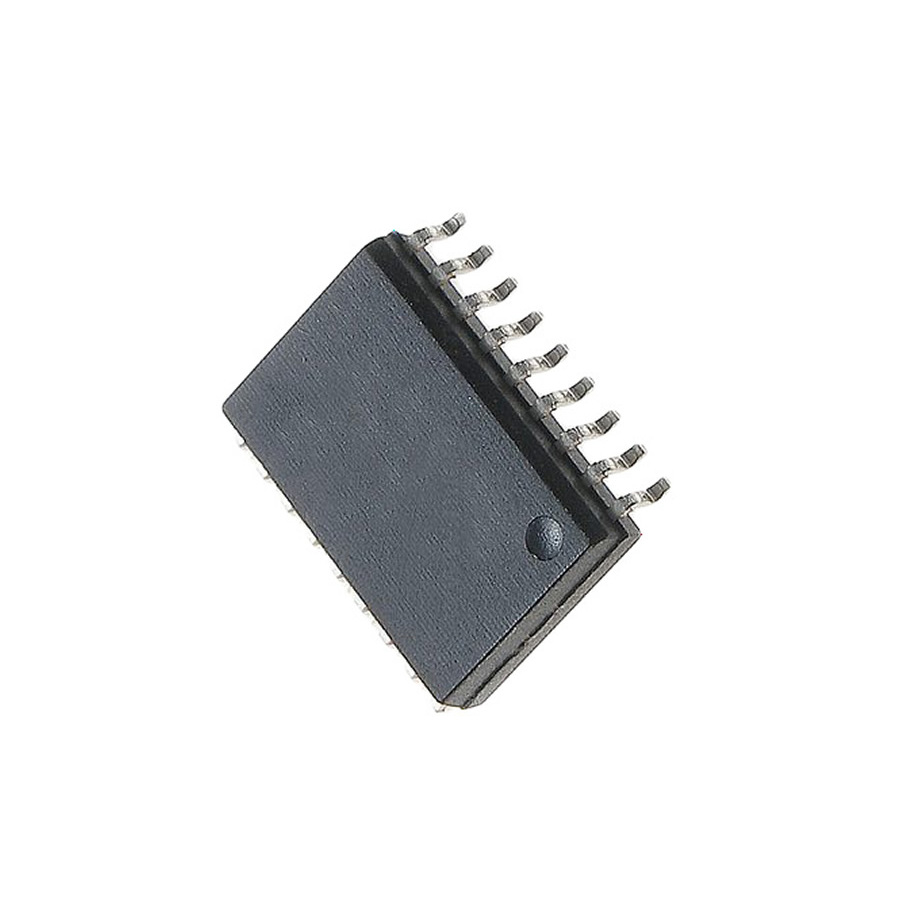

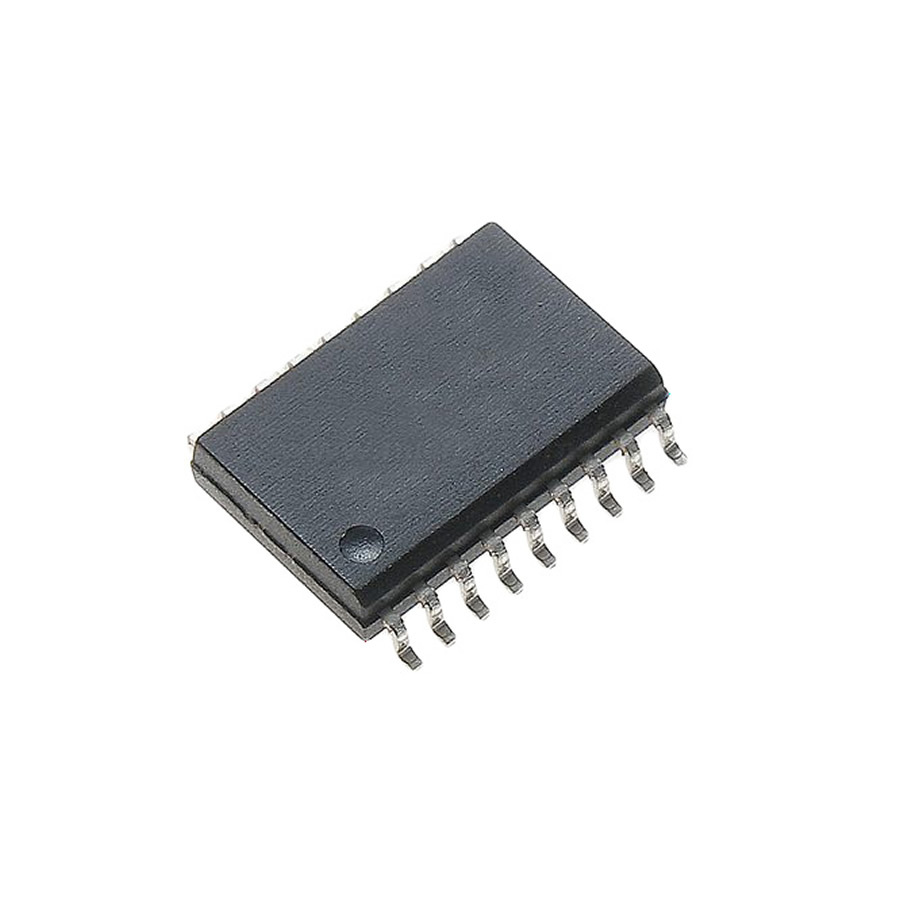

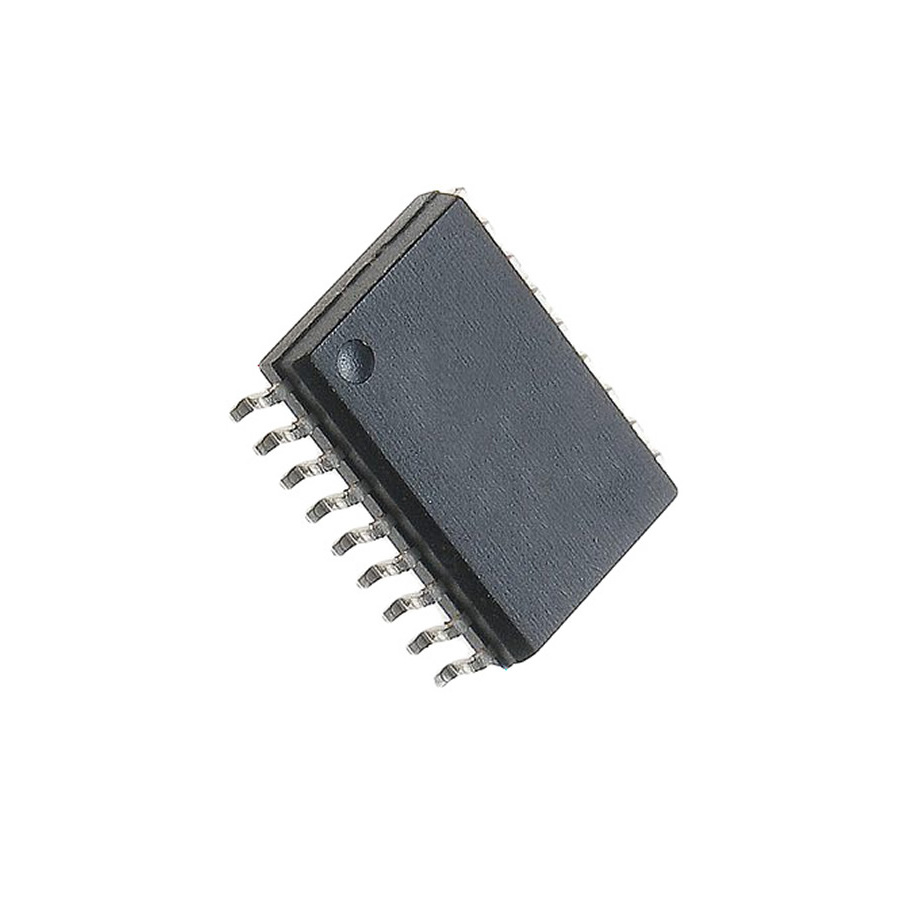

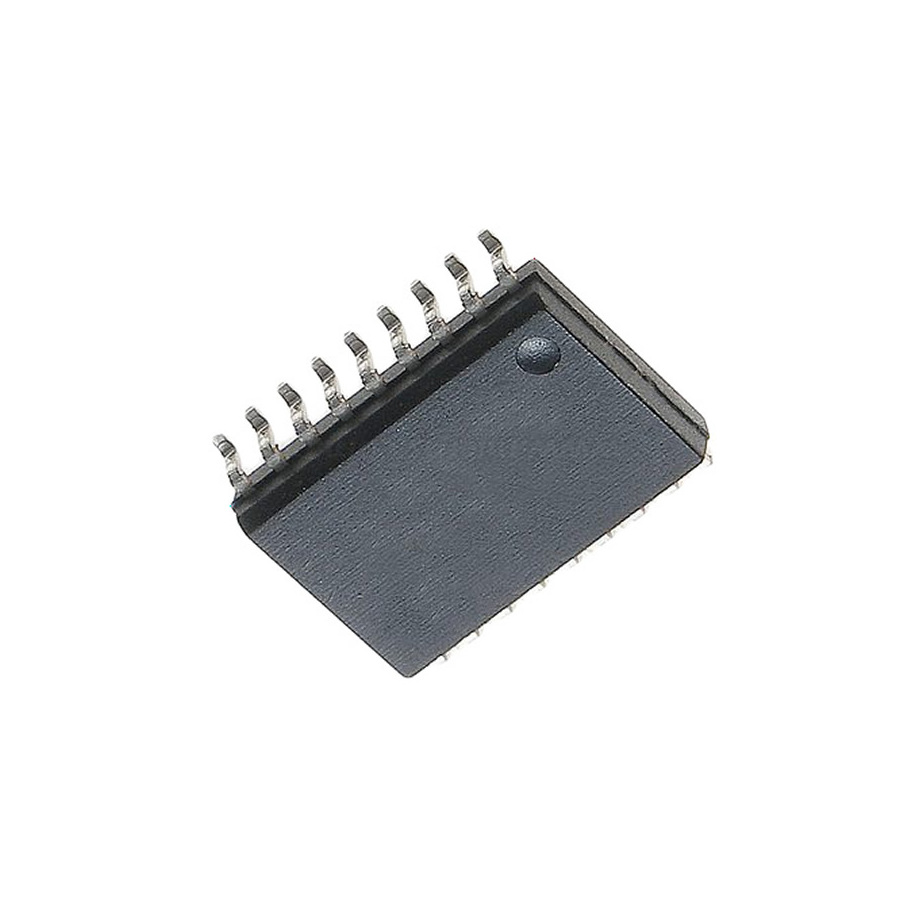

ULN2804LW Semiconductor CASE: SOP18 MAKE: Allegro MicroSystems
Datasheet
ULN2804LW Datasheet
Product specifications
Type SemiConductor
Case SOP18
Manufacturer Allegro MicroSystems
Inp Logic Family CMOS,PMOS
Output Config Open-Coll.
VOL Max. 1.6
Outp Transis. Ion Max. 500m
PD Max. (W) 1.3
Tech. Bipolar Semiconductor
Logic Funct. Inverting
Oper. Temp (°C) Min -20
Oper. Temp (°C) Max. 85
VOH Max. 50
@Iol (A) 350m
Pinout Equivalence Number 18-178
Surface Mounted Yes/No YES
SKU 325564
