ULN2804R

ULN2804R

SKU: ULN2804R

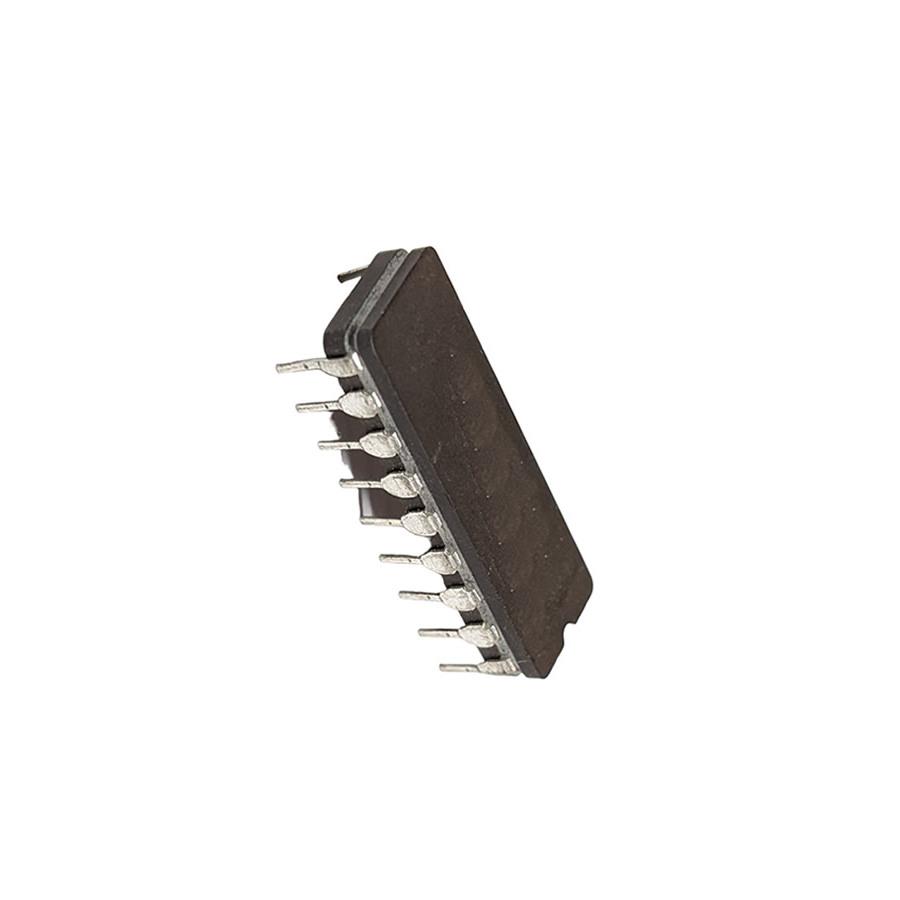

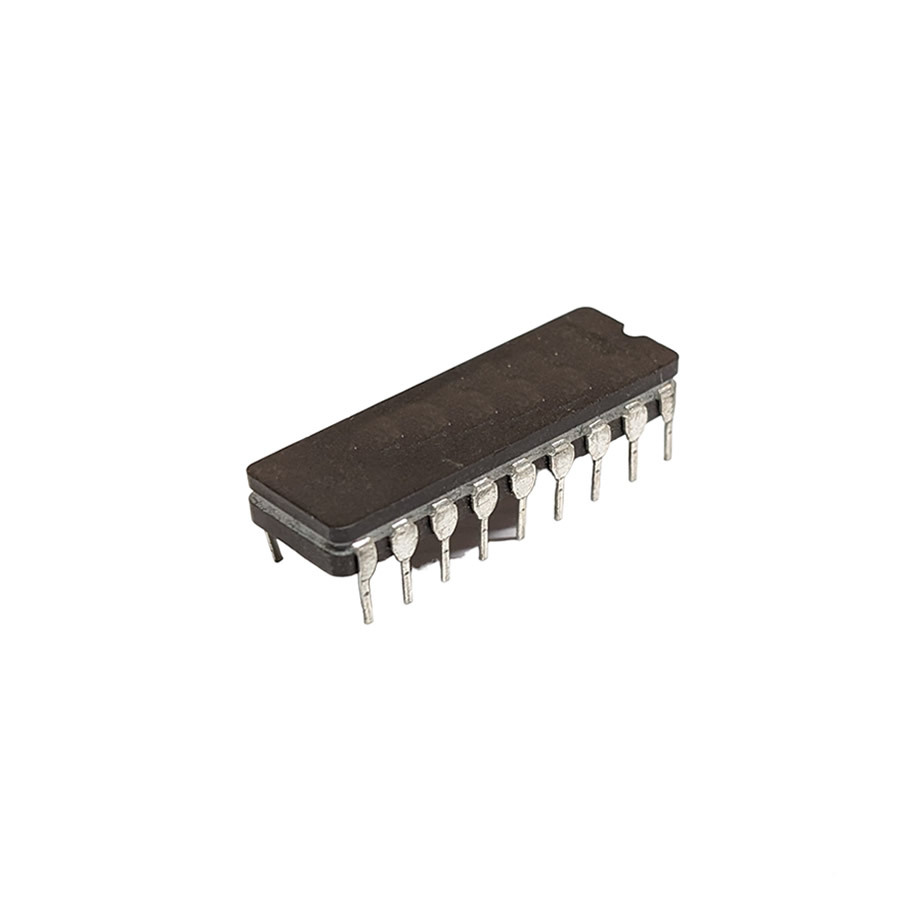

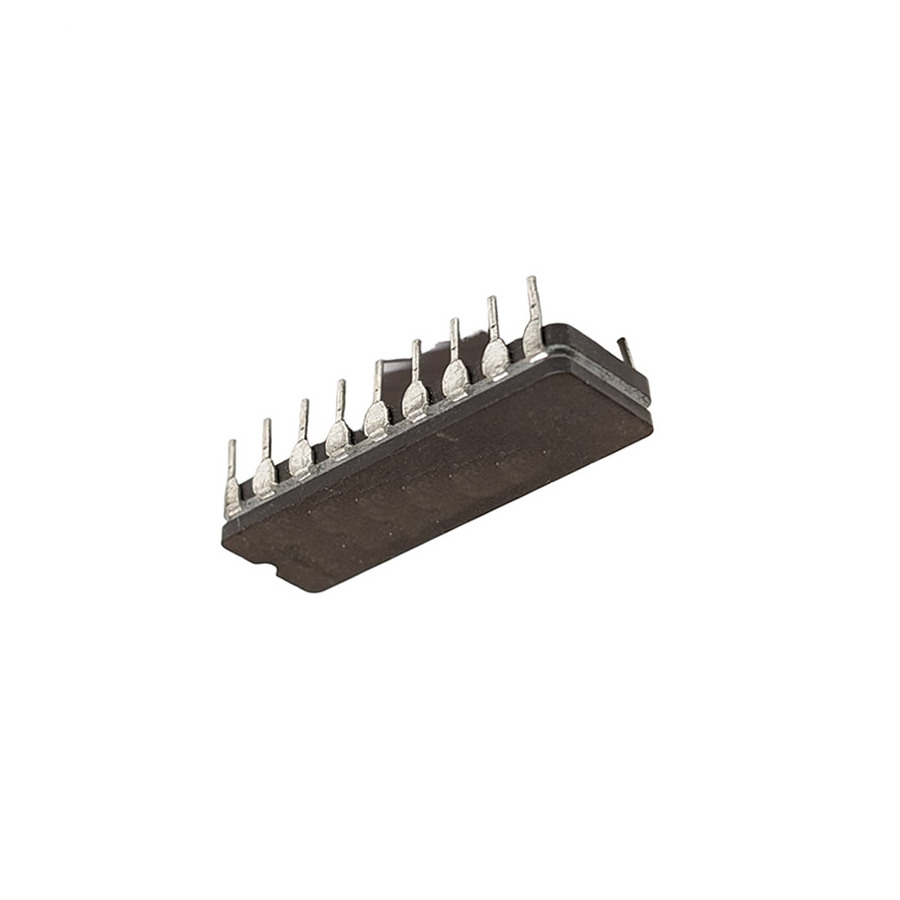

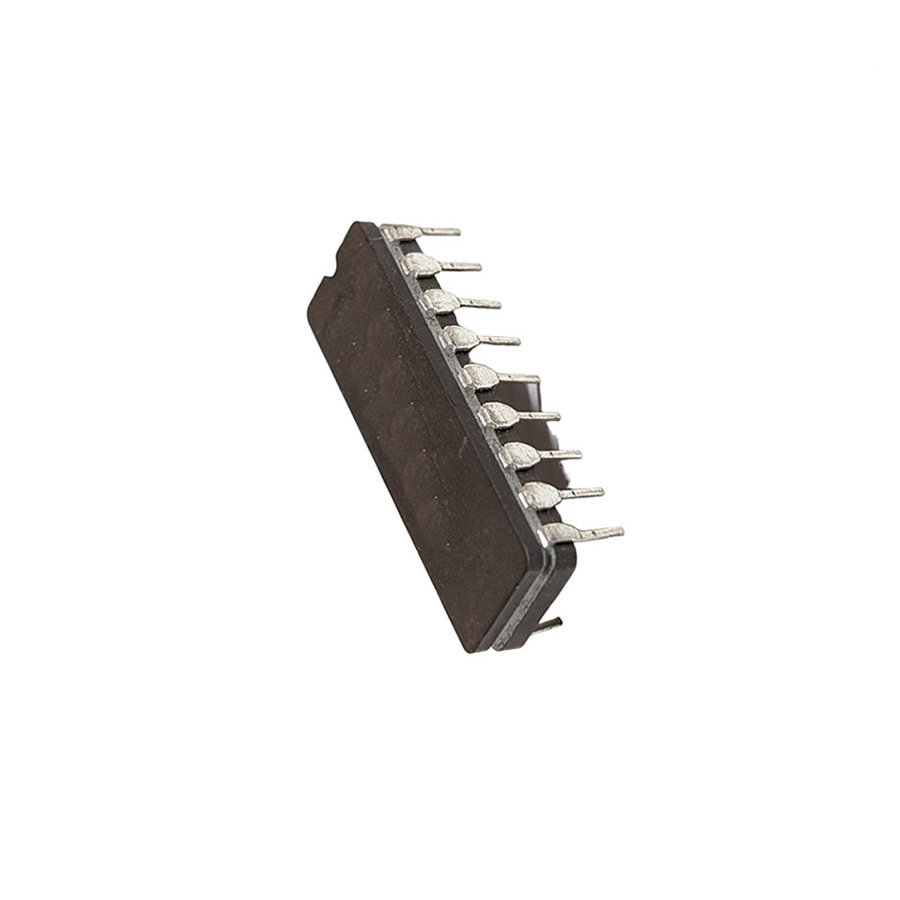

ULN2804R Semiconductor CASE: DIC18 MAKE: Toshiba
Product specifications
Type Semiconductor
Case DIC18
Manufacturer Toshiba
Inp Logic Family CMOS,PMOS
Output Config Open-Coll.
VOL Max. 1.6
Outp Transis. Ion Max. 500m
PD Max. (W) 2.0
tPD Max. (S) 1.0u
Tech. Bipolar Semiconductor
Logic Funct. Inverting
Oper. Temp (°C) Min -25
Oper. Temp (°C) Max. 85
VOH Max. 50
@Iol (A) 350m
Pinout Equivalence Number 18-178
Surface Mounted Yes/No NO
SKU 929175
