Home / Semiconductors / ULN2823LW
ULN2823LW

ULN2823LW

SKU: ULN2823LW

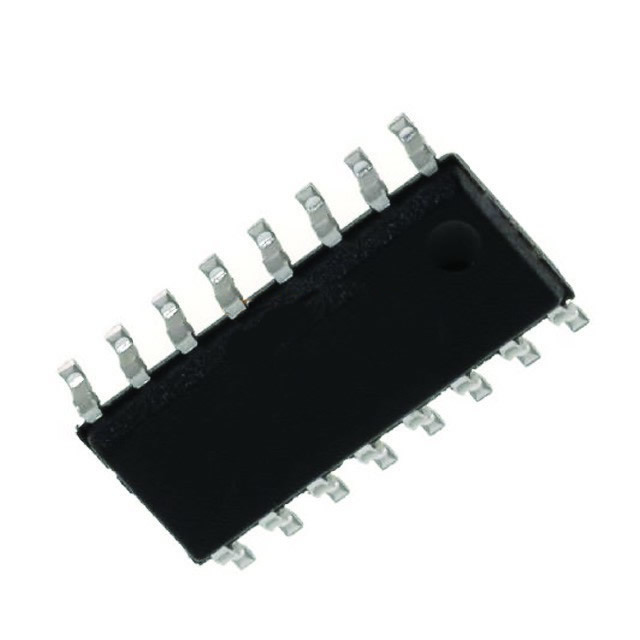

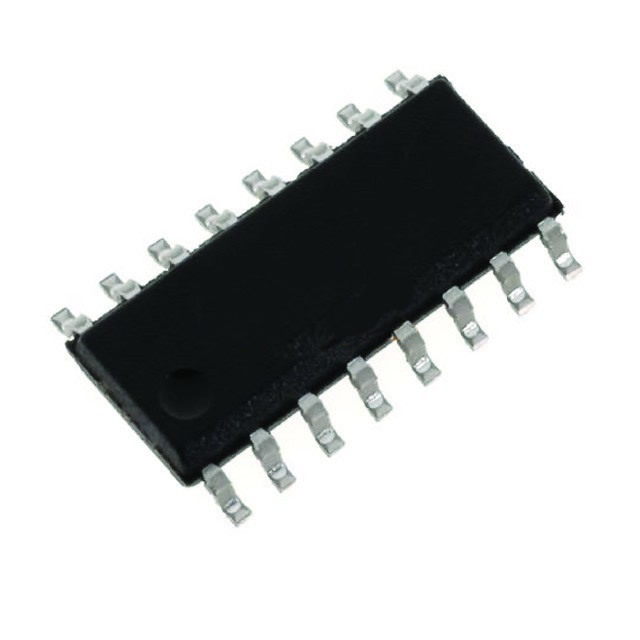

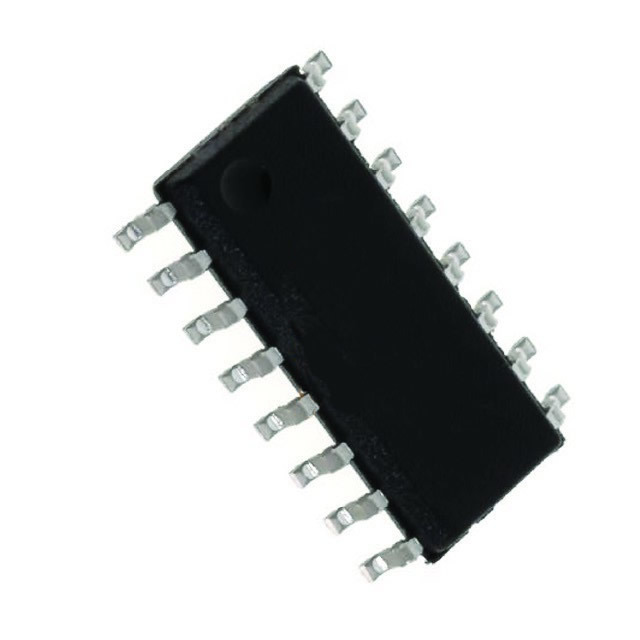

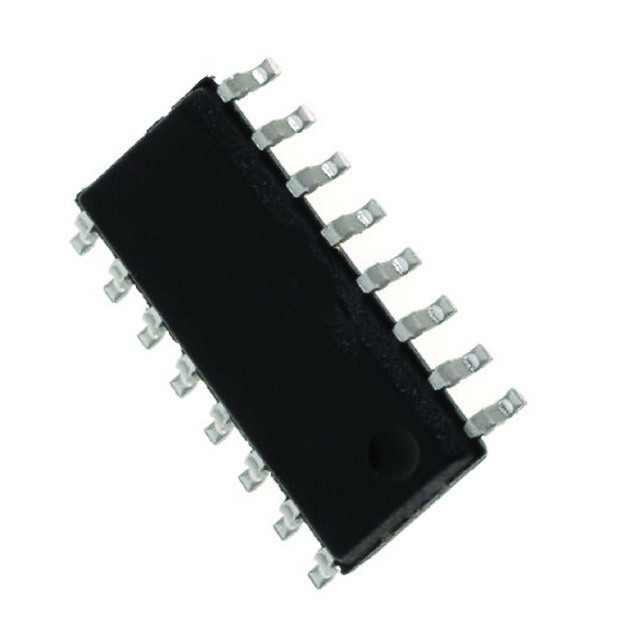

ULN2823LW Semiconductor CASE: SO18 MAKE: Allegro MicroSystems
Datasheet
ULN2823LW Datasheet
Product specifications
Type SemiConductor
Case SO18
Manufacturer Allegro MicroSystems
Inp Logic Family TTL CMOS
Output Config Open-Coll.
VOL Max. 1.6
Outp Transis. Ion Max. 500m
PD Max. (W) 1.3
Tech. Bipolar Semiconductor
Logic Funct. Inverting
Oper. Temp (°C) Min -20
Oper. Temp (°C) Max. 85
VOH Max. 95
@Iol (A) 350m
Pinout Equivalence Number 18-178
Surface Mounted Yes/No YES
SKU 325566
