Home / Semiconductors / ULQ2801A

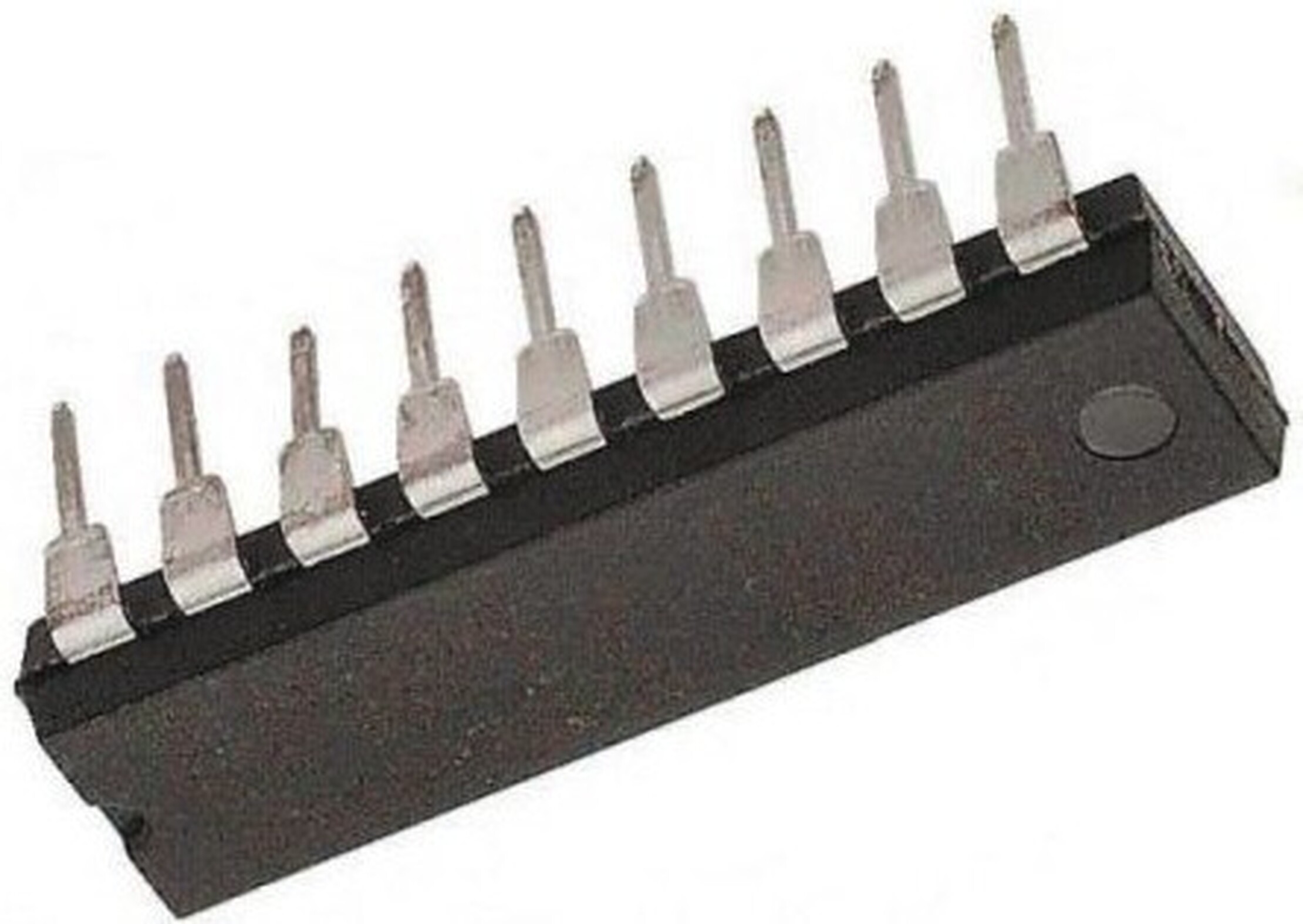

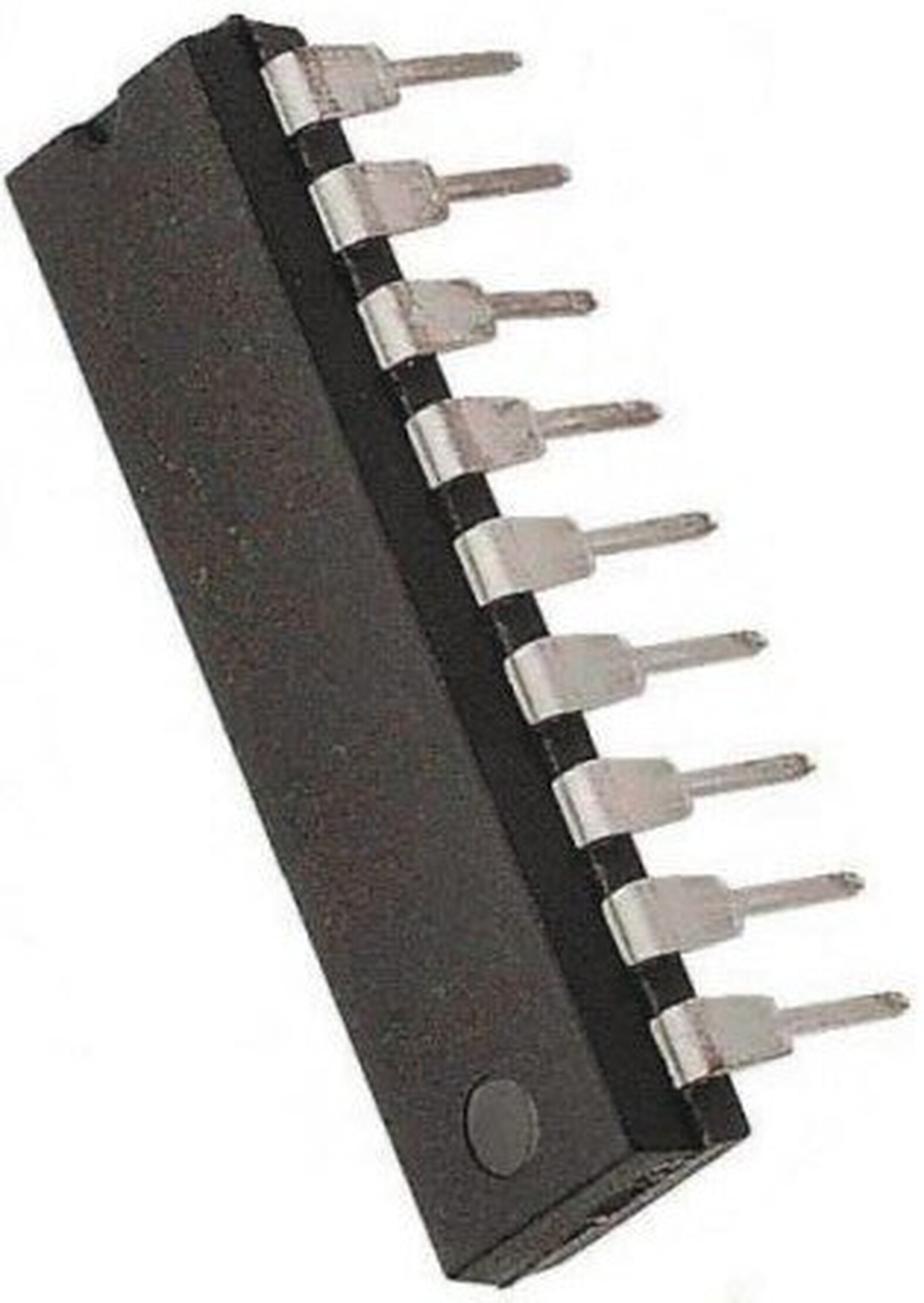

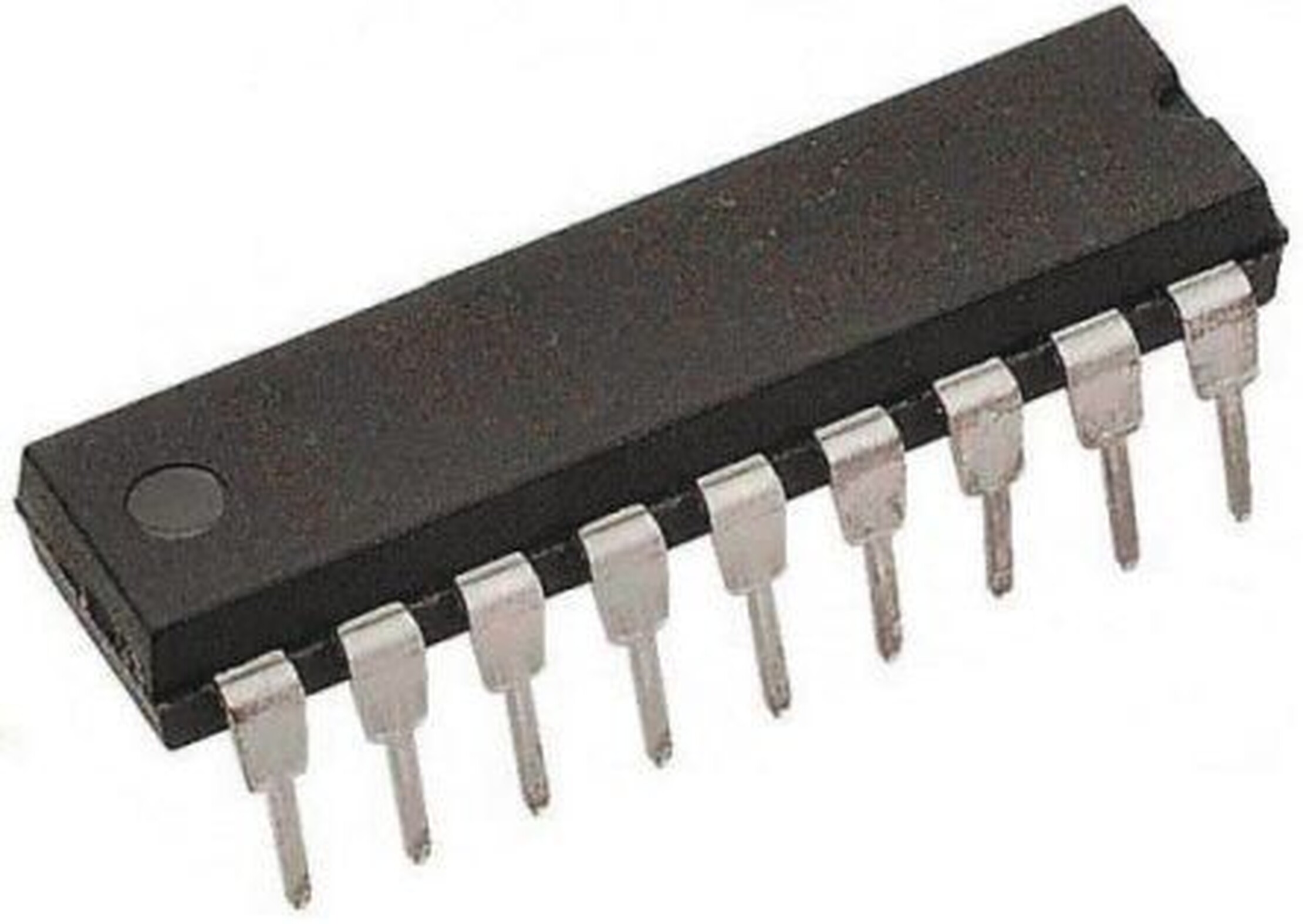

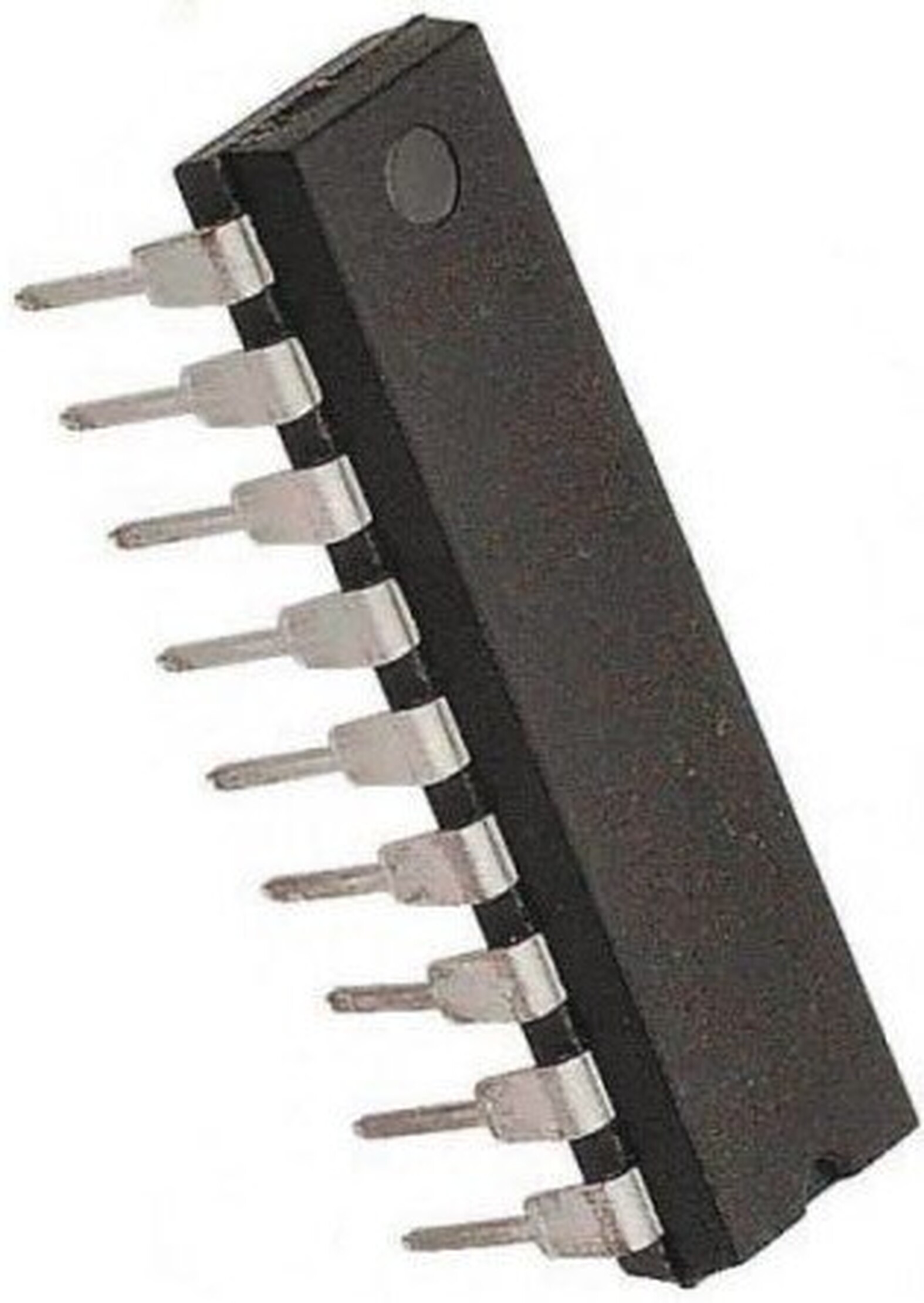

ULQ2801A

ULQ2801A

SKU: ULQ2801A
ULQ2801A Semiconductor CASE: Standard MAKE: Generic
Datasheet
ULQ2801A Datasheet
Product specifications
Type SemiConductor
Case Standard
Manufacturer Generic
Vih Min (V) 2.4
Vil Max. (V) 0.8
Inp Logic Family C/N/PMOS,T
Output Config Open-Coll.
VOL Max. 1.6
Outp Transis. Ion Max. 500m
PD Max. (W) 2.0
tPD Max. (S) 1.0u
Tech. Bipolar Semiconductor
Logic Funct. Inverting
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
VOH Max. 50
@Iol (A) 350m
Pinout Equivalence Number 18-178
Surface Mounted Yes/No NO
SKU 365282
