UMS1N
View detailed images (5)

UMS1N

SKU: UMS1N
UMS1N Transistor Silicon PNP CASE: SOT353 MAKE: Rohm Semiconductor
Product specifications
Type Transistor Silicon PNP

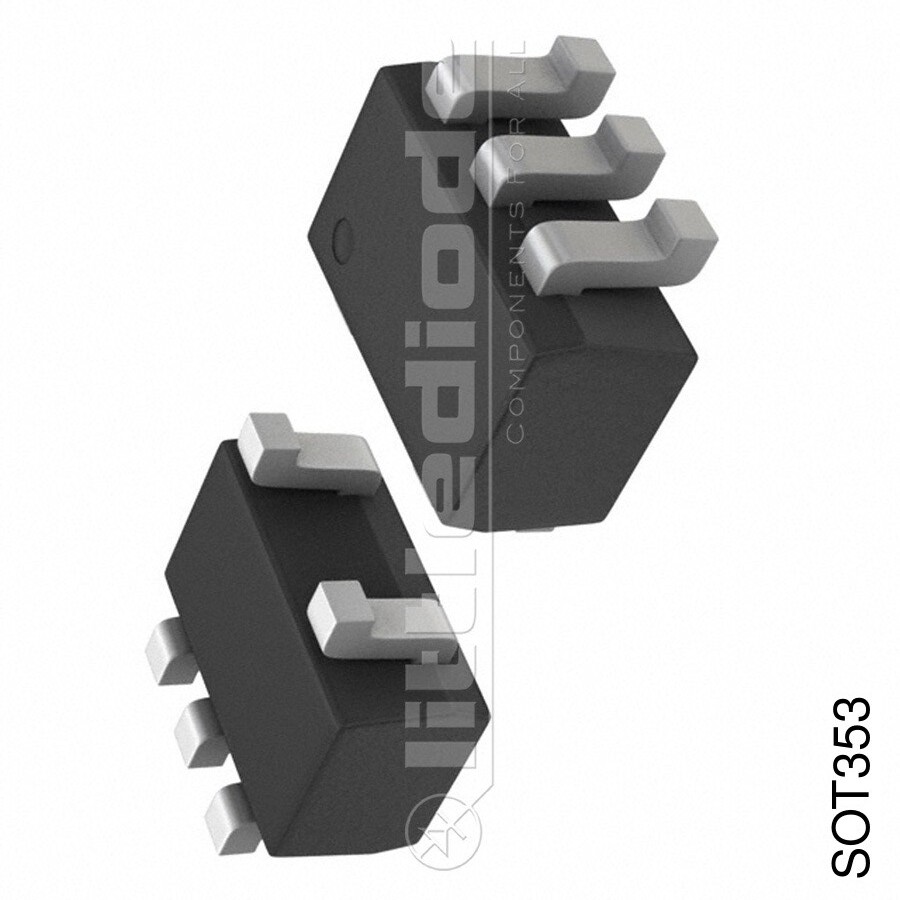

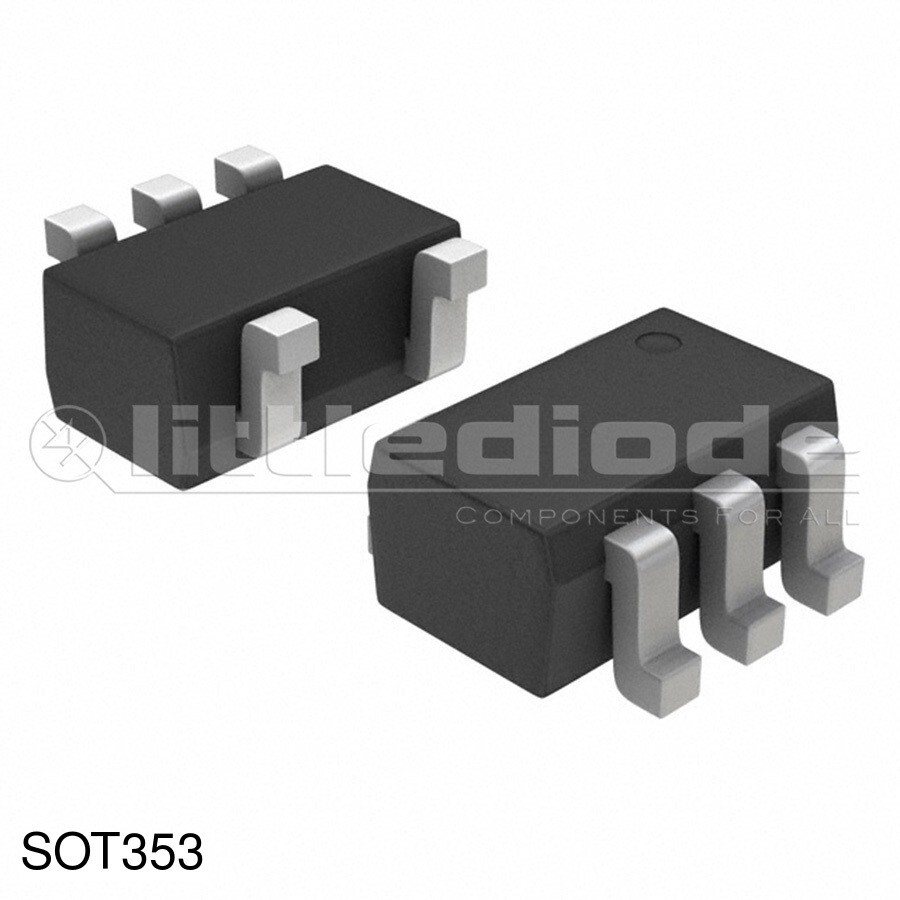

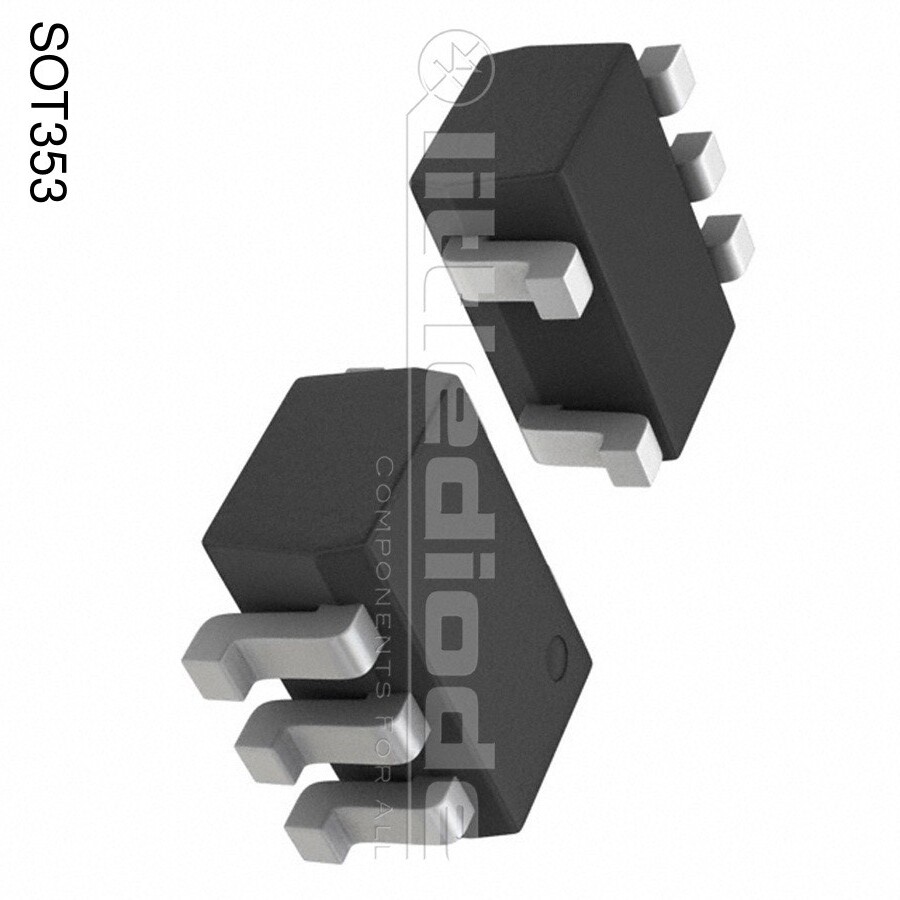

Case SOT353
Manufacturer Rohm Semiconductor
Polarity PNP
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.15 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 140 MHz
Forward Current Transfer Ratio (hFE), MIN 120
SMD Transistor Code S1
SKU 567447
