Home / Semiconductors / UPD100504D15
UPD100504D15

UPD100504D15

SKU: UPD100504D15

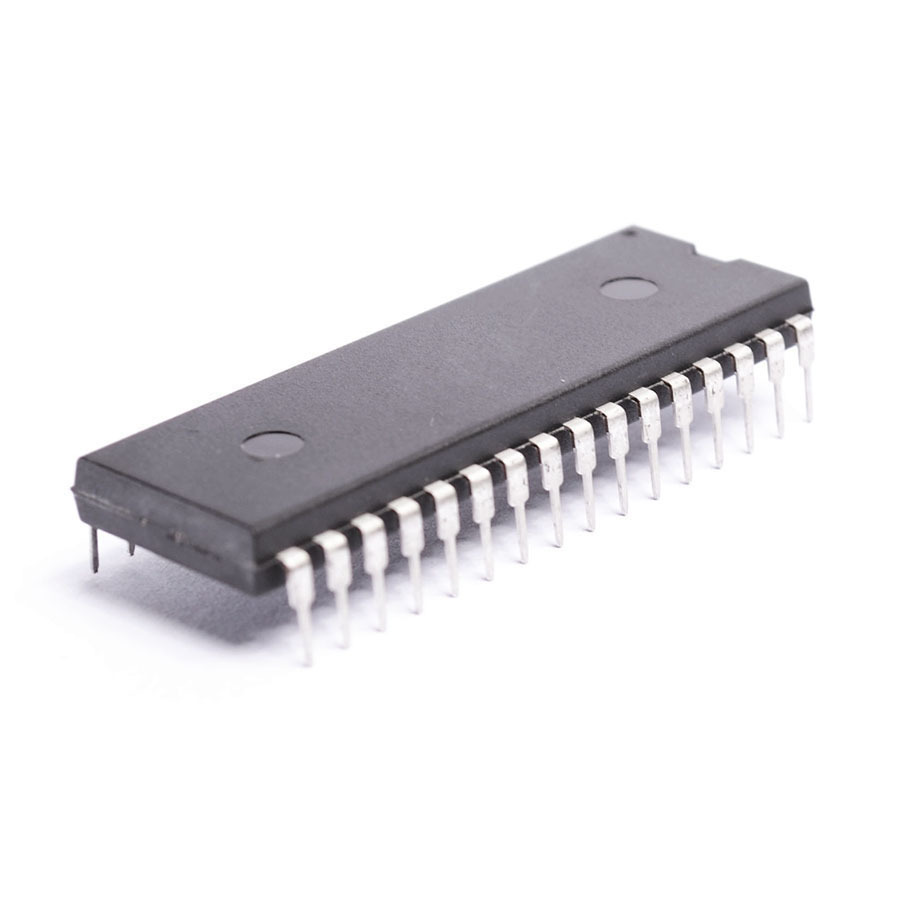

UPD100504D15 Integrated Circuit CASE: DIP32 MAKE: NEC
Product specifications
Type Integrated Circuit
Case DIP32
Manufacturer NEC
Bits Per Word 4
Output Config Open-Emit.
PD Max. (W) 810m
Nom. Supp (V) -5.0
t(acc) Max. (S) 15n
Tech. ECL - Emitter-Coupled Logic Semiconductor
tW Min (S) 15n
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Number of Words 64k
Pinout Equivalence Number 32-186
No. of Pins 32
Surface Mounted Yes/No NO
SKU 1206474
