UPD10504D15

UPD10504D15

SKU: UPD10504D15

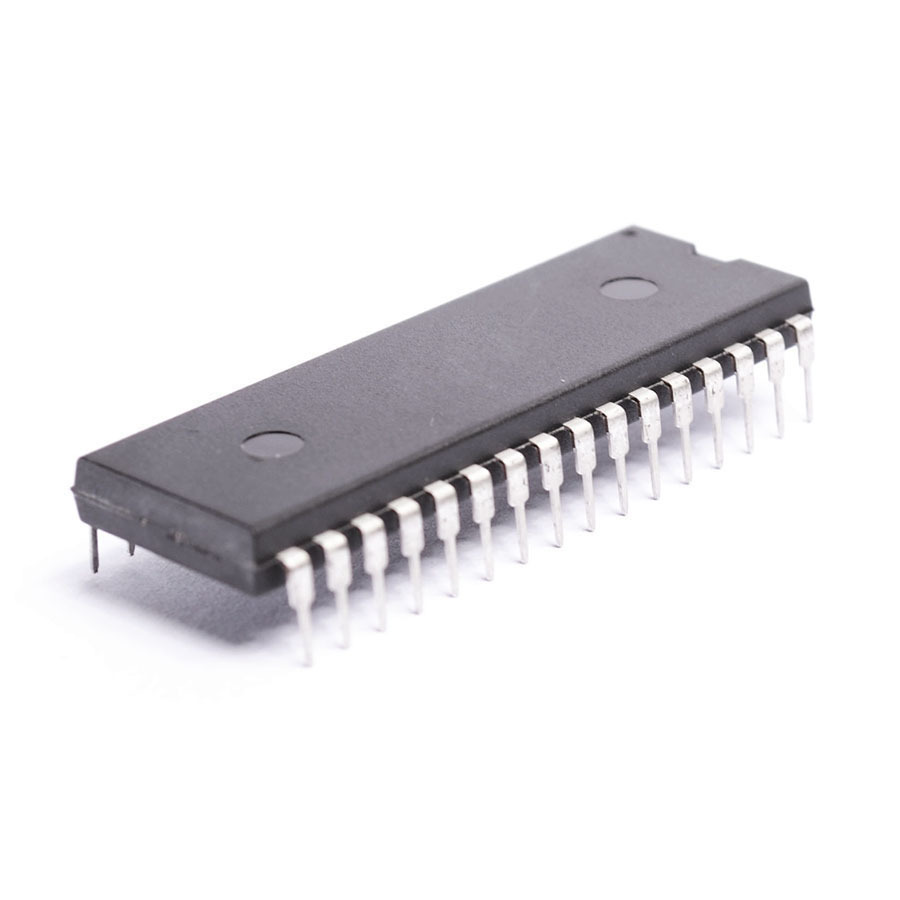

UPD10504D15 Integrated Circuit CASE: DIP32 MAKE: NEC
Product specifications
Type Integrated Circuit
Case DIP32
Manufacturer NEC
Bits Per Word 4
Output Config Open-Emit.
Nom. Supp (V) -5.2
t(acc) Max. (S) 15n
Tech. Bioplar CMOS Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 75
Number of Words 64k
Pinout Equivalence Number 32-423
Descript 10K ECL
No. of Pins 32
Surface Mounted Yes/No NO
SKU 1275063
