UPD1707G
View detailed images (8)

UPD1707G

SKU: UPD1707G

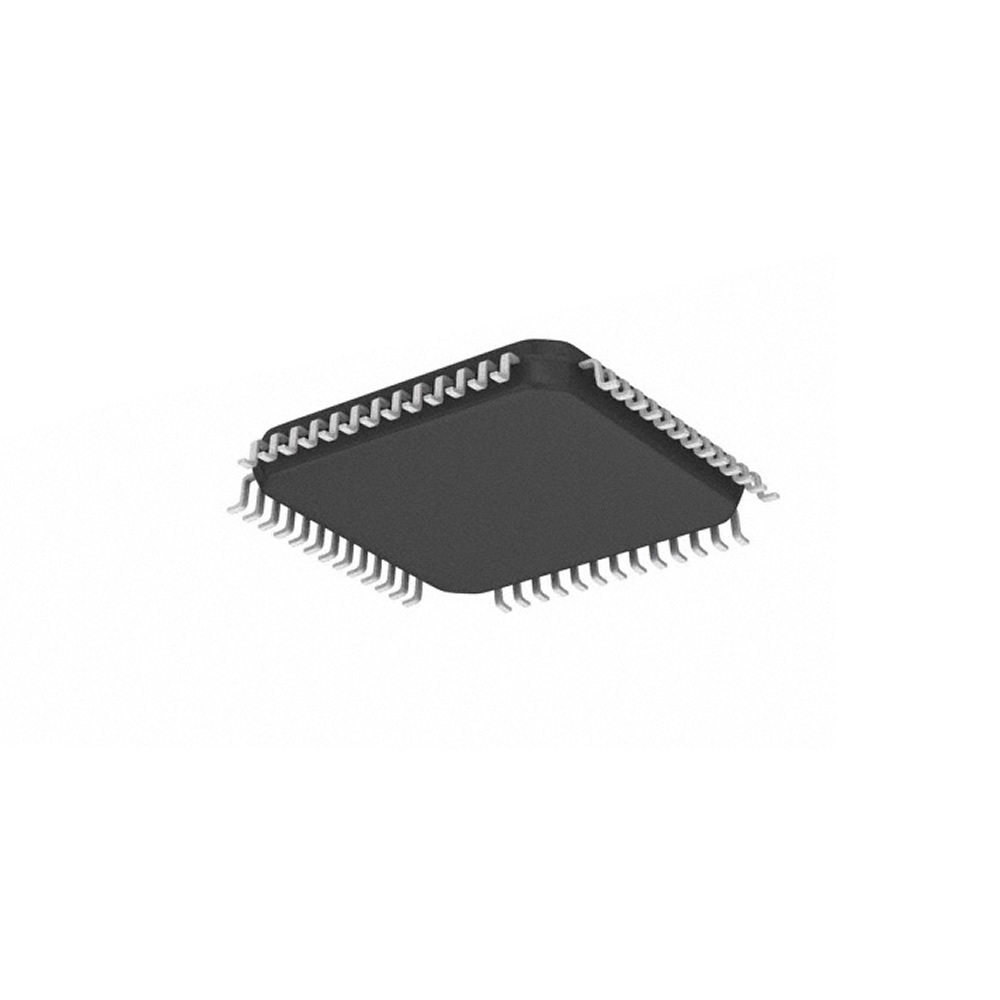

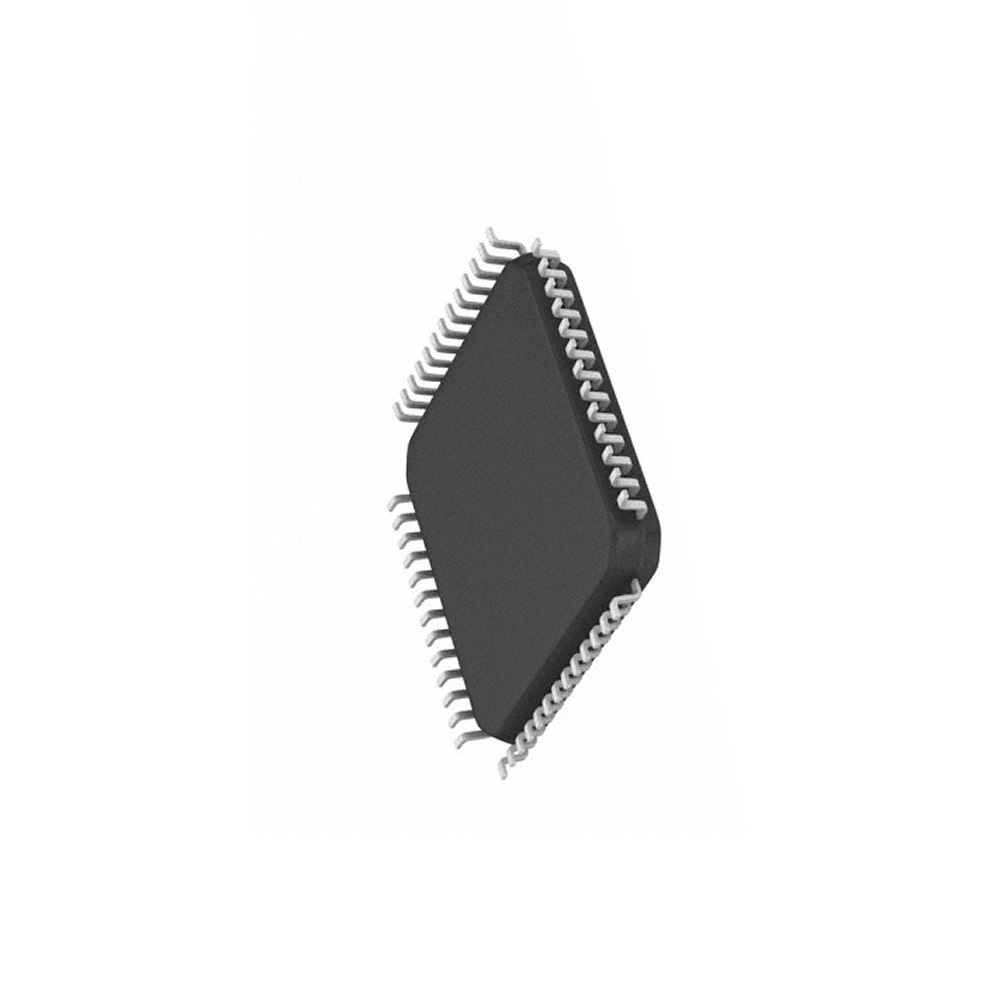

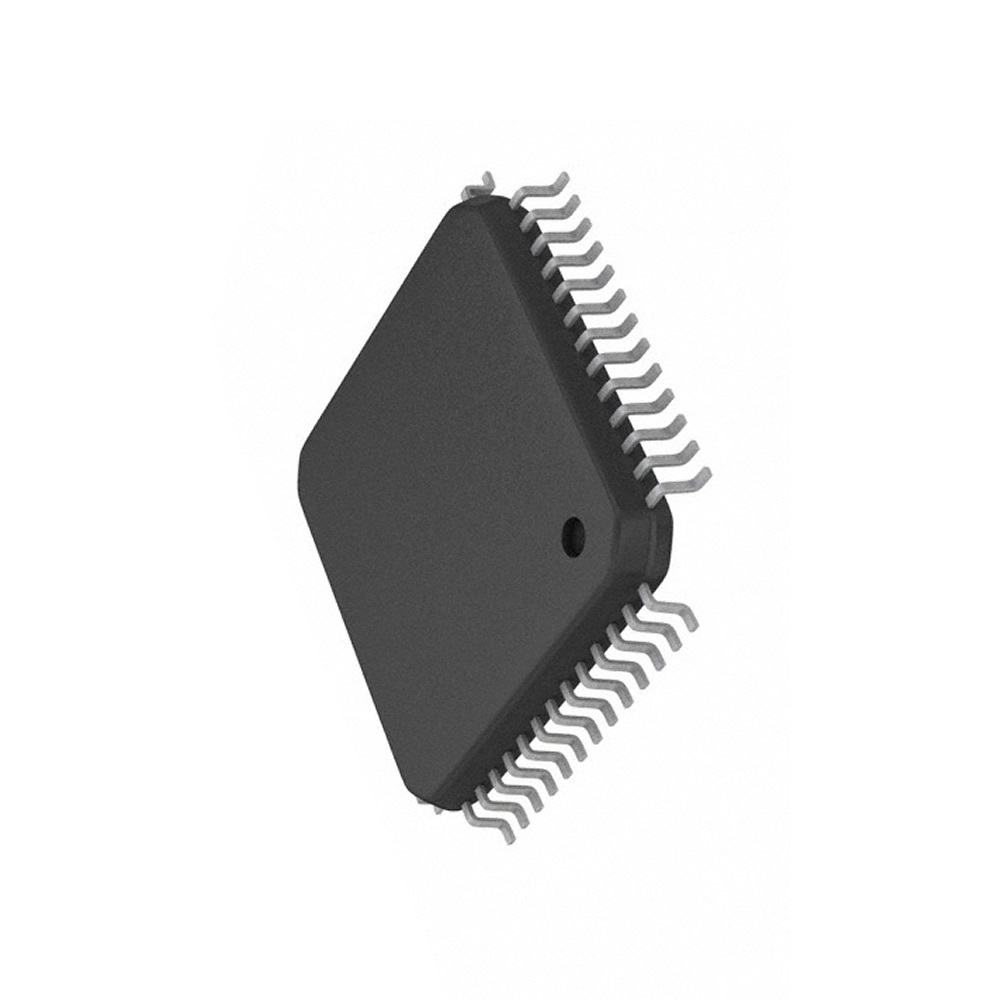

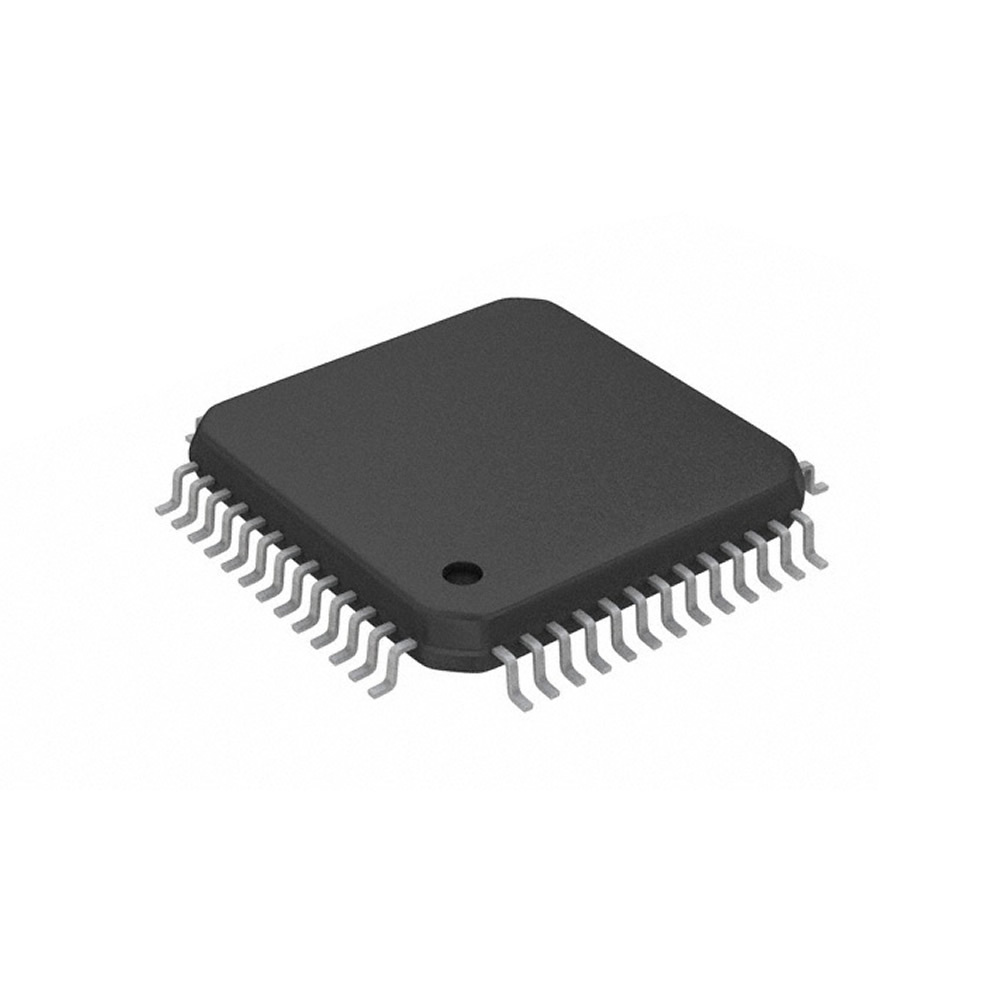

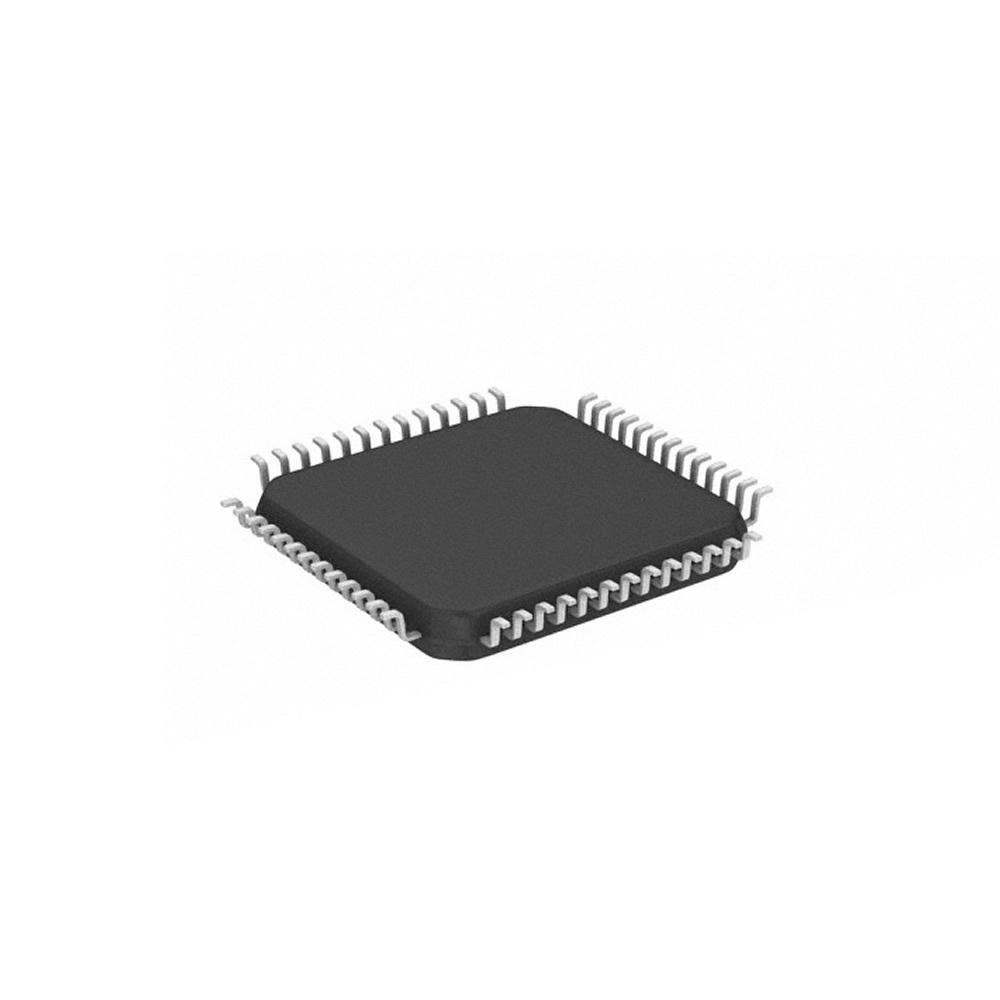

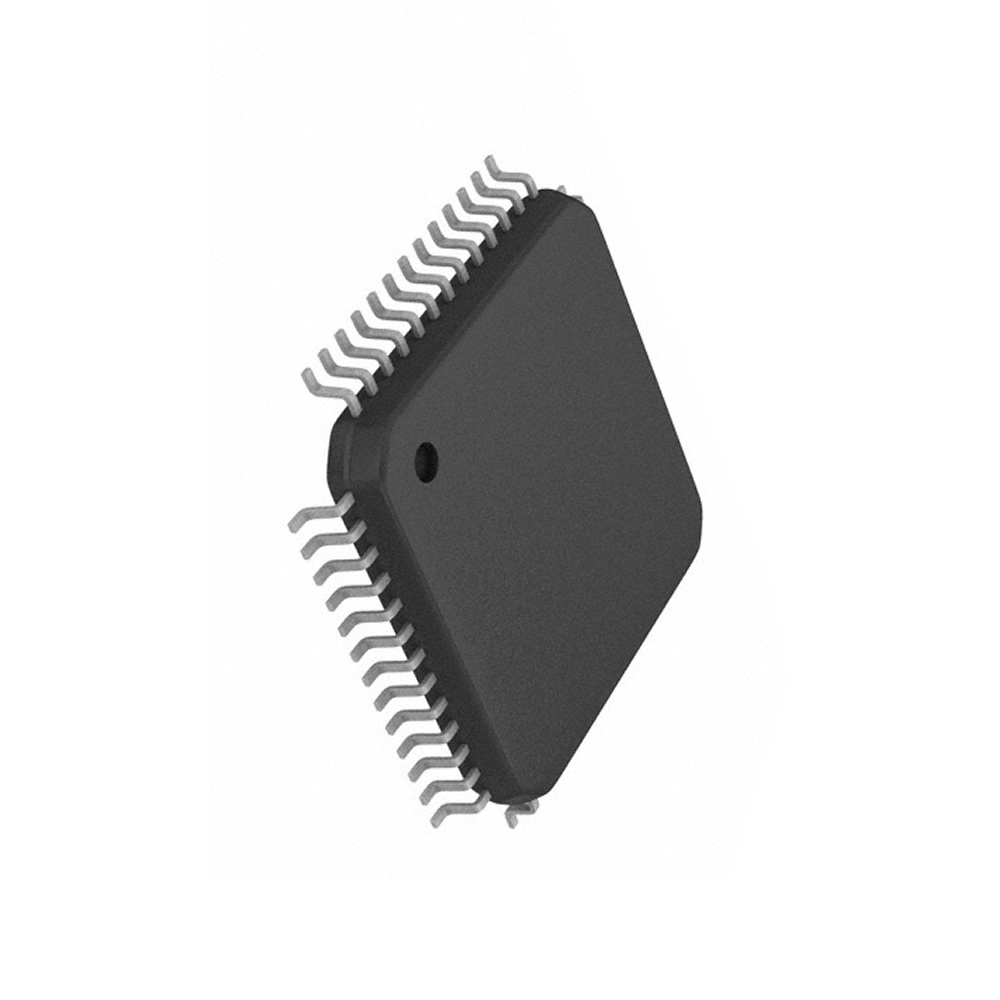

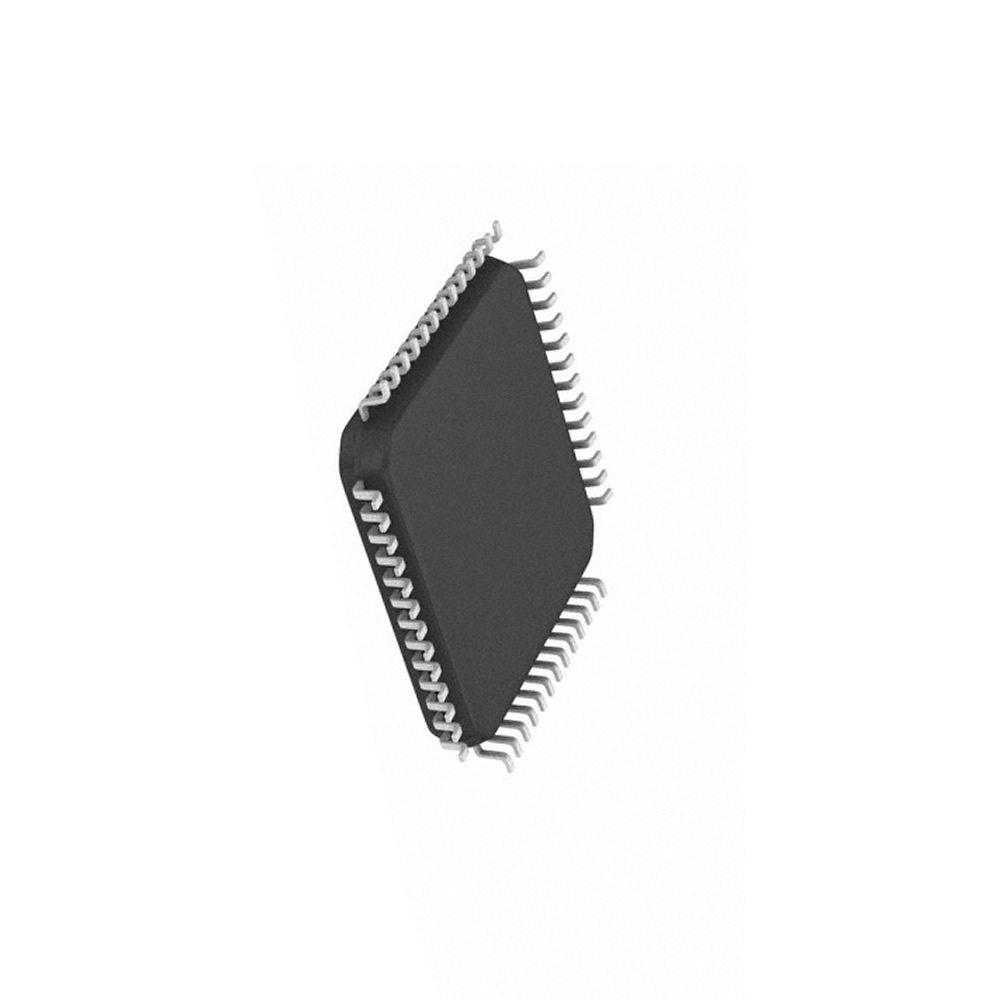

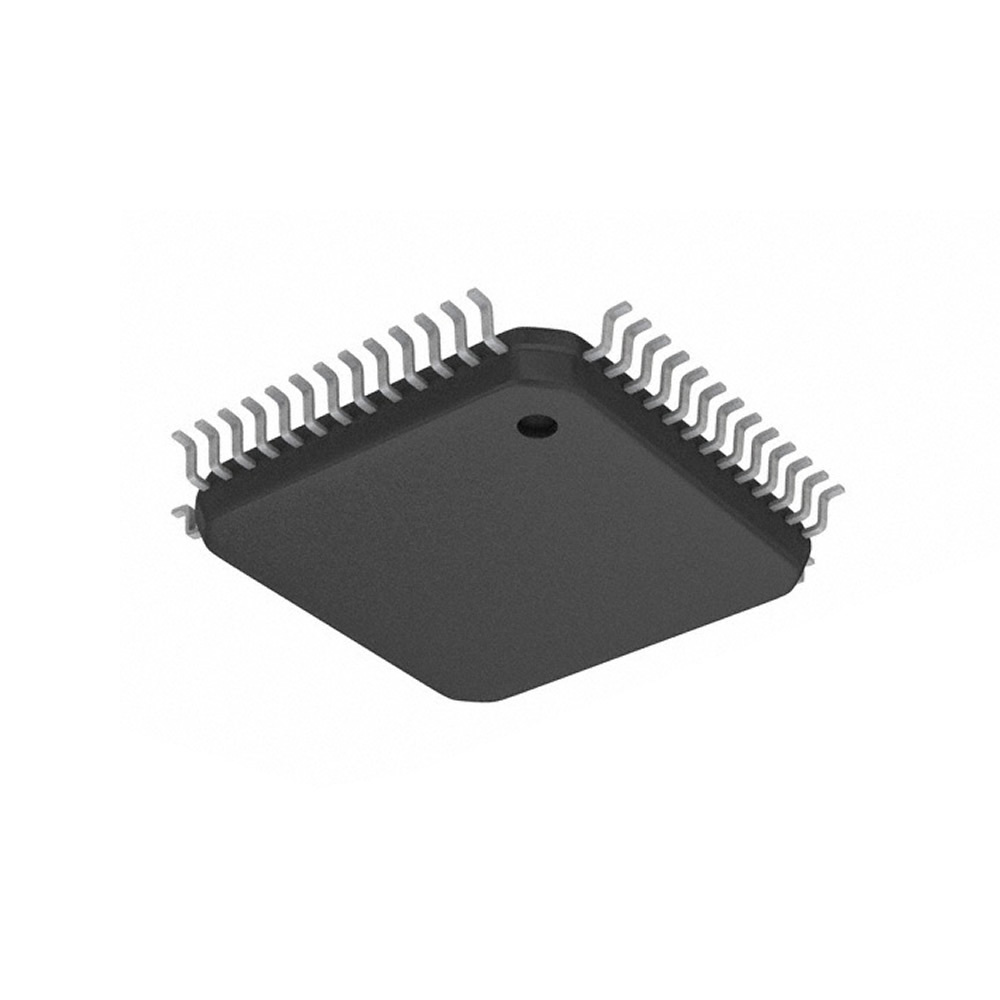

UPD1707G Integrated Circuit CASE: QFP52 MAKE: NEC
Product specifications
Type Integrated Circuit
Case QFP52
Manufacturer NEC
No.of Addr. Modes 5
No. of I/O Lines 4
I/O Line Types G/P Serial
Max. Inst. Len (bits) 24
Min Inst. Len (bits) 8
No. of Intrpt Lines 1
No. of Intrpt (NMI) 0
Intrpt Types Priority
No. of Intrpt (mask) 1
fClk Max. (Hz) 4.5M
fClk Min (Hz) 1.0M
No. of I/O Ports 16
On-Chip ROM (bytes) 2k
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 512
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
Pinout Equivalence Number 52-75
No. of Pins 52
Surface Mounted Yes/No YES
SKU 633262
