UPD1708G

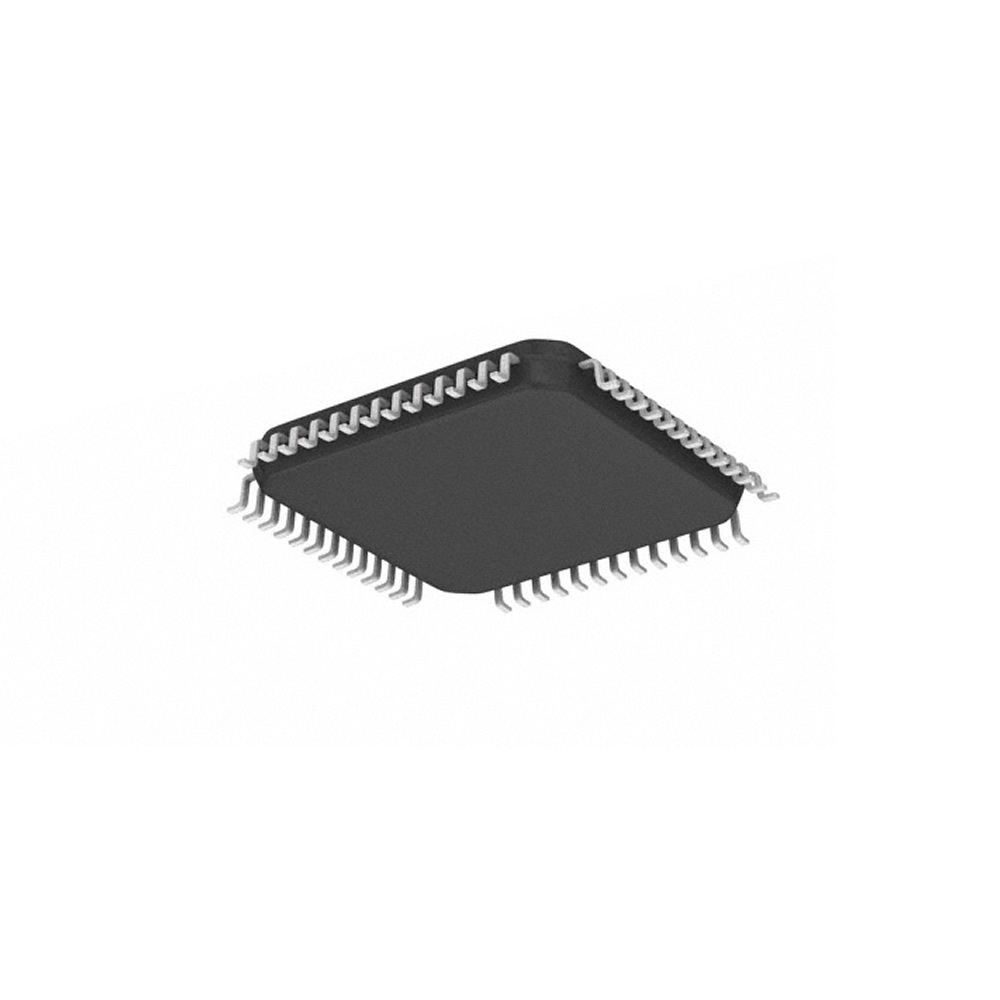

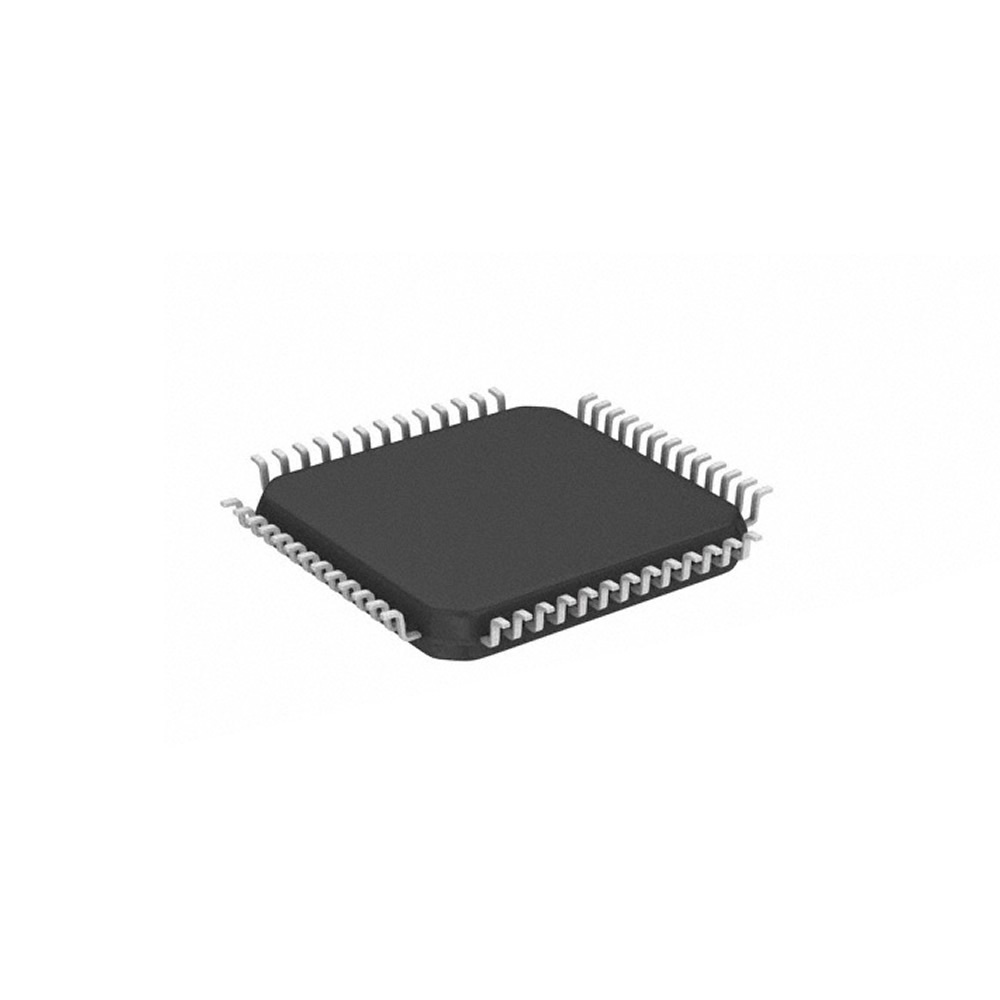

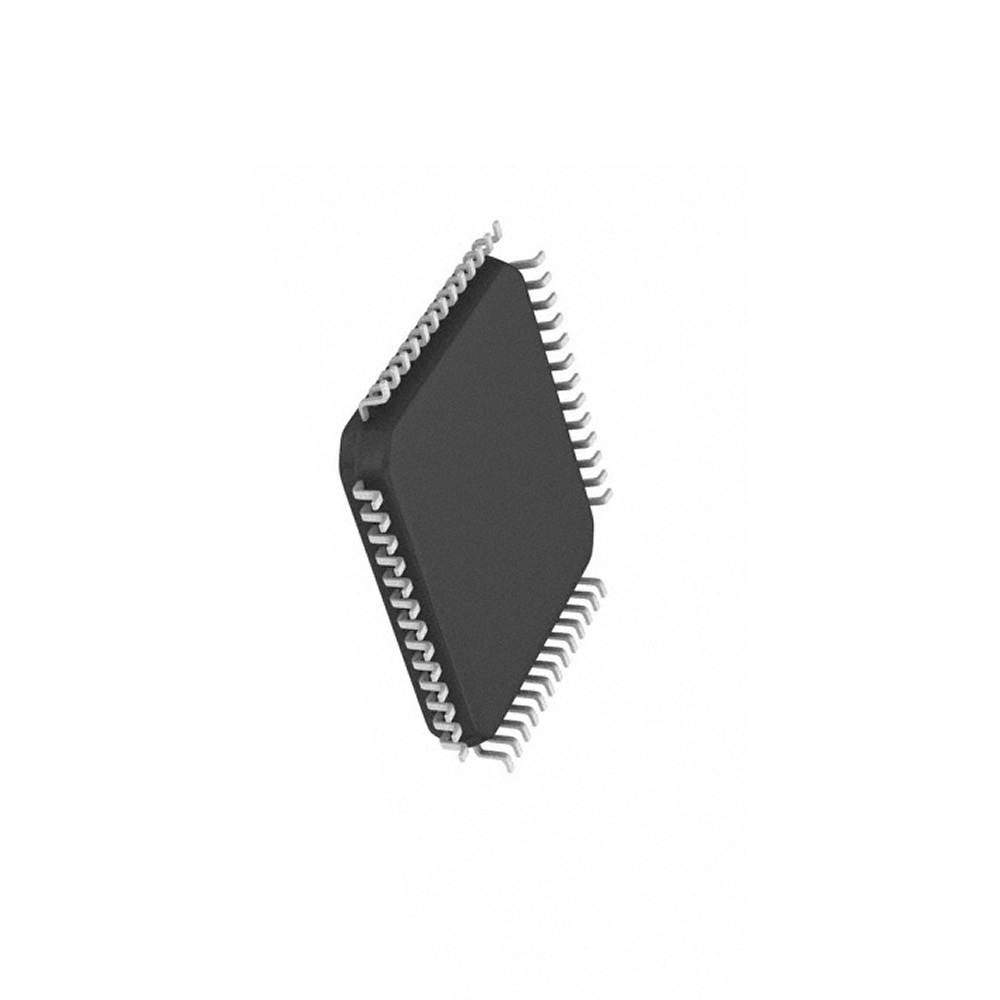

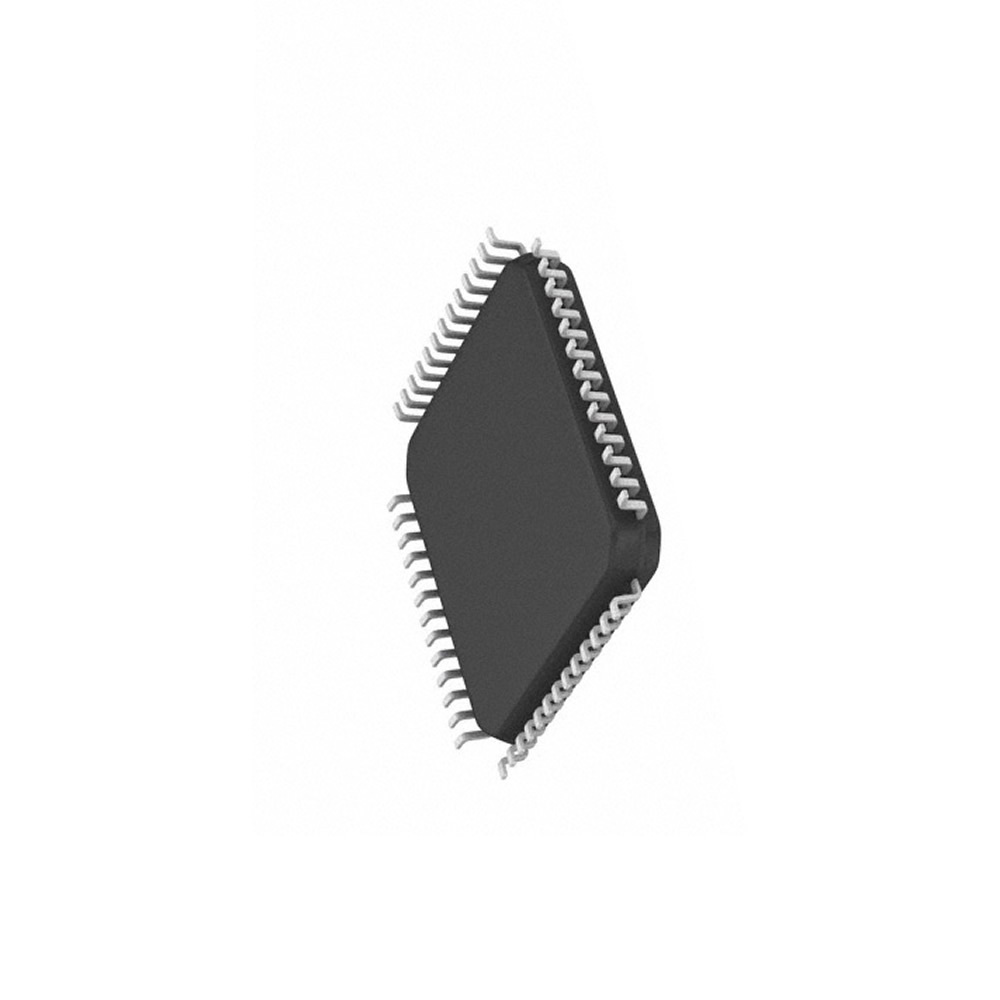

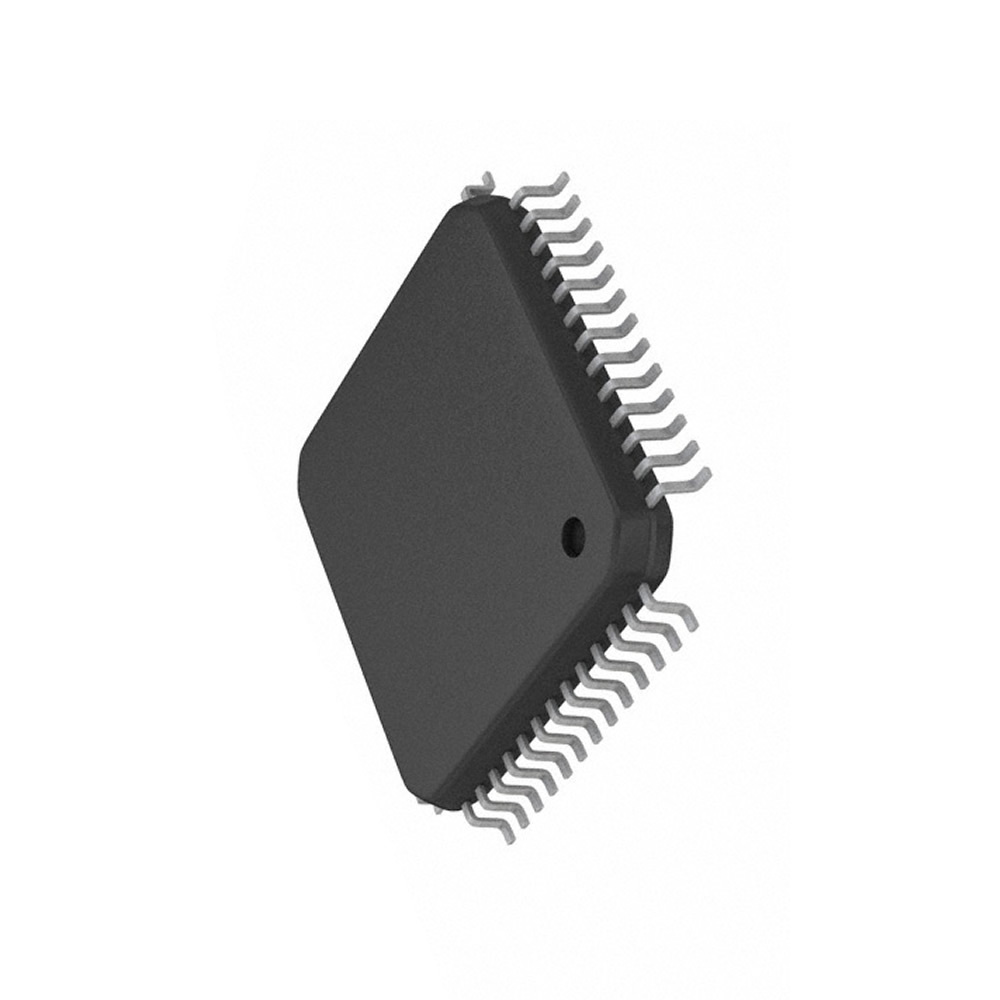

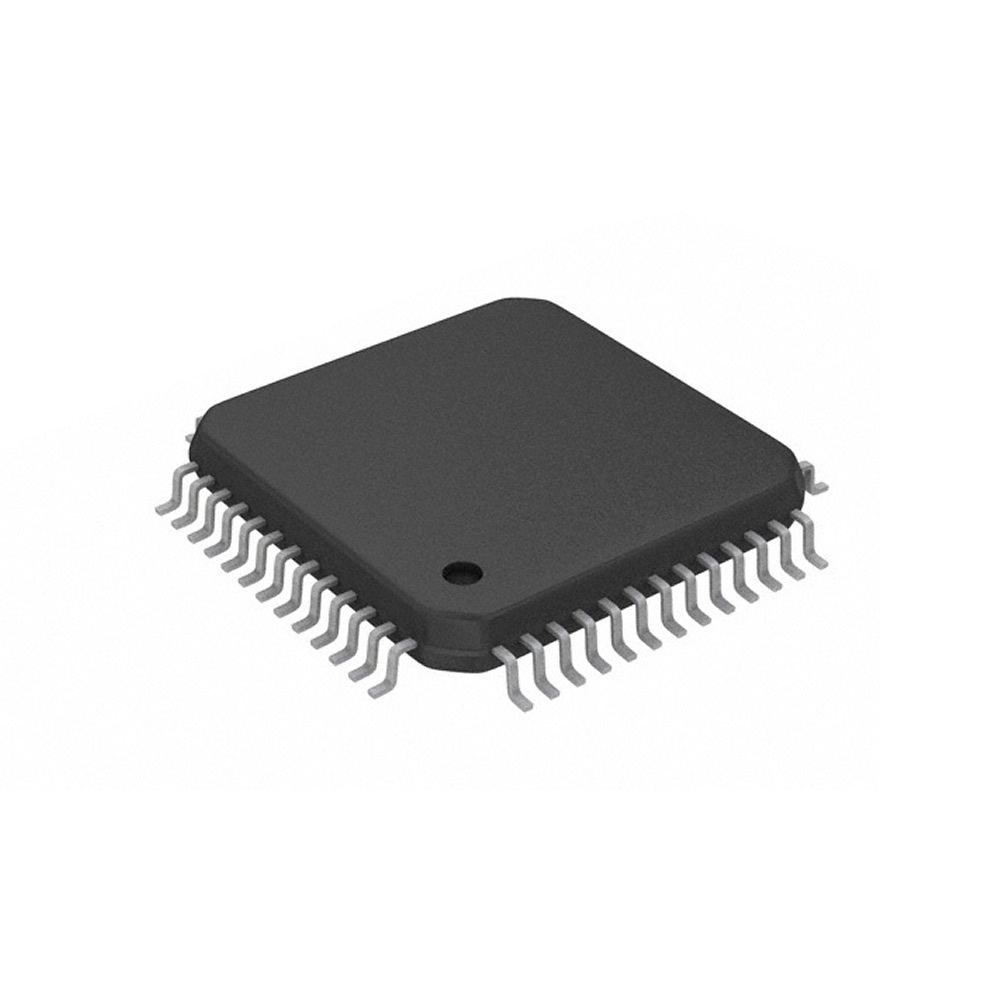

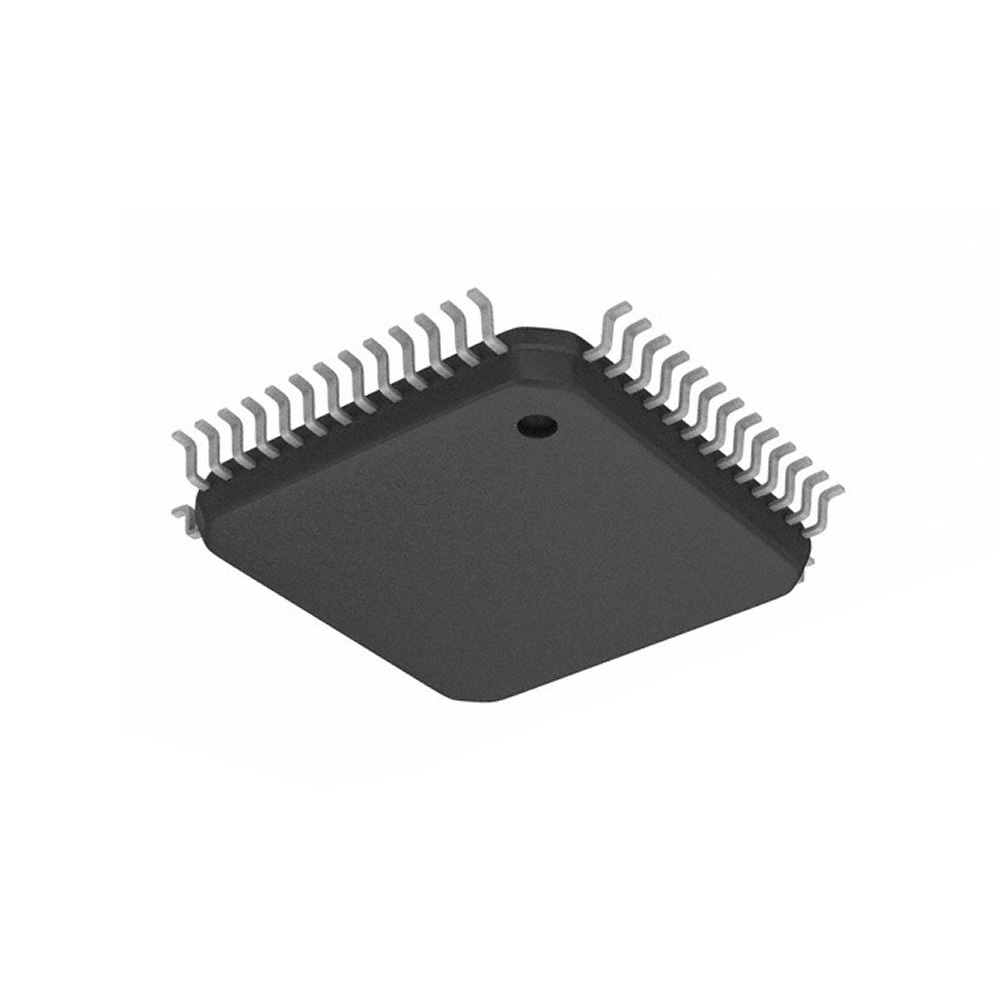

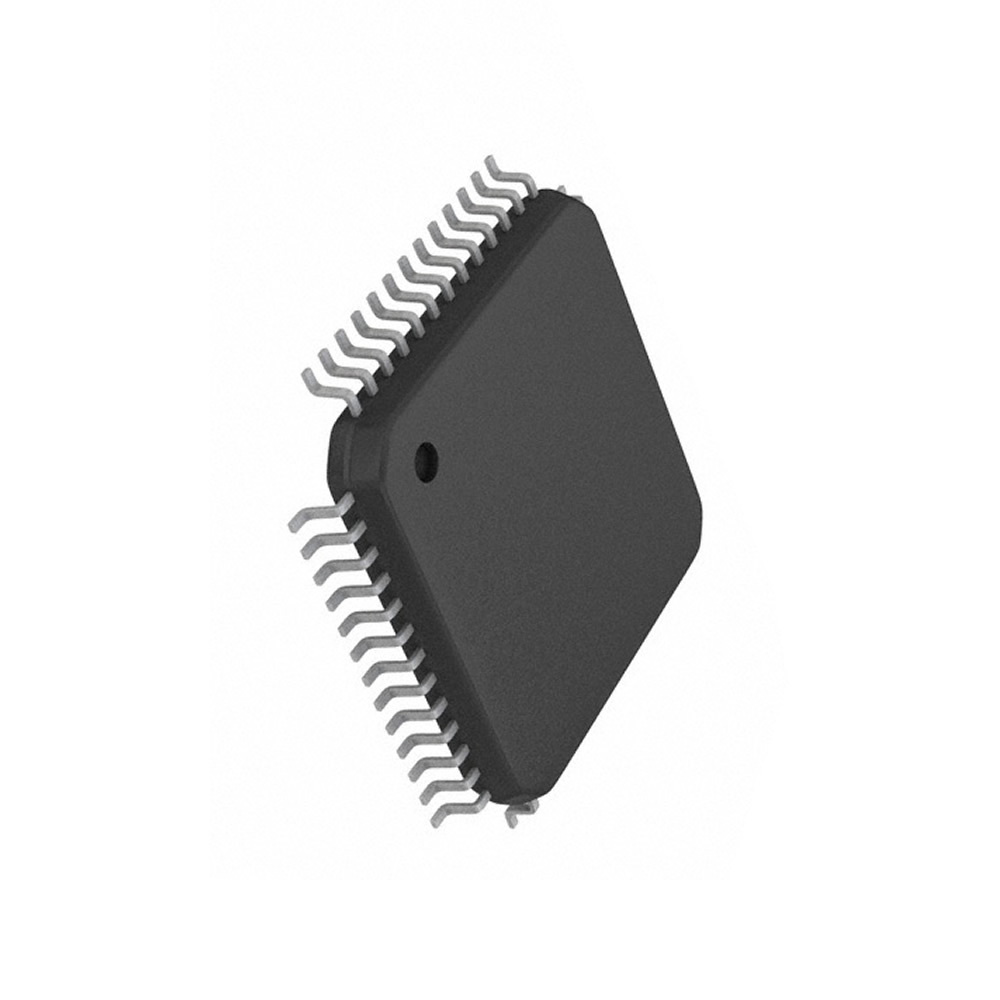

View detailed images (8)

UPD1708G

SKU: UPD1708G
UPD1708G Integrated Circuit CASE: QFP52 MAKE: NEC
Product specifications
Type Integrated Circuit
Case QFP52
Manufacturer NEC
No. of I/O Lines 36
I/O Line Types Word
Max. Inst. Len (bits) 16
Min Inst. Len (bits) 4
fClk Max. (Hz) 4.5
No. of I/O Ports 4
On-Chip ROM (bytes) 384
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 2.4k
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
Pinout Equivalence Number 52-125
Descript Microcontroller for digital tuning
No. of Pins 52
Surface Mounted Yes/No YES
SKU 633259
