Home / Integrated Circuit / UPD17102G
UPD17102G

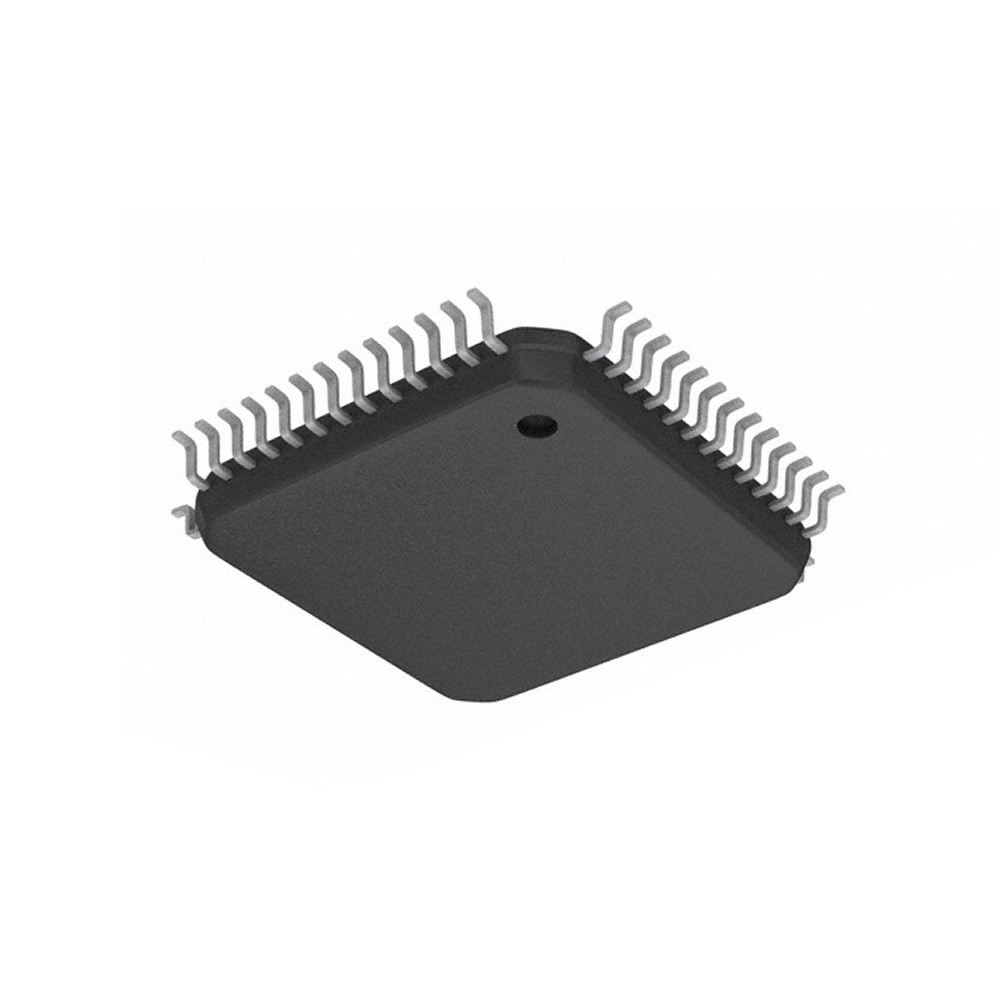

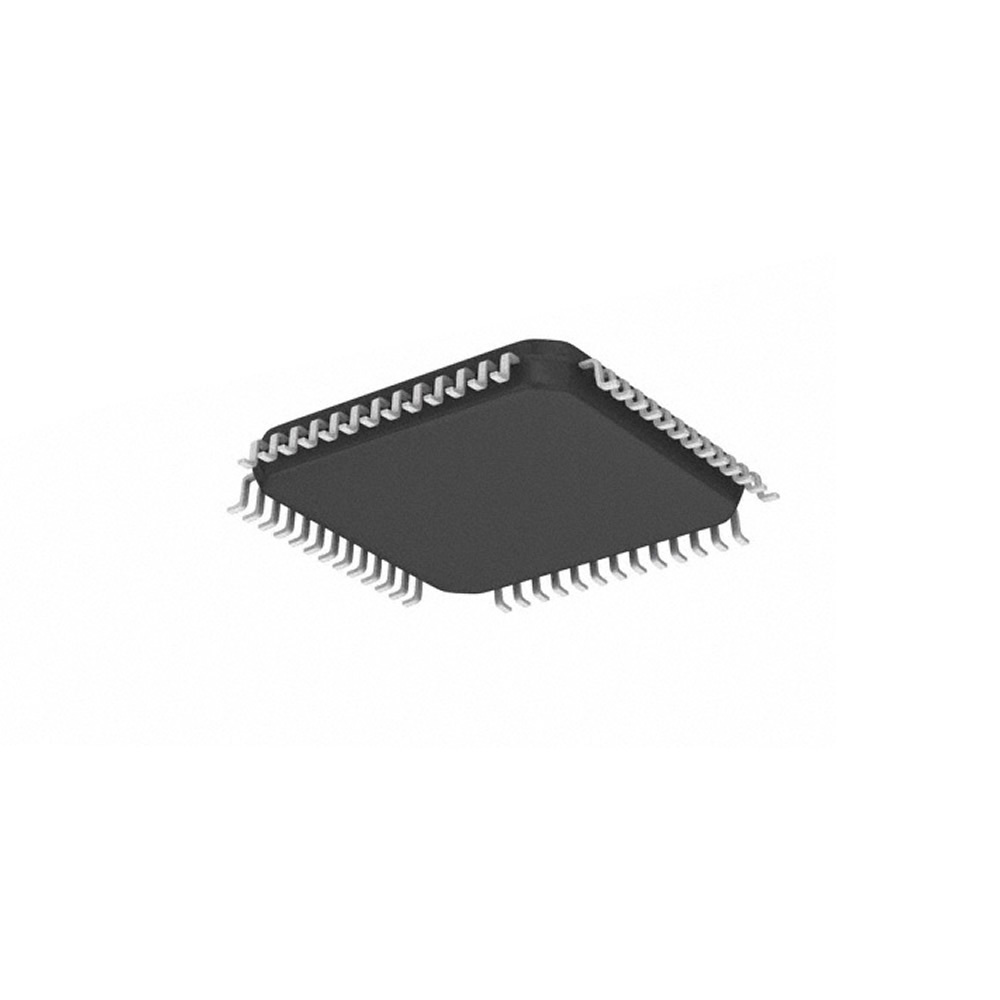

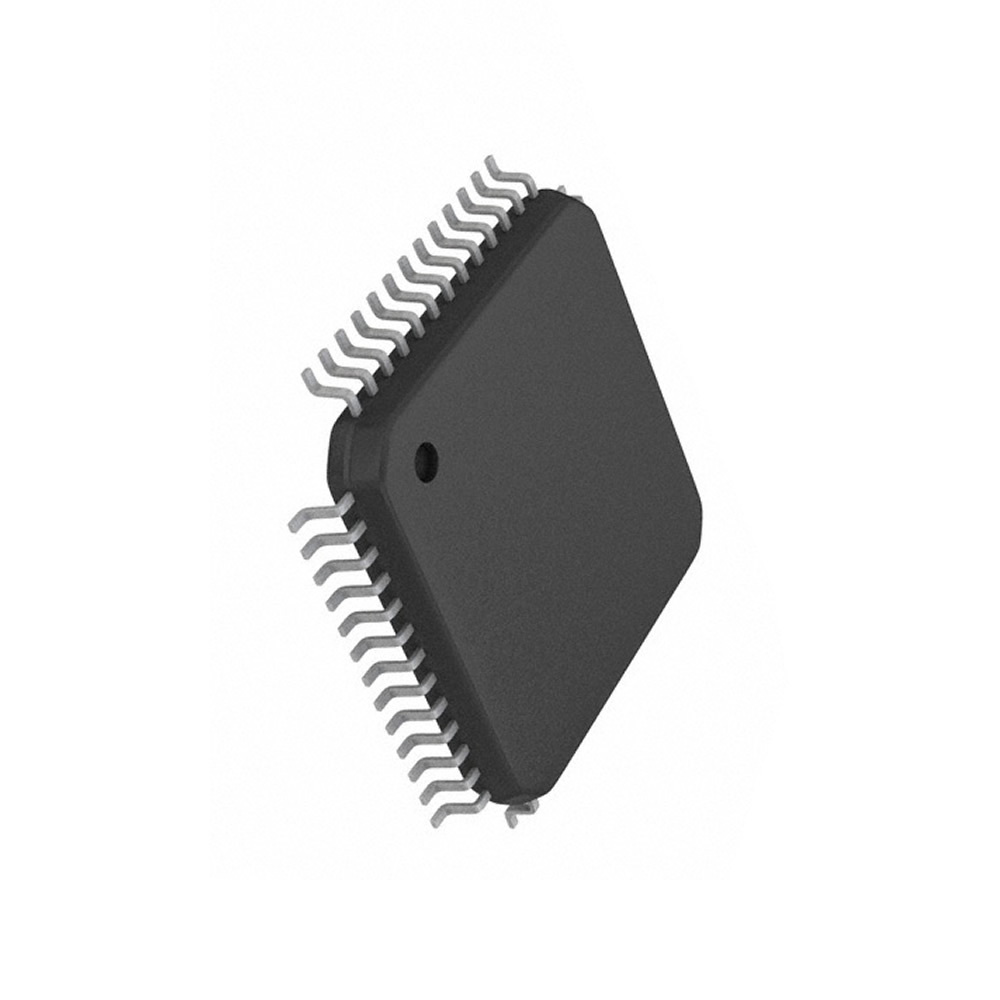

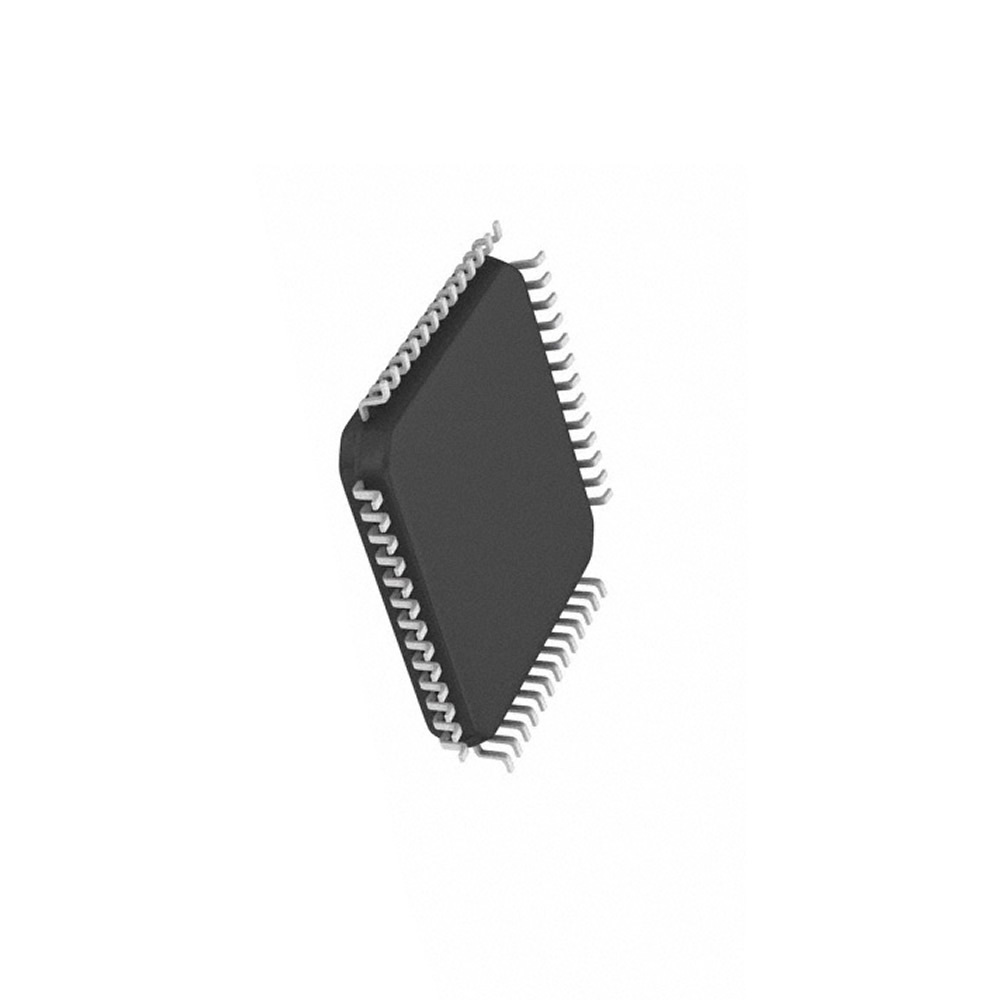

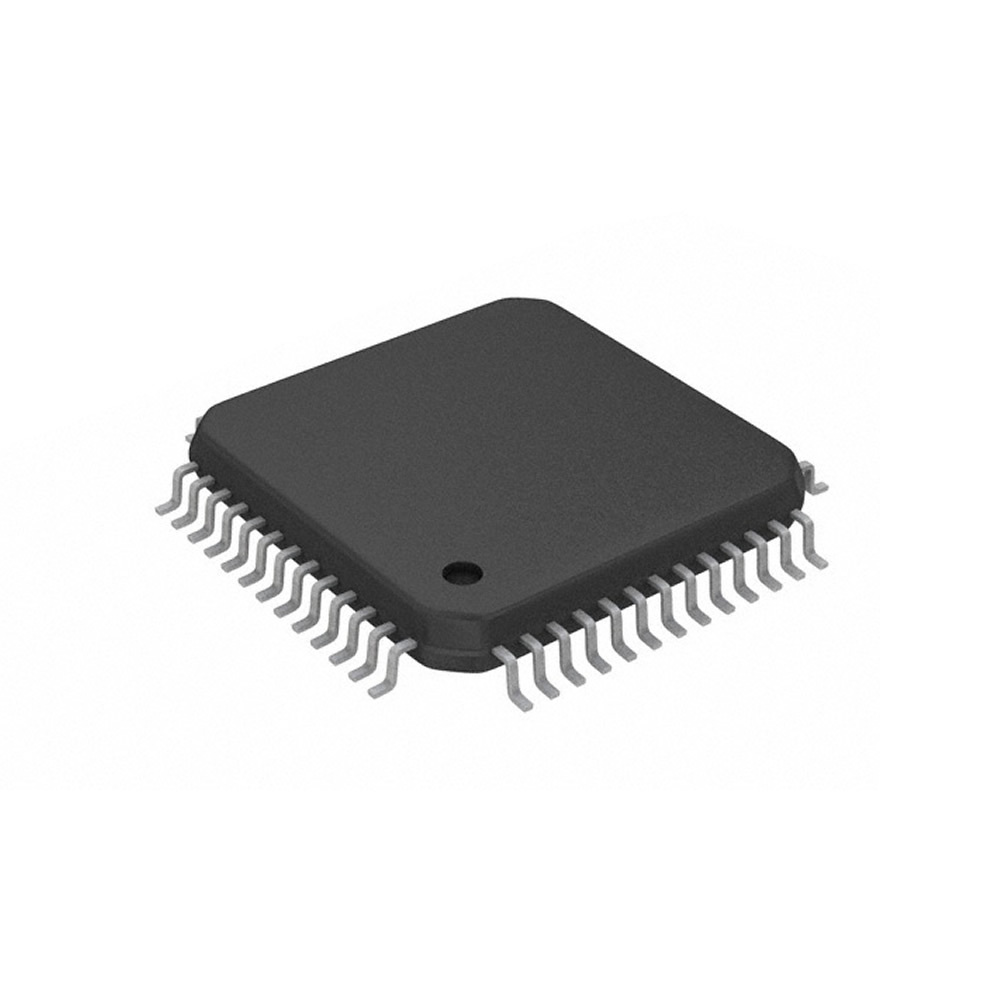

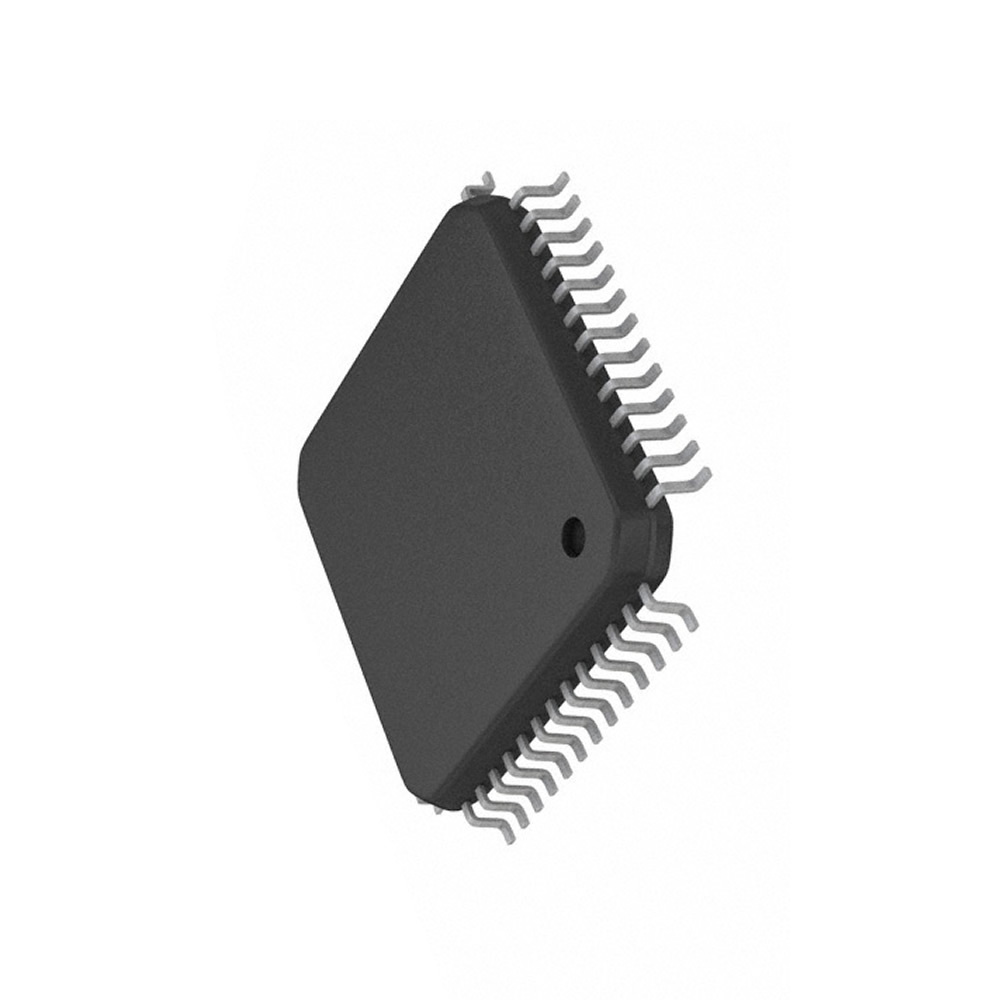

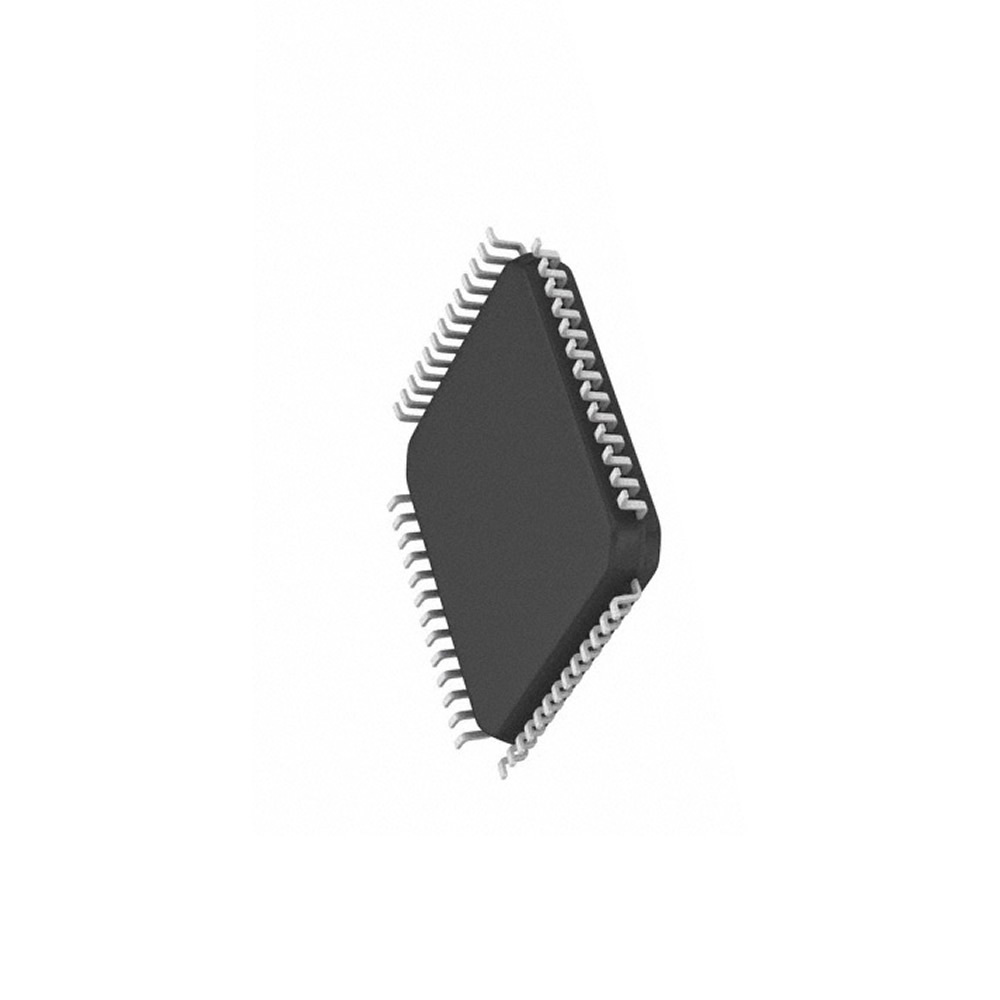

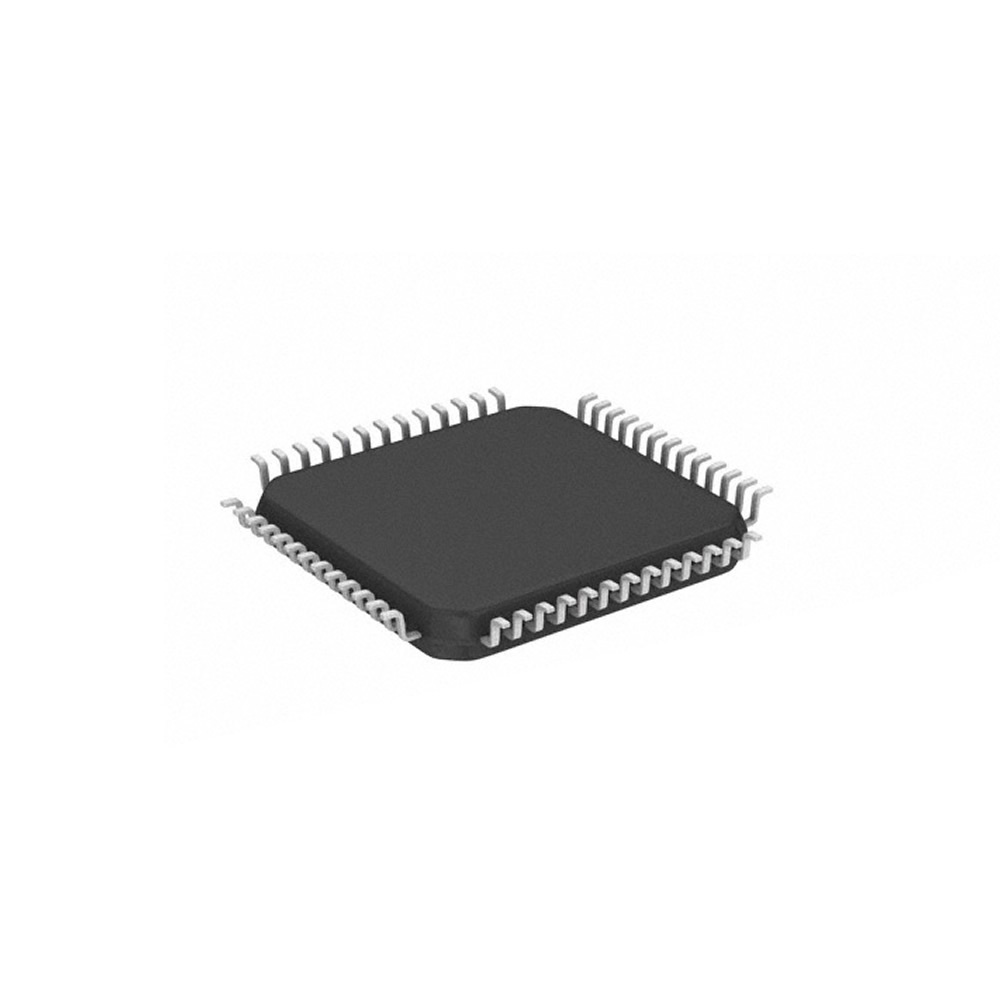

View detailed images (8)

UPD17102G

SKU: UPD17102G
UPD17102G Integrated Circuit CASE: QFP52 MAKE: NEC
Product specifications
Type Integrated Circuit
Case QFP52
Manufacturer NEC
No. of I/O Lines 40
I/O Line Types SerialWord
Max. Inst. Len (bits) 16
Min Inst. Len (bits) 16
No. of Intrpt Lines 2
Intrpt Types Int/Ex Vec
fClk Max. (Hz) 8.0M
No. of I/O Ports 10
On-Chip ROM (bytes) 4k
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 0.8k
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 52-110
No. of Pins 52
Surface Mounted Yes/No YES
SKU 633254
