UPD1720G

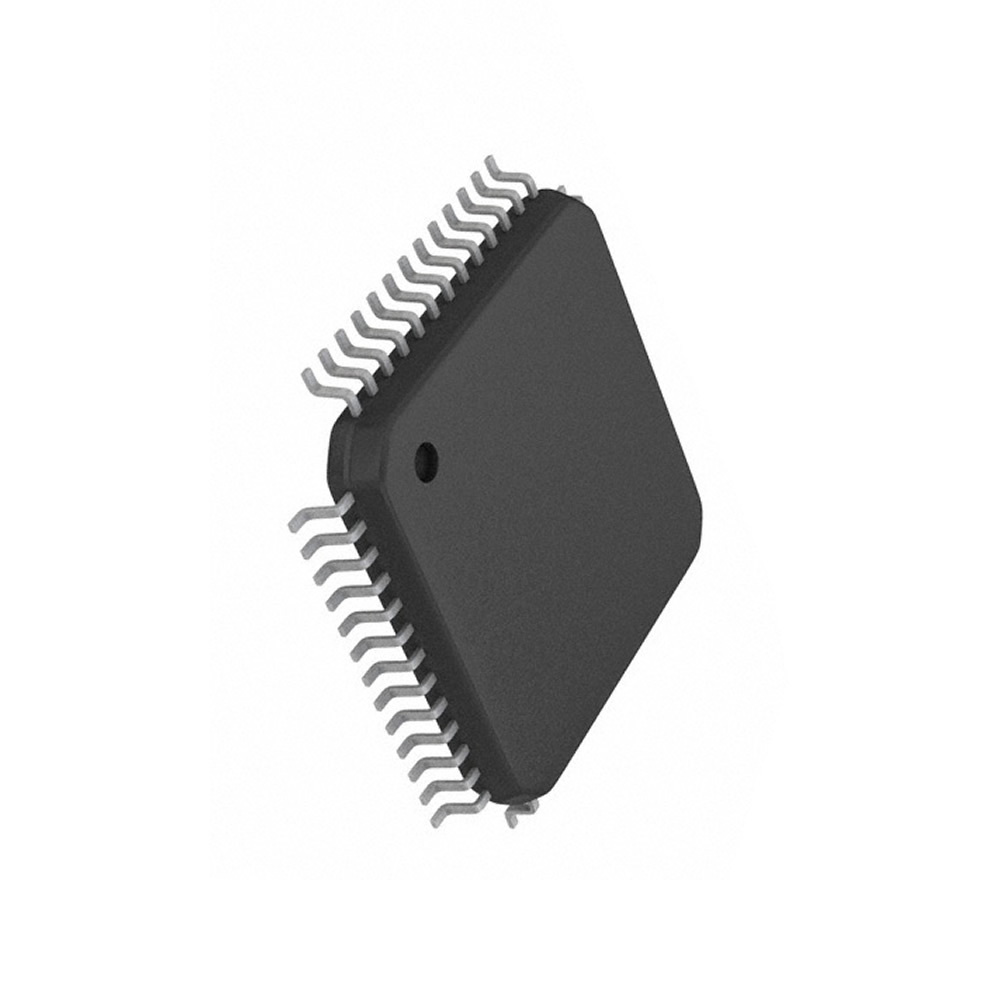

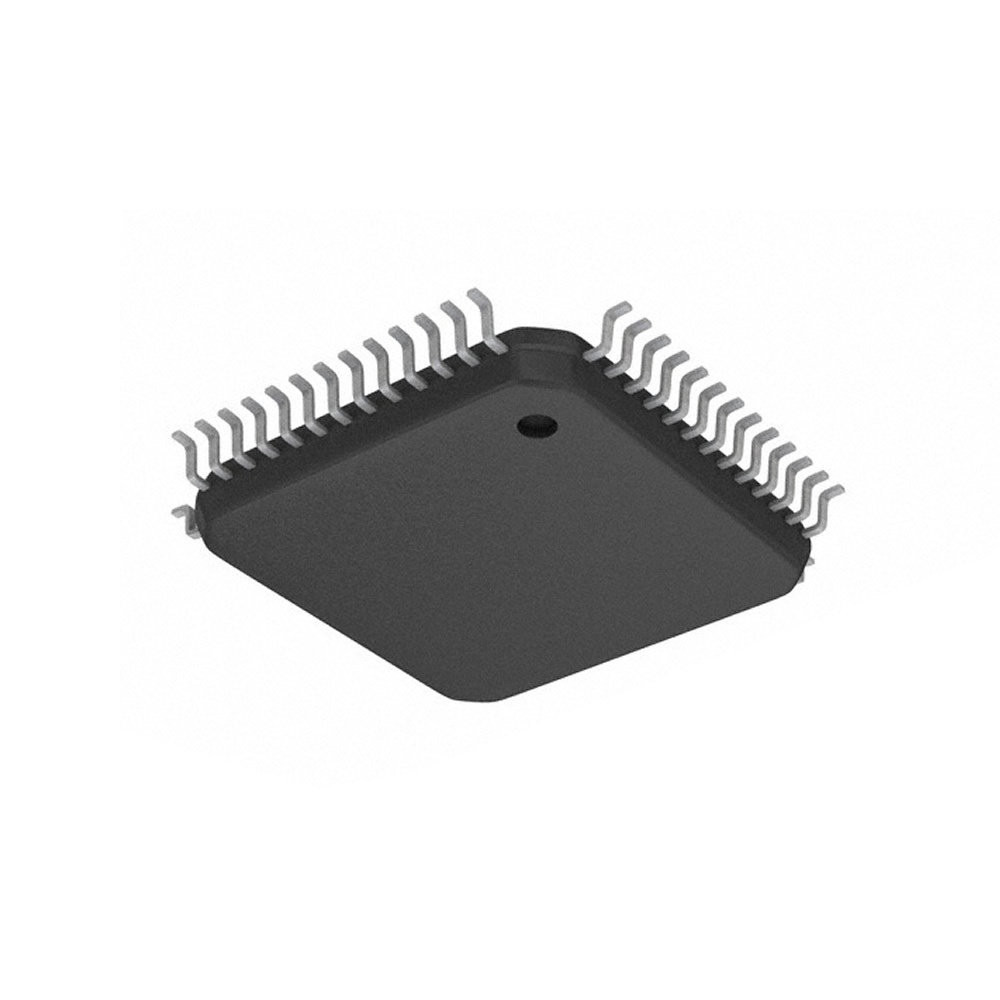

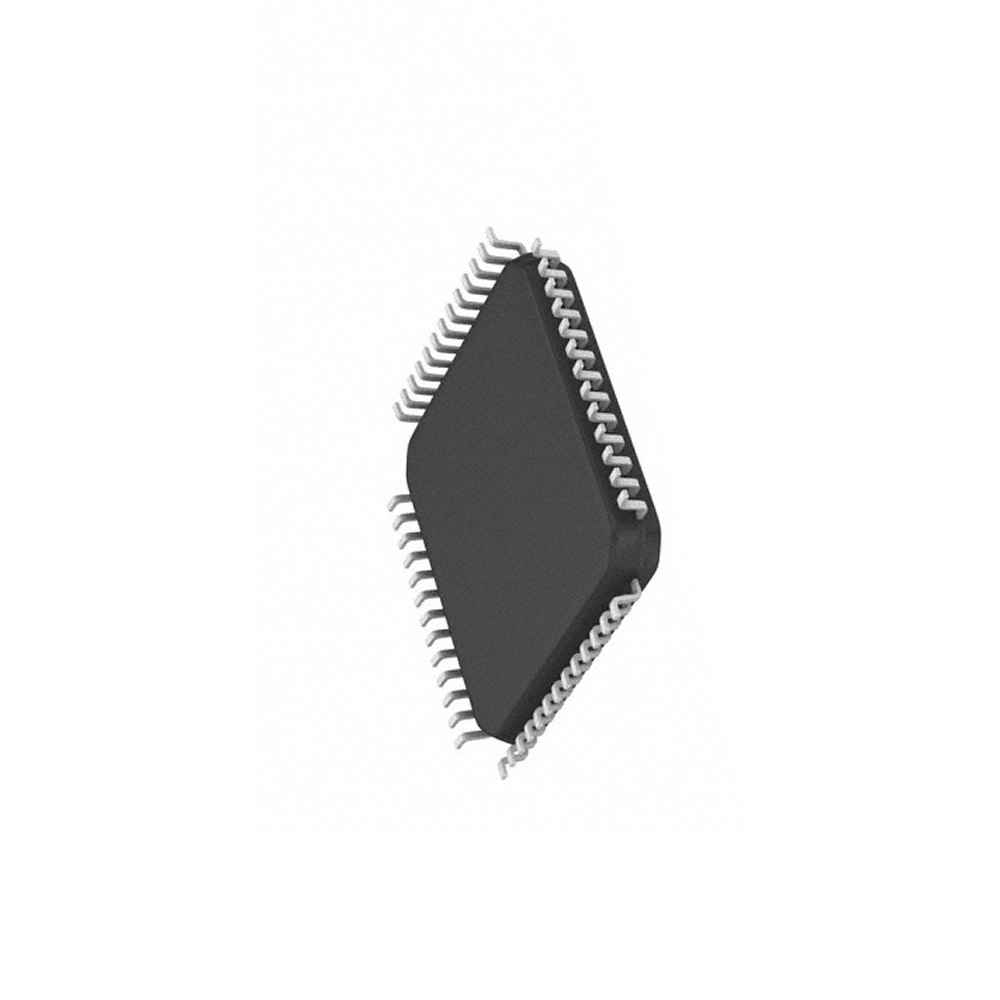

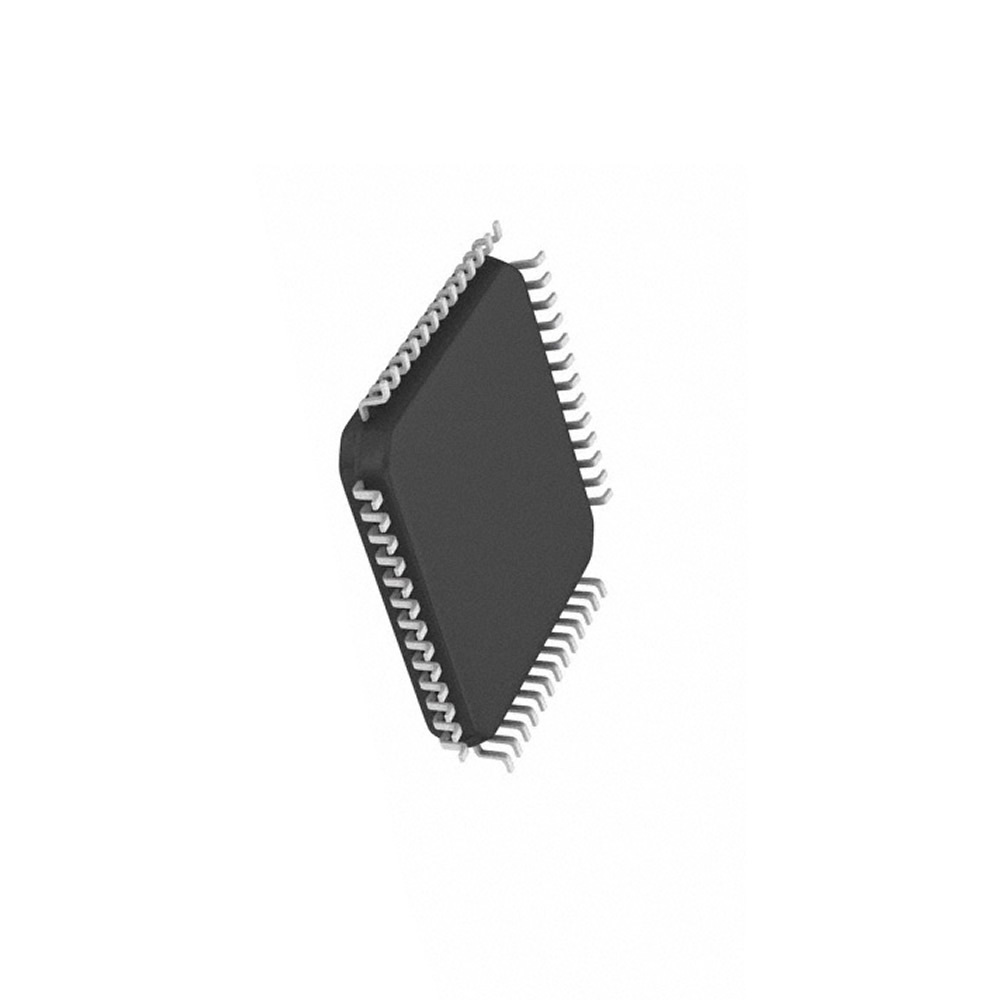

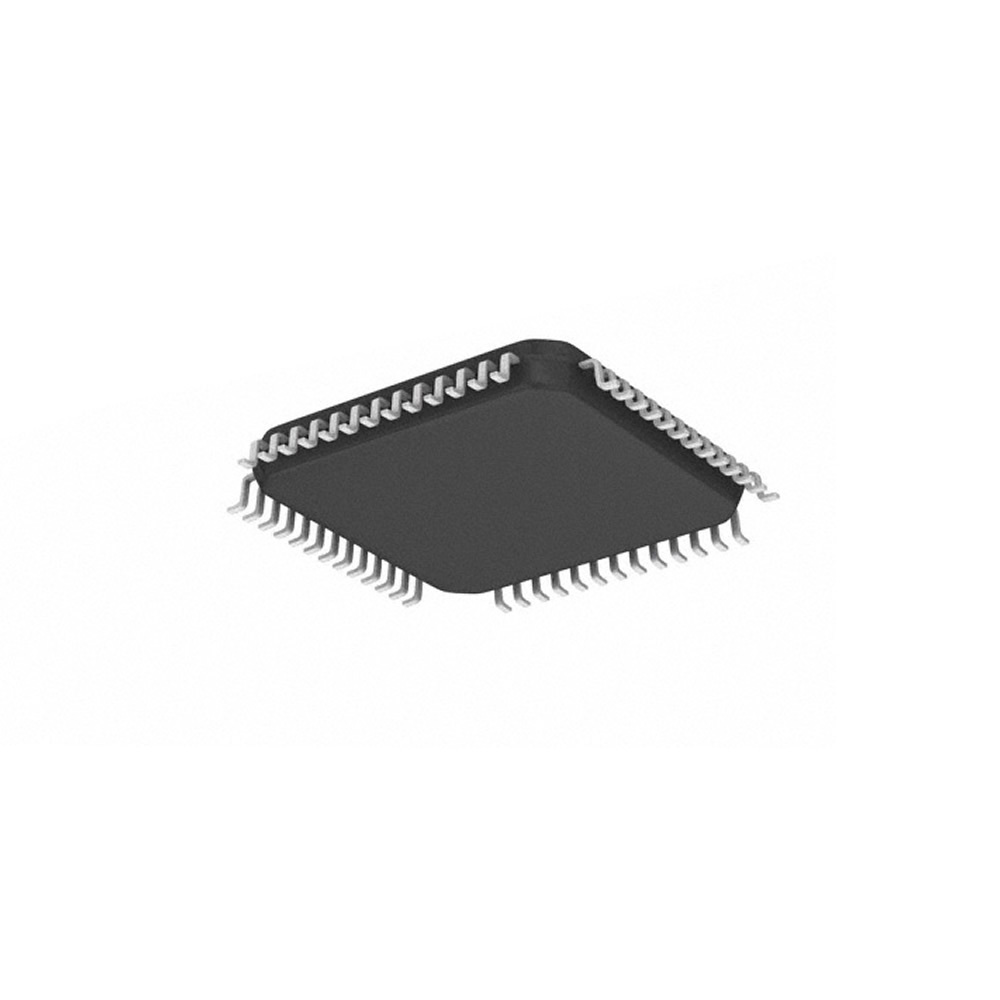

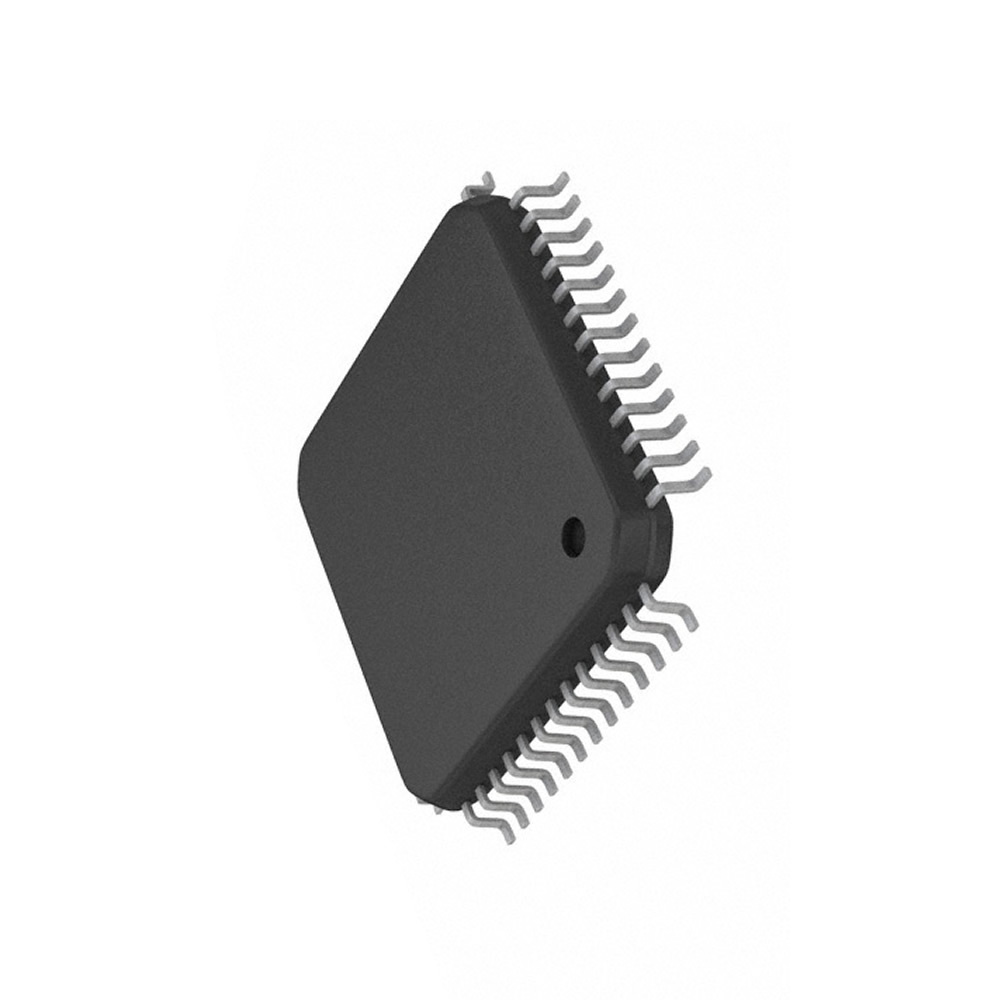

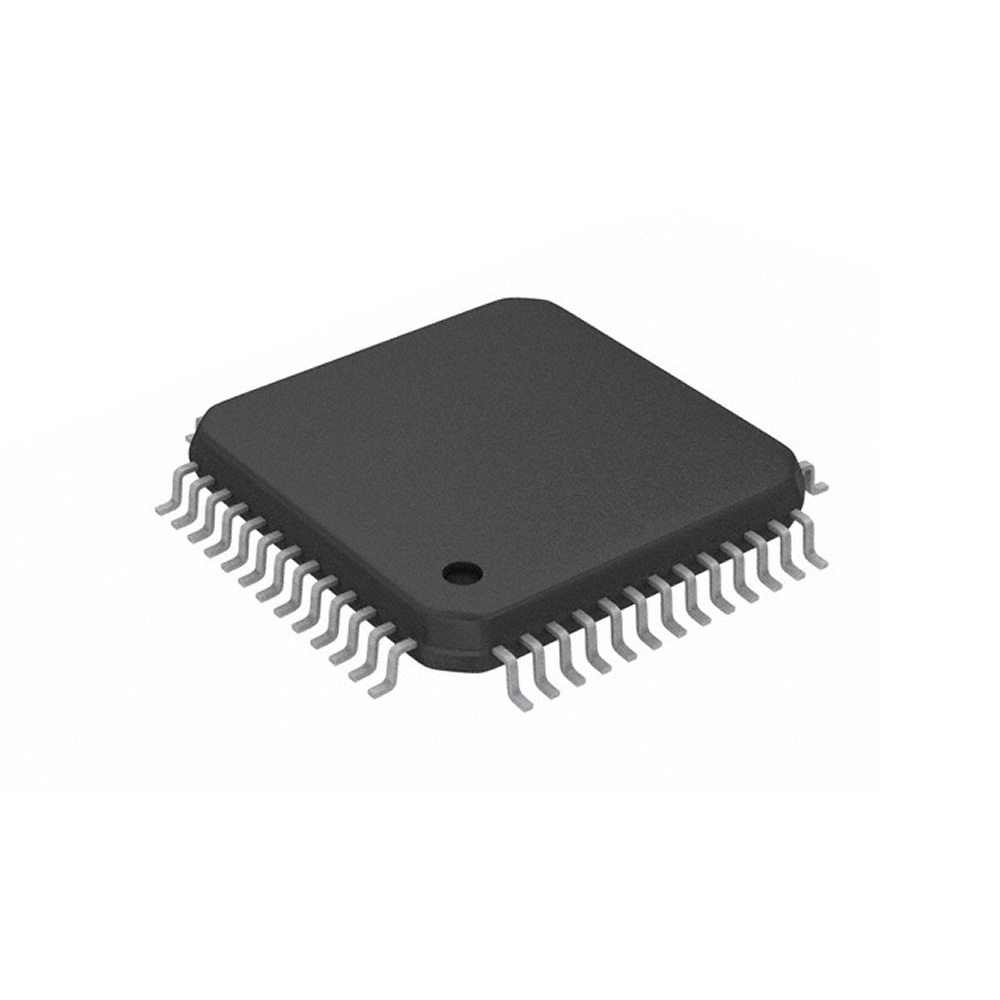

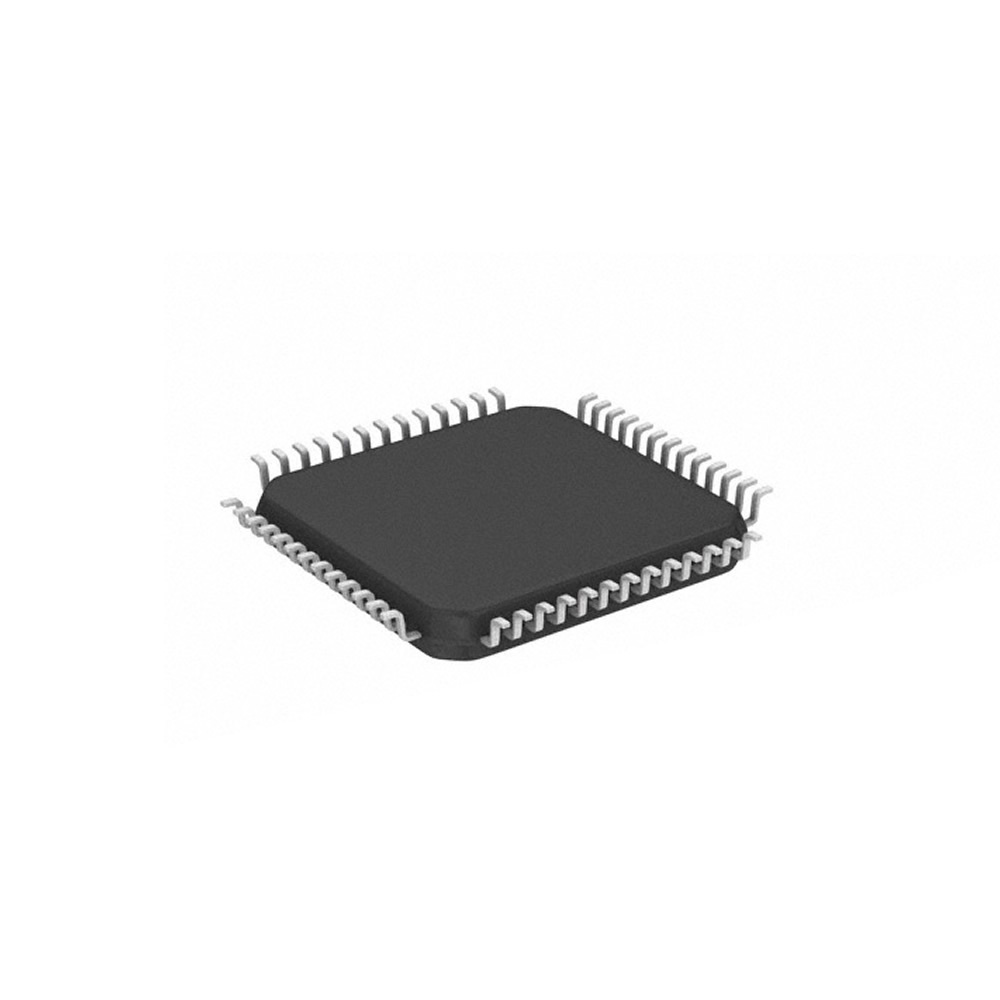

View detailed images (8)

UPD1720G

SKU: UPD1720G
UPD1720G Integrated Circuit CASE: QFP52 MAKE: NEC
Product specifications
Type Integrated Circuit
Case QFP52
Manufacturer NEC
No. of I/O Lines 40
I/O Line Types G/P Serial
Max. Inst. Len (bits) 16
Min Inst. Len (bits) 16
No. of Intrpt Lines 0
No. of Intrpt (NMI) 0
No. of Intrpt (mask) 0
fClk Max. (Hz) 4.5M
fClk Min (Hz) 1.0M
No. of I/O Ports 5
On-Chip ROM (bytes) 16k
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 256
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
Pinout Equivalence Number 52-78
No. of Pins 52
Surface Mounted Yes/No YES
SKU 633198
