Home / Integrated Circuit / UPD17P13G03
UPD17P13G03

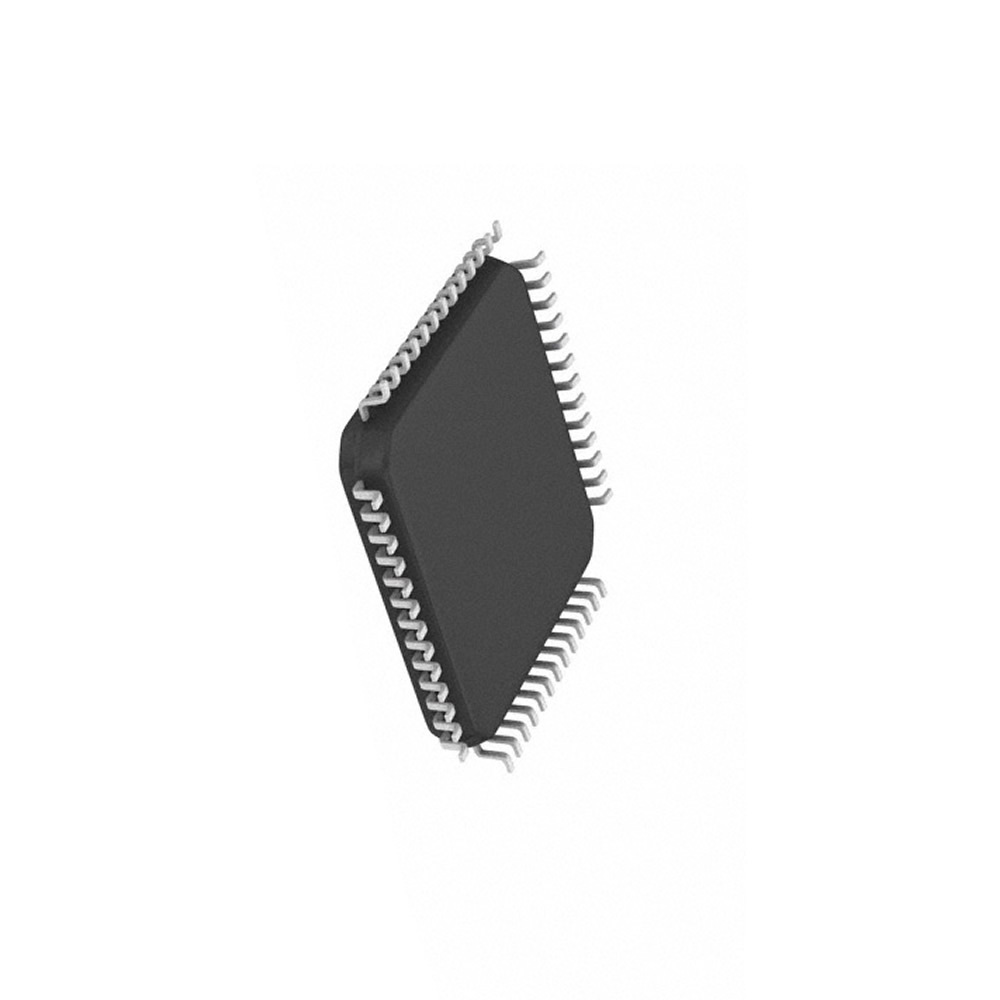

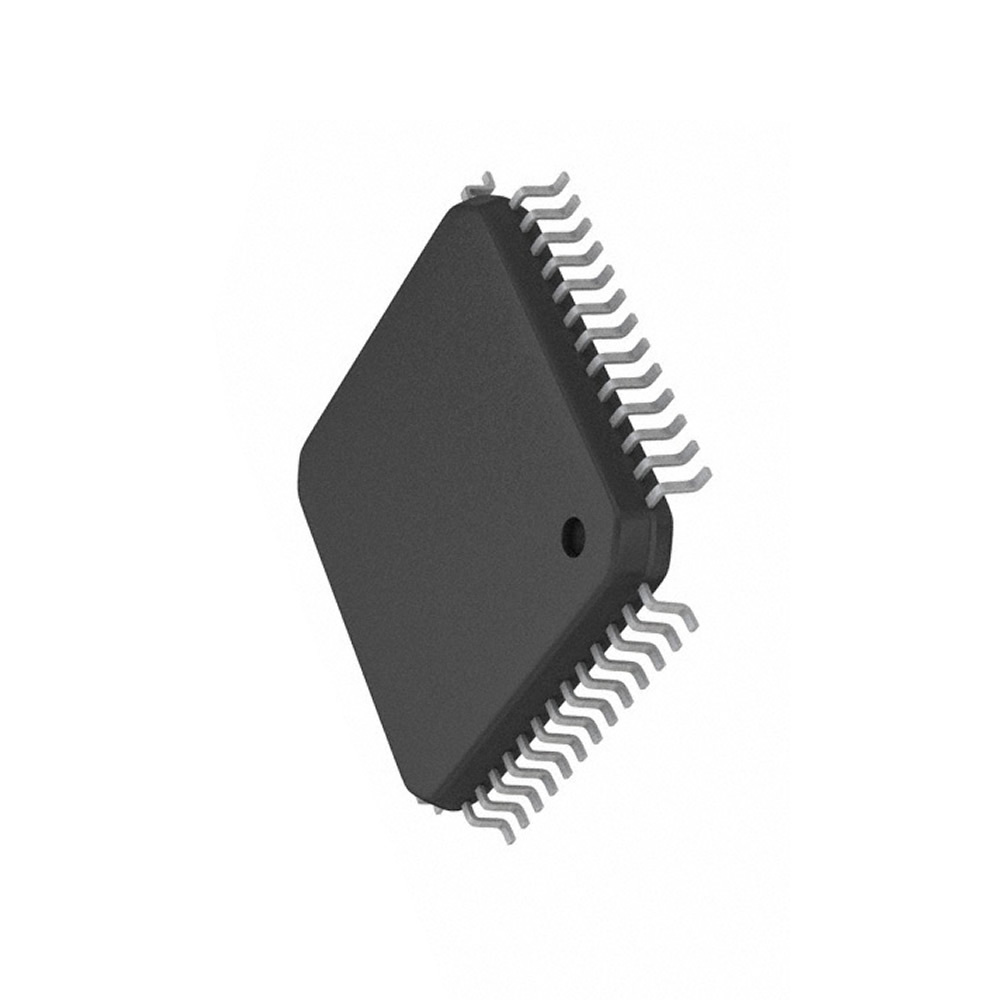

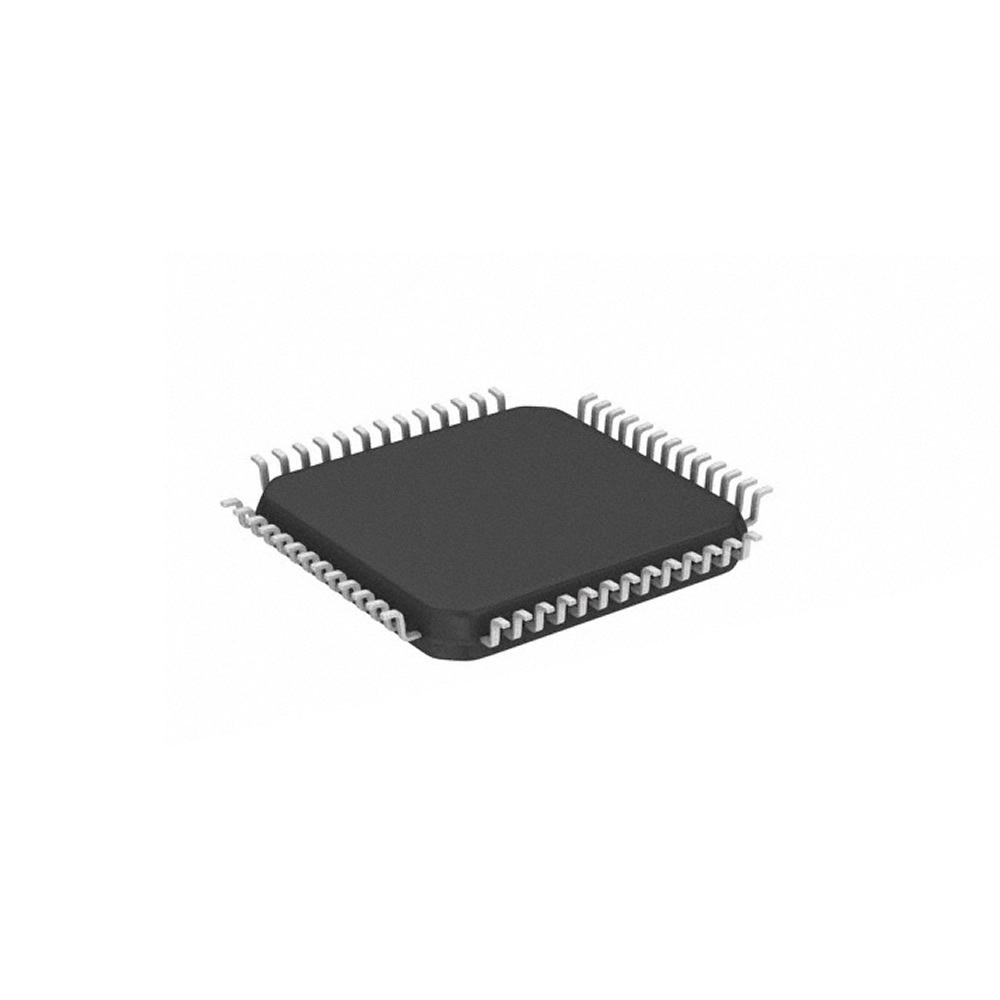

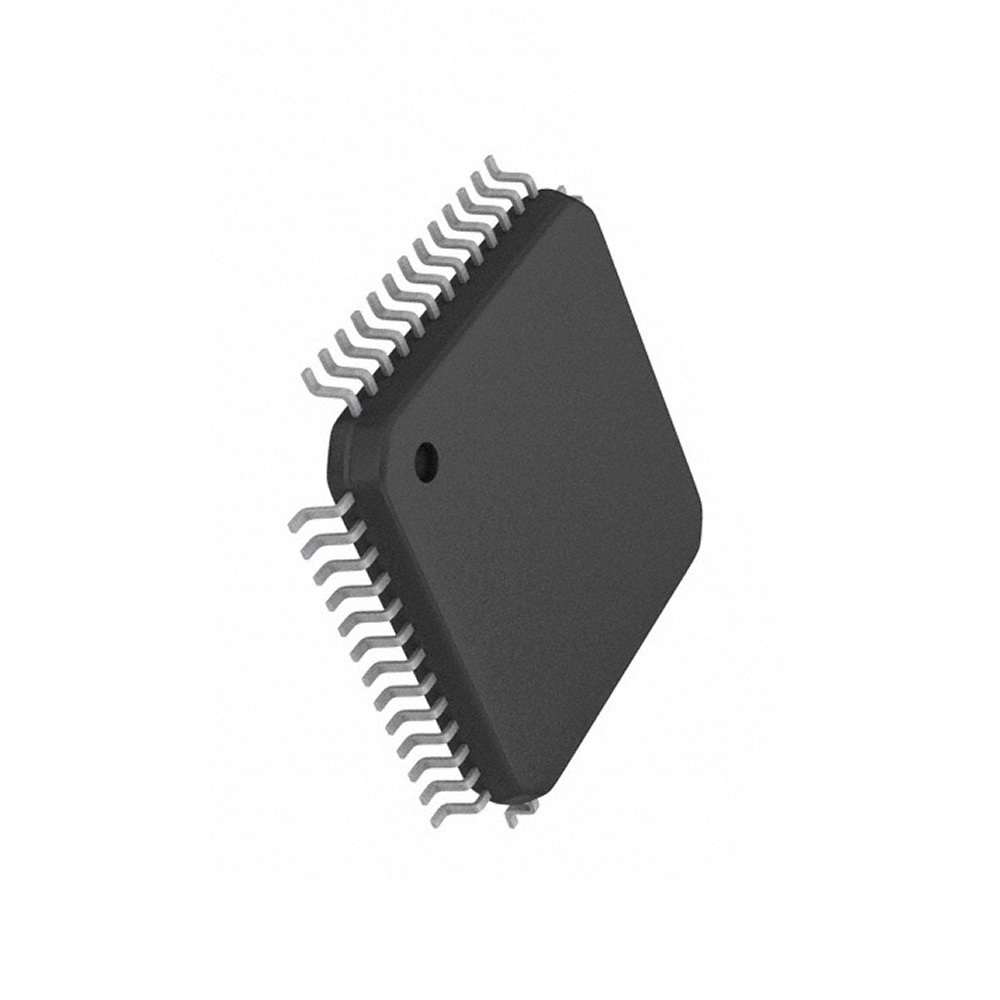

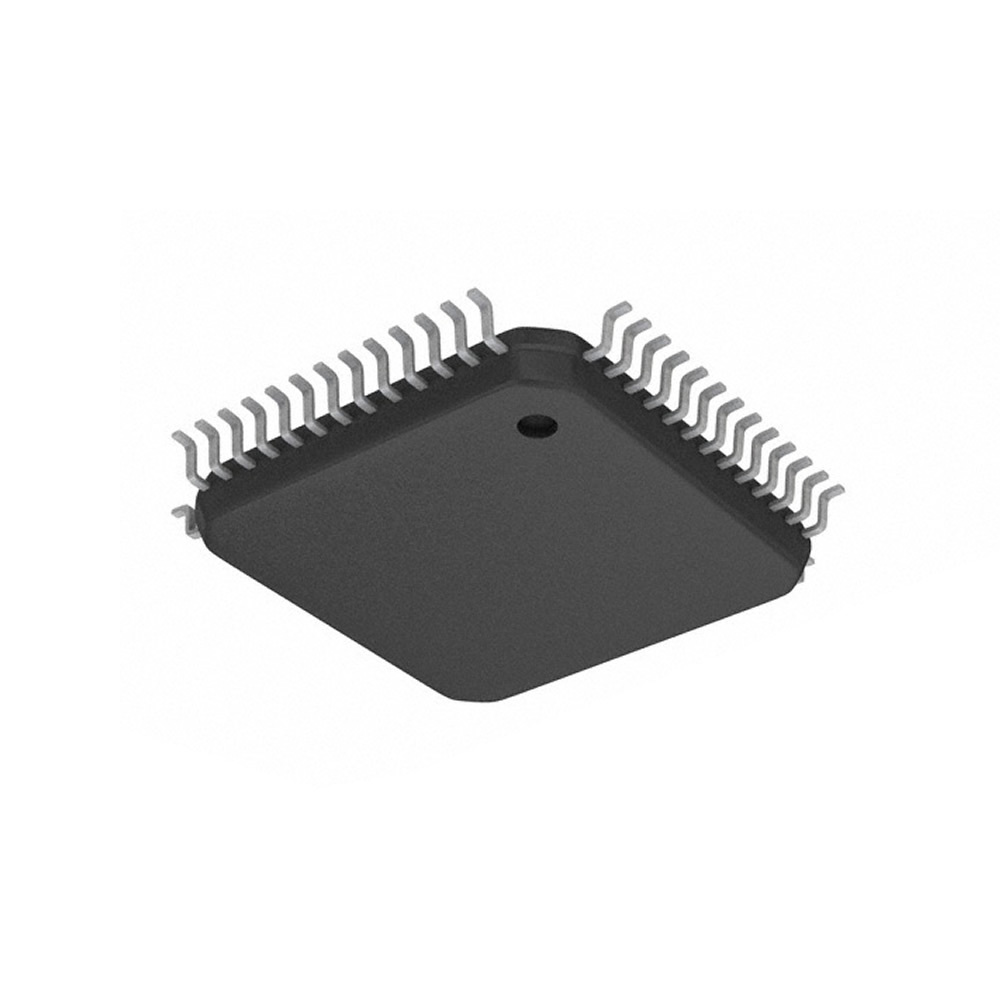

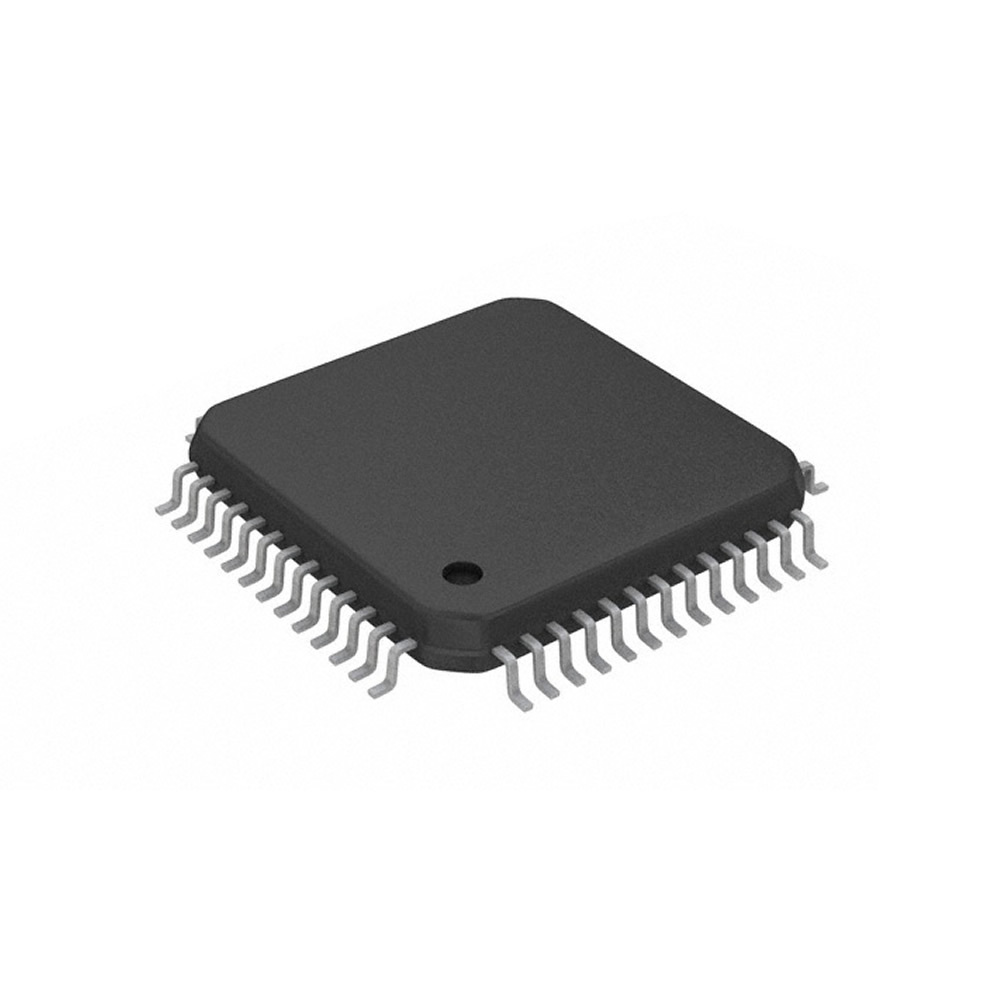

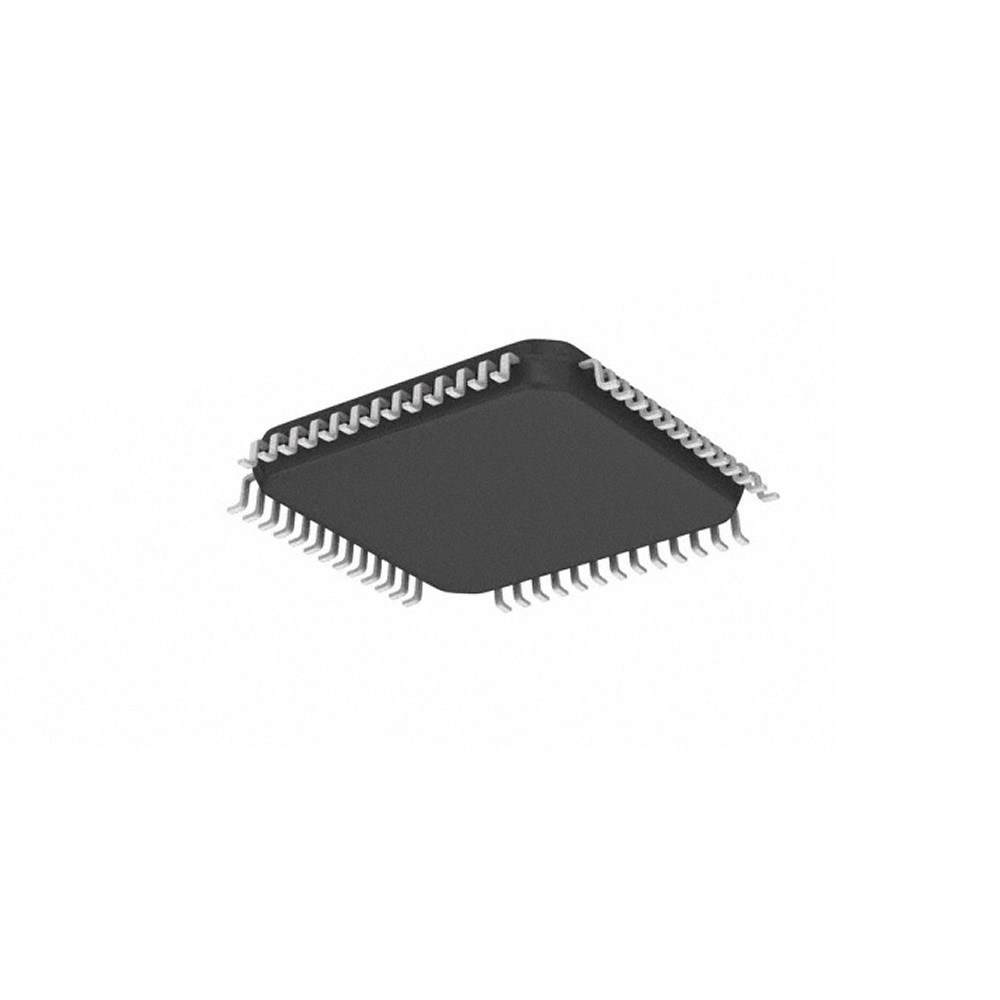

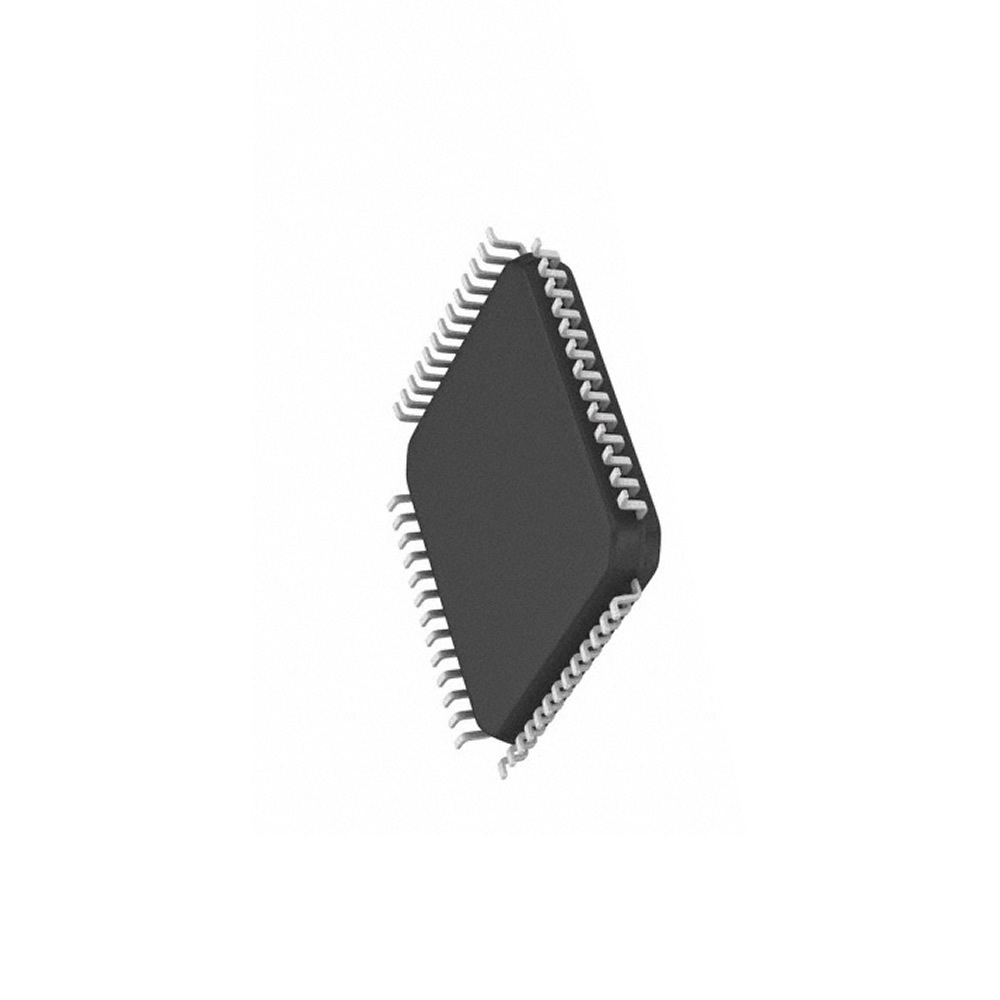

View detailed images (8)

UPD17P13G03

SKU: UPD17P13G03
UPD17P13G03 Integrated Circuit CASE: QFP52 MAKE: NEC
Product specifications
Type Integrated Circuit
Case QFP52
Manufacturer NEC
No.of Addr. Modes 5
No. of I/O Lines 15
I/O Line Types Gen. Purp.
Max. Inst. Len (bits) 24
Min Inst. Len (bits) 8
No. of Intrpt Lines 0
No. of Intrpt (NMI) 0
No. of Intrpt (mask) 0
fClk Max. (Hz) 4.5M
fClk Min (Hz) 1.0M
No. of I/O Ports 4
On-Chip ROM (bytes) 4k
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 512
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
Pinout Equivalence Number 52-77
No. of Pins 52
Surface Mounted Yes/No YES
SKU 1125368
