UPD4712AGT

UPD4712AGT

SKU: UPD4712AGT

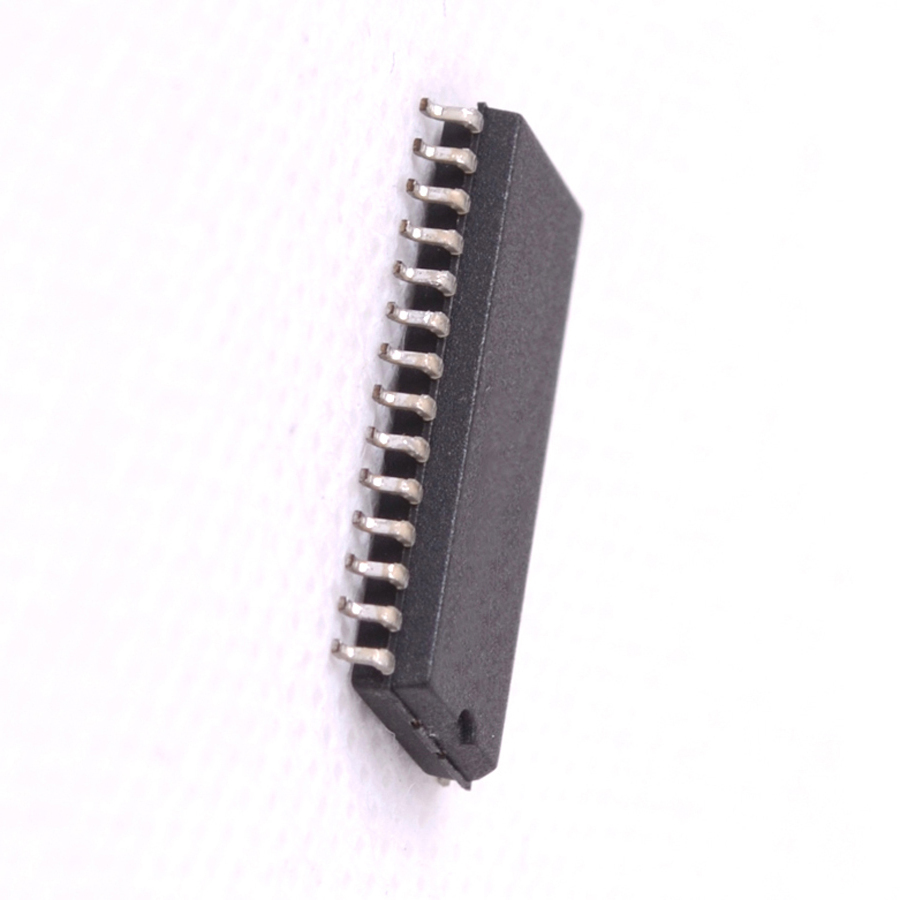

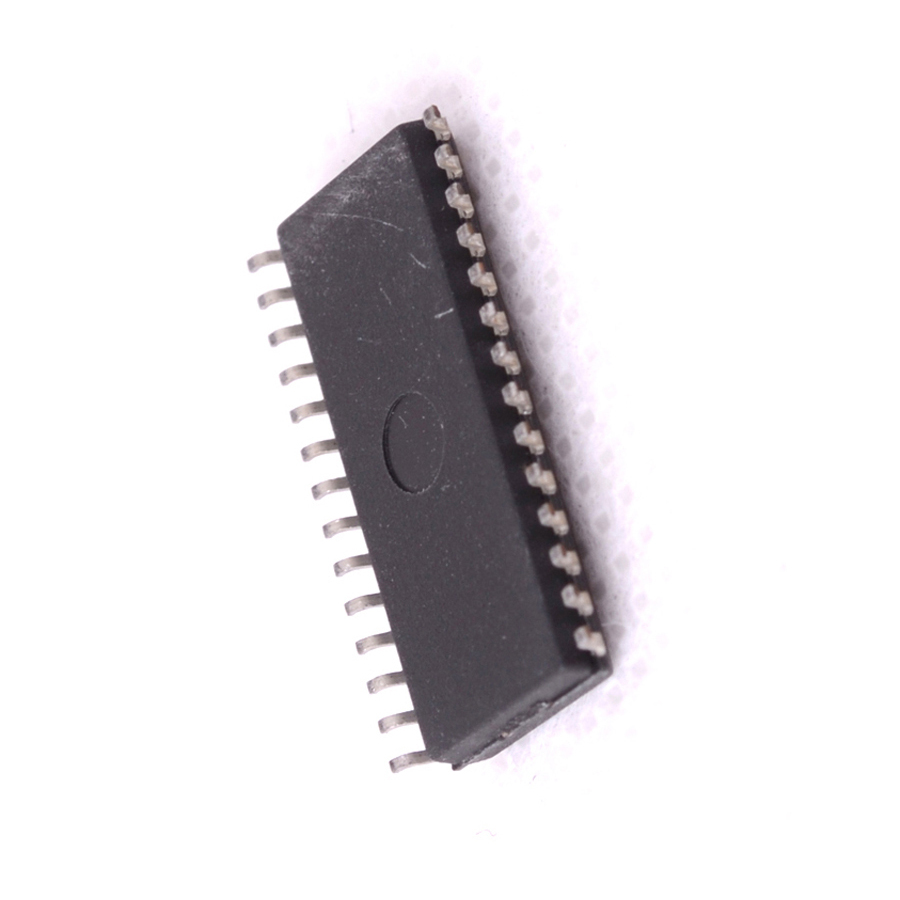

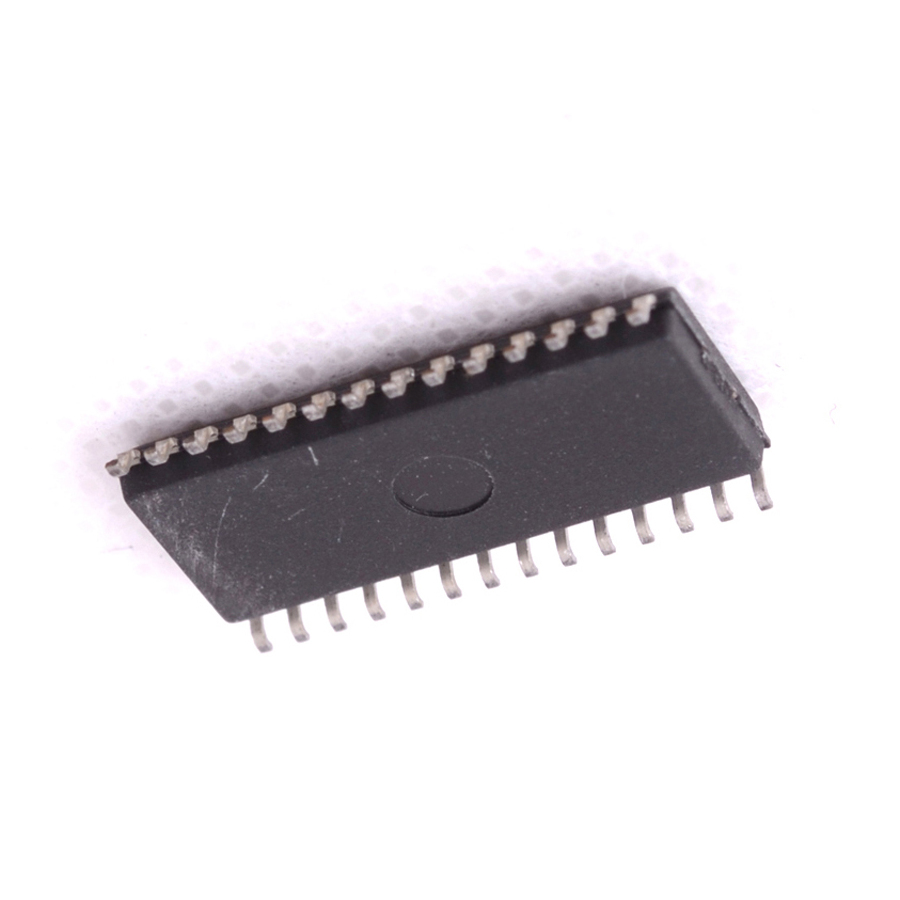

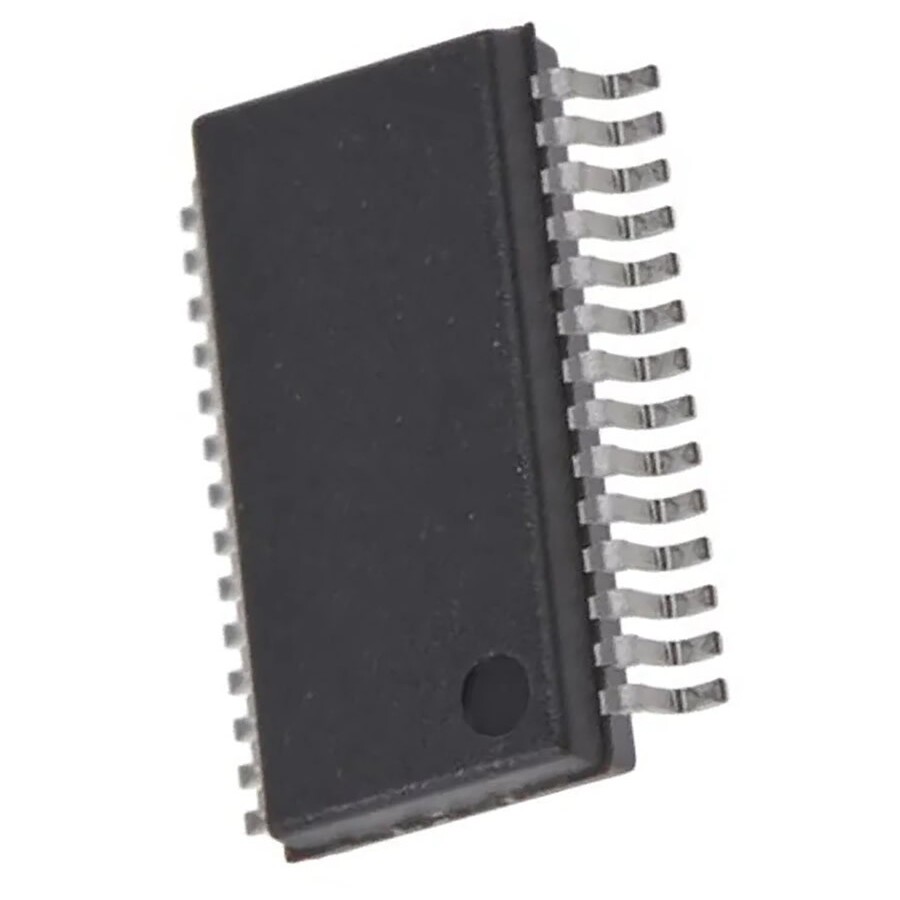

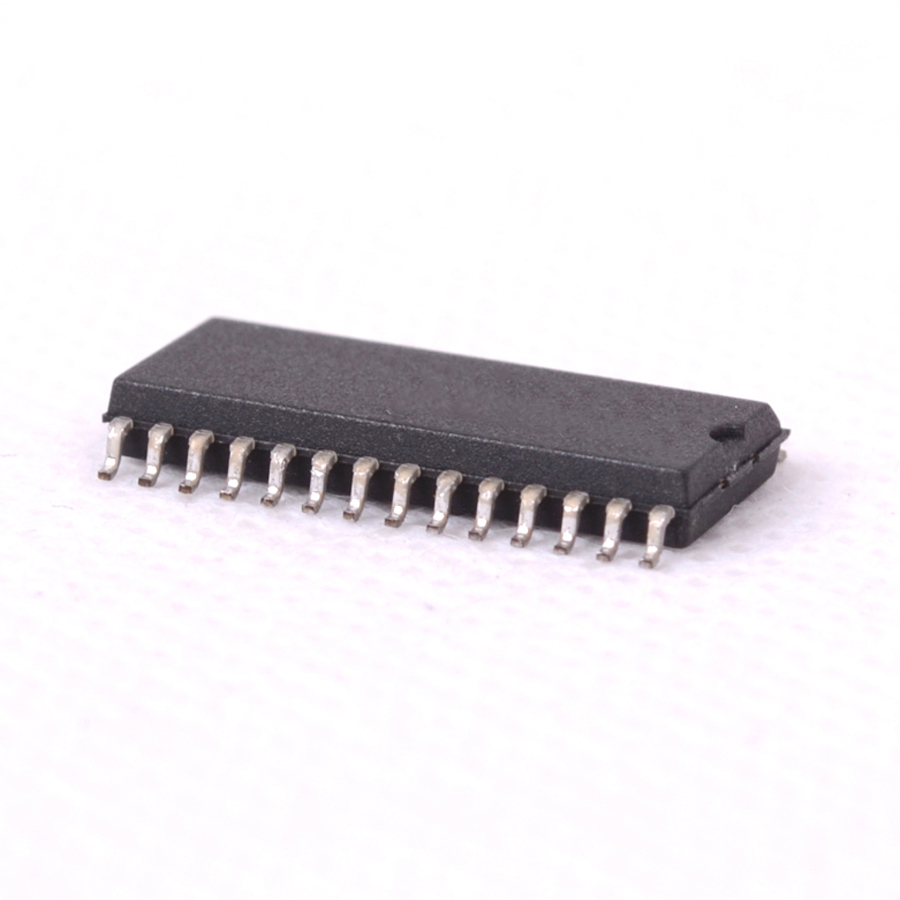

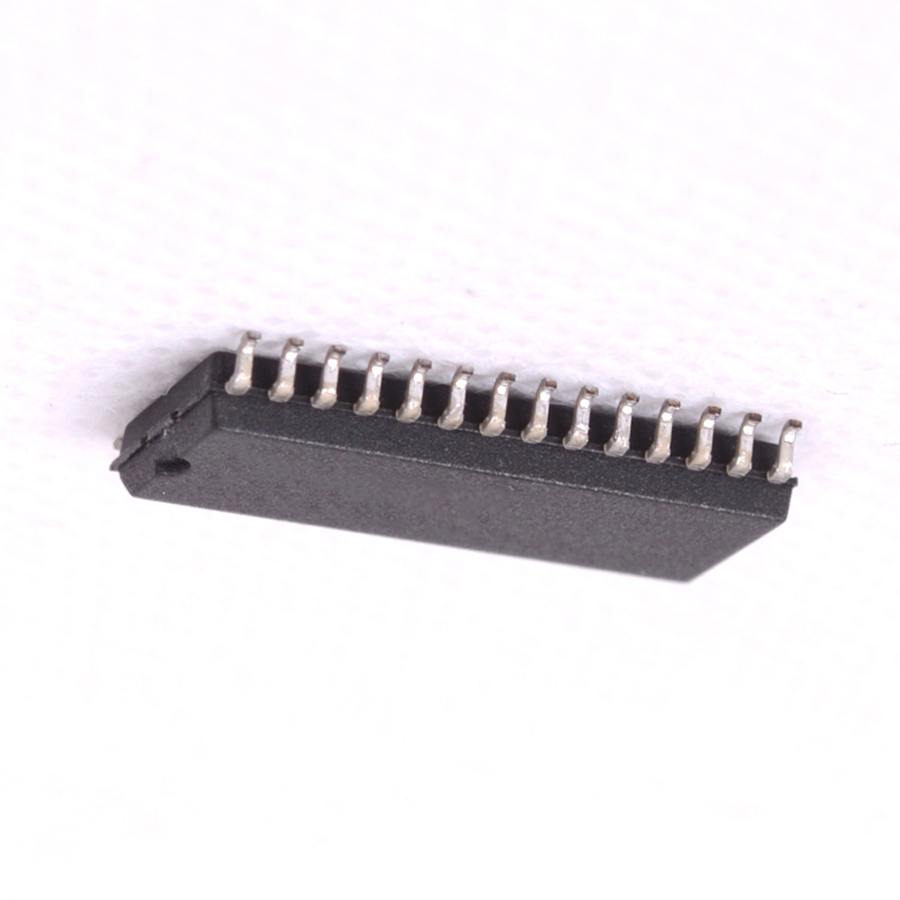

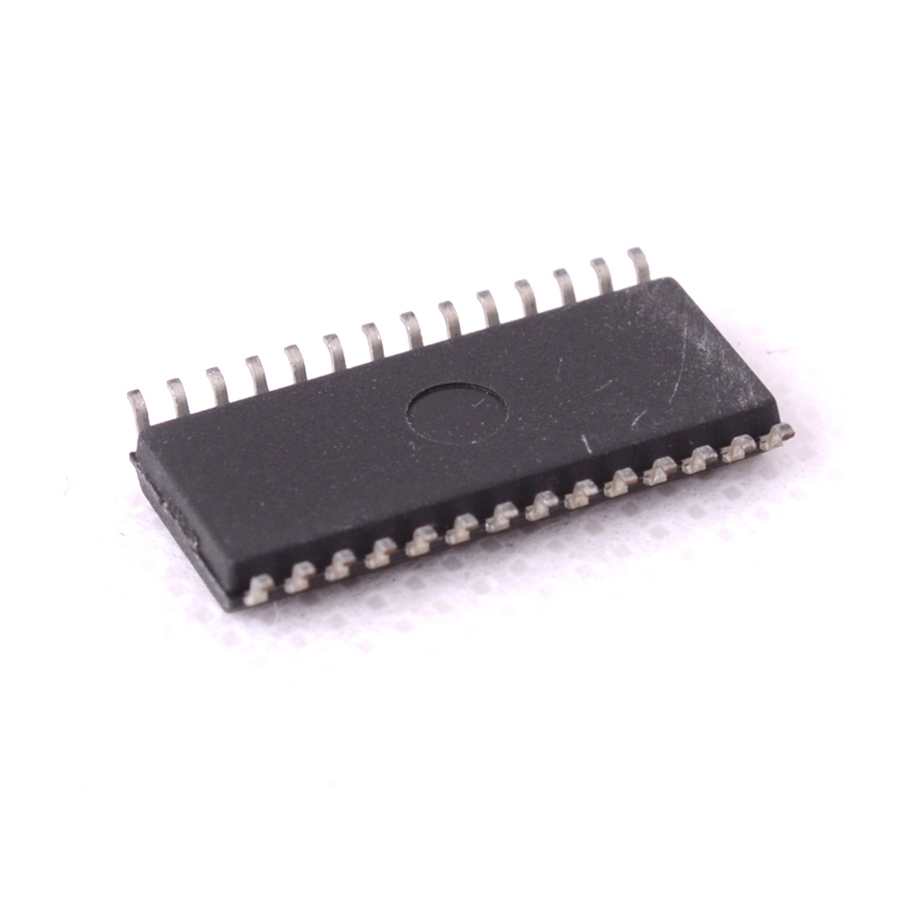

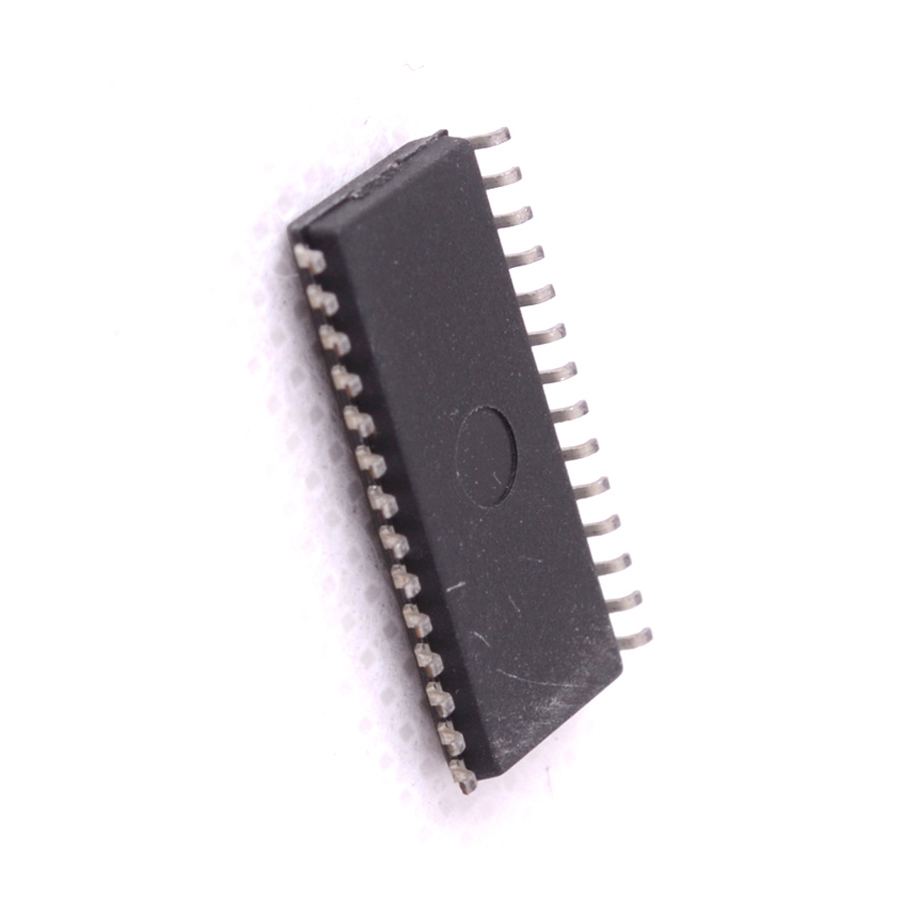

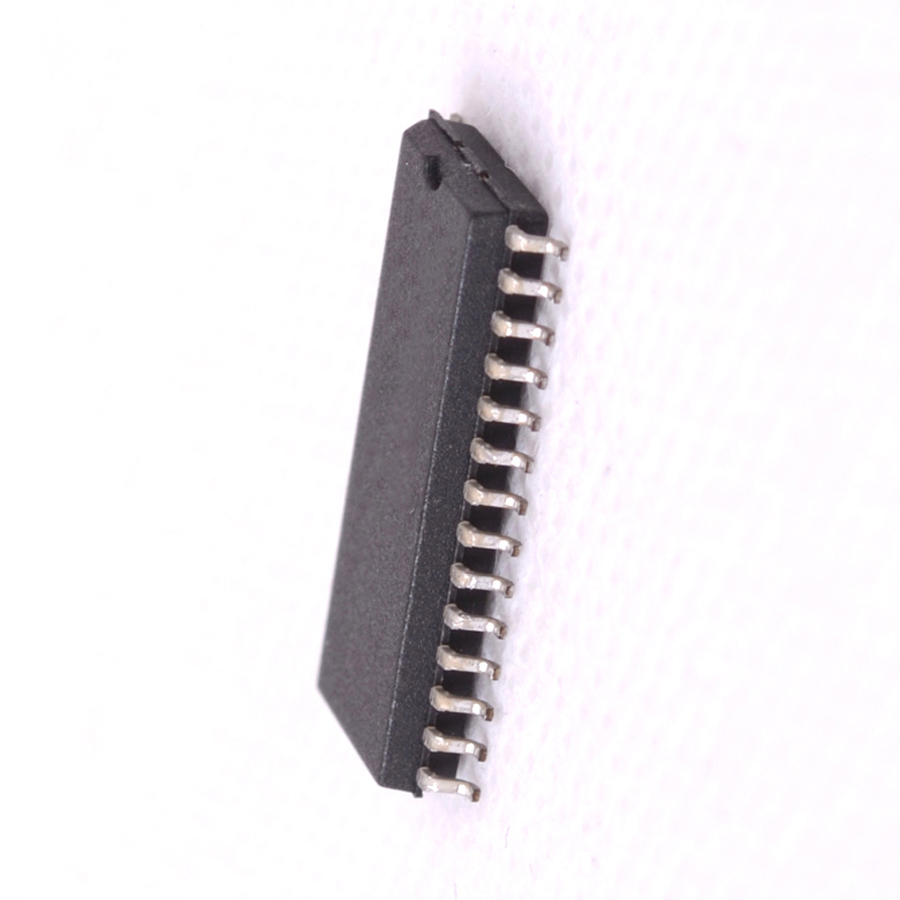

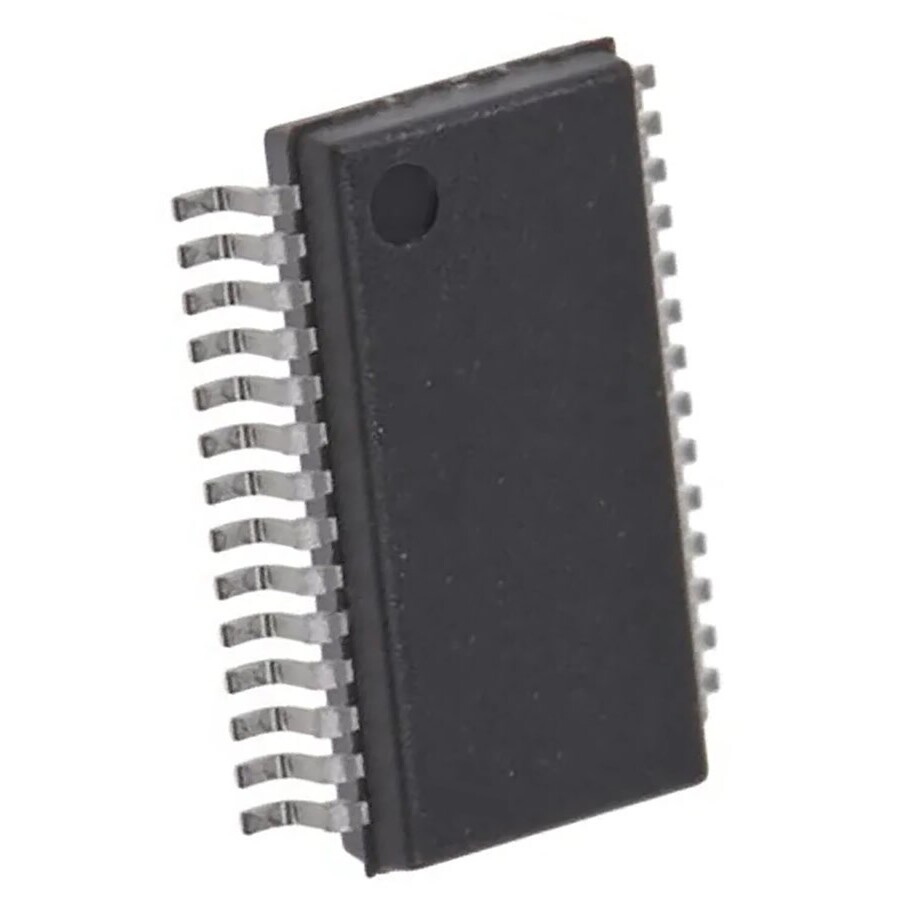

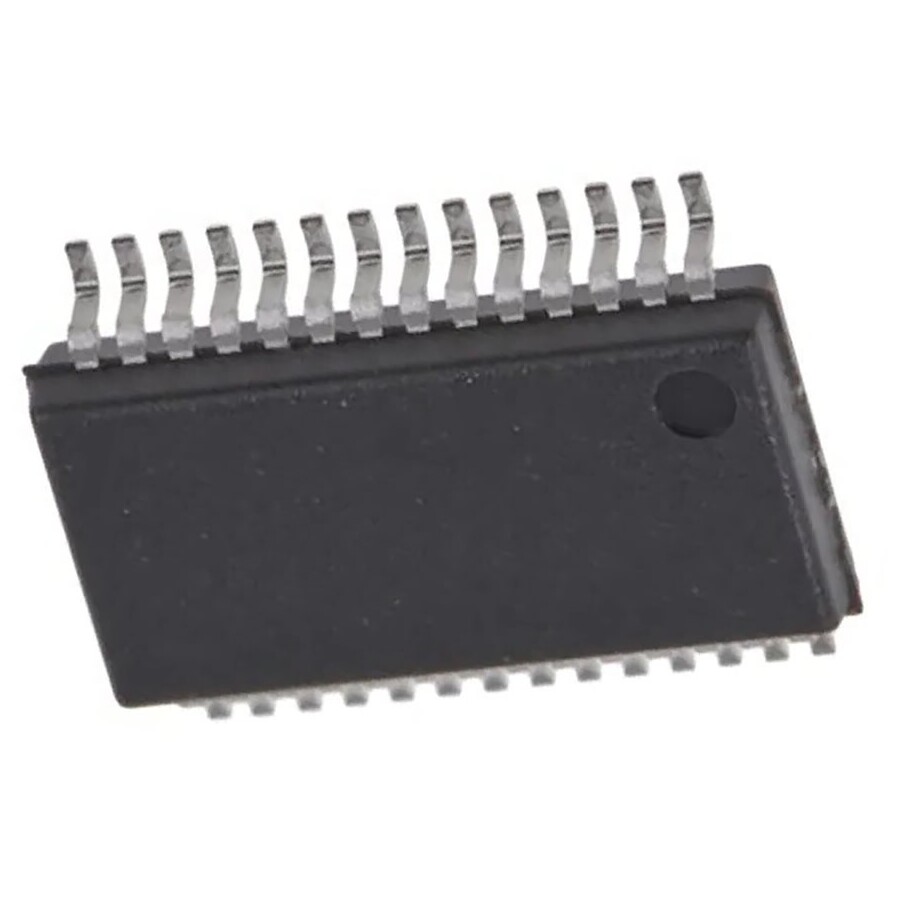

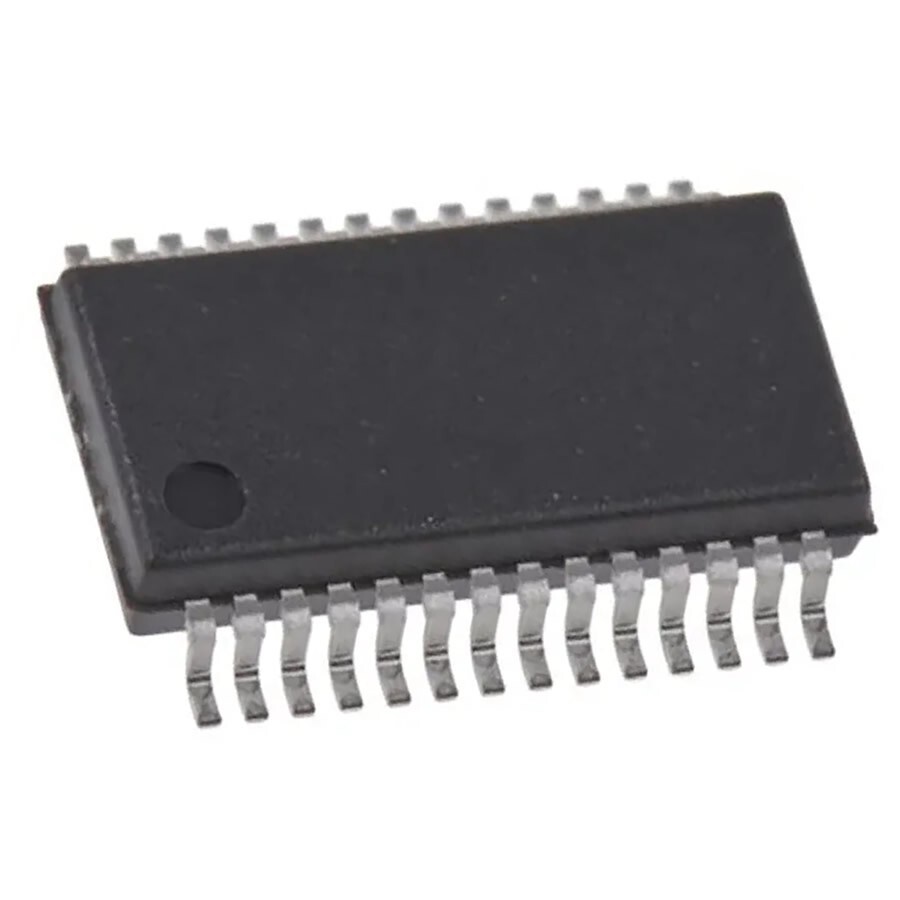

UPD4712AGT Integrated Circuit CASE: SOP28 MAKE: NEC
Datasheet
UPD4712AGT Datasheet
Product specifications
Type Integrated Circuit
Case SOP28
Manufacturer NEC
Inp Thrshld Hi (V) 2.6
Inp Thrshld Lo (V) 1
Mode I/O D or S Single-End
tPD Max. (S) 0.8u
Nom. Pos. Supp 5.0
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
VOL Max. (Rcvr) 0.4
VOH Min (Rcvr) 4.2
Pinout Equivalence Number 28-609
No. of Pins 28
Surface Mounted Yes/No YES
SKU 327274
