UPD4714GT

UPD4714GT

SKU: UPD4714GT

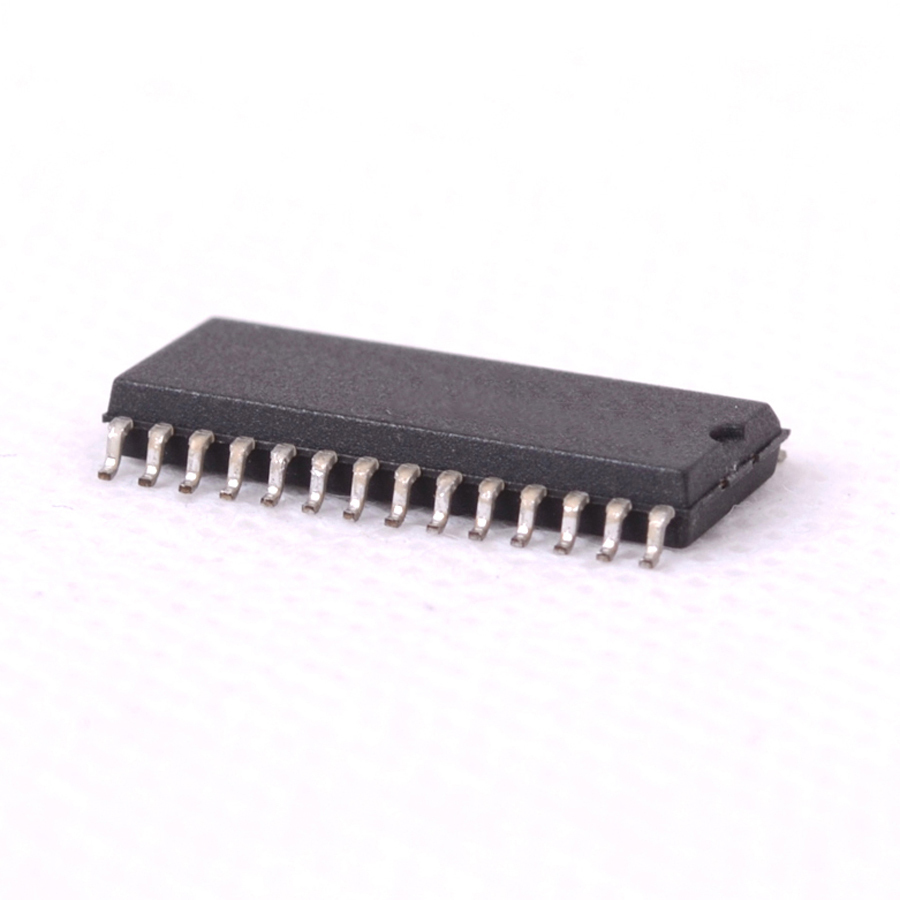

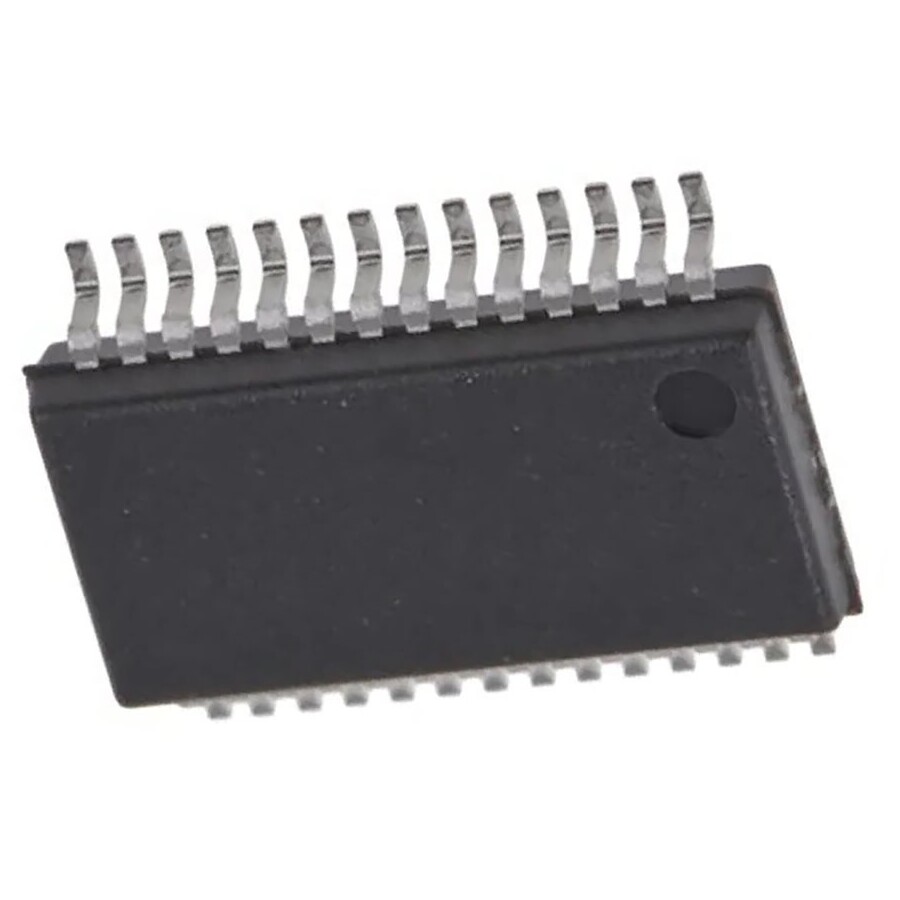

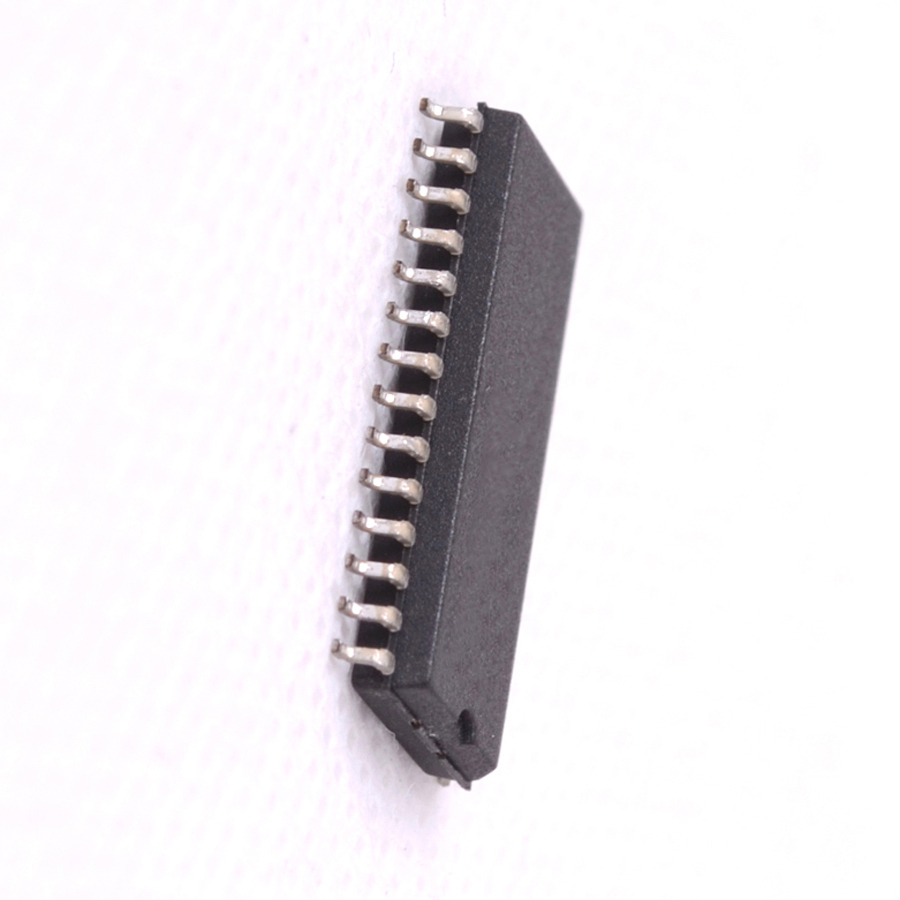

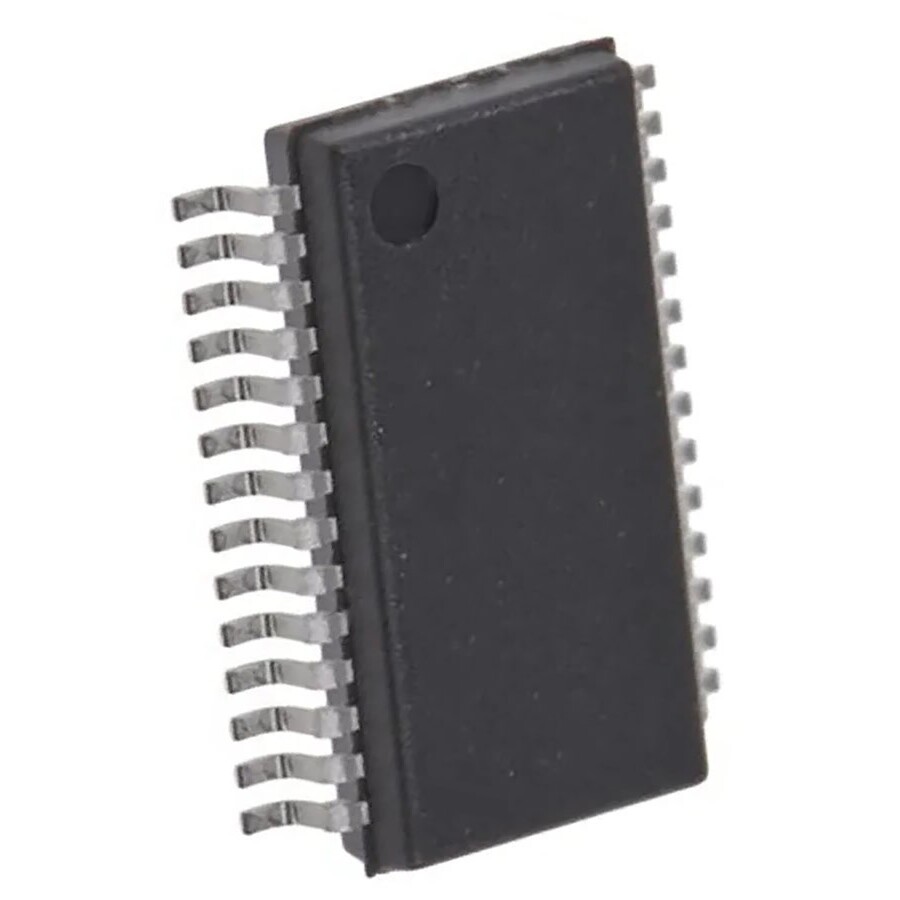

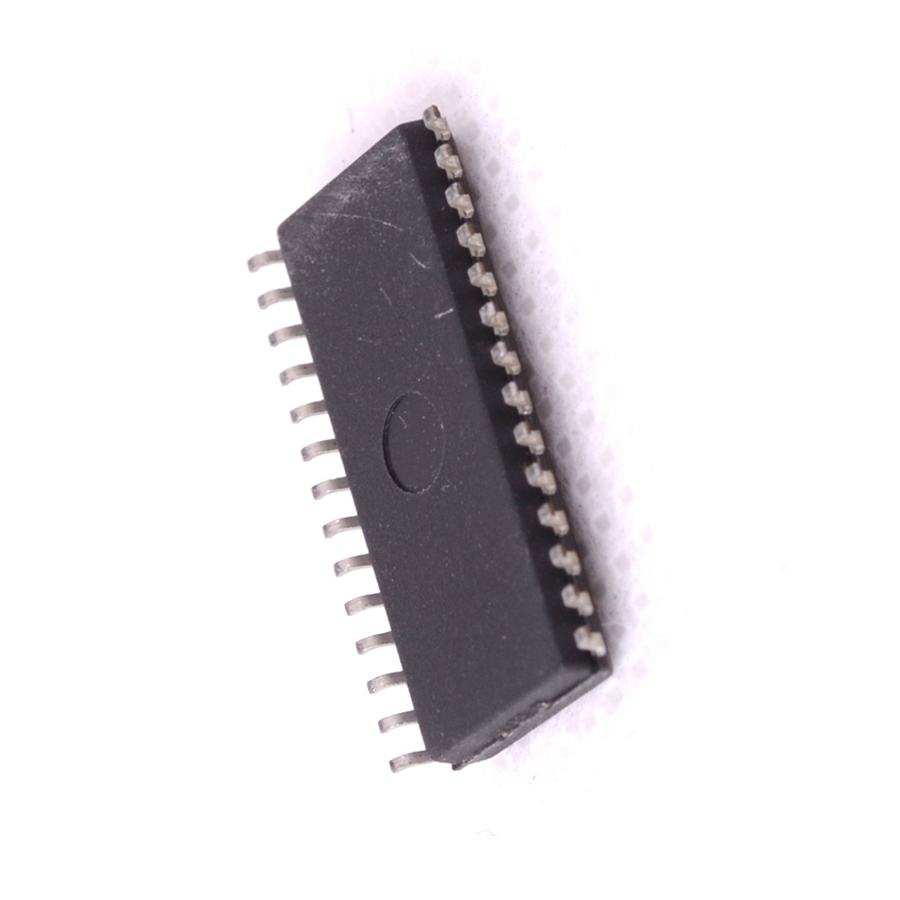

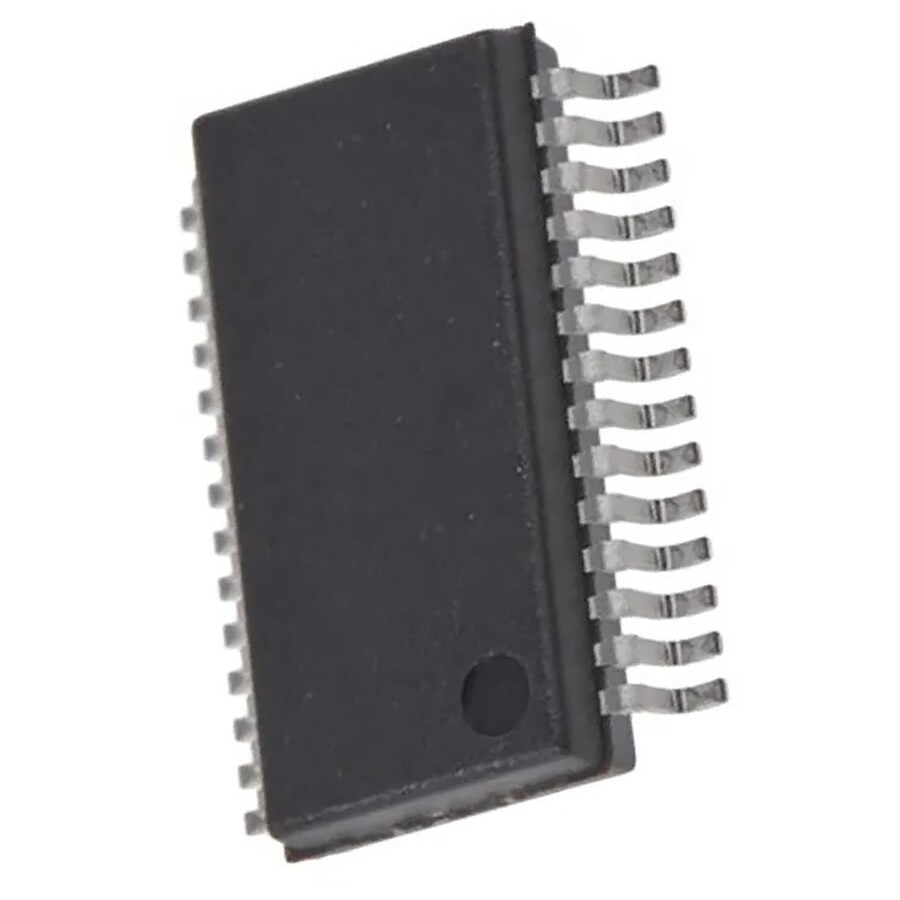

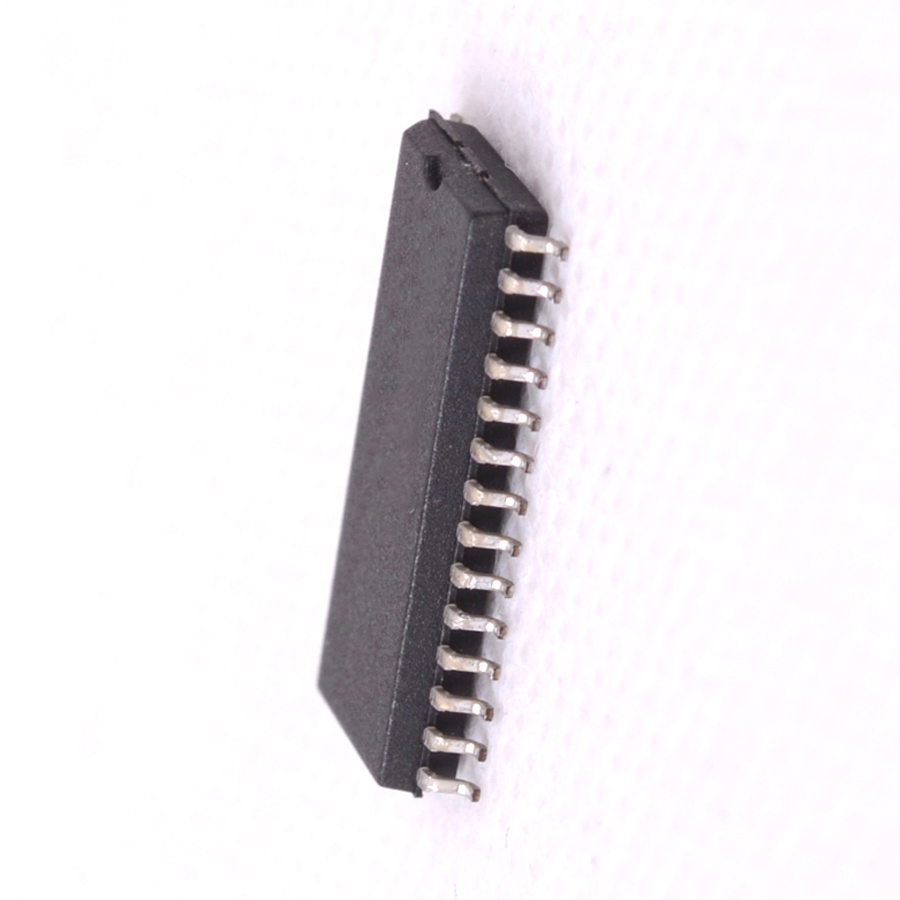

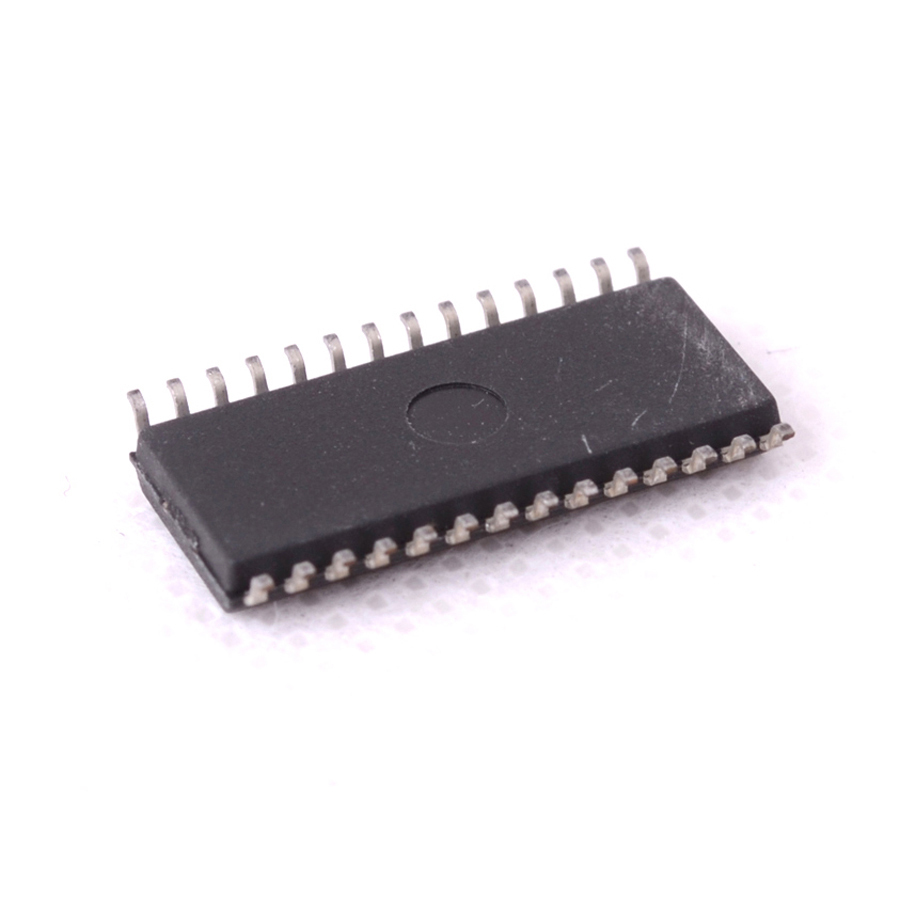

UPD4714GT Integrated Circuit CASE: SOP28 MAKE: NEC
Product specifications
Equivalent UPD4714GT-SMD
Type Integrated Circuit
Case SOP28
Manufacturer NEC
Inp Thrshld Hi (V) 2.6
Inp Thrshld Lo (V) 1
Mode I/O D or S Single-End
tPD Max. (S) 0.8u
Nom. Pos. Supp 5.0
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
VOL Max. (Rcvr) 0.4
VOH Min (Rcvr) 4.2
Pinout Equivalence Number 28-606
No. of Pins 28
Surface Mounted Yes/No YES
SKU 631729
