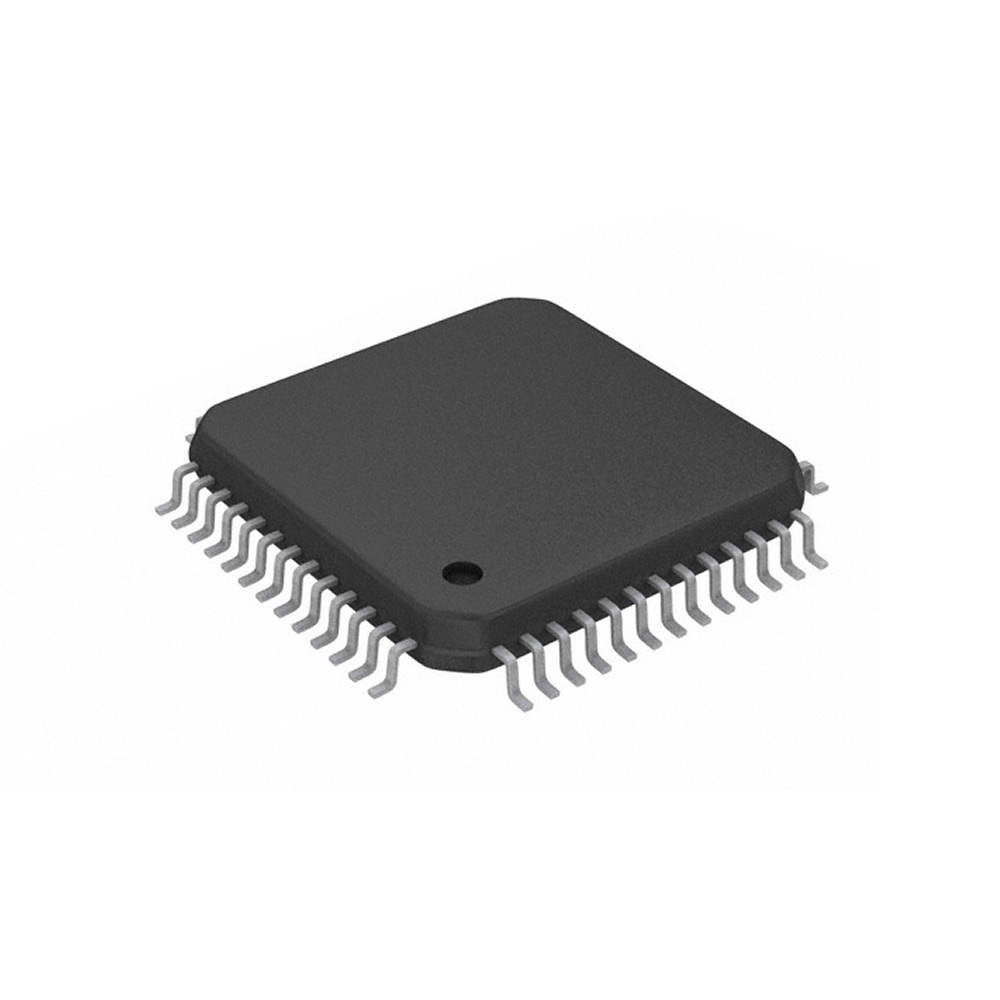

UPD651G

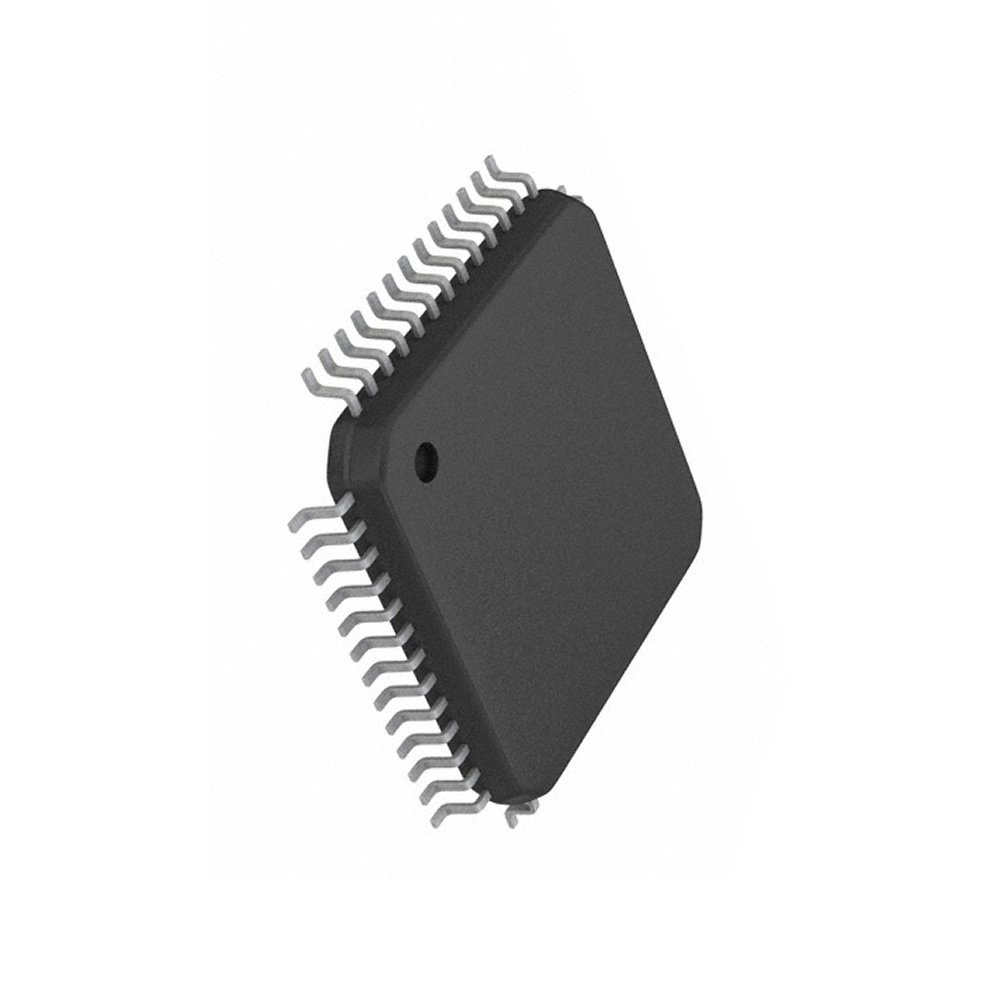

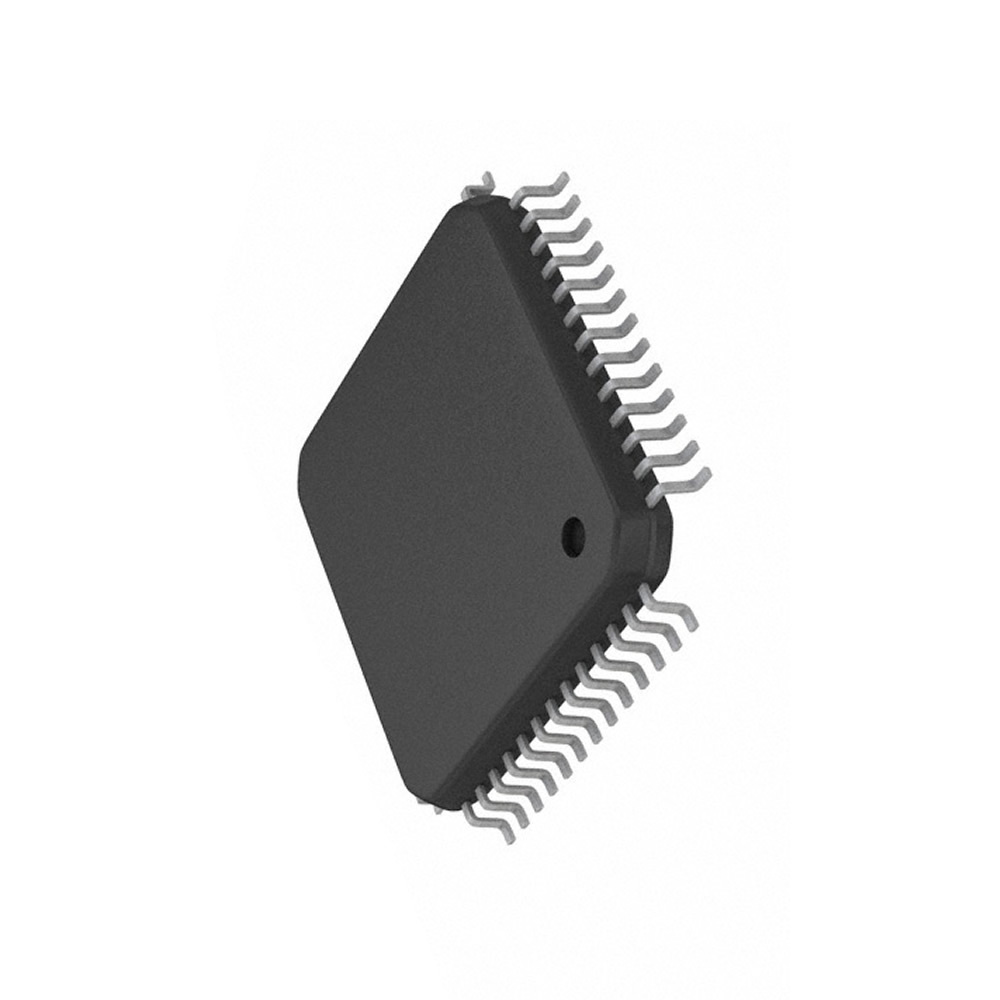

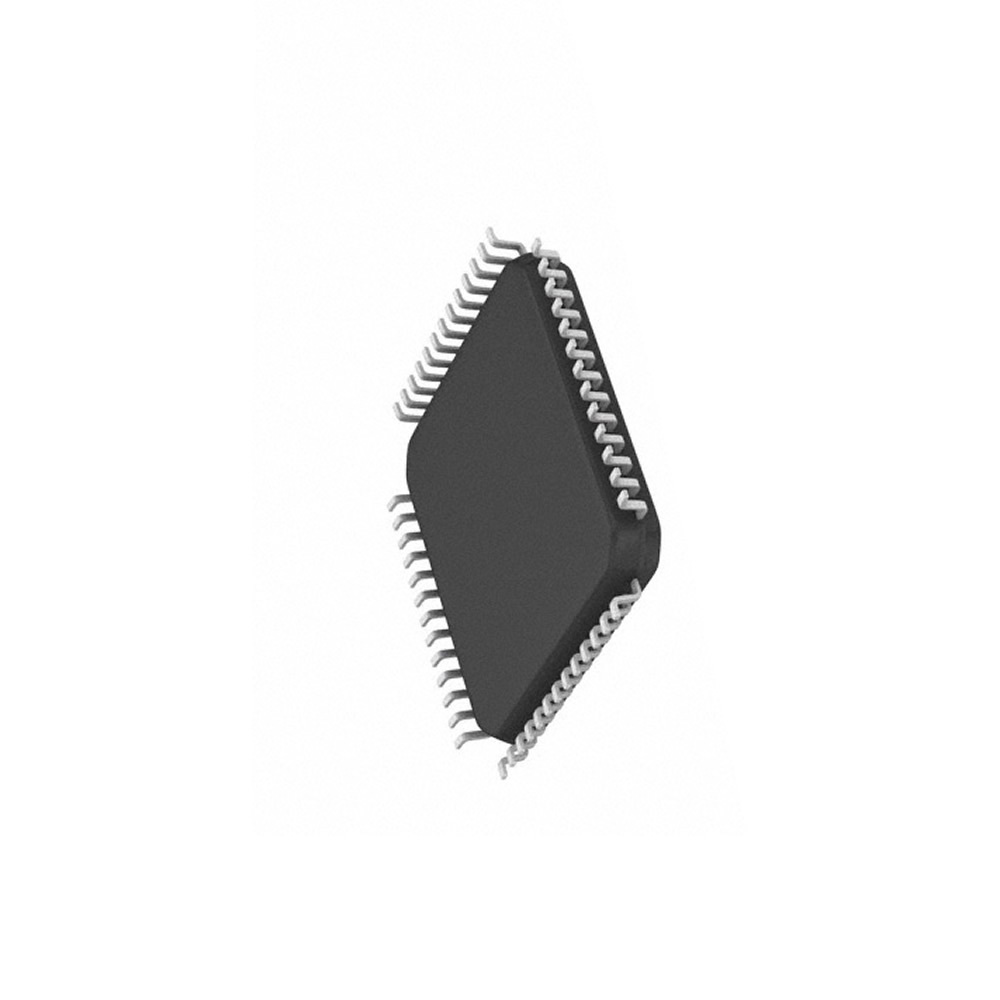

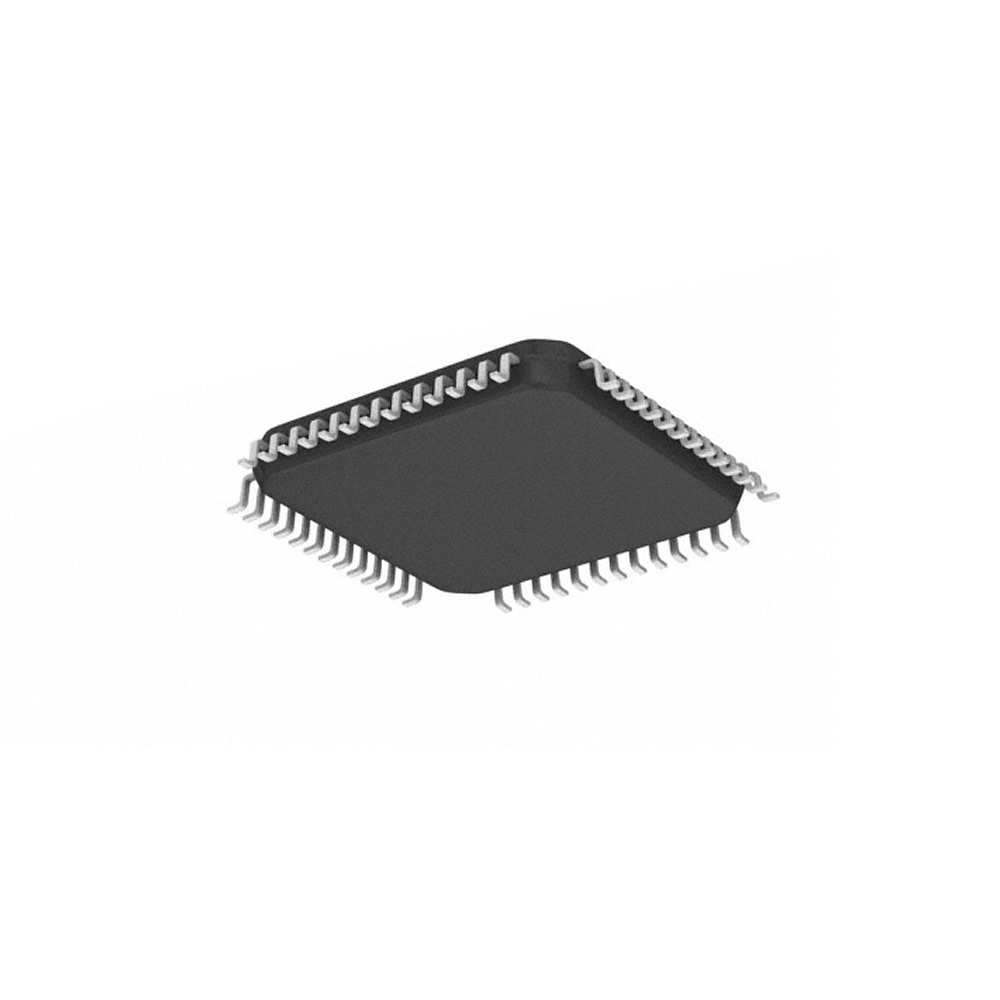

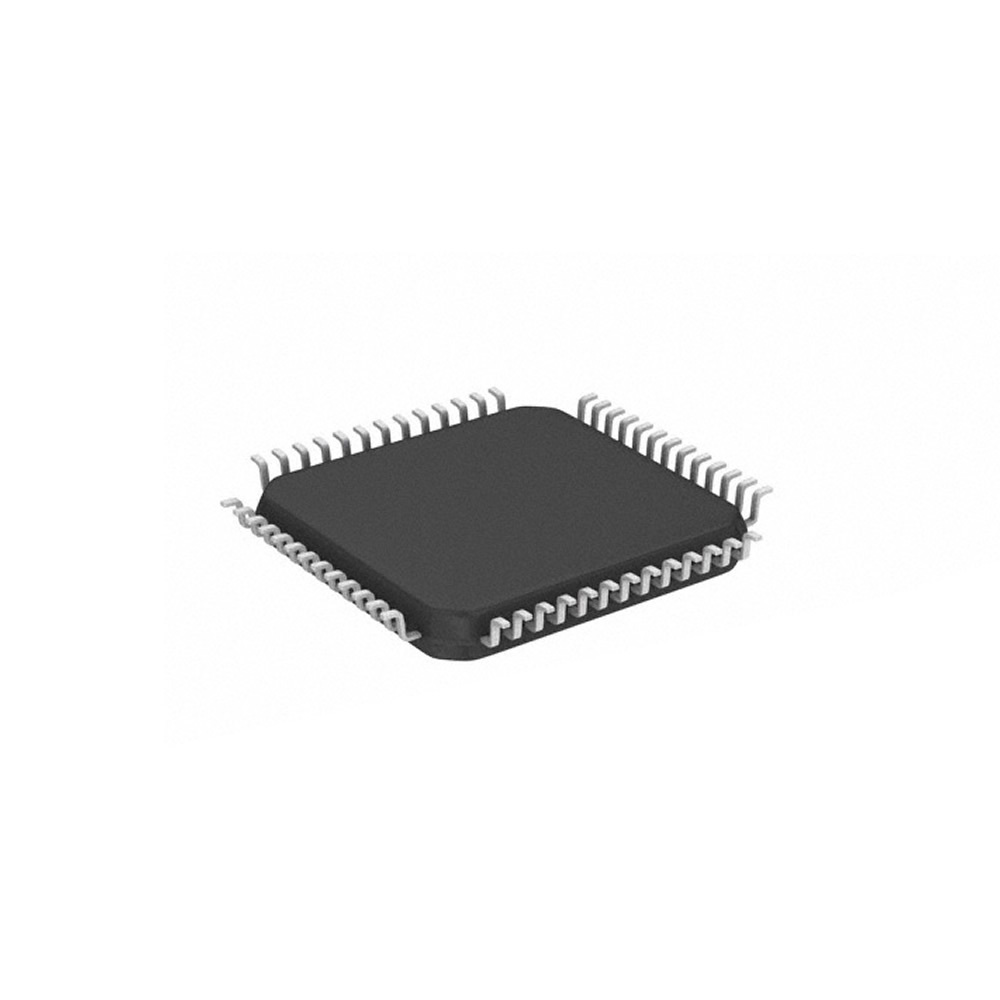

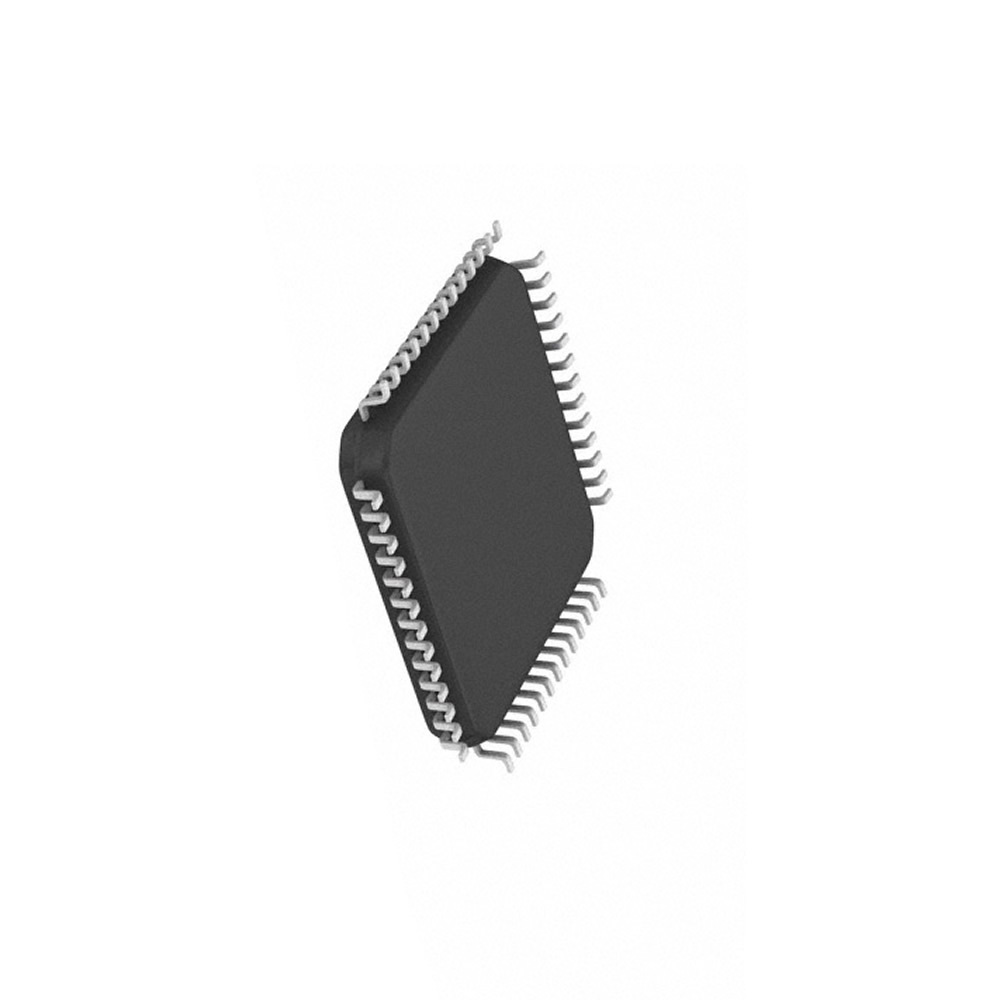

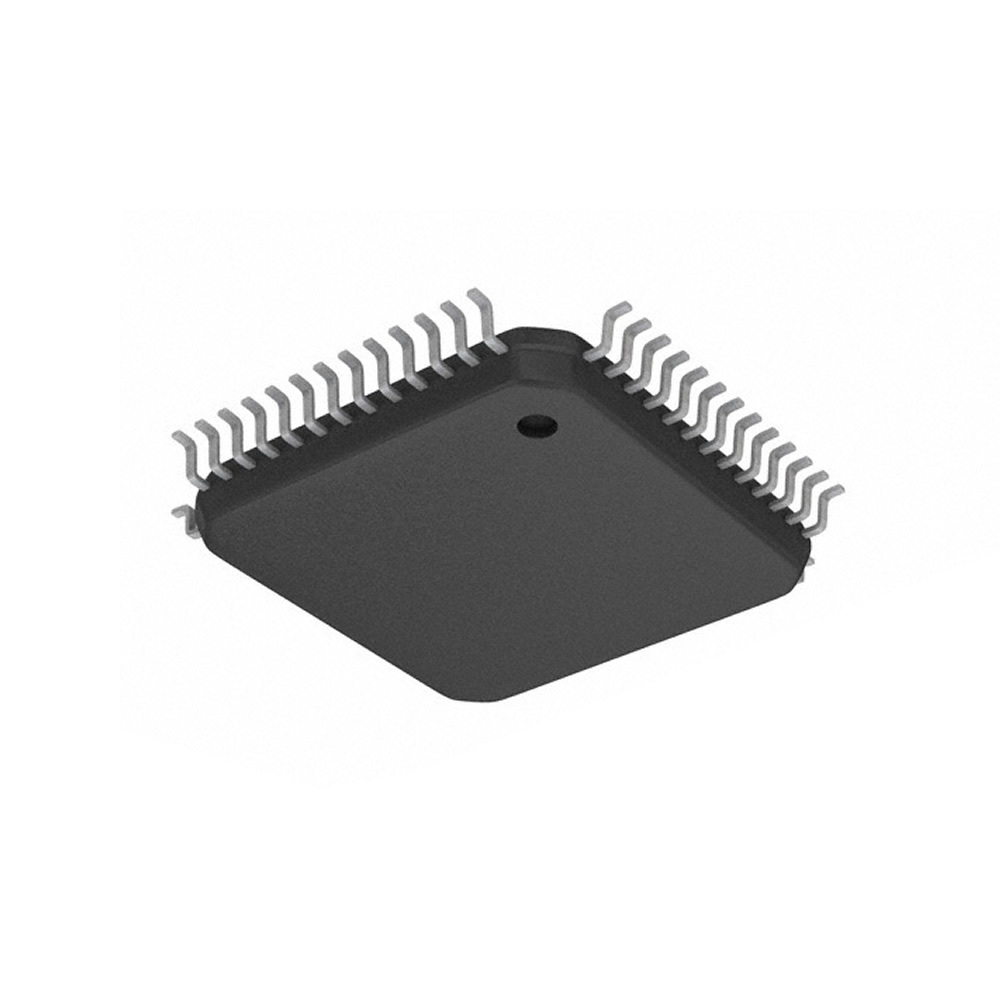

View detailed images (8)

UPD651G

SKU: UPD651G
UPD651G Integrated Circuit CASE: QFP52 MAKE: NEC
Product specifications
Type Integrated Circuit
Case QFP52
Manufacturer NEC
No.of Addr. Modes 4
No. of I/O Lines 8
I/O Line Types Gen. Purp.
Max. Inst. Len (bits) 16
Min Inst. Len (bits) 8
No. of Intrpt Lines 1
Intrpt Types Maskable
No. of Intrpt (mask) 1
fClk Max. (Hz) 440k
fClk Min (Hz) 150k
No. of I/O Ports 2
On-Chip ROM (bytes) 1k
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 32
Oper. Temp (°C) Min -25
Oper. Temp (°C) Max. 85
Pinout Equivalence Number 52-24
No. of Pins 52
Surface Mounted Yes/No YES
SKU 631432
