Home / Integrated Circuit / UPD70108G5

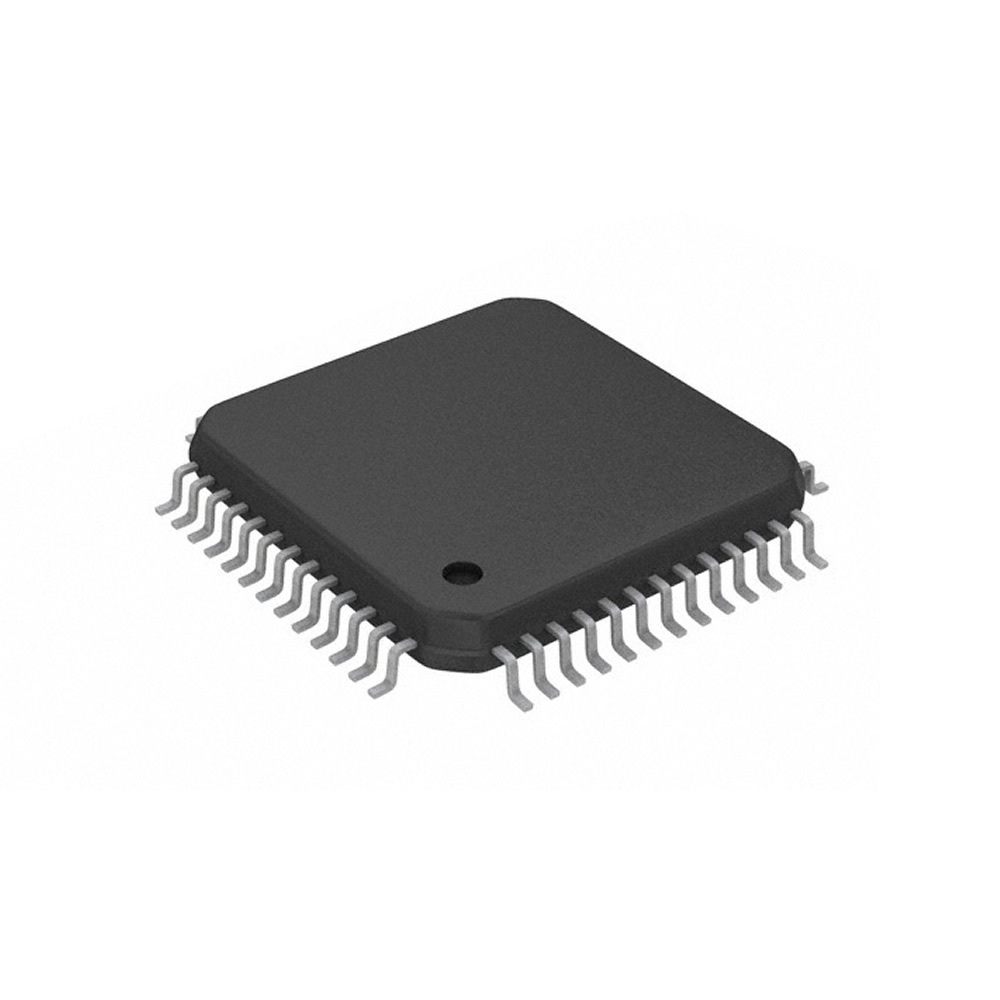

UPD70108G5

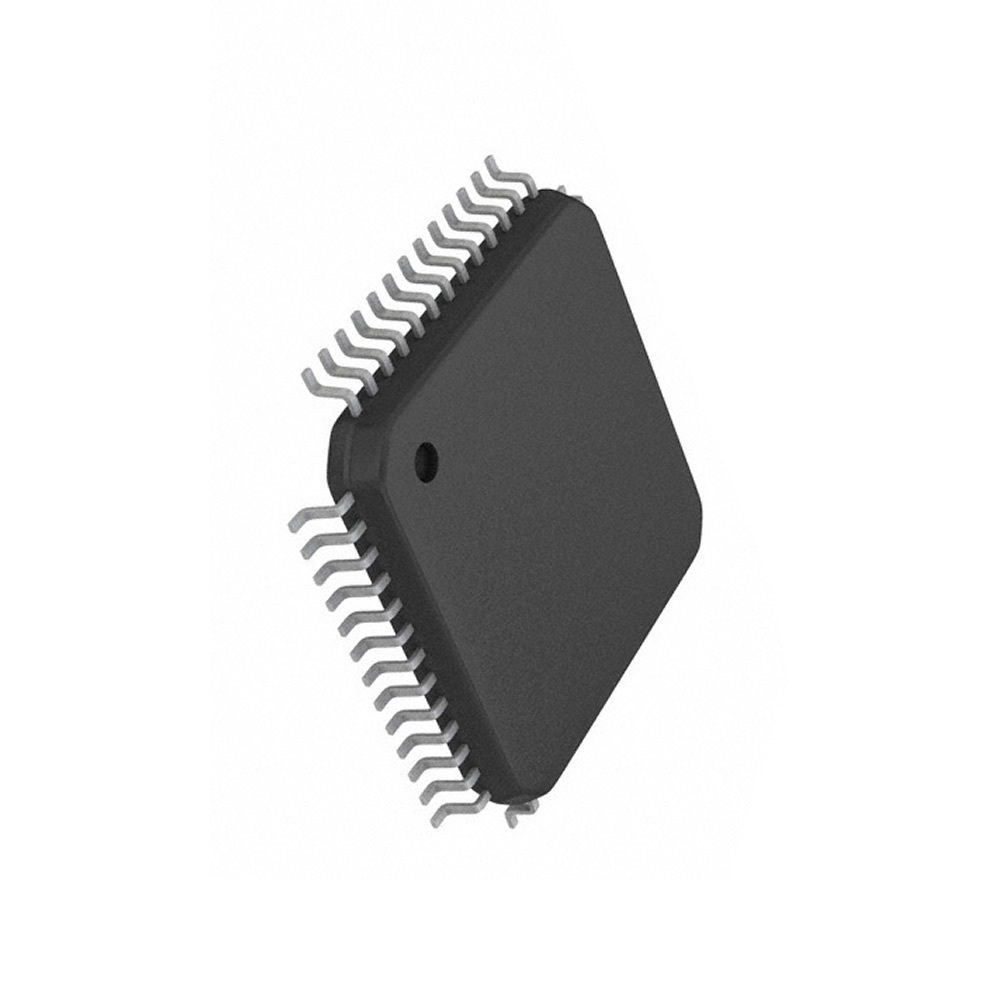

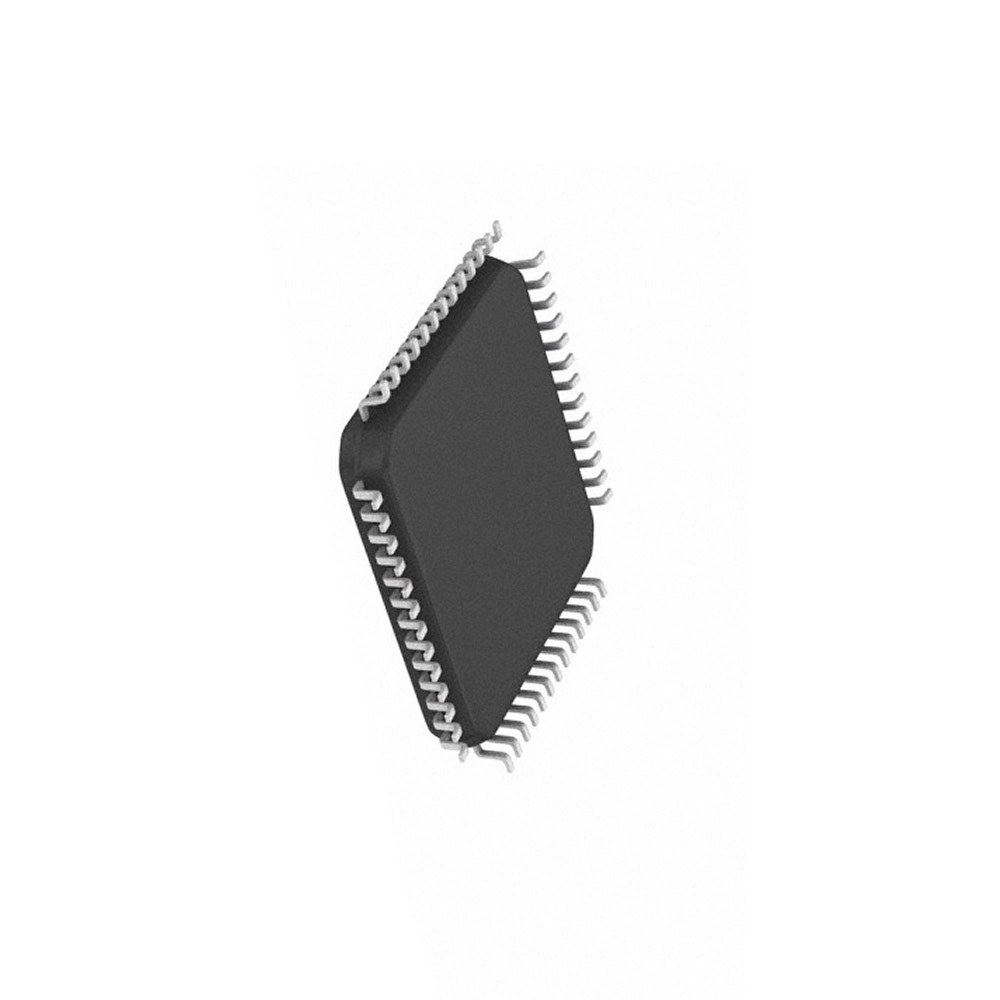

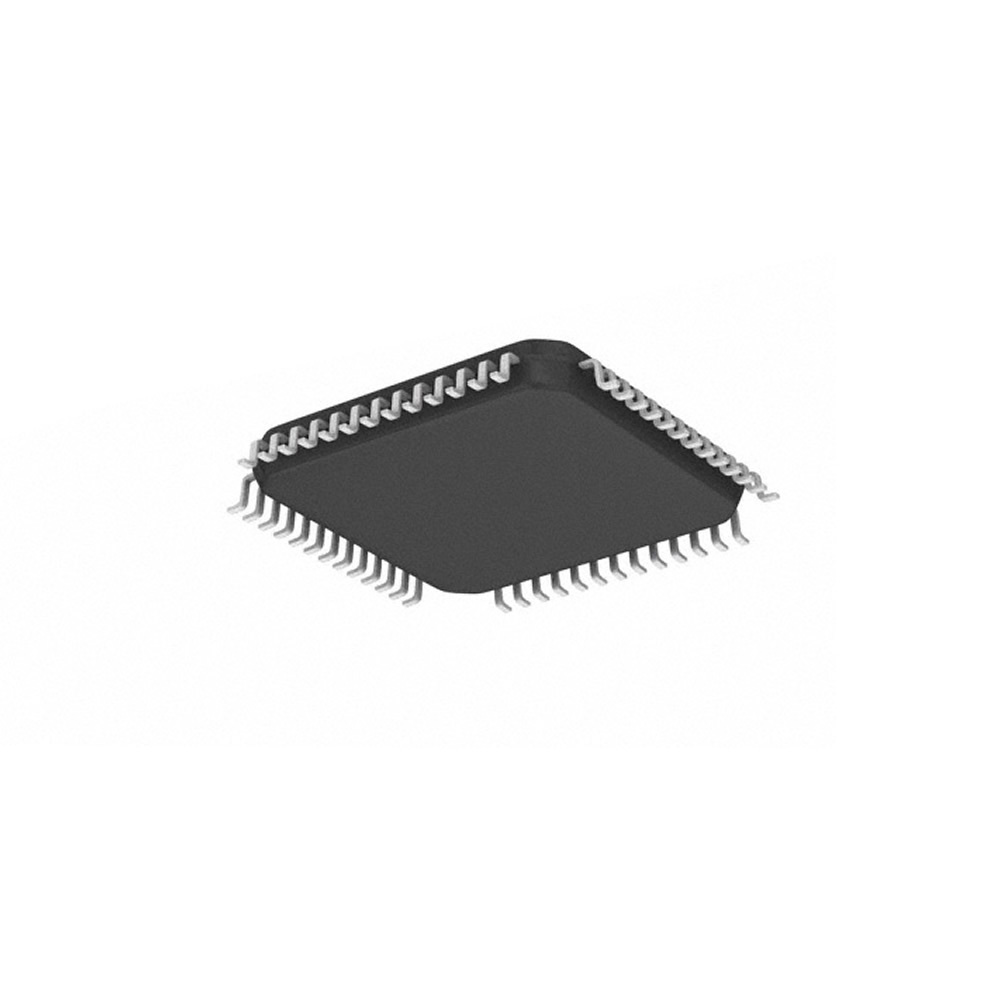

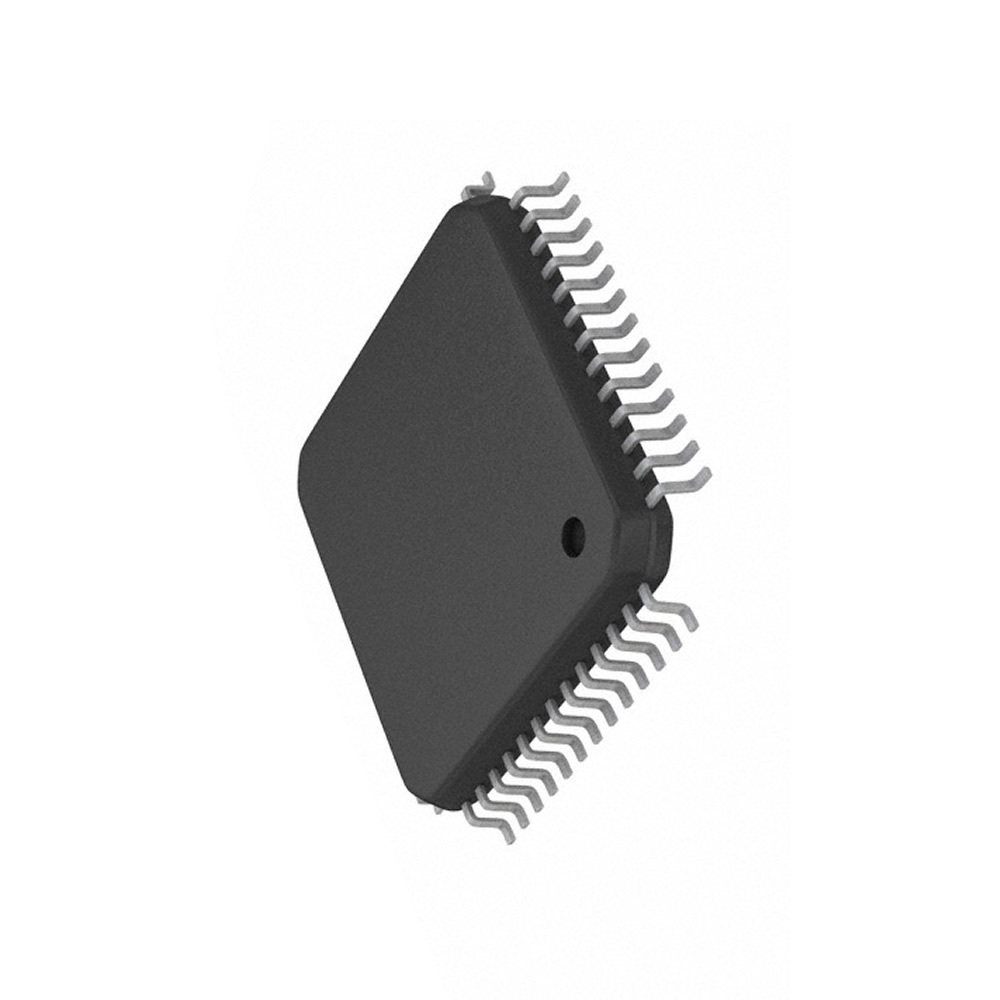

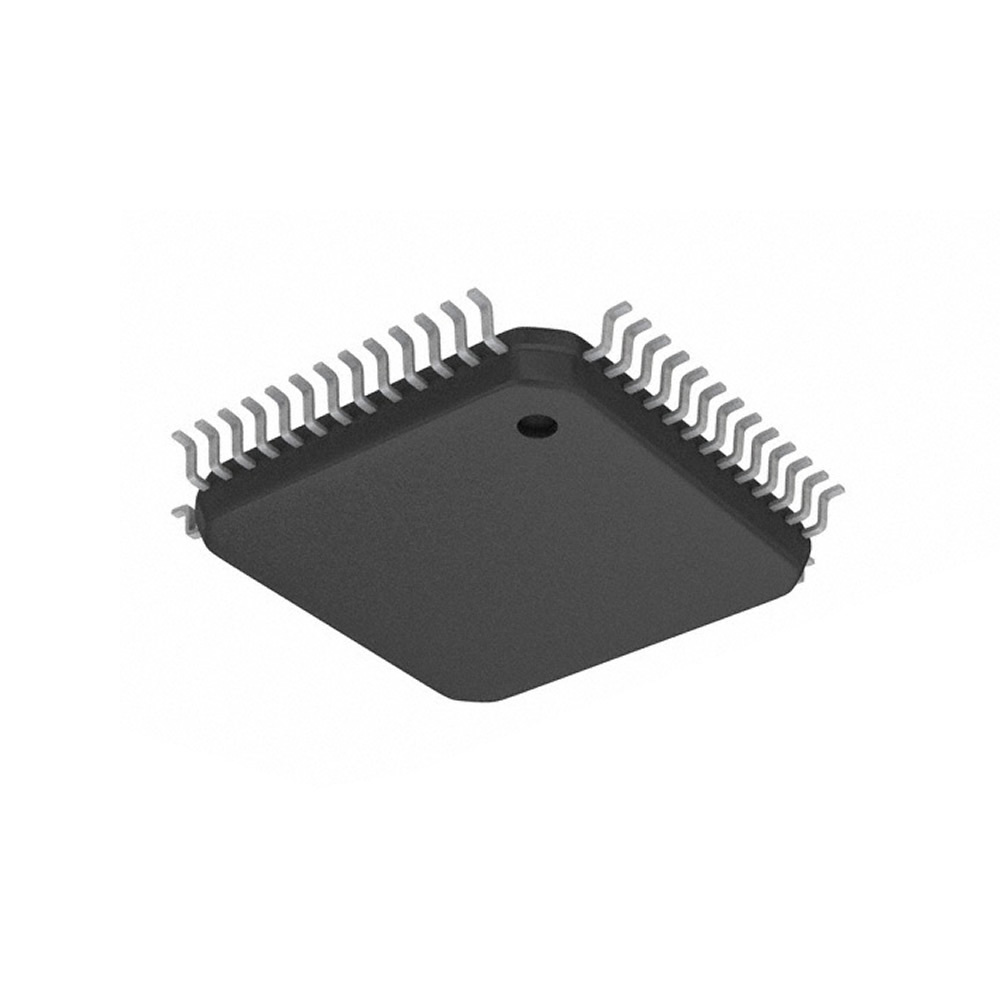

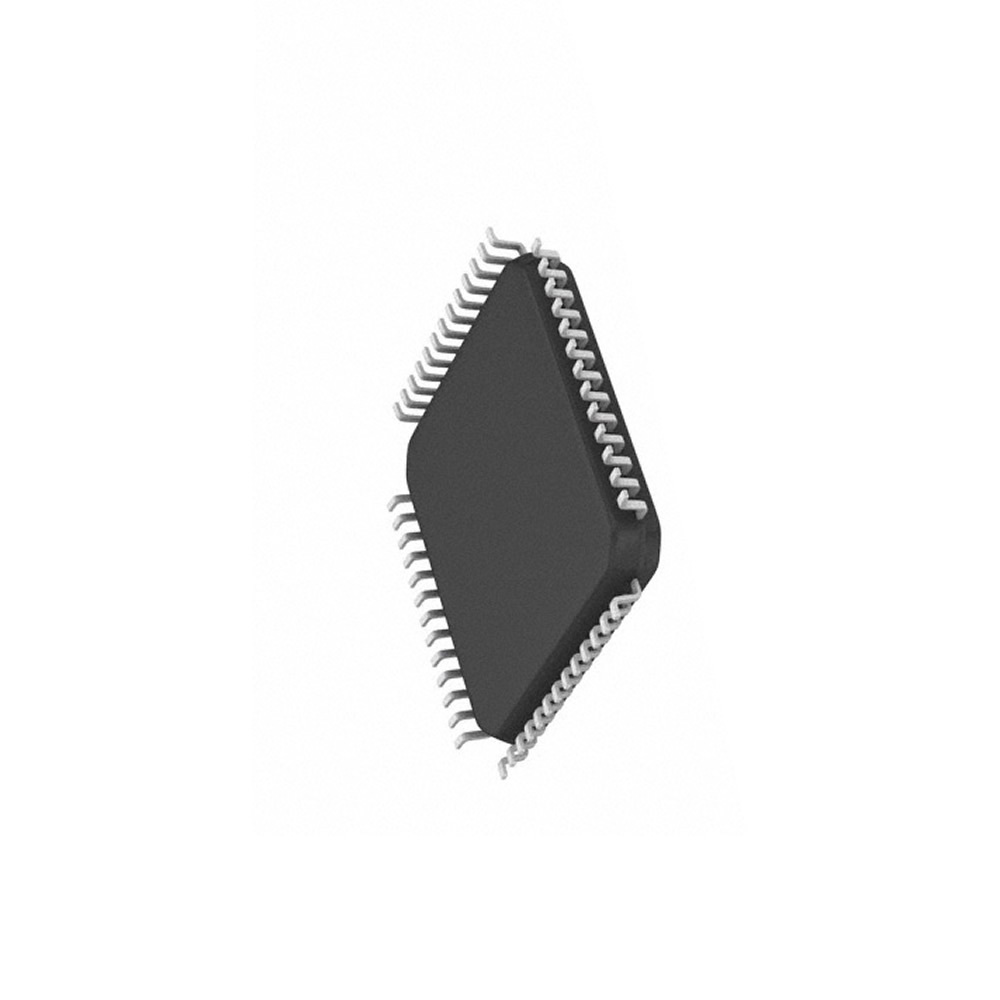

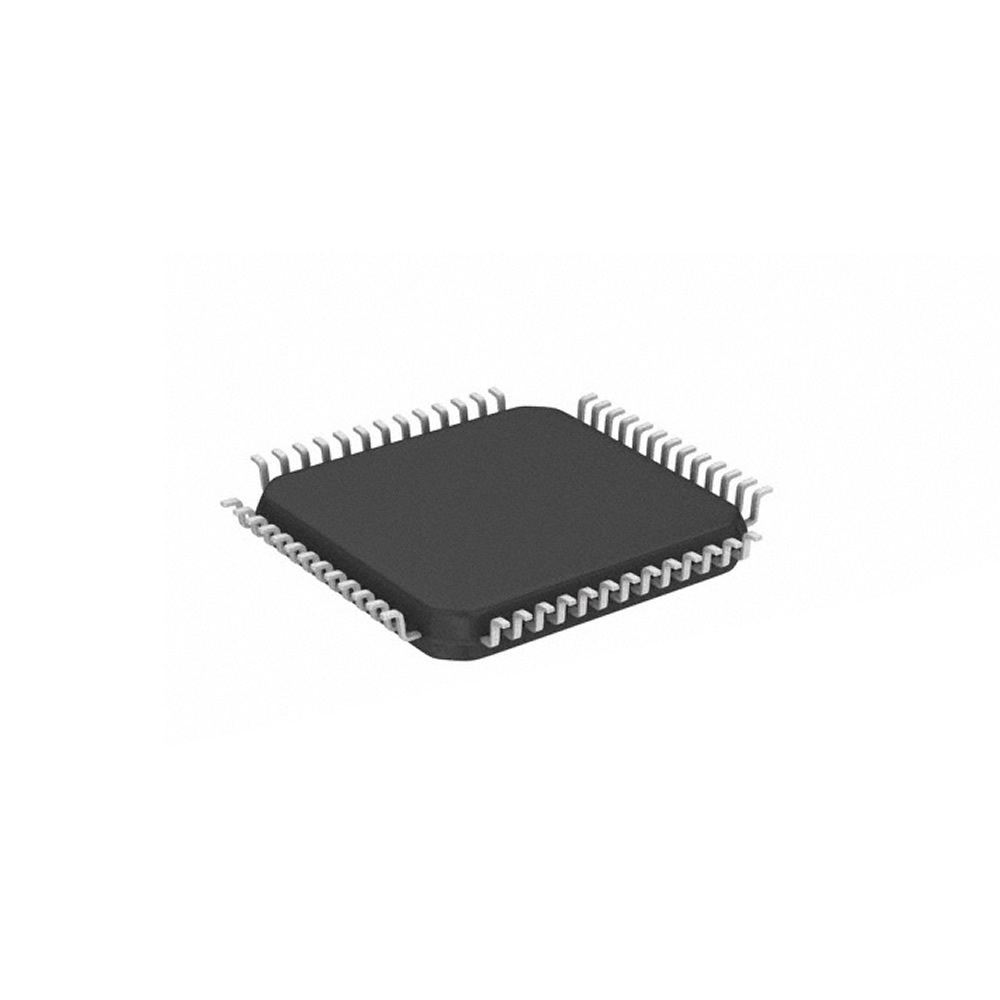

View detailed images (8)

UPD70108G5

SKU: UPD70108G5
UPD70108G5 Integrated Circuit CASE: QFP52 MAKE: NEC
Product specifications
Type Integrated Circuit
Case QFP52
Manufacturer NEC
Mem. Addr Rnge 1M
No.of Addr. Modes 24
I/O Line Types Byte/MUXed
Max. Inst. Len (bits) 48
Min Inst. Len (bits) 8
No. of Intrpt Lines 2
No. of Intrpt (NMI) 1
Intrpt Types Sftwr/Ex V
No. of Intrpt (mask) 1
fClk Max. (Hz) 5.0M
fClk Min (Hz) 2.0M
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -25
Oper. Temp (°C) Max. 85
Pinout Equivalence Number 52-25
No. of Pins 52
Surface Mounted Yes/No YES
SKU 631049
