UPD7506C
View detailed images (8)

UPD7506C

SKU: UPD7506C

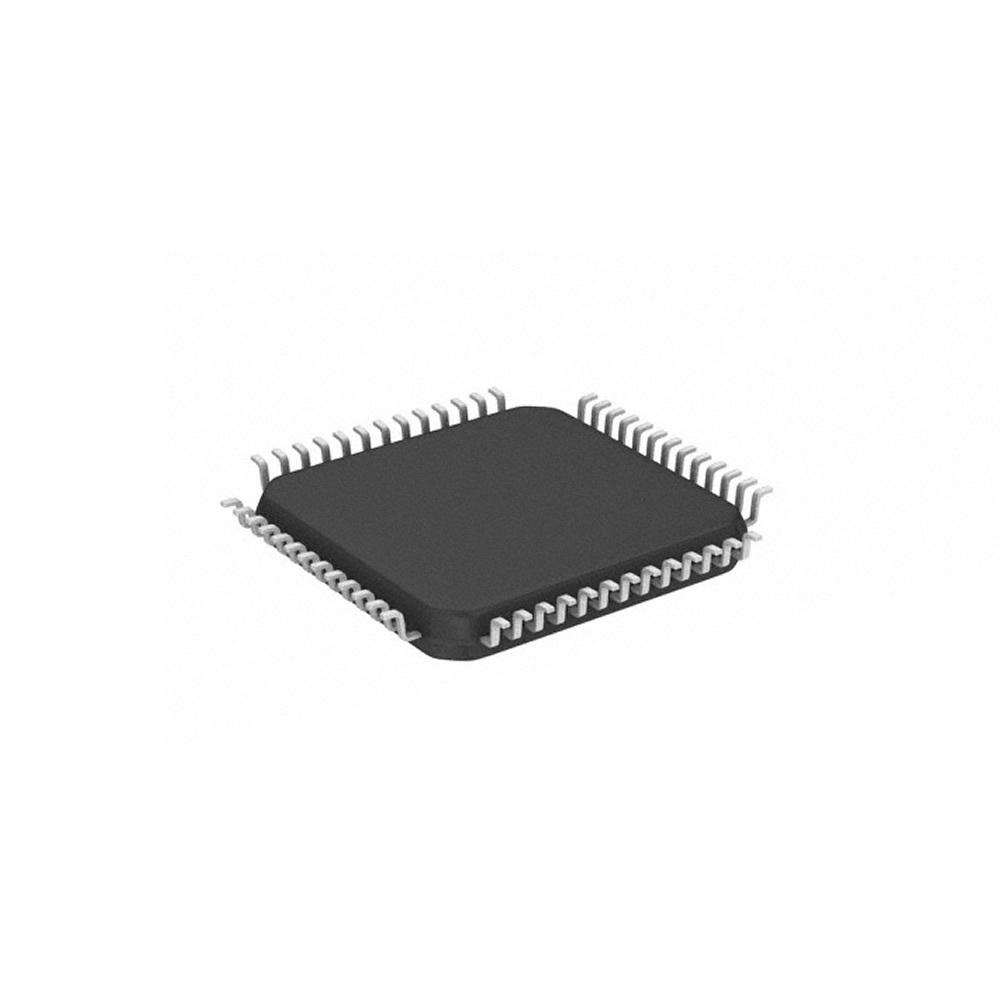

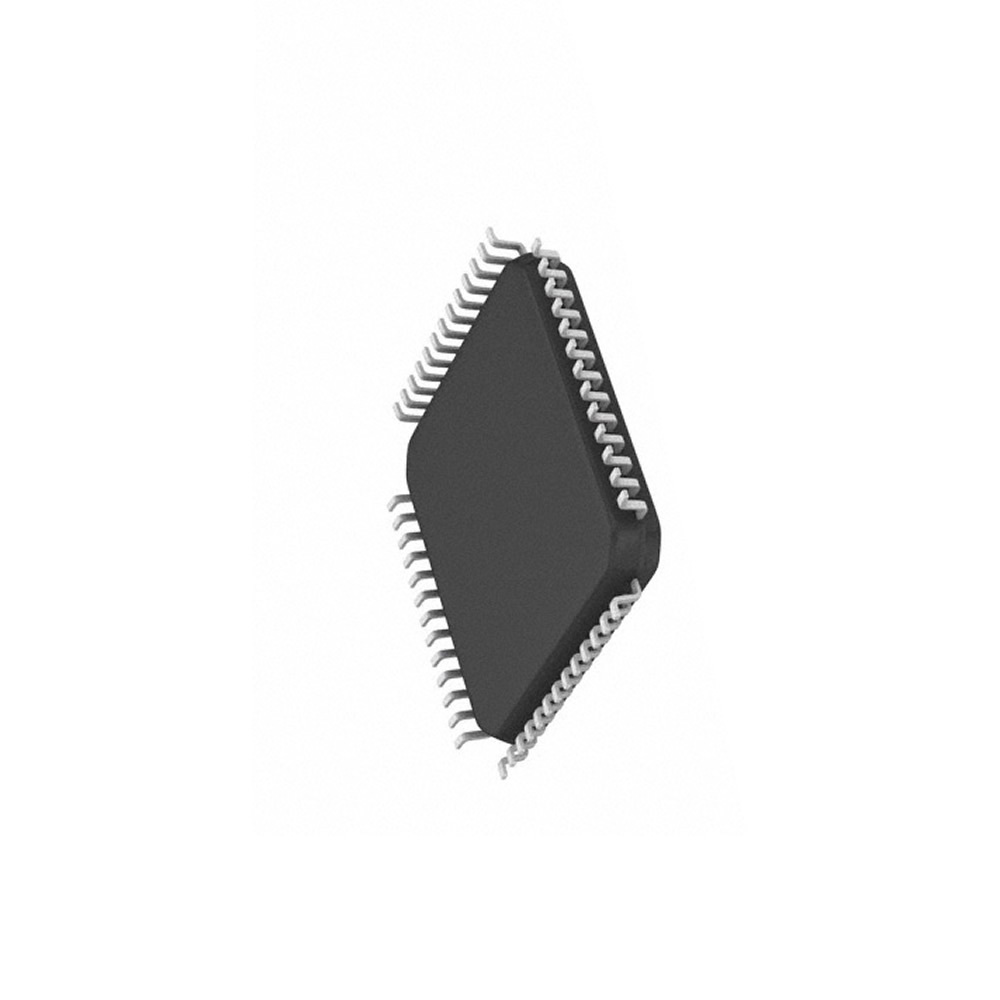

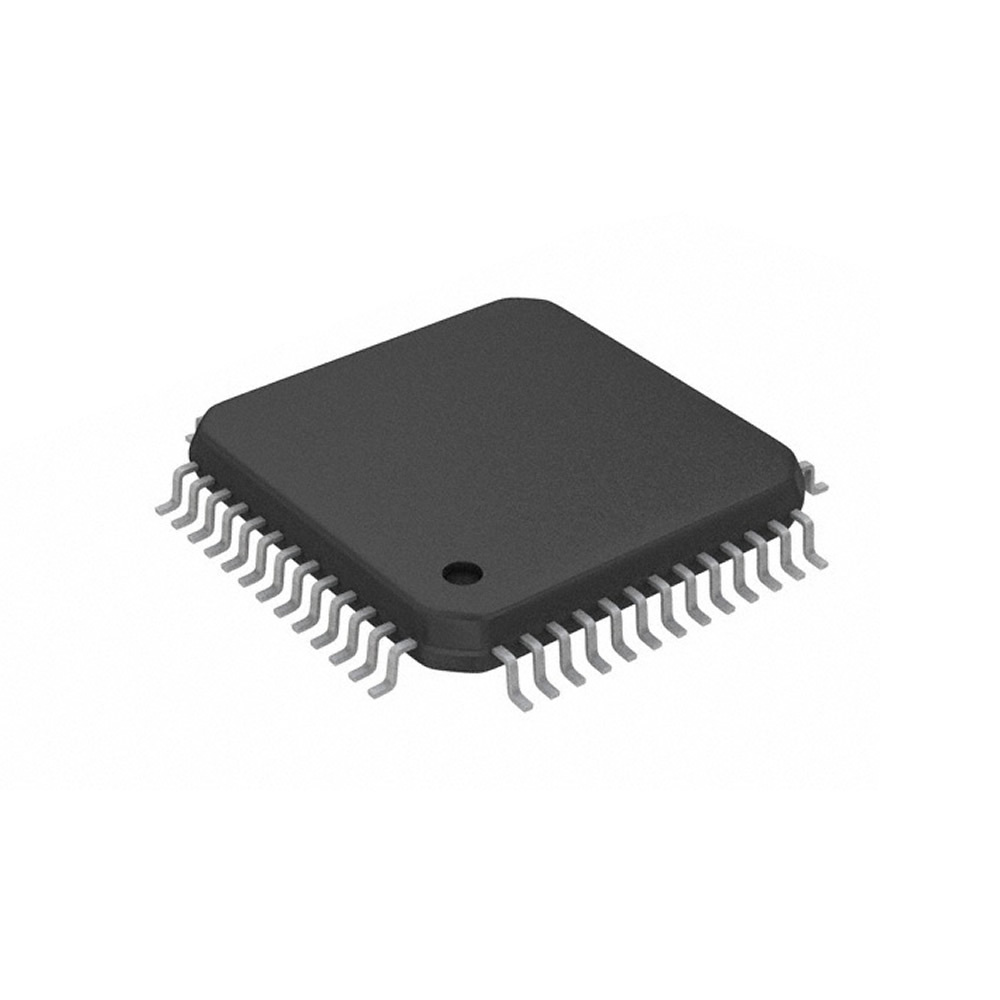

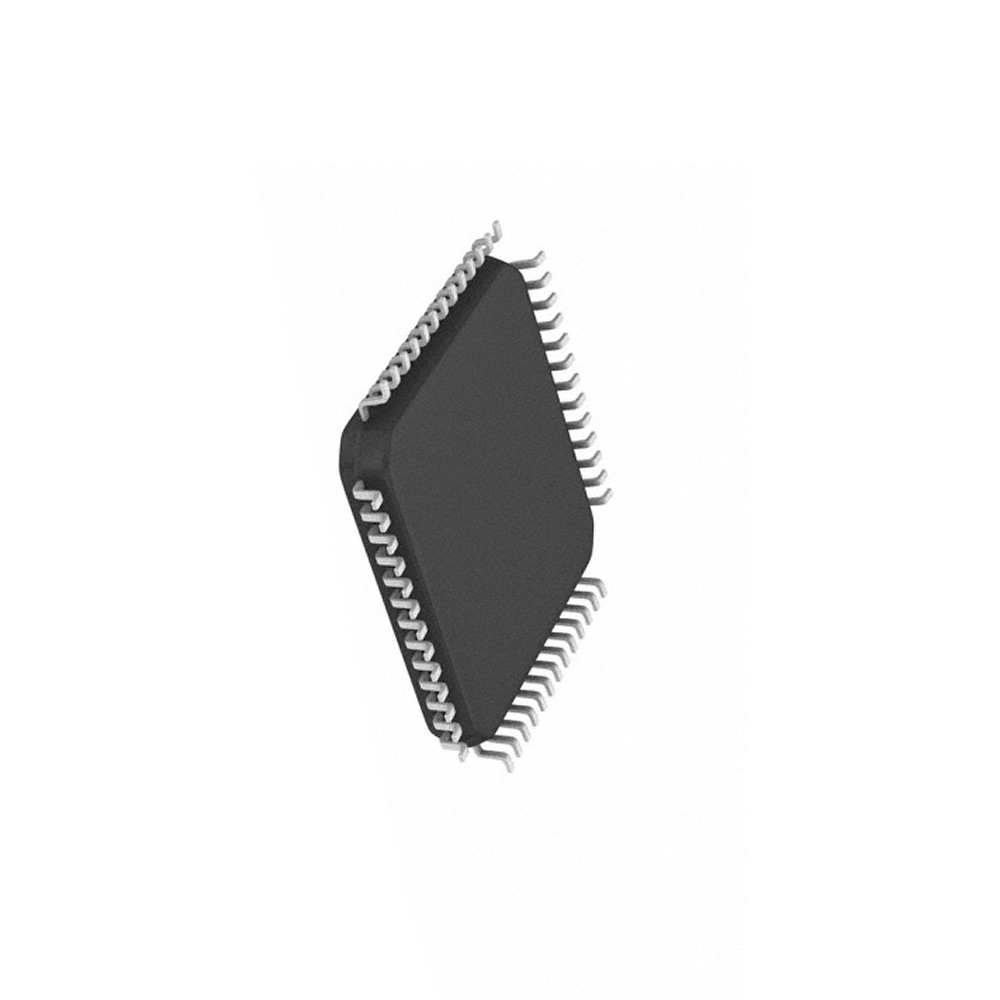

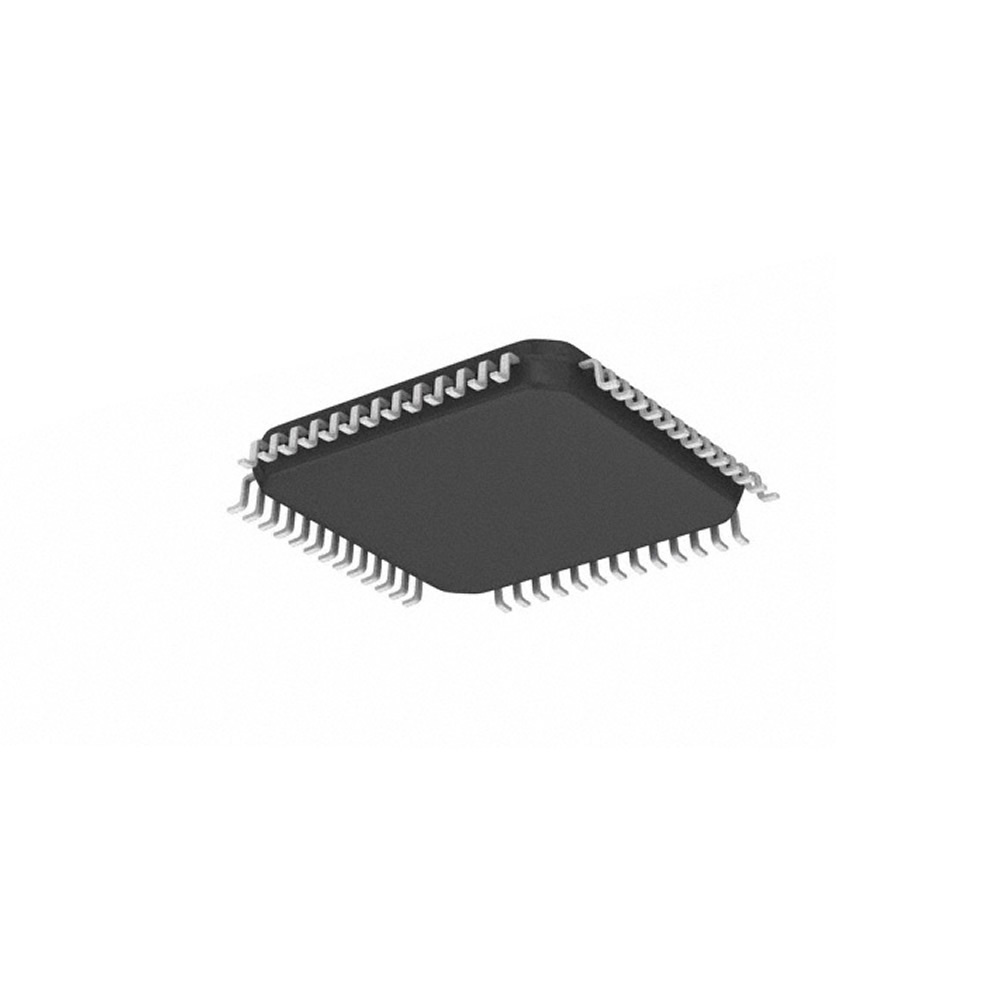

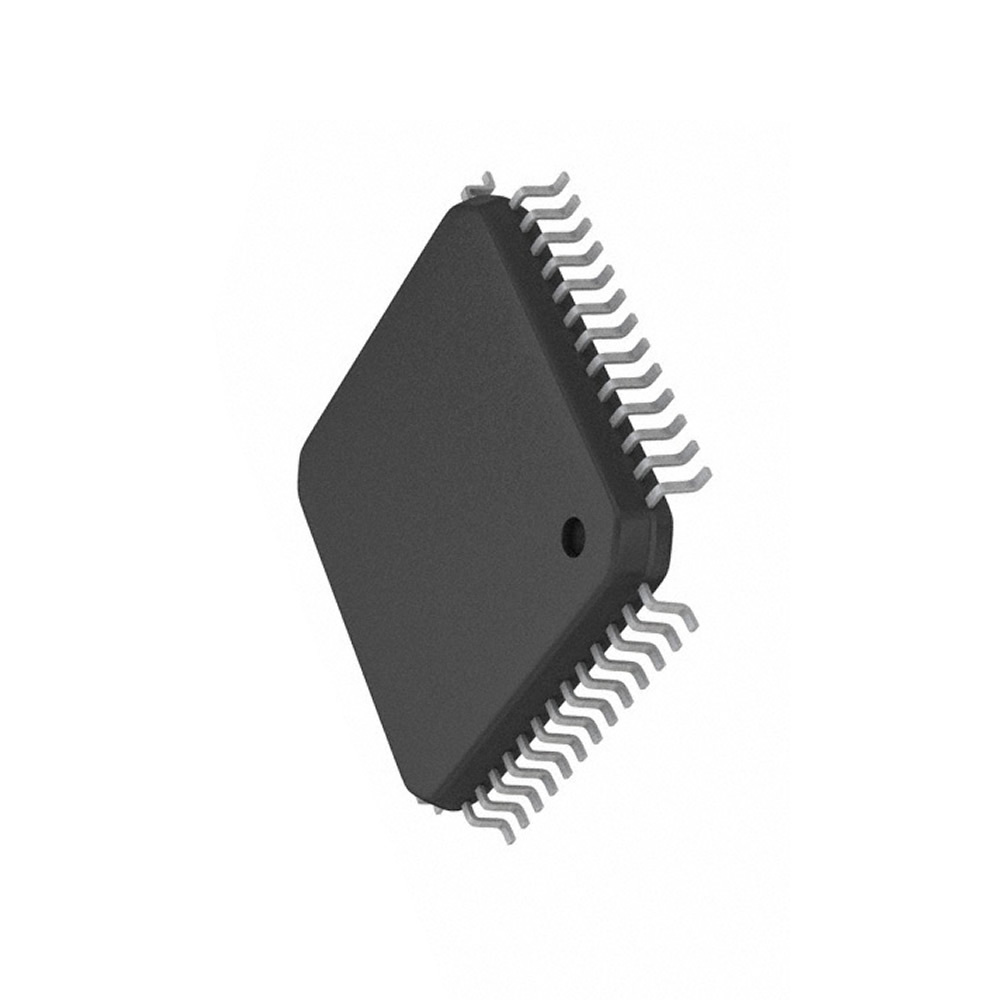

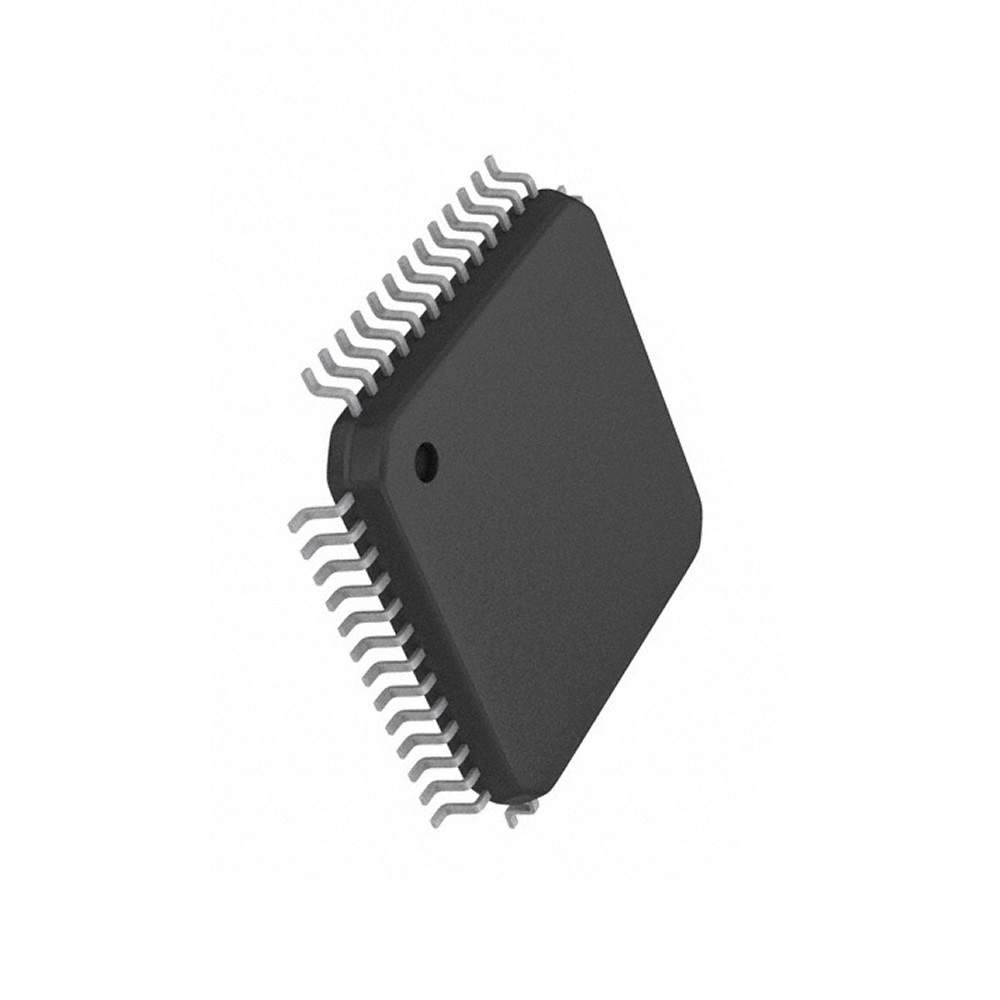

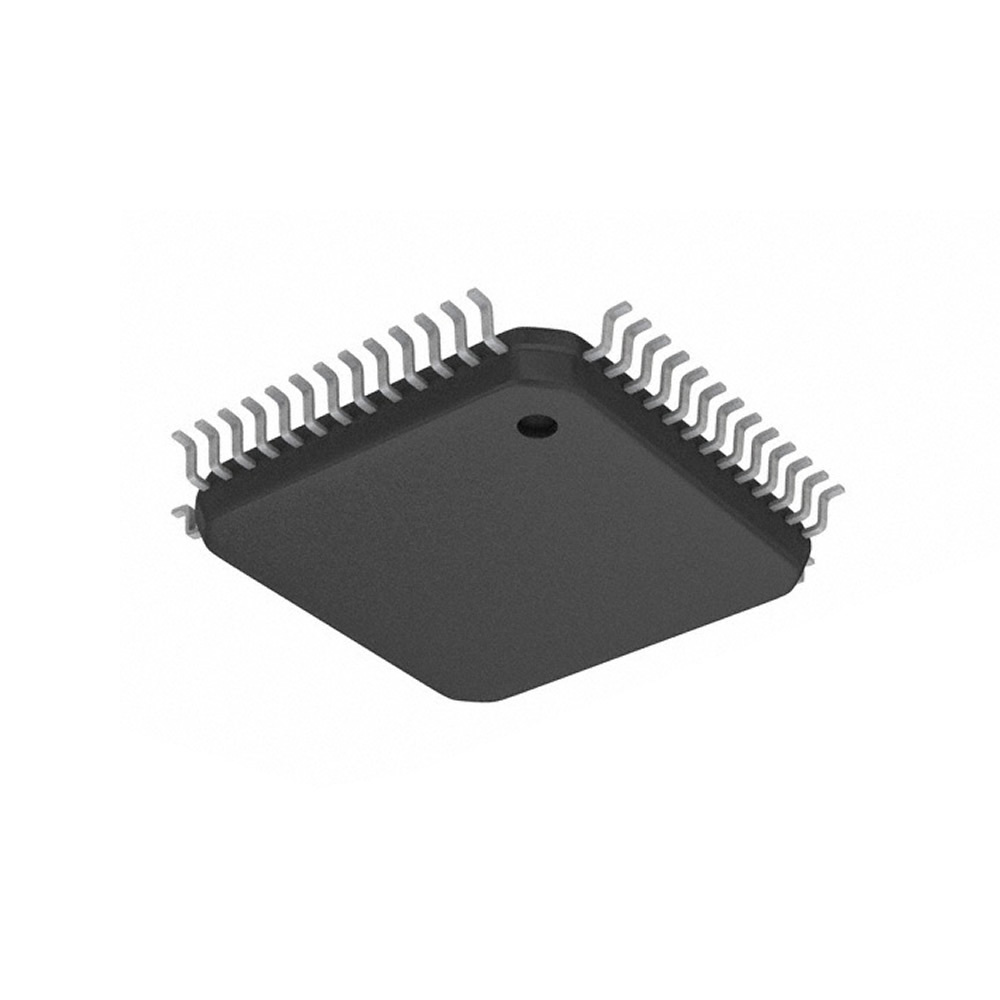

UPD7506C Integrated Circuit CASE: QFP52 MAKE: NEC
Product specifications
Type Integrated Circuit
Case QFP52
Manufacturer NEC
No.of Addr. Modes 5
No. of I/O Lines 12
I/O Line Types G/P Serial
Max. Inst. Len (bits) 16
Min Inst. Len (bits) 8
No. of Intrpt Lines 1
Intrpt Types Int/Ex Vec
No. of Intrpt (mask) 1
fClk Max. (Hz) 260k
fClk Min (Hz) 120k
No. of I/O Ports 3
On-Chip ROM (bytes) 1k
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 32
Oper. Temp (°C) Min -10
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 52-29
No. of Pins 52
Surface Mounted Yes/No YES
SKU 630515
