UPD7507G

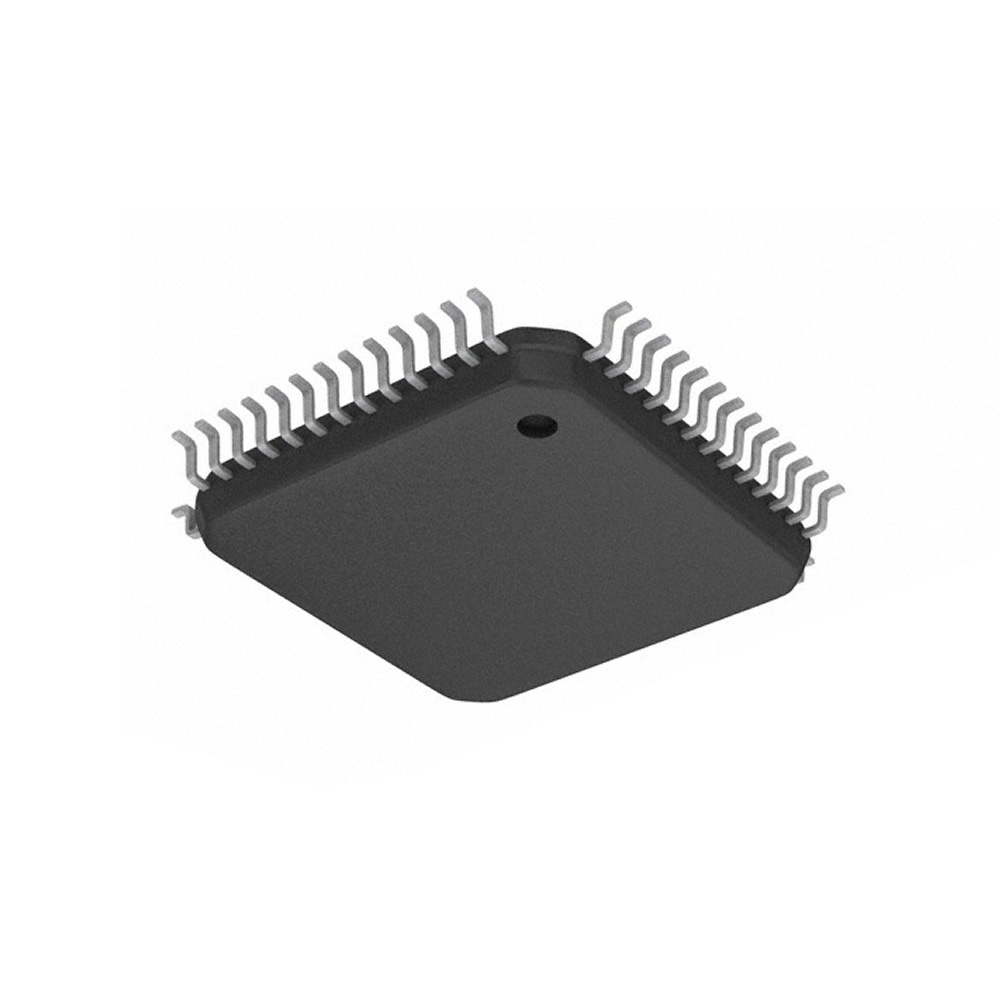

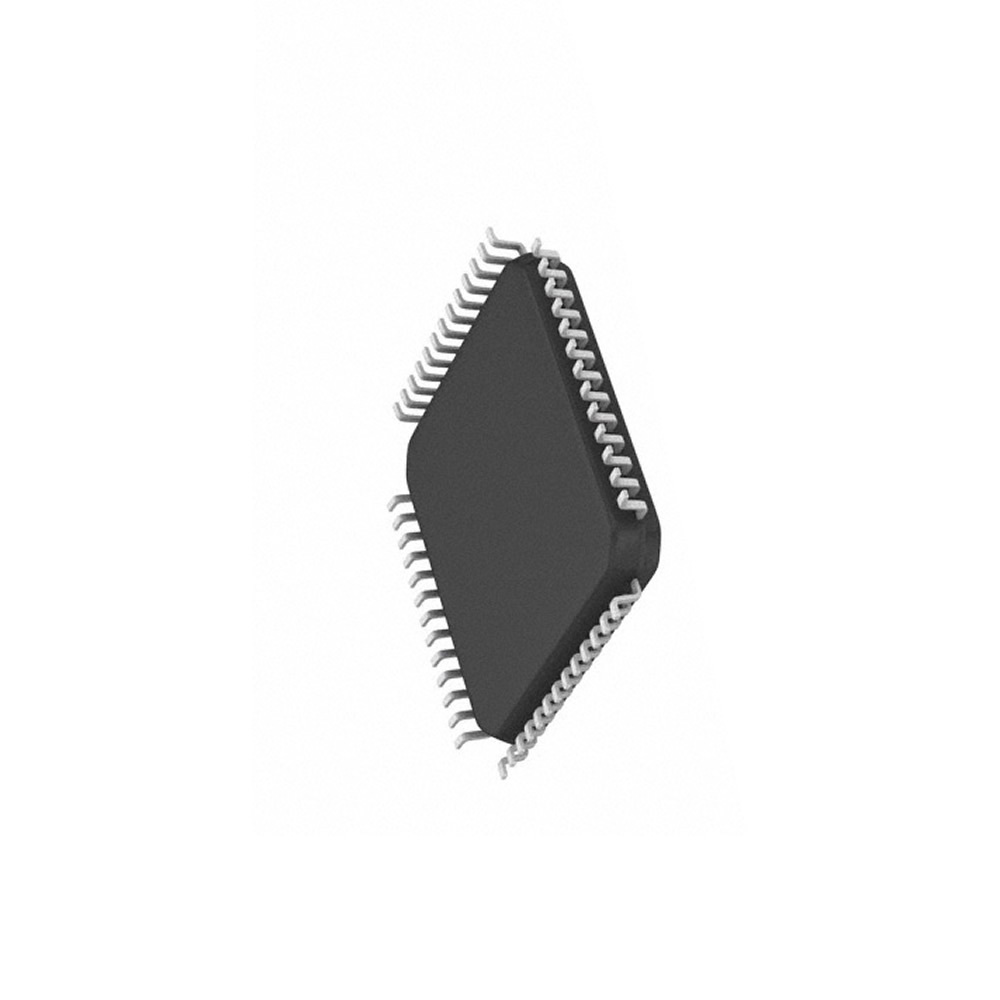

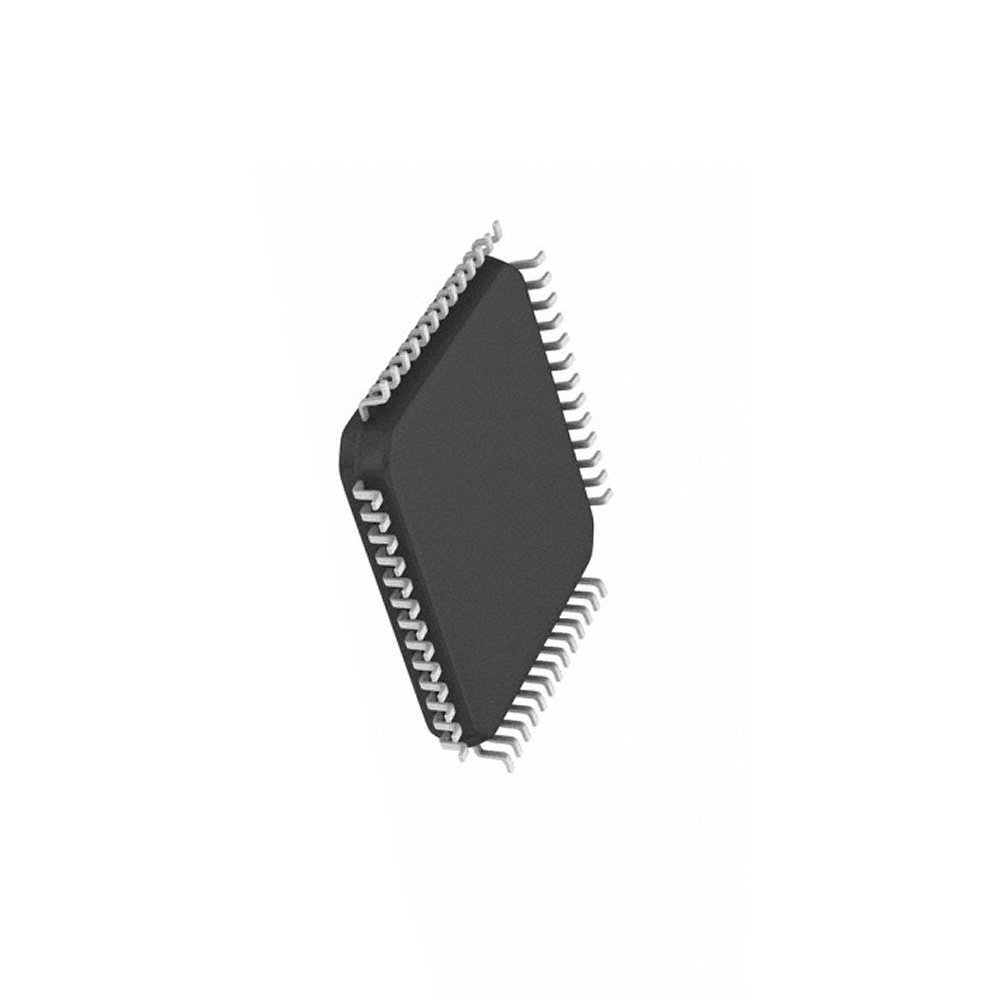

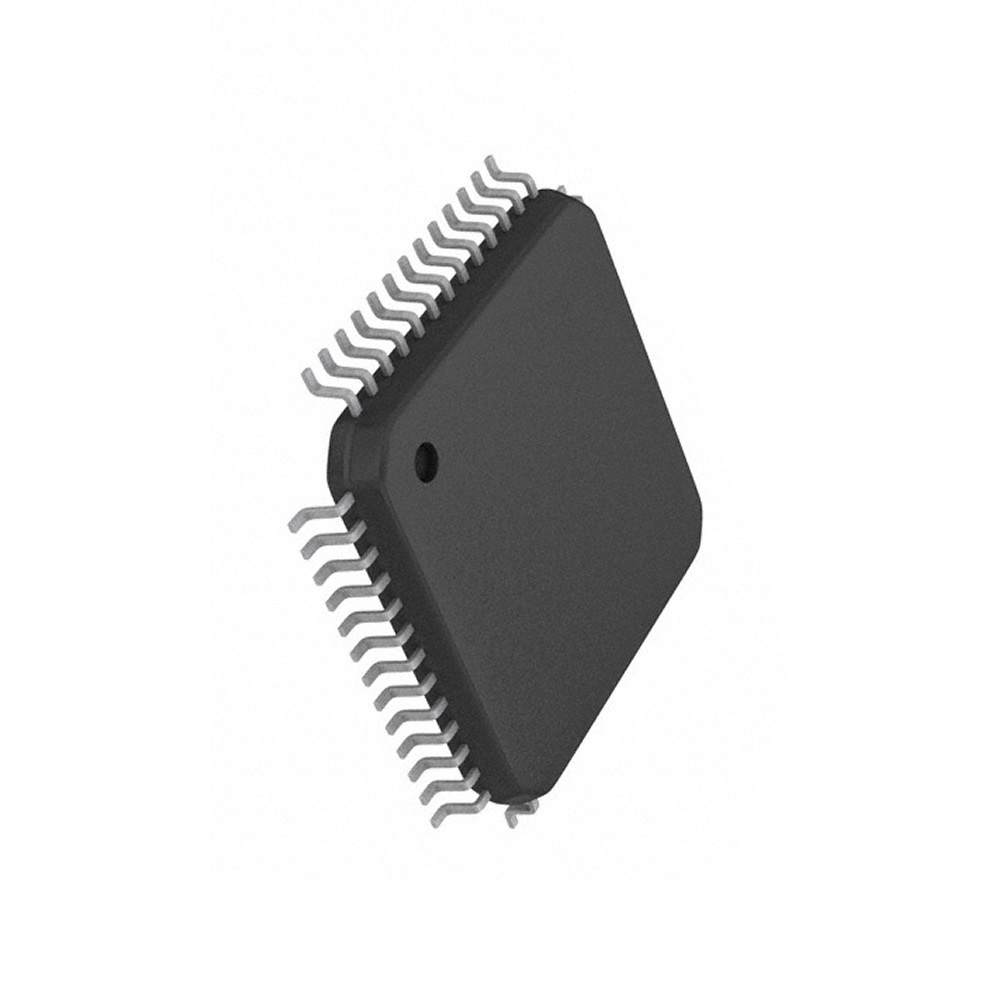

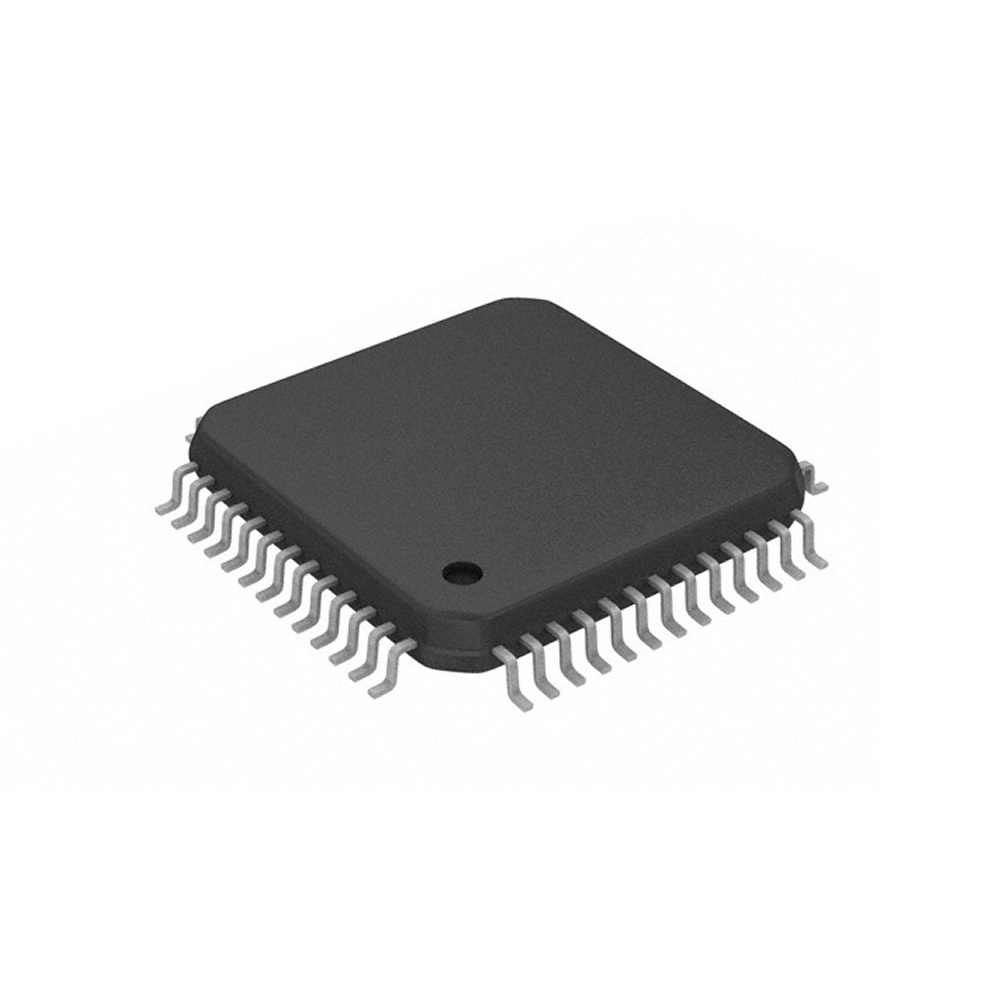

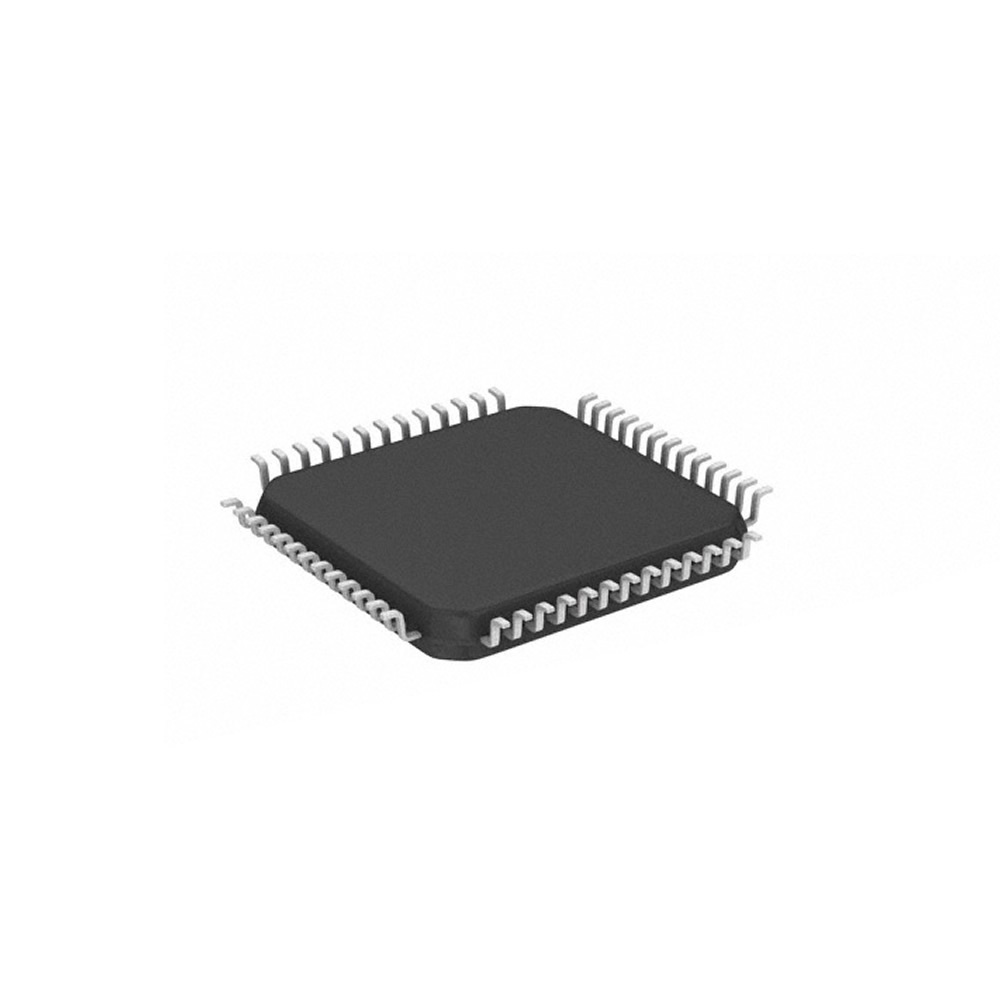

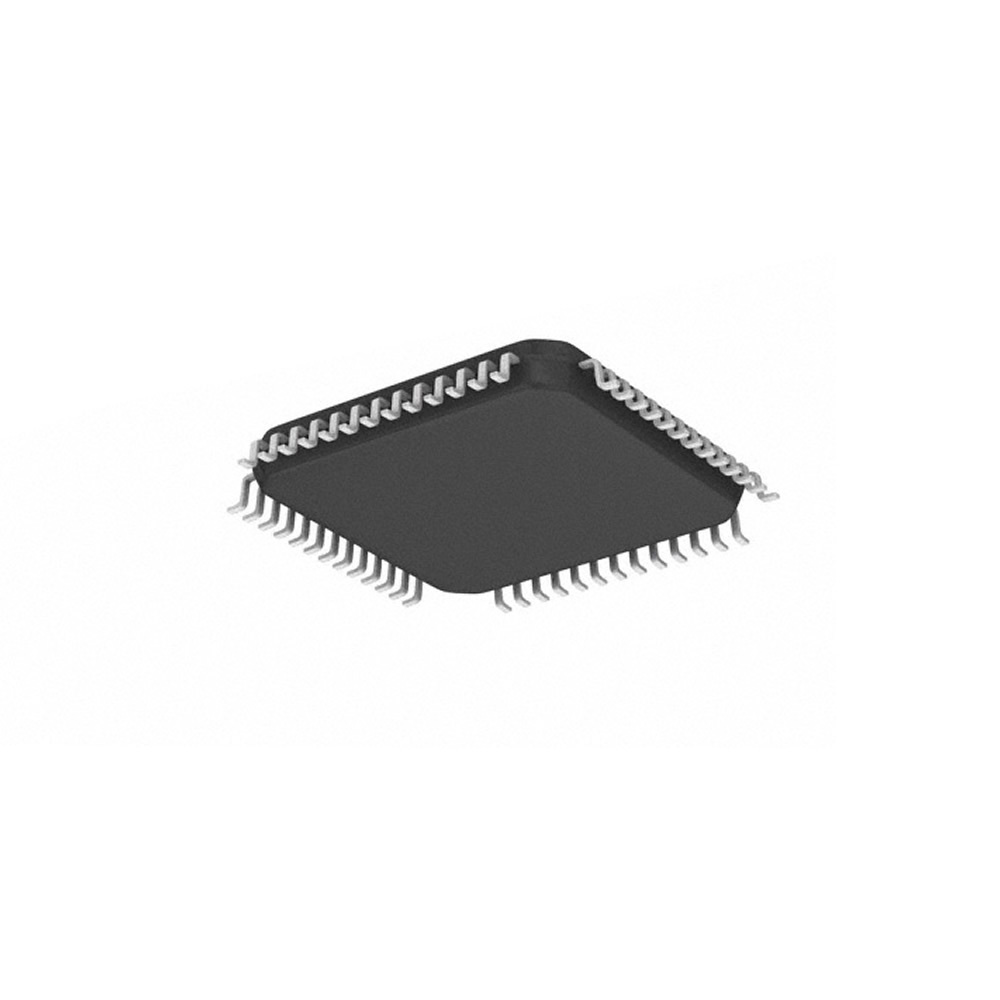

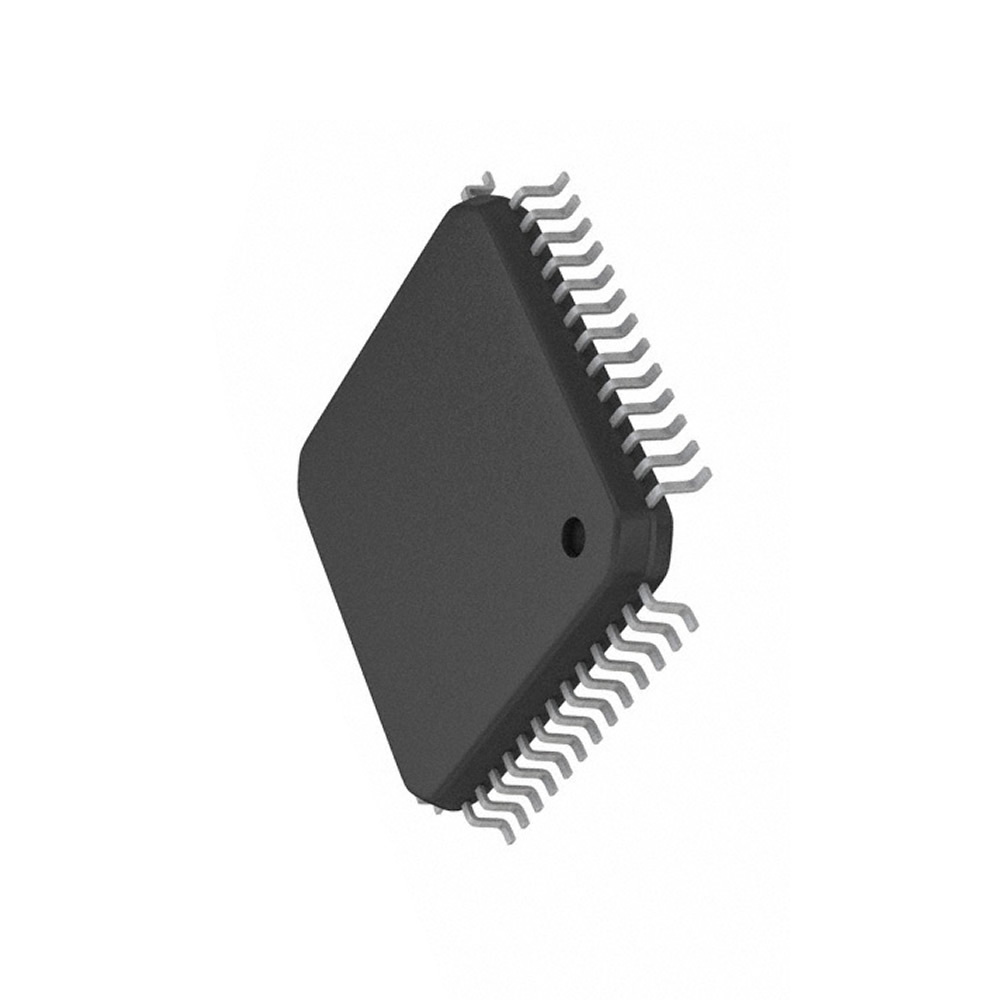

View detailed images (8)

UPD7507G

SKU: UPD7507G
UPD7507G Integrated Circuit CASE: QFP52 MAKE: NEC
Product specifications
Type Integrated Circuit
Case QFP52
Manufacturer NEC
No.of Addr. Modes 5
No. of I/O Lines 20
I/O Line Types G/P Serial
Max. Inst. Len (bits) 16
Min Inst. Len (bits) 8
No. of Intrpt Lines 2
Intrpt Types Int/Ex Vec
No. of Intrpt (mask) 2
fClk Max. (Hz) 100k
fClk Min (Hz) 10k
No. of I/O Ports 5
On-Chip ROM (bytes) 2k
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 64
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 52-30
No. of Pins 52
Surface Mounted Yes/No YES
SKU 630508
