UPD75P316AGF3B9
View detailed images (9)

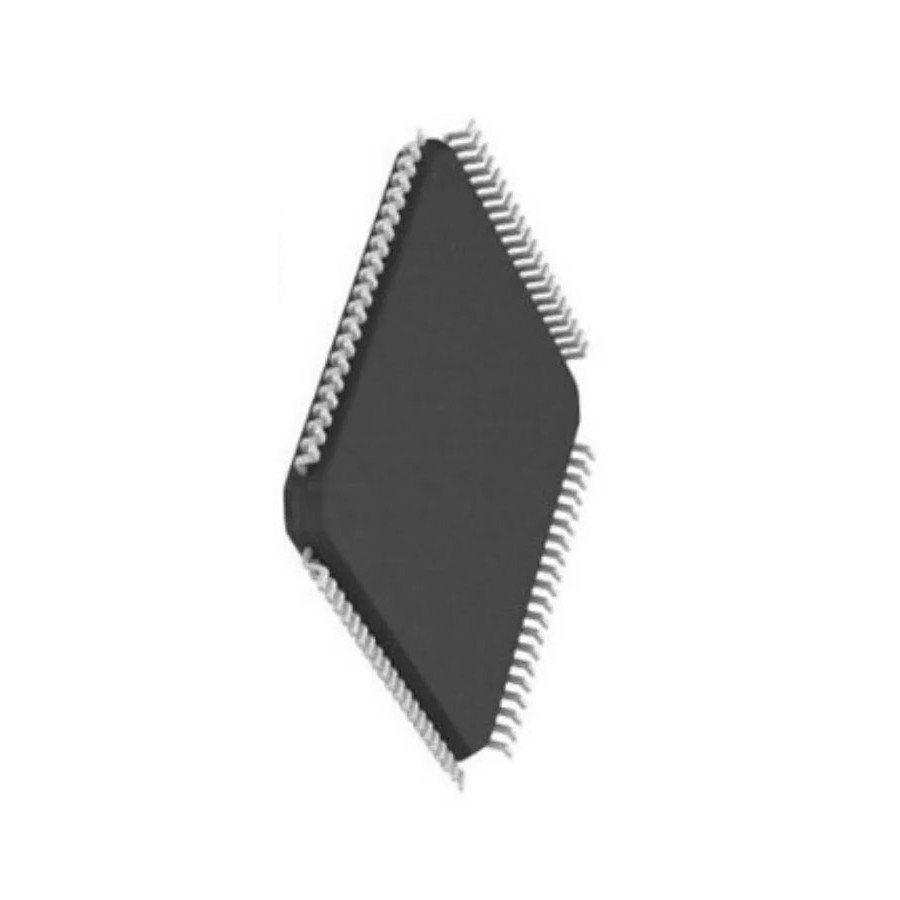

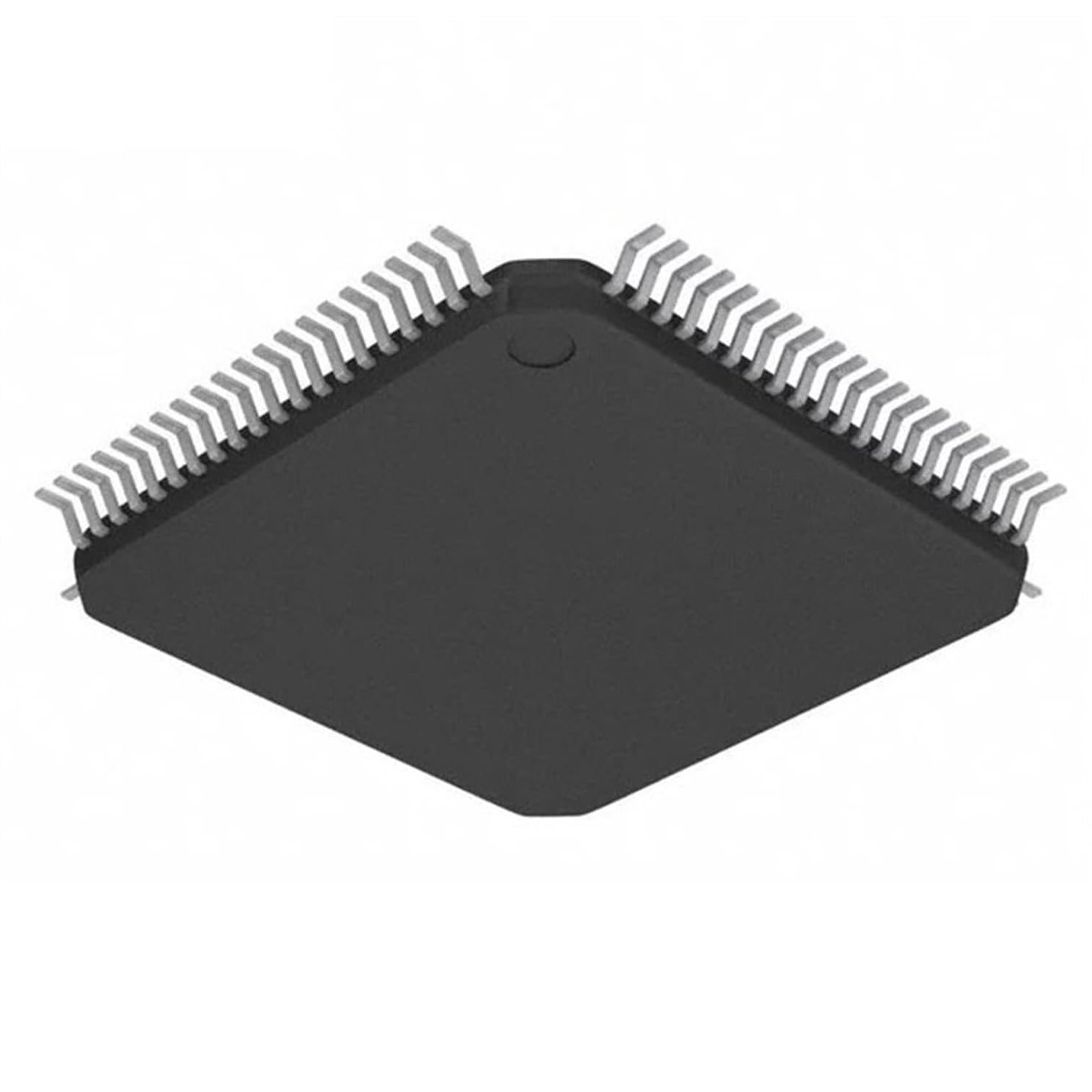

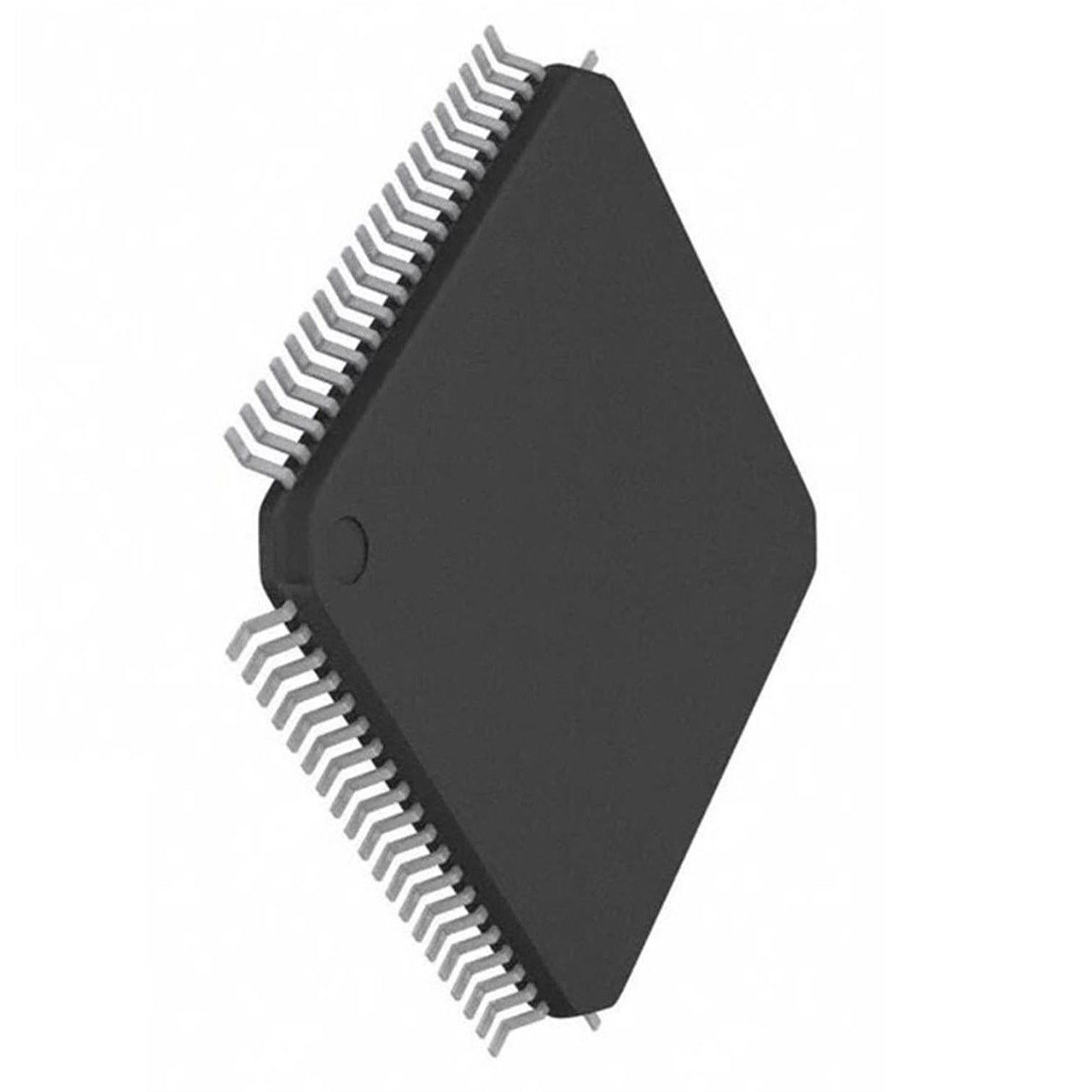

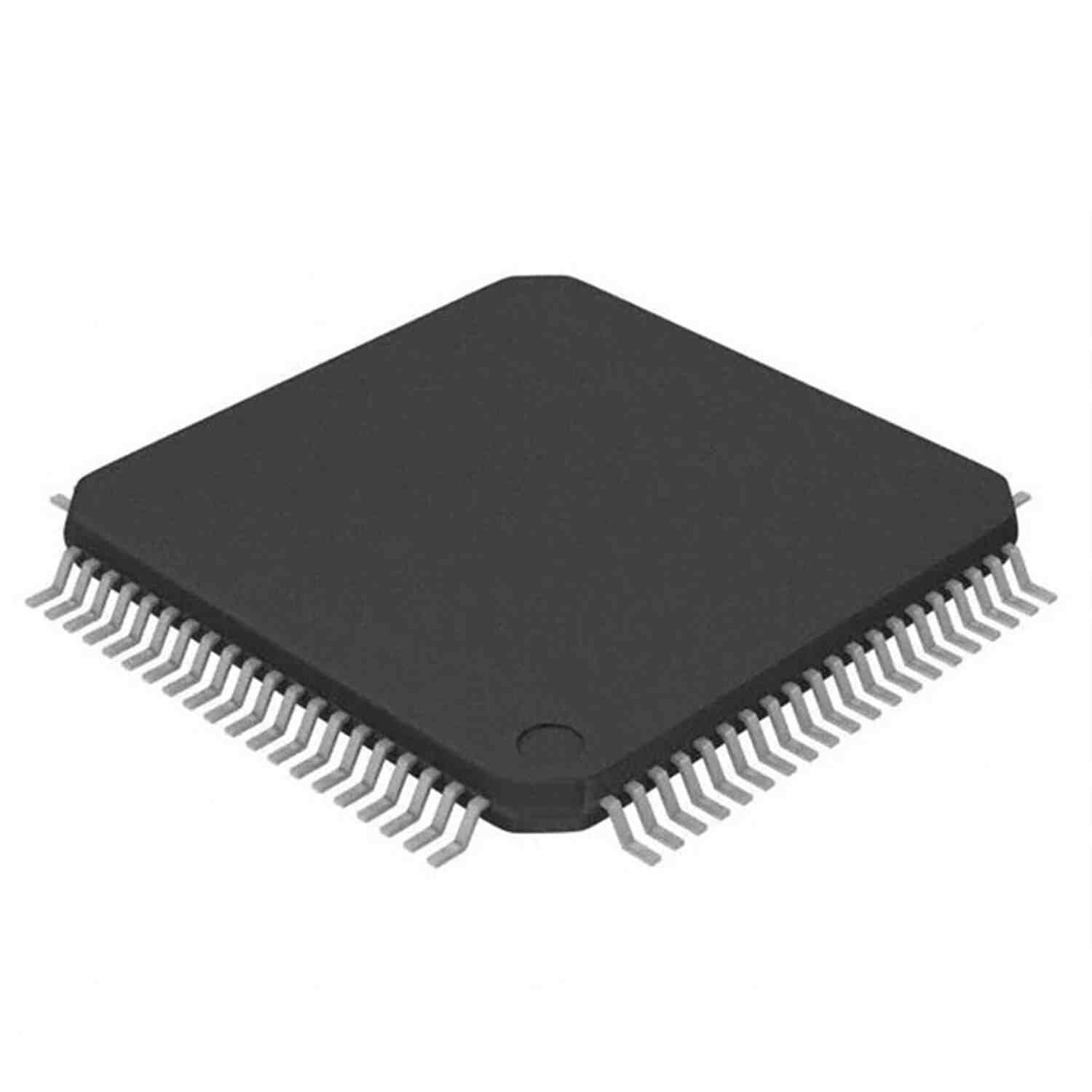

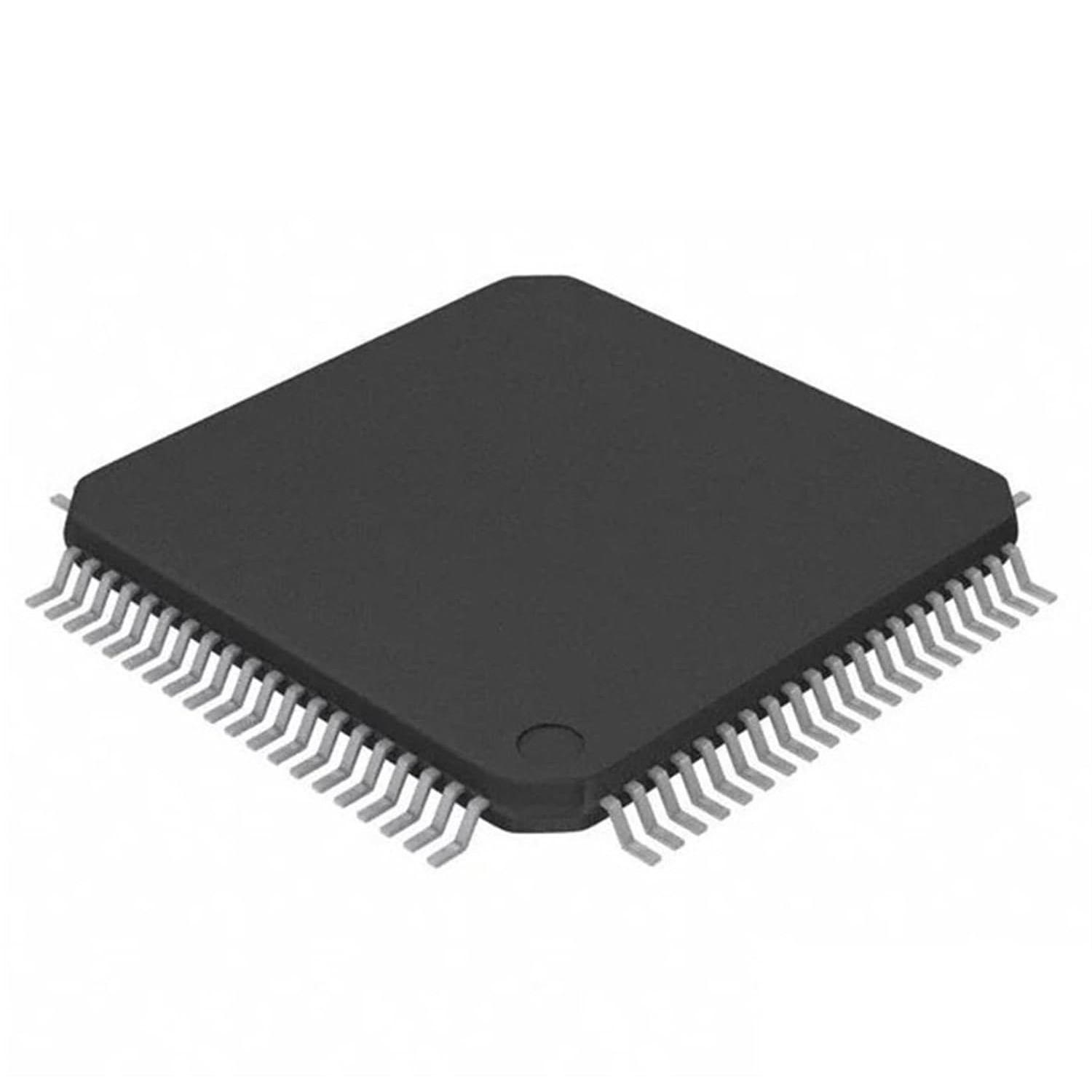

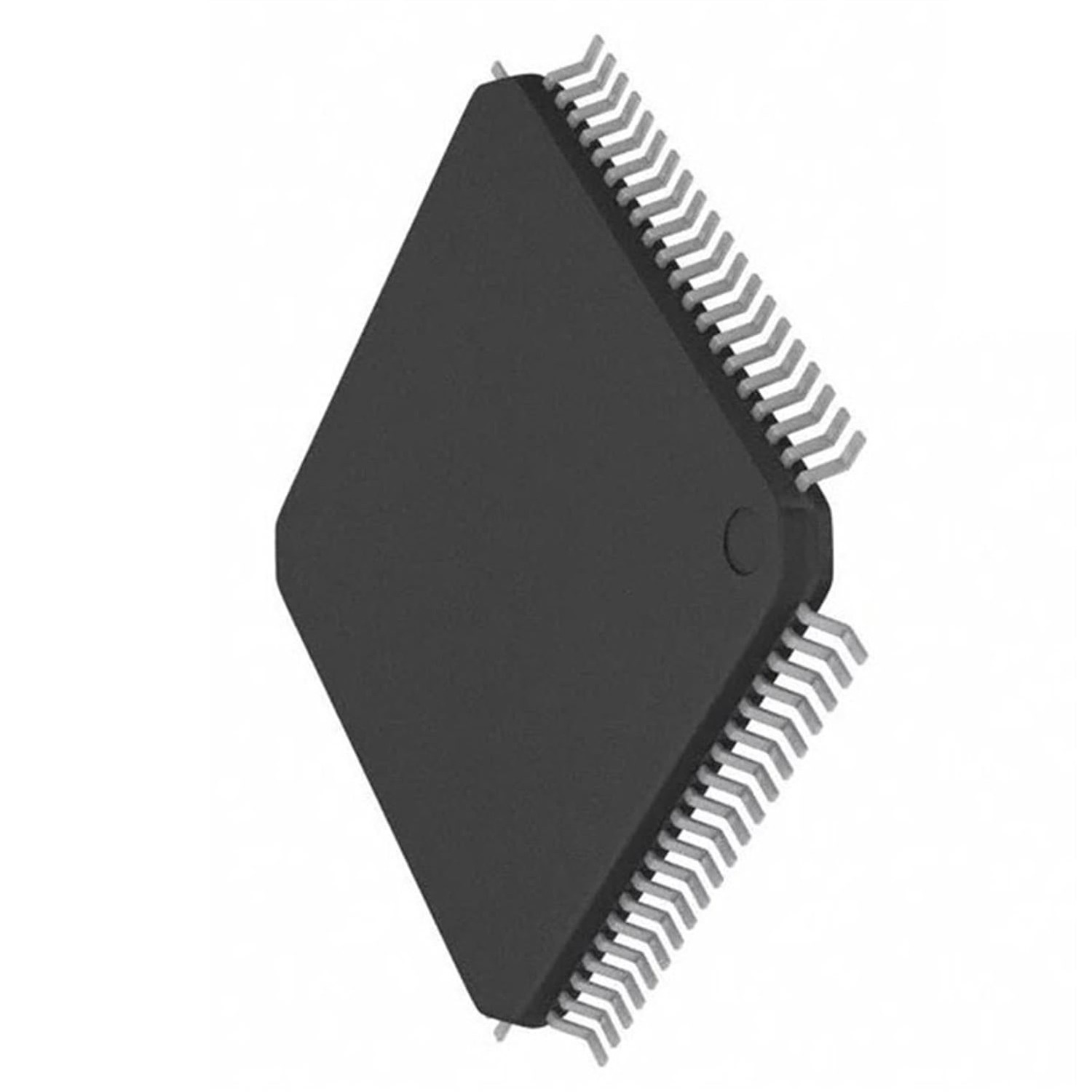

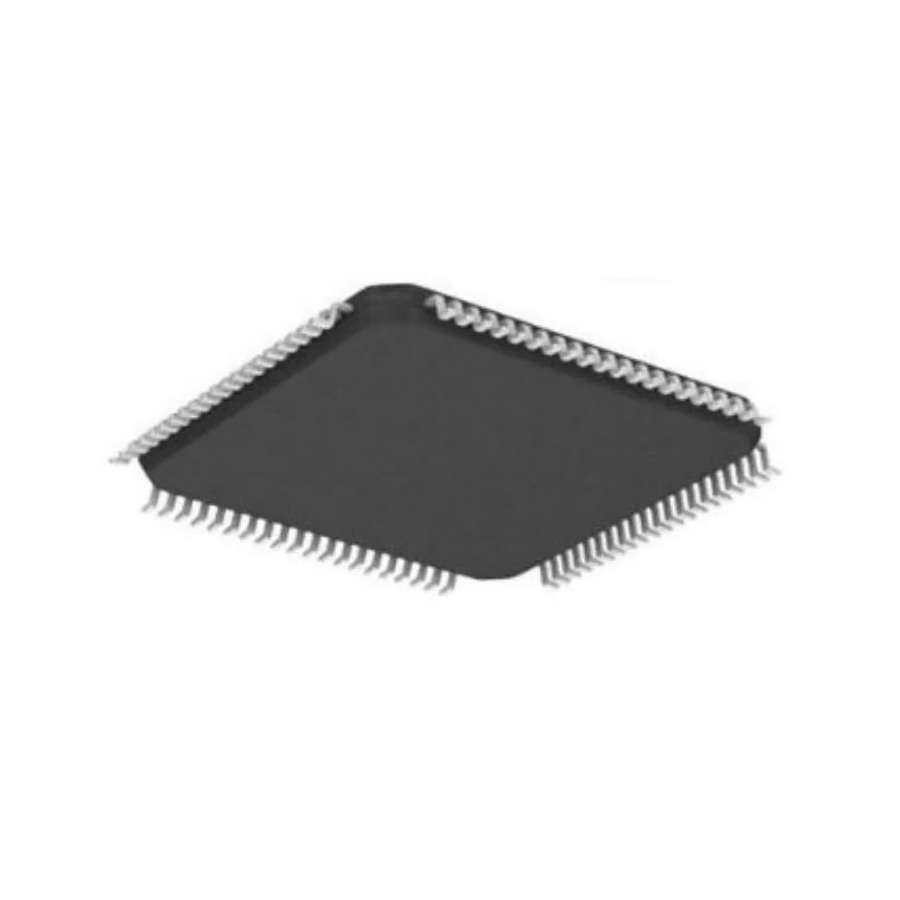

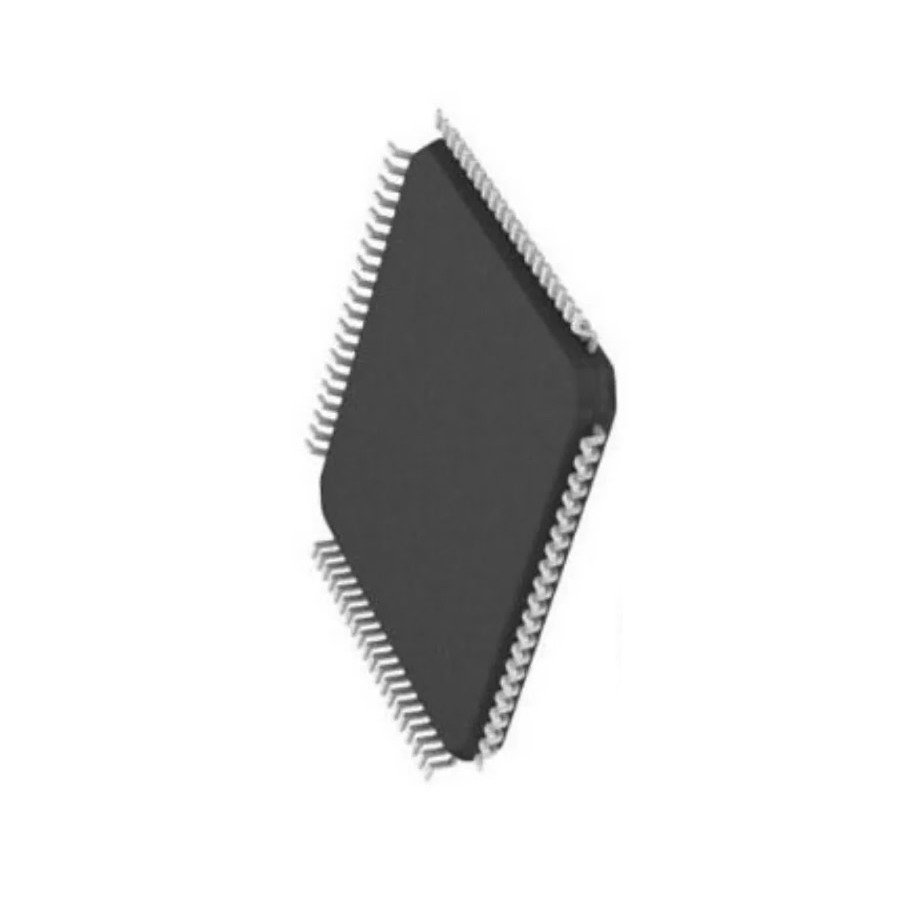

UPD75P316AGF3B9

SKU: UPD75P316AGF3B9

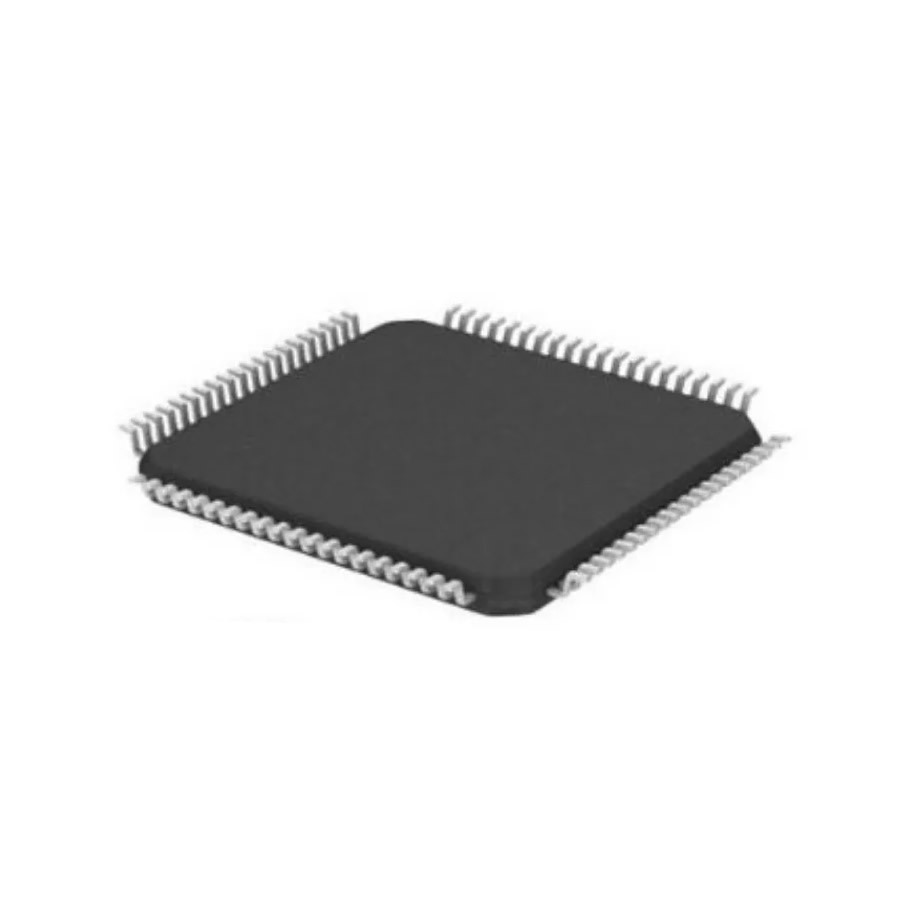

UPD75P316AGF3B9 Integrated Circuit CASE: QFP80 MAKE: NEC
Product specifications
Type Integrated Circuit
Case QFP80
Manufacturer NEC
No.of Addr. Modes 7
No. of I/O Lines 34
I/O Line Types SerialVrbl
Max. Inst. Len (bits) 24
Min Inst. Len (bits) 8
No. of Intrpt Lines 4
Intrpt Types Prty/Vecto
fClk Max. (Hz) 5.0M
fClk Min (Hz) 1.0M
No. of I/O Ports 11
On-Chip ROM (bytes) 16k
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 2k
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 80-1
No. of Pins 80
Surface Mounted Yes/No YES
SKU 1125421
