UPD7800G
View detailed images (13)

UPD7800G

SKU: UPD7800G

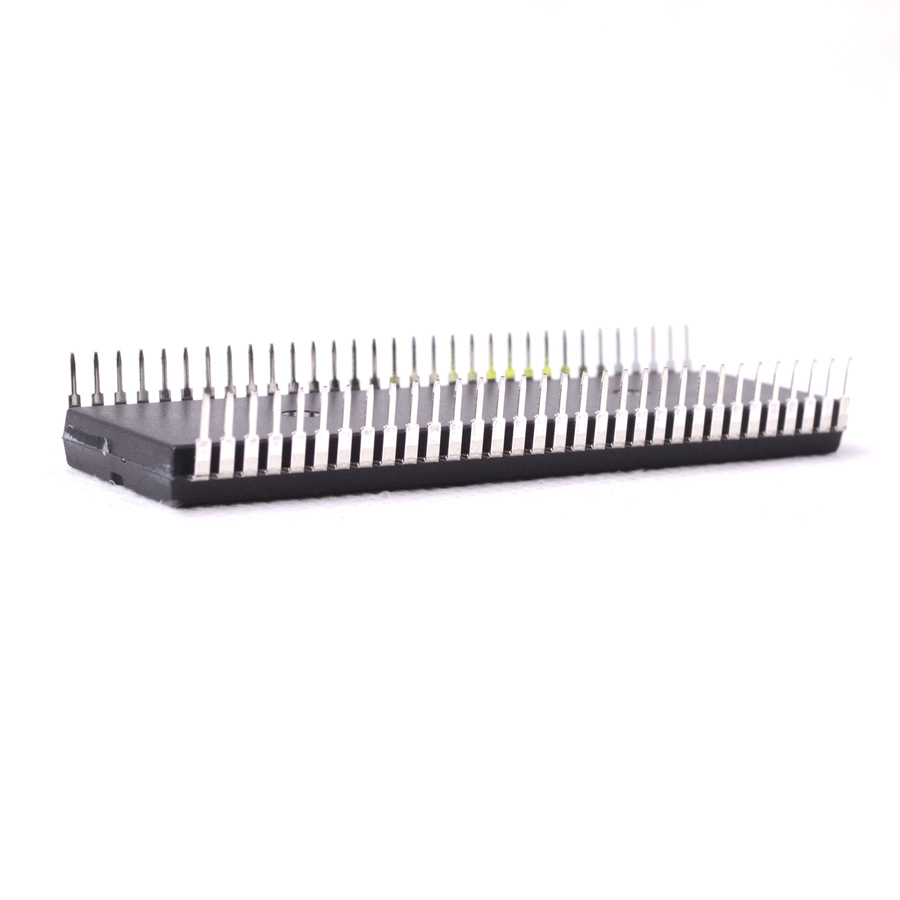

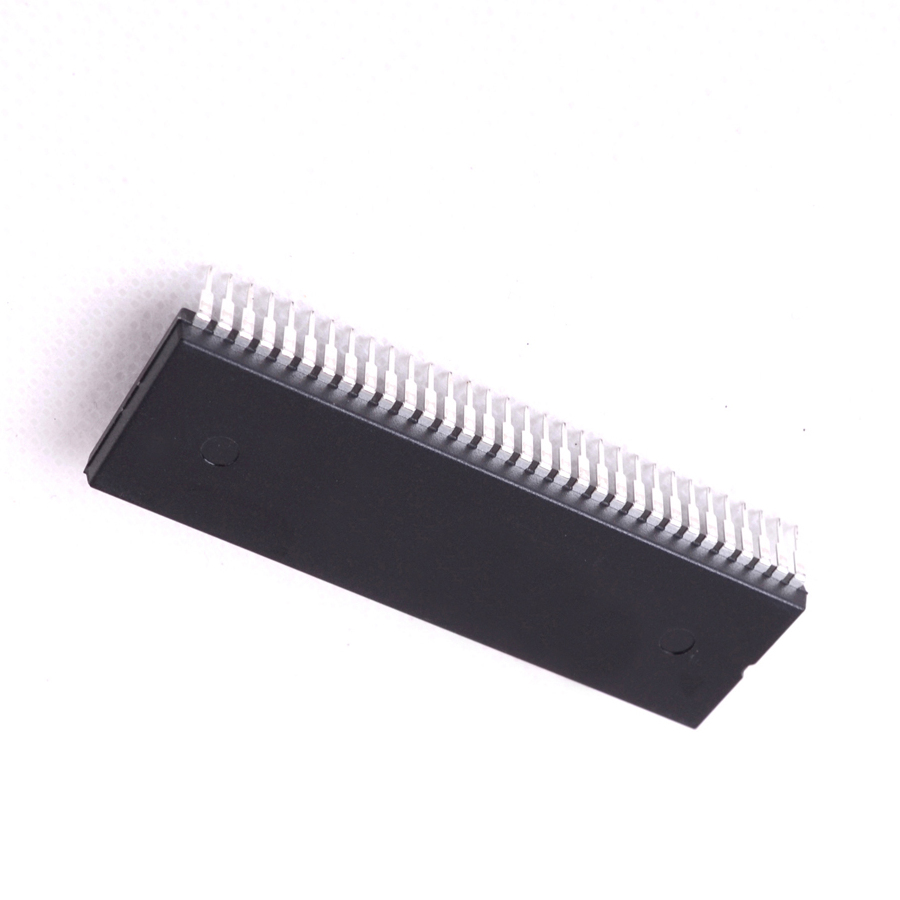

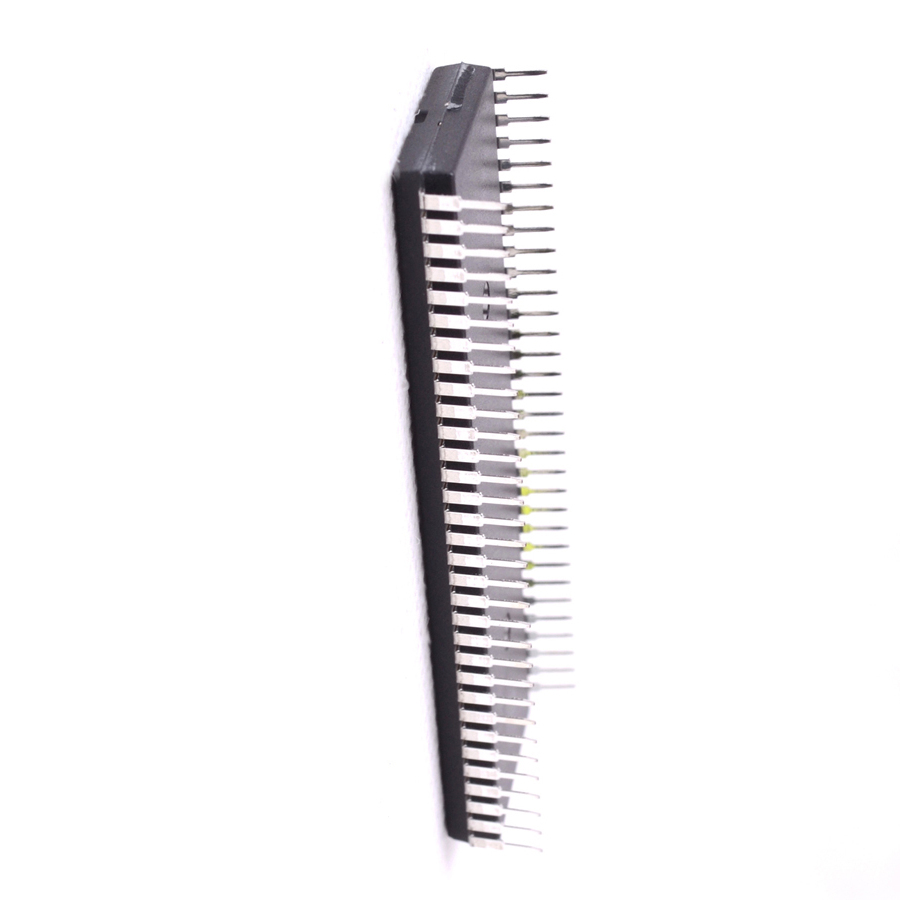

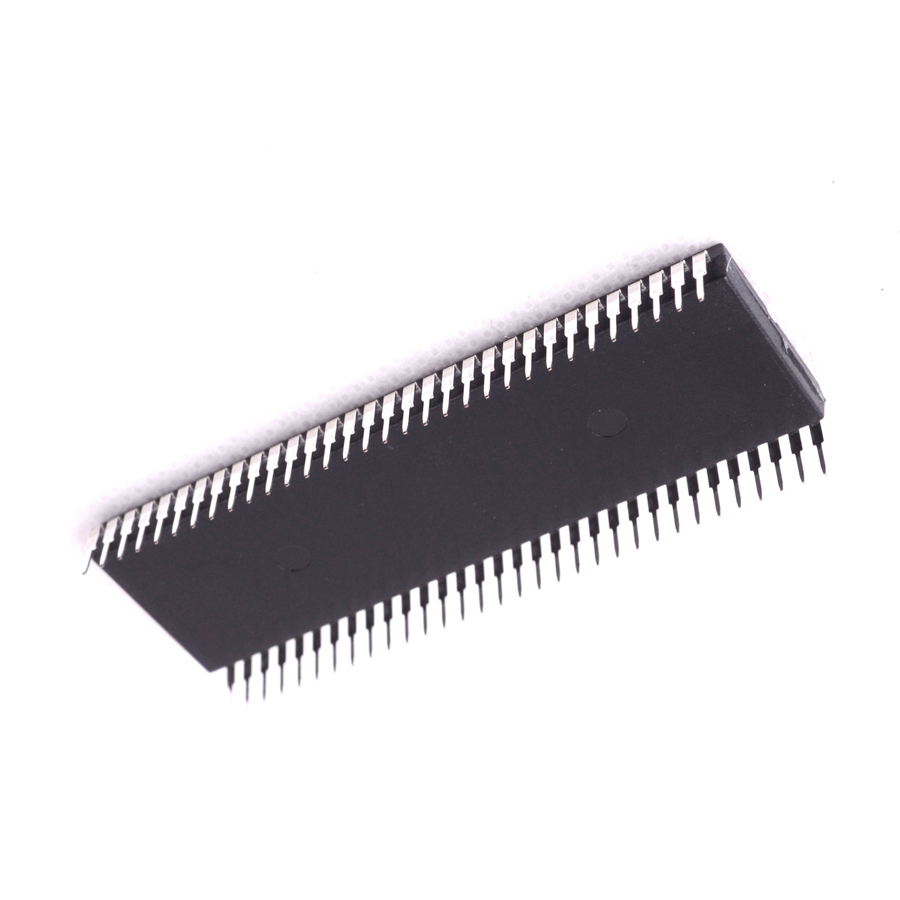

UPD7800G Integrated Circuit CASE: DIP64 MAKE: NEC
Product specifications
Type Integrated Circuit
Case DIP64
Manufacturer NEC
Mem. Addr Rnge 64k
No.of Addr. Modes 8
No. of I/O Lines 16
I/O Line Types ByteSerial
Max. Inst. Len (bits) 16
Min Inst. Len (bits) 8
No. of Intrpt Lines 3
Intrpt Types Prty/Ext V
No. of Intrpt (mask) 3
fClk Max. (Hz) 4.0M
No. of I/O Ports 3
Nom. Supp Volt 5.0
Tech. NMOS Integrated Circuit
On-Chip RAM (Bytes) 128
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 64-86
No. of Pins 64
Surface Mounted Yes/No YES
SKU 630172
