UPD7810G
View detailed images (4)

UPD7810G

SKU: UPD7810G

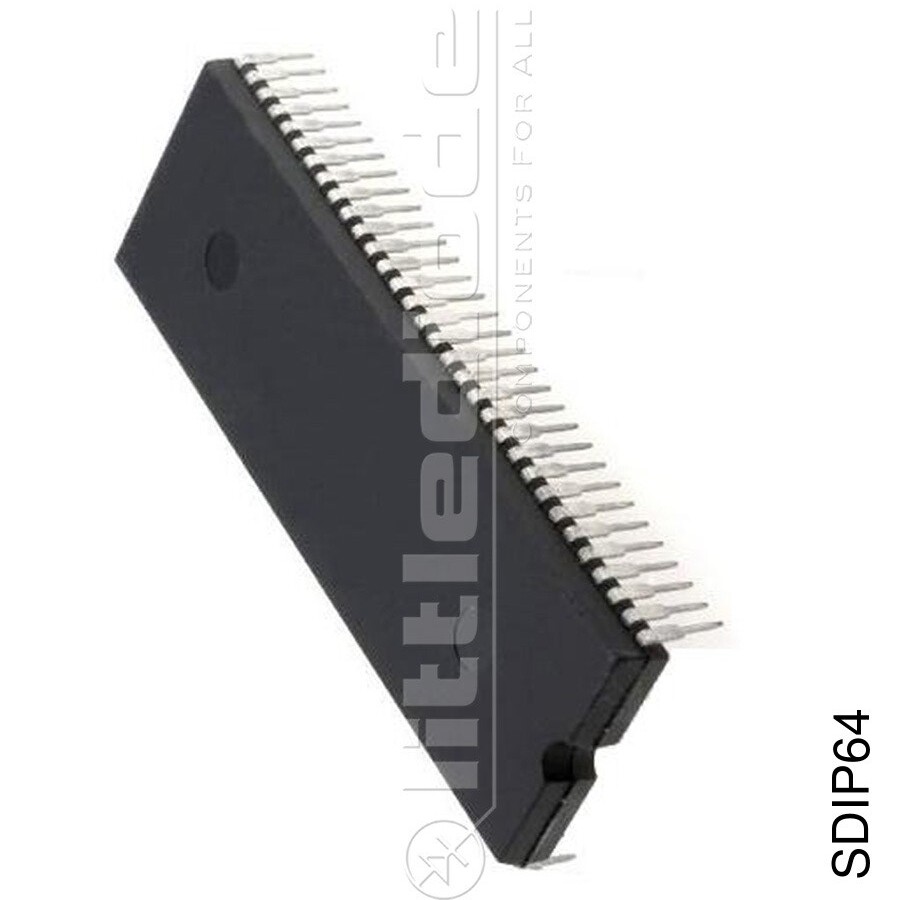

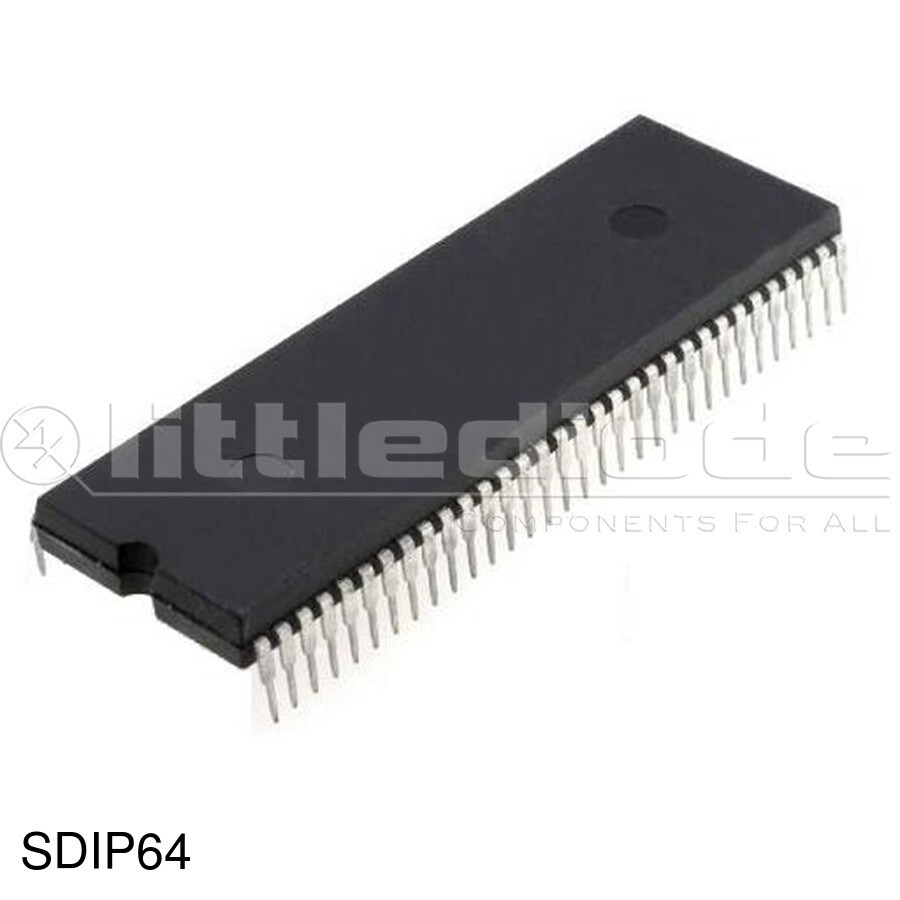

UPD7810G Integrated Circuit CASE: SDIP64 MAKE: NEC
Price:
£28.79 Inc. VAT (£23.99 Ex. VAT)
£28.79 Inc. VAT (£23.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Integrated Circuit
Case SDIP64
Manufacturer NEC
No.of Addr. Modes 8
No. of I/O Lines 32
I/O Line Types Byte
Max. Inst. Len (bits) 32
Min Inst. Len (bits) 8
No. of Intrpt Lines 3
No. of Intrpt (NMI) 1
Intrpt Types Prty/Ext V
No. of Intrpt (mask) 2
fClk Max. (Hz) 10M
No. of I/O Ports 5
Nom. Supp Volt 5.0
Tech. NMOS Integrated Circuit
Oper. Temp (°C) Min -10
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 64-90
No. of Pins 64
Surface Mounted Yes/No NO
SKU 328181
