UPD78220L

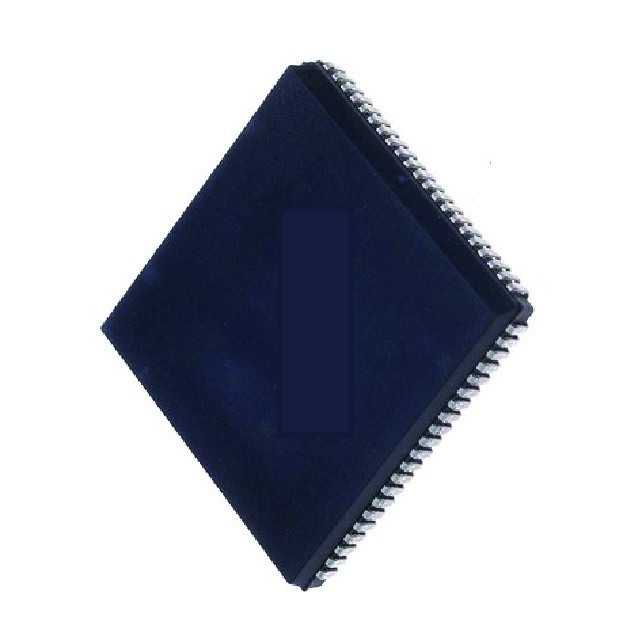

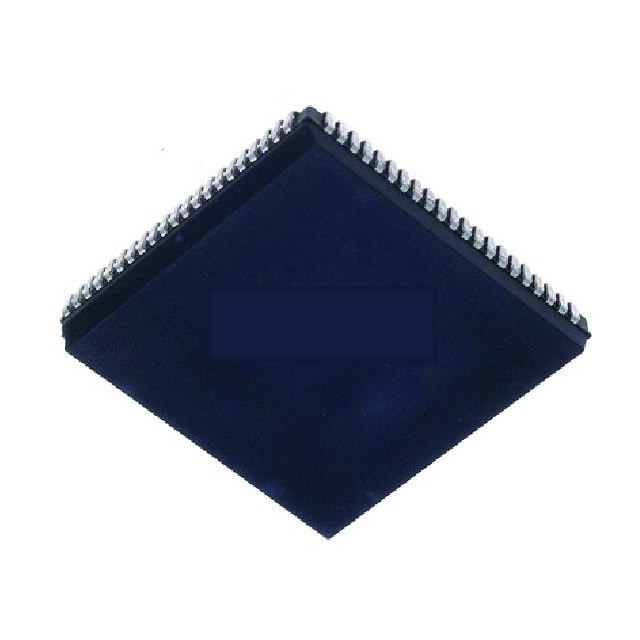

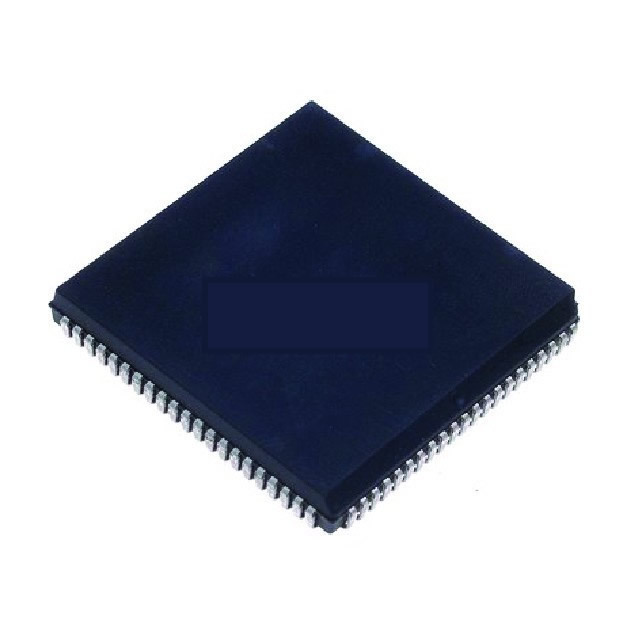

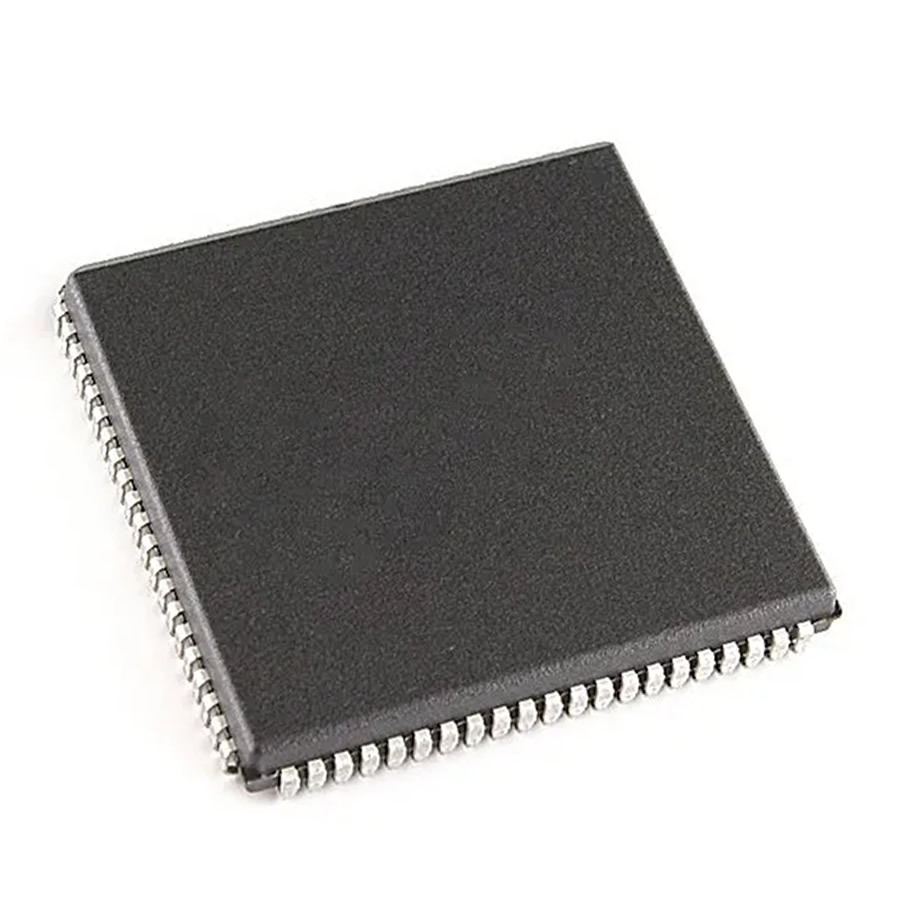

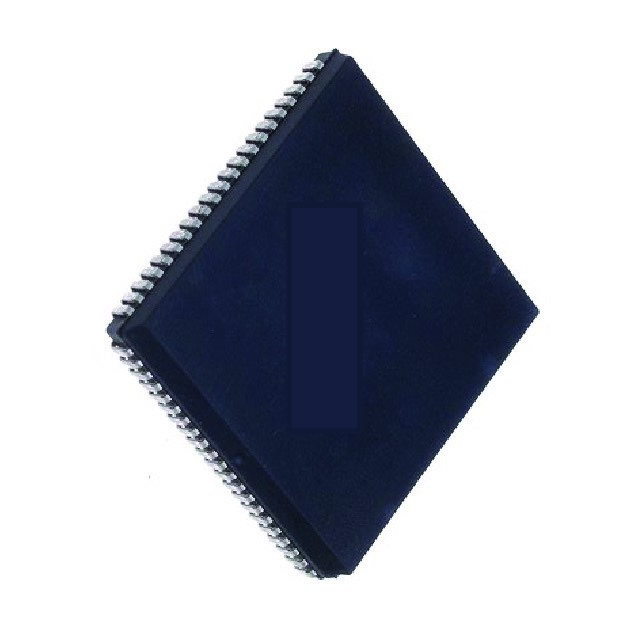

View detailed images (5)

UPD78220L

SKU: UPD78220L
UPD78220L Integrated Circuit CASE: PLCC84 MAKE: NEC
Product specifications
Type Integrated Circuit
Case PLCC84
Manufacturer NEC
No. of I/O Lines 73
I/O Line Types Byte/GenP
Max. Inst. Len (bits) 40
Min Inst. Len (bits) 8
No. of Intrpt Lines 8
No. of Intrpt (NMI) 1
Intrpt Types Prty/Softw
No. of Intrpt (mask) 17
fClk Max. (Hz) 12M
No. of I/O Ports 11
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 640
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
Pinout Equivalence Number 84-120
No. of Pins 84
Surface Mounted Yes/No YES
SKU 455826
