Home / Integrated Circuit / UPD79021L
UPD79021L
View detailed images (5)

UPD79021L

SKU: UPD79021L

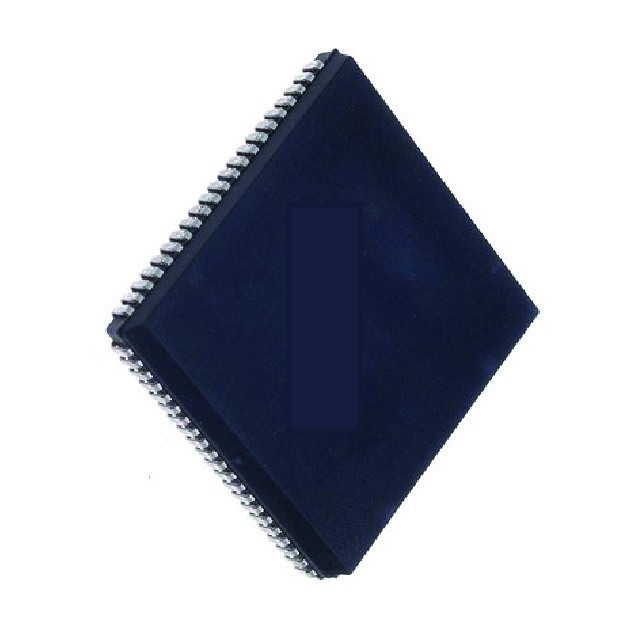

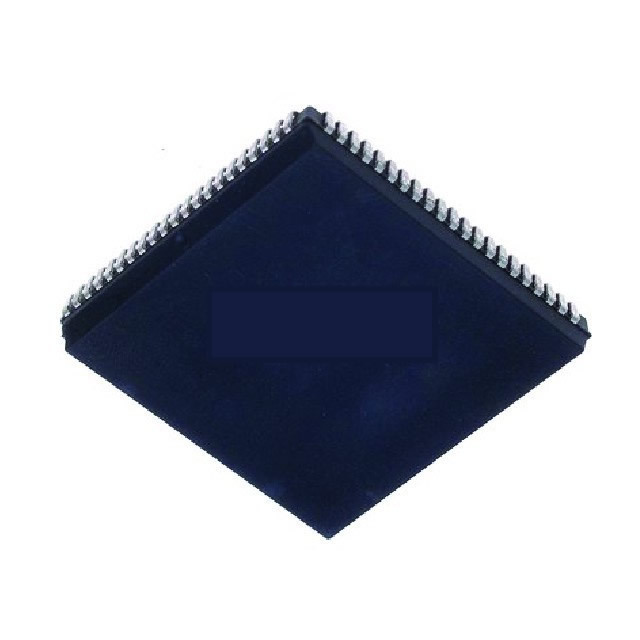

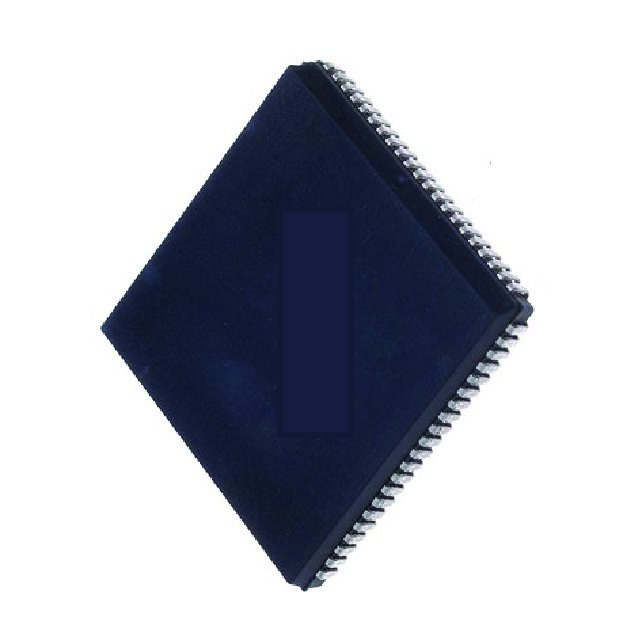

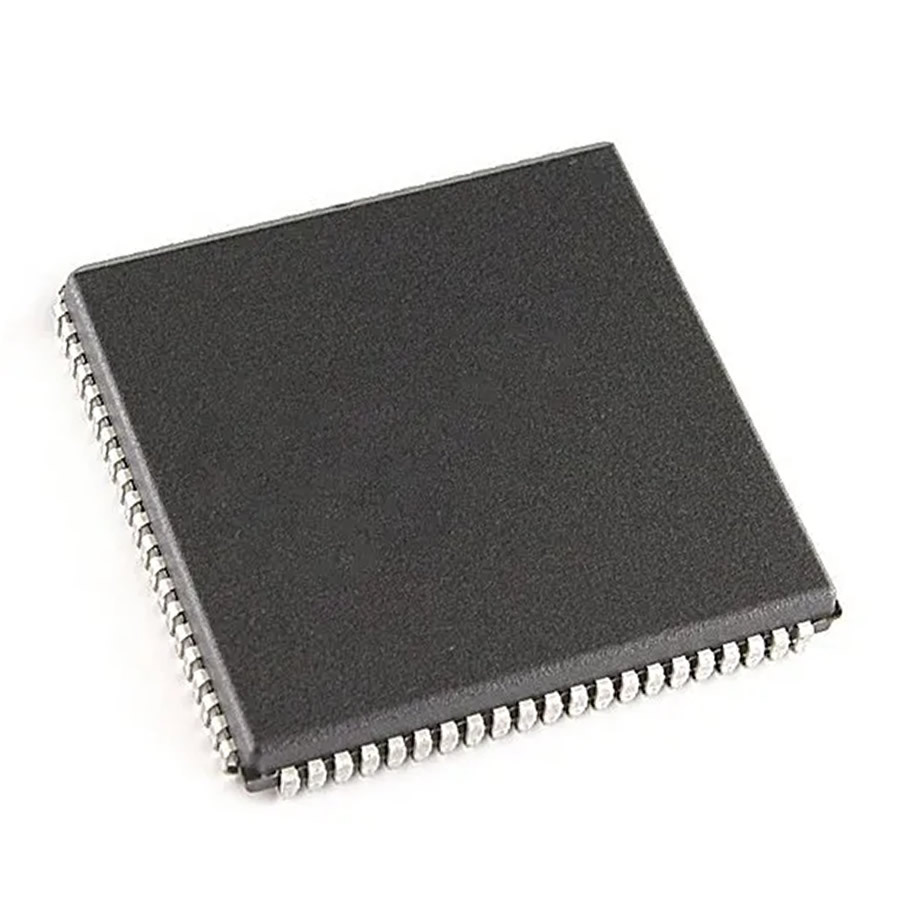

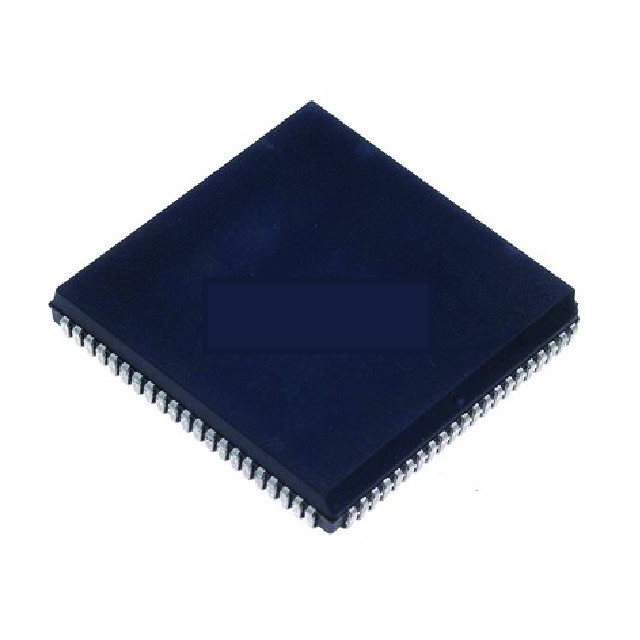

UPD79021L Integrated Circuit CASE: PLCC84 MAKE: NEC
Product specifications
Type Integrated Circuit
Case PLCC84
Manufacturer NEC
Mem. Addr Rnge 1M
No.of Addr. Modes 7
I/O Line Types G/P Serial
Max. Inst. Len (bits) 24
Min Inst. Len (bits) 8
No. of Intrpt Lines 4
No. of Intrpt (NMI) 1
Intrpt Types Prty/Int V
No. of Intrpt (mask) 3
fClk Max. (Hz) 8.0M
fClk Min (Hz) 1.0M
No. of I/O Ports 3
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 256
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number N/A
No. of Pins N/A
Surface Mounted Yes/No YES
SKU 455844
