Home / Integrated Circuit / XC2018-50PC84C
XC2018-50PC84C
View detailed images (5)

XC2018-50PC84C

SKU: XC2018-50PC84C

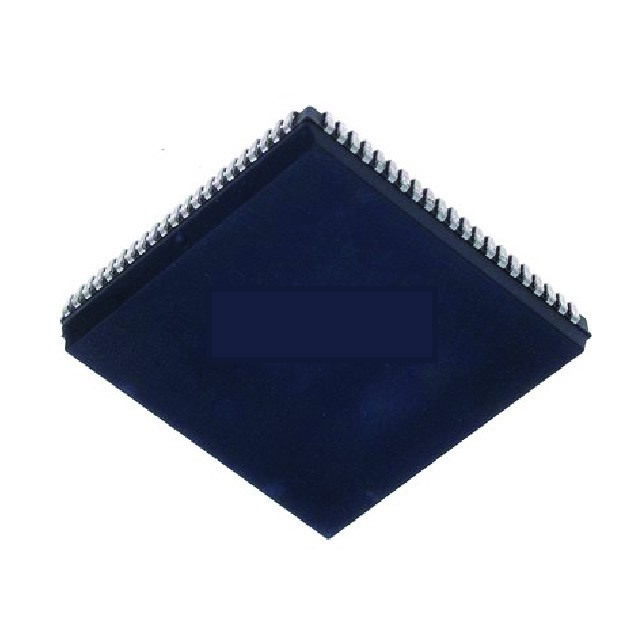

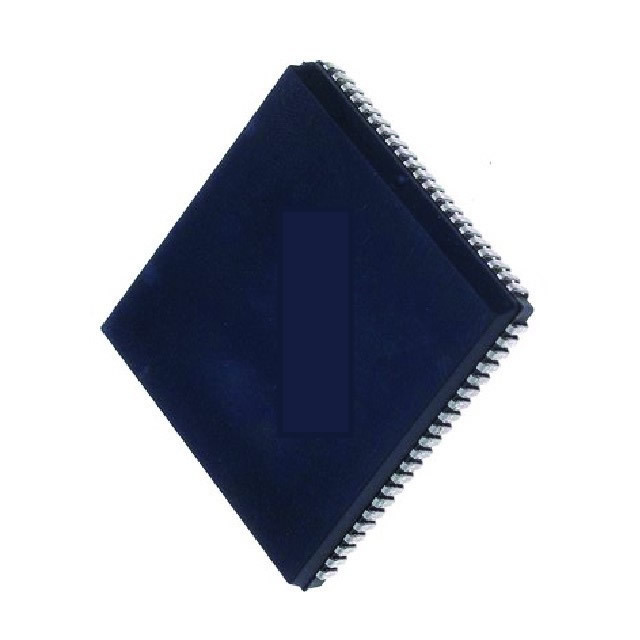

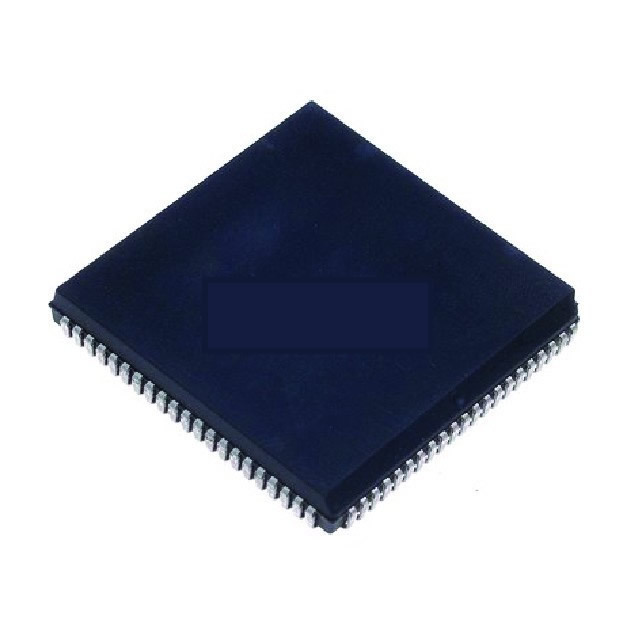

XC2018-50PC84C Integrated Circuit - Case: PLCC84 Make: Xilinx
Price: £19.99
+ VAT 20% for UK purchases
£19.99
Qty
+ VAT 20% for UK purchases
  • More pieces shipped in 14 days
?
Product specifications
Type Integrated Circuit
Case PLCC84
Manufacturer Xilinx
Toggle Rate 50M
VIH Min. (TTL) 2.0
VIH Min. (CMOS) 3.5
VIL Max. (TTL) 0.8
Inp Curr. Logic 0 1.0
VOH Min. 3.86
VOL Max. .32
Nom. Pos. Supp 5
Quiescent Current Max (CMOS) 5m
Quiescent Current Max (TTL) 12m
Tech. CMOS Integrated Circuit
Package Body Material Plastic
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@Iol (A) 4.0m
@IOH (test) 4.0m
Logic Level Family TTL/CMOS
Vsup (+) Maximum (V) 7.0
Digital Input V Max (V) 7.5
Gate Capacity 1800
Configurable Logic Blocks 100
Number of User I/Os 74
Program Data (Bits) 17878
Pinout Equivalence Number 84-40
JEDEC Std 30 Outline Code S-PQCC-J
No. of Pins 84
Surface Mounted Yes/No YES
SKU 457133
