XC3042-50PC84C

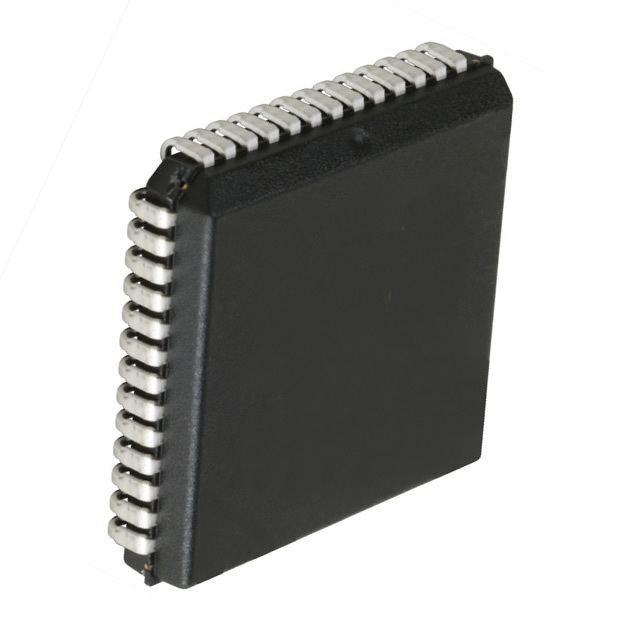

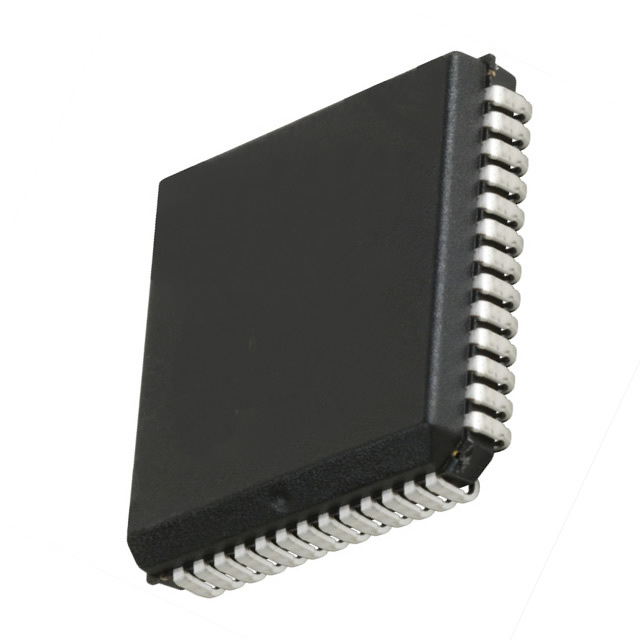

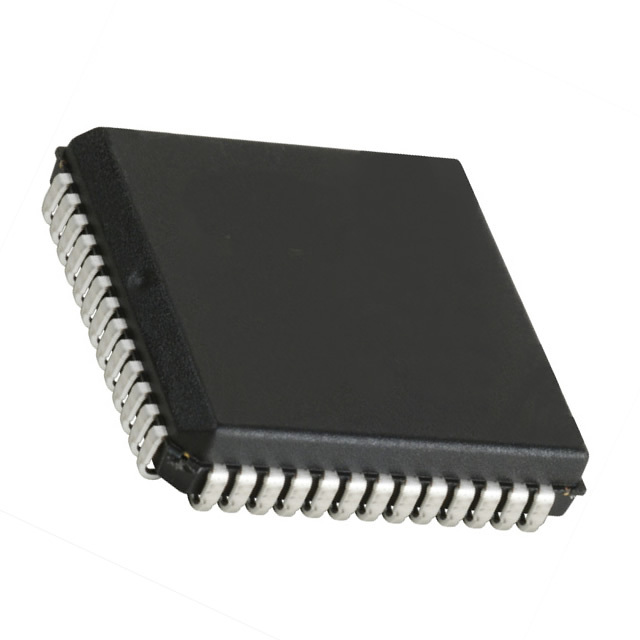

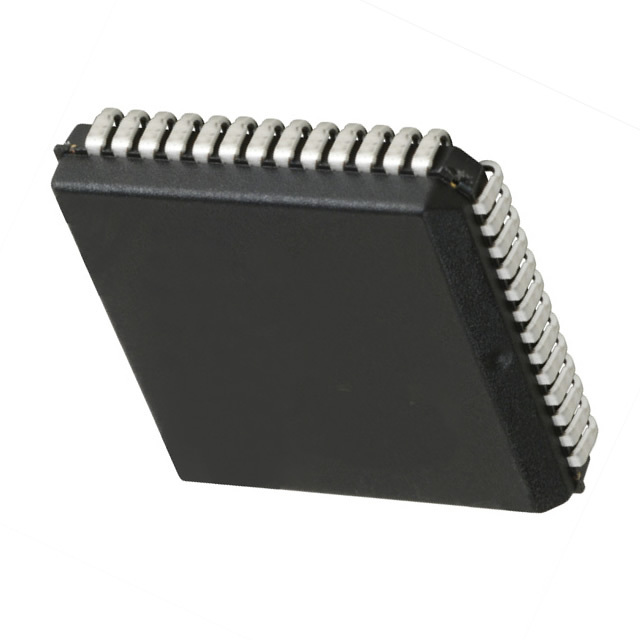

View detailed images (4)

XC3042-50PC84C

SKU: XC3042-50PC84C
XC3042-50PC84C Integrated Circuit CASE: PLCC MAKE: Motorola Semiconductor
Product specifications
Type Integrated Circuit
Case PLCC
Manufacturer Motorola Semiconductor
Toggle Rate 50M
VIH Min. (TTL) 2.0
VIH Min. (CMOS) 3.5
VIL Max. (TTL) 0.8
Inp Curr. Logic 0 1.0
VOH Min. 3.86
VOL Max. .32
Nom. Pos. Supp 5
Quiescent Current Max (CMOS) 500u
Quiescent Current Max (TTL) 10m
Tech. CMOS Integrated Circuit
Package Body Material Plastic
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@Iol (A) 4.0m
@IOH (test) 4.0m
Logic Level Family TTL/CMOS
Vsup (+) Maximum (V) 7.0
Digital Input V Max (V) 7.5
Gate Capacity 4200
Configurable Logic Blocks 144
Number of User I/Os 96
Program Data (Bits) 30784
Pinout Equivalence Number 84-38
JEDEC Std 30 Outline Code S-PQCC-J
No. of Pins 84
Surface Mounted Yes/No YES
SKU 1155993
