XC3130-5PQ100C

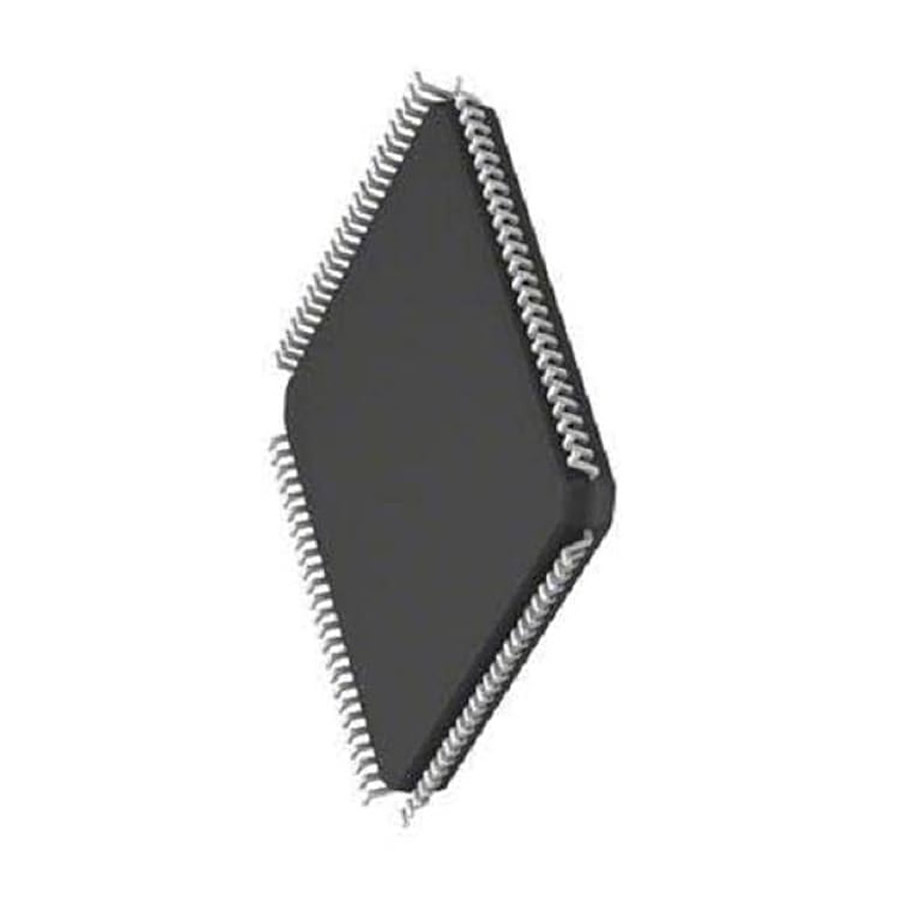

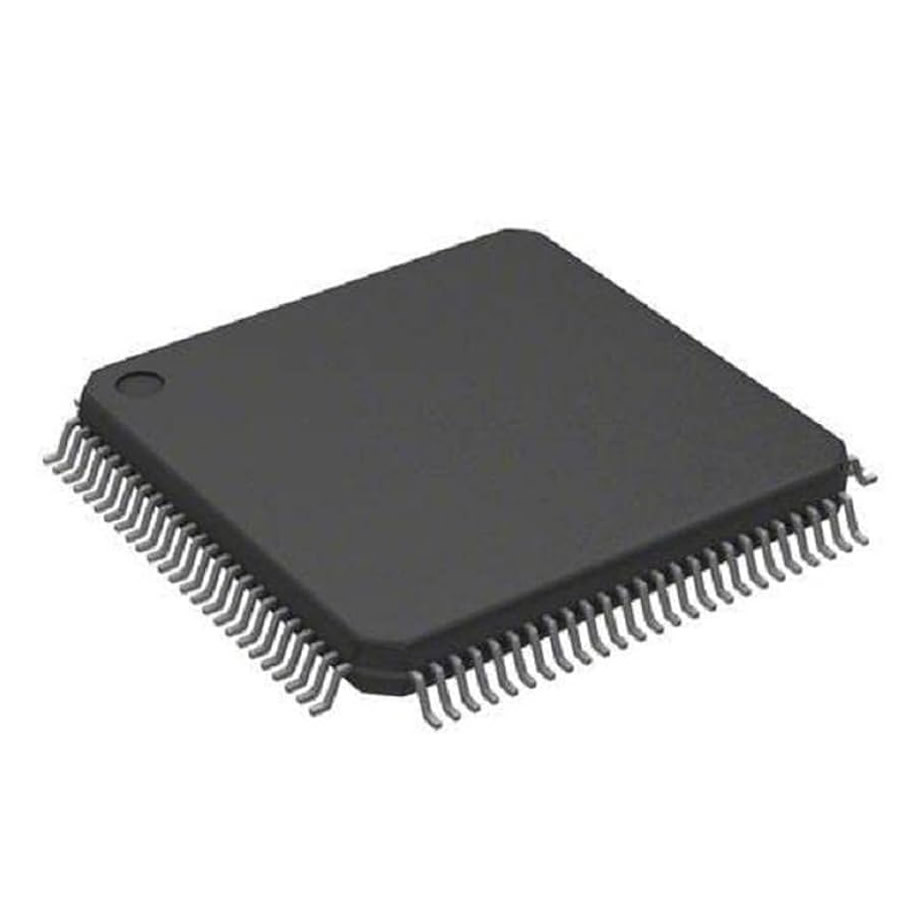

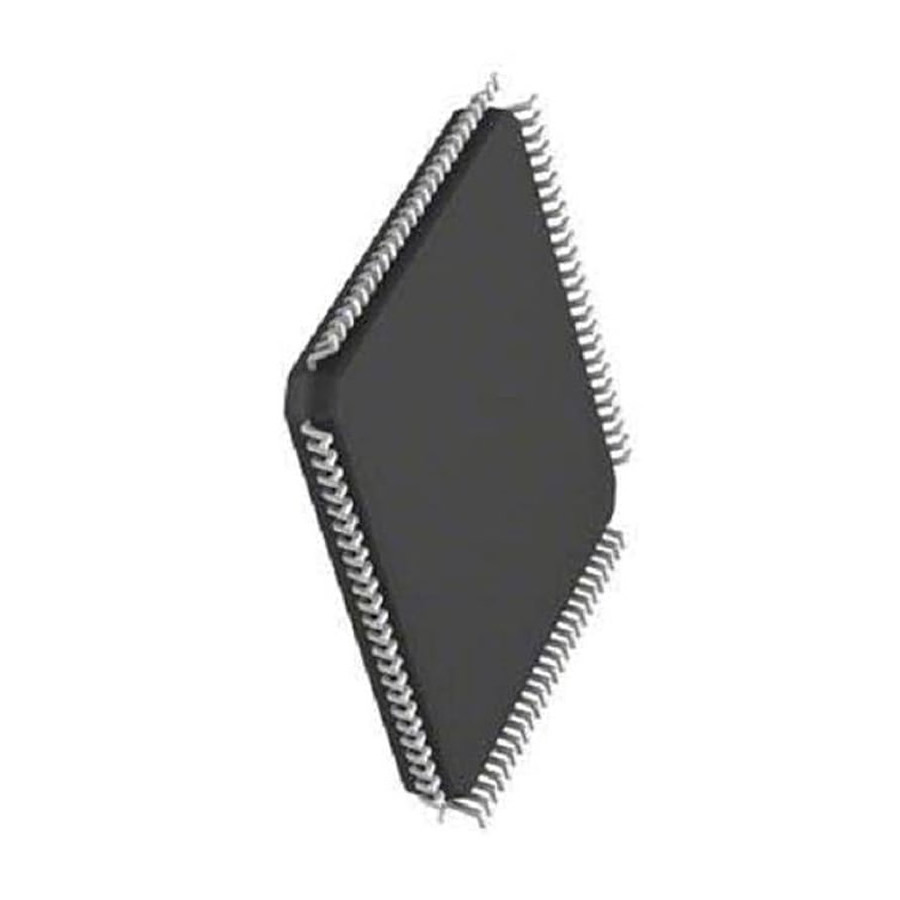

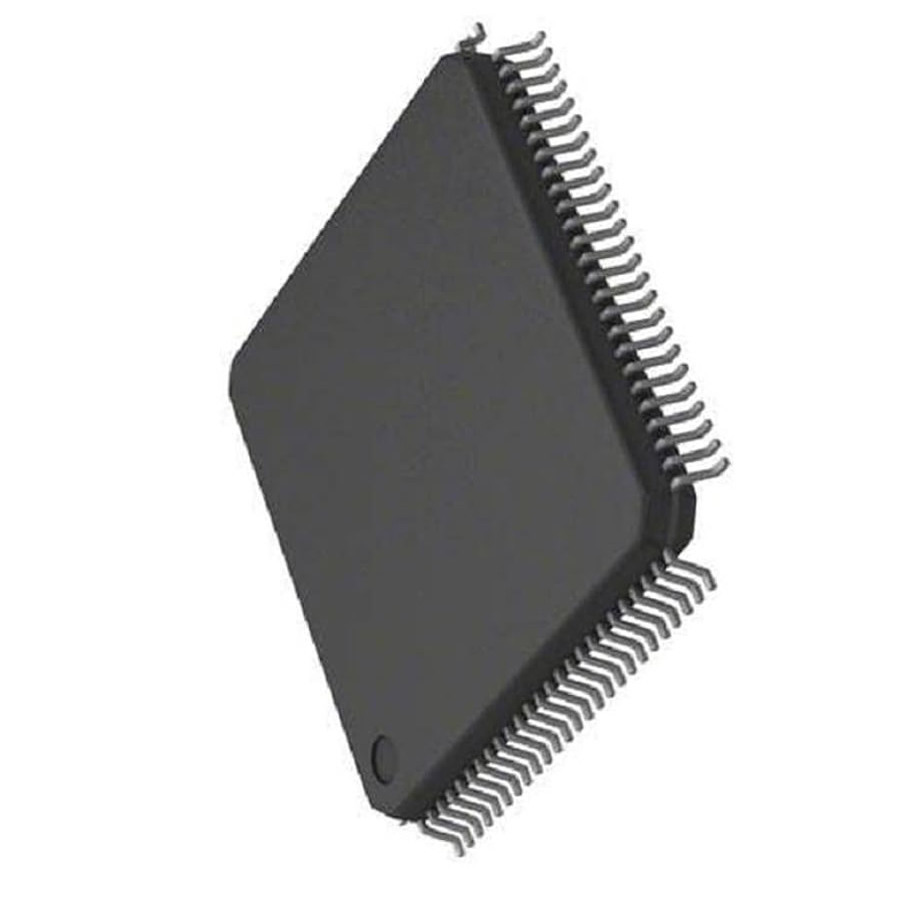

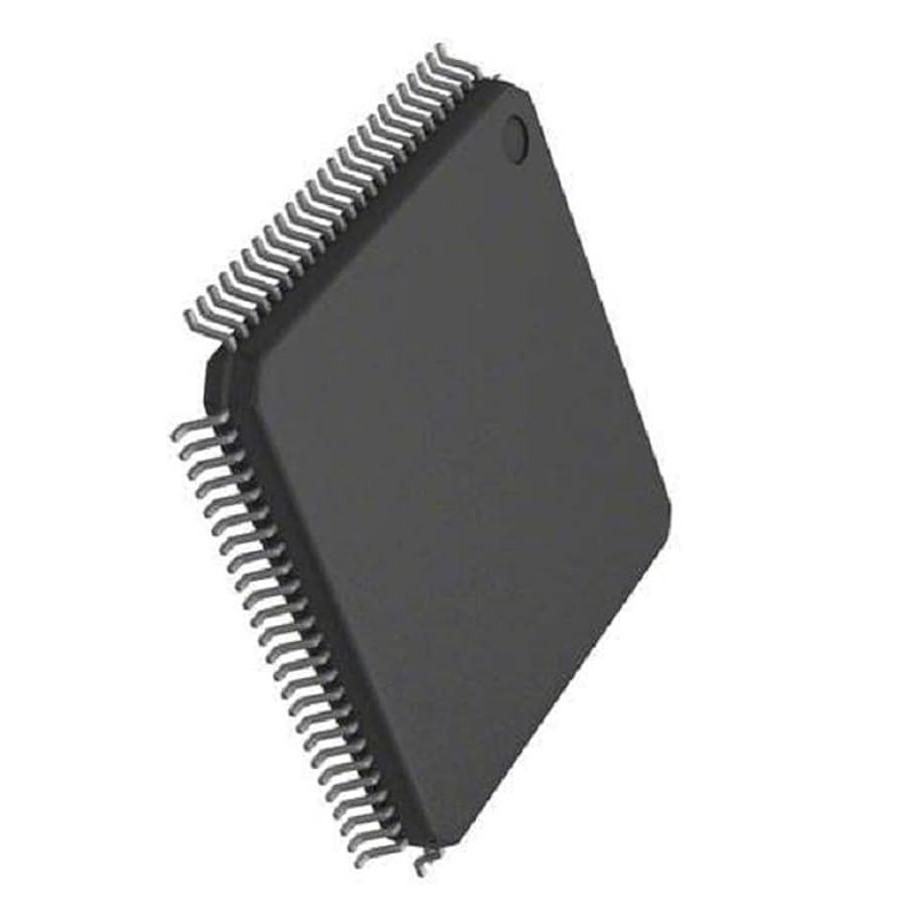

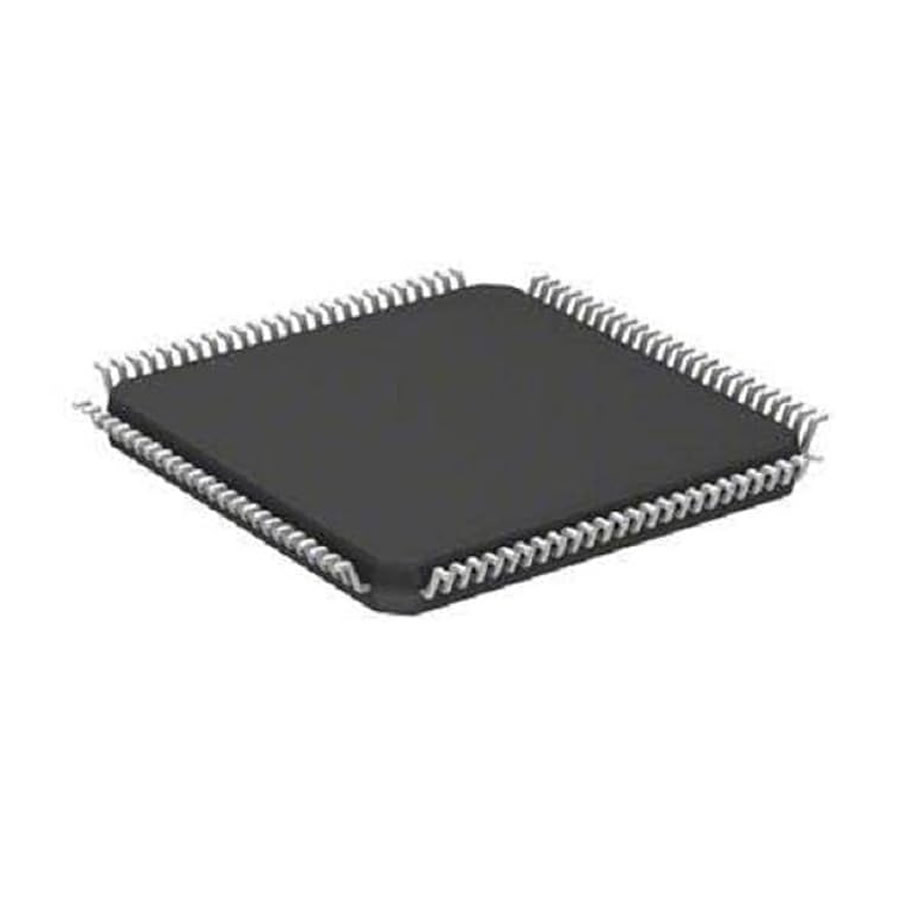

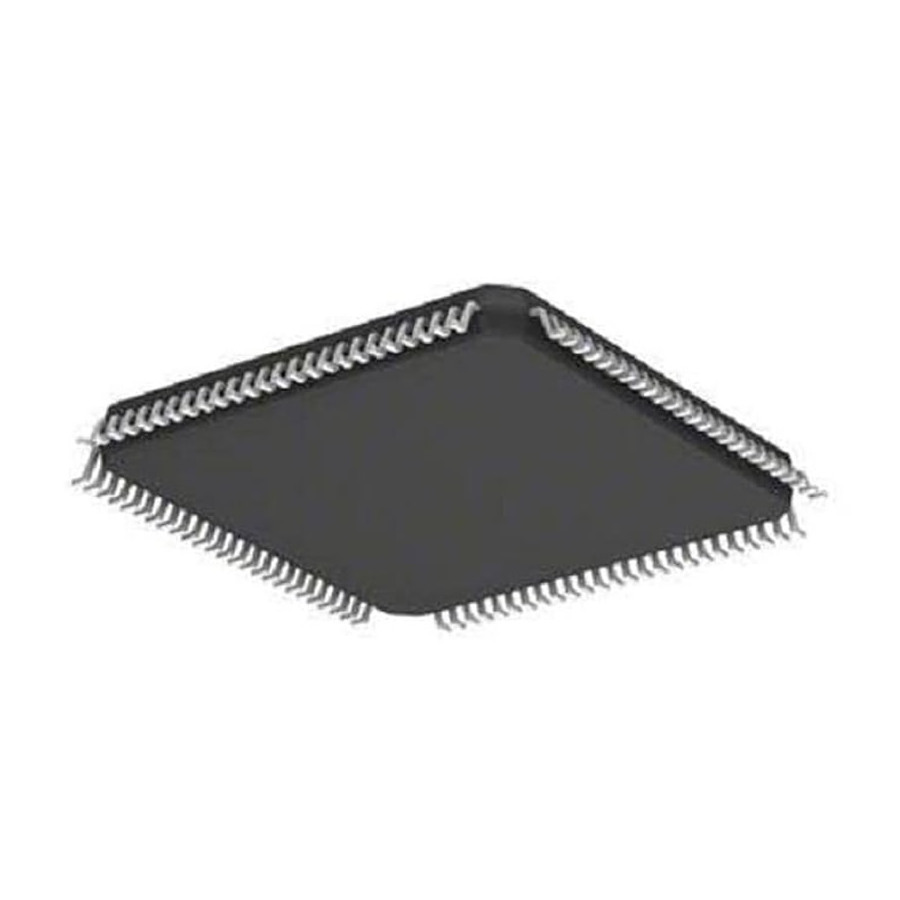

View detailed images (8)

XC3130-5PQ100C

SKU: XC3130-5PQ100C
XC3130-5PQ100C Integrated Circuit - Case: QFP100 Make: Motorola Semiconductor
+ VAT 20% for UK purchases
Product specifications
Type Integrated Circuit
Case QFP100
Manufacturer Motorola Semiconductor
Toggle Rate 160M
VIH Min. (TTL) 2.0
VIH Min. (CMOS) 3.5
VIL Max. (TTL) 0.8
Inp Curr. Logic 0 1.0
VOH Min. 3.86
VOL Max. 0.4
Nom. Pos. Supp 5
Quiescent Current Max (CMOS) 5m
Quiescent Current Max (TTL) 14m
Tech. CMOS Integrated Circuit
Package Body Material Plastic
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@Iol (A) 4.0m
@IOH (test) 4.0m
Logic Level Family TTL/CMOS
Vsup (+) Maximum (V) 7.0
Digital Input V Max (V) 7.5
Gate Capacity 3000
Configurable Logic Blocks 100
Number of User I/Os 80
Program Data (Bits) 22176
Pinout Equivalence Number 100-16
JEDEC Std 30 Outline Code S-PQFP-G
Surface Mounted Yes/No YES
SKU 1155806
